Penkių kanalų stiprintuvas Crunch GPX2000.5

Trumpai apie prekę

Prekė: Penkių kanalų stiprintuvas Crunch GPX2000.5. Kategorija: Stiprintuvai.

• Gamintojas: Crunch
• Modelis: GPX2000.5

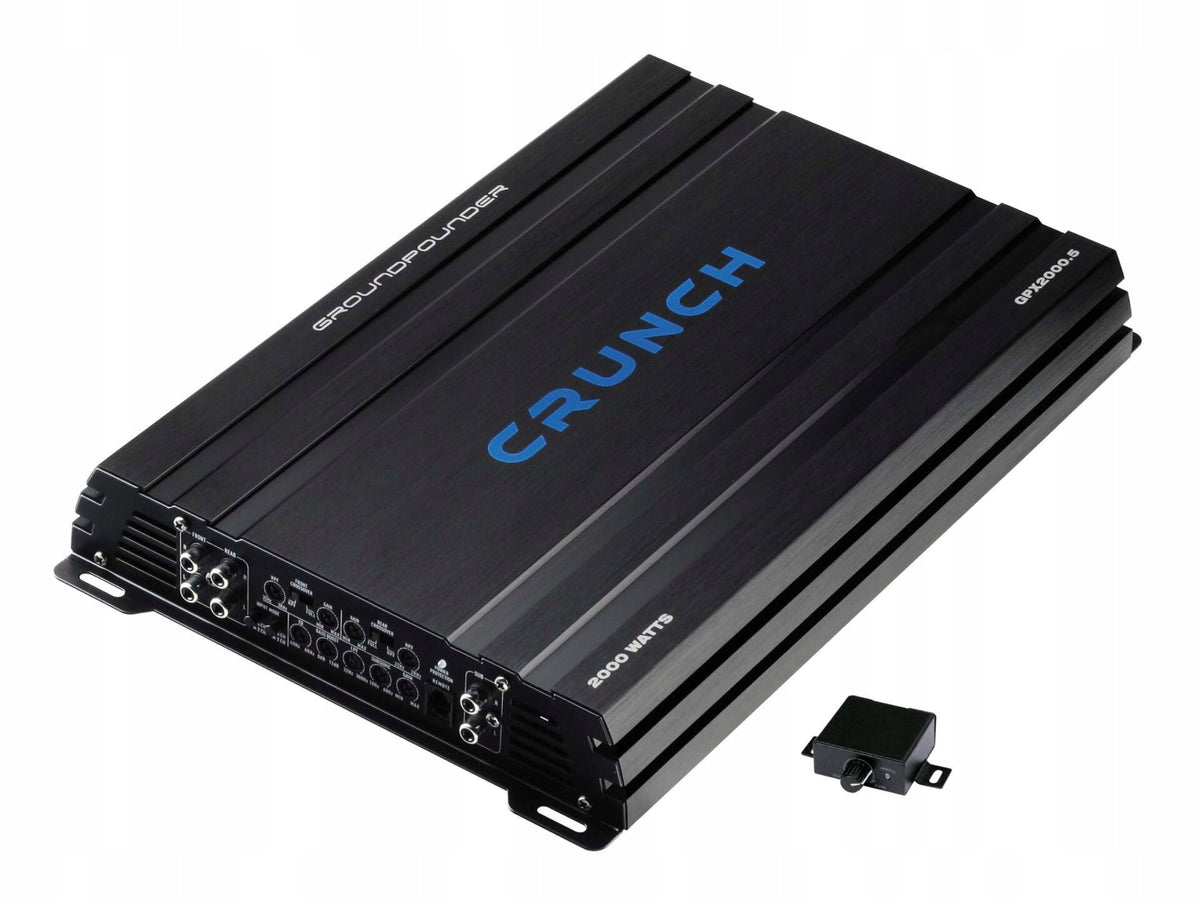

Crunch GPX2000.5 - 5-Channel Amplifier

Crunch

Crunch GPX2000.5 – 5-Channel Amplifier for Speakers and Subwoofer

The Crunch GPX2000.5 allows you to power four speaker channels and a separate subwoofer channel from a single device. It is an ideal solution for powering a front speaker set, rear speakers, and a subwoofer. When selecting your system, please compare the power output for each section individually—the total power of the amplifier is not the power available to a single speaker.

RMS Power and Impedance Speaker channels at 4 Ω 4 × 75 W RMS Speaker channels at 2 Ω 4 × 125 W RMS Subwoofer channel at 4 Ω 1 × 200 W RMS Subwoofer channel at 2 Ω 1 × 350 W RMS Subwoofer channel at 1 Ω 1 × 500 W RMS Minimum impedance for speaker channels 2 Ω Minimum impedance for subwoofer 1 Ω Amplifier Class AB/D (Hybrid) Bass remote included Yes High-level input No Two sections in one housing

The hybrid design combines Class AB for the speaker channels with Class D for the subwoofer channel. Separating these sections allows you to optimize power and settings for different tasks. The subwoofer channel is not a bridge created from the front channels.

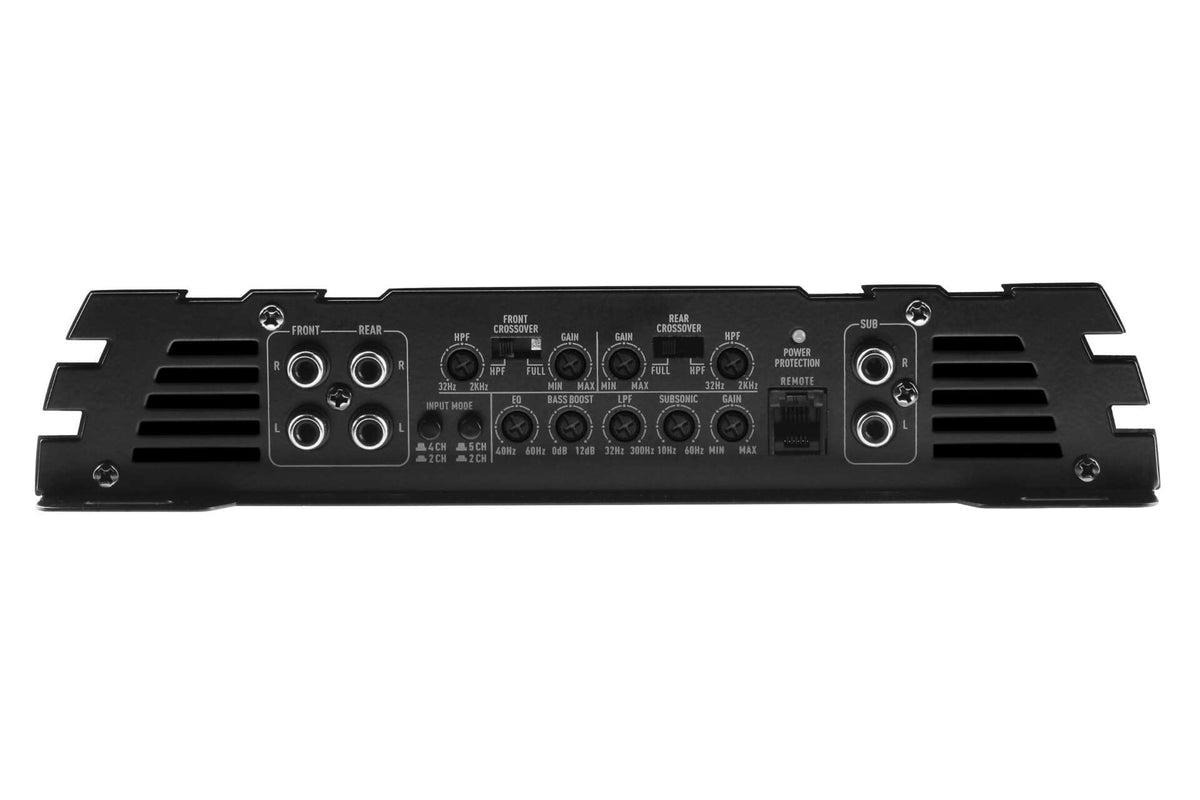

Radio Connection and Bass Control

The audio signal is connected via RCA inputs. If your factory radio does not have RCA line outputs, you will need to purchase a suitable speaker-to-RCA signal converter.

The included wired remote control allows you to adjust the bass level from the driver's seat.

Installation and System Selection

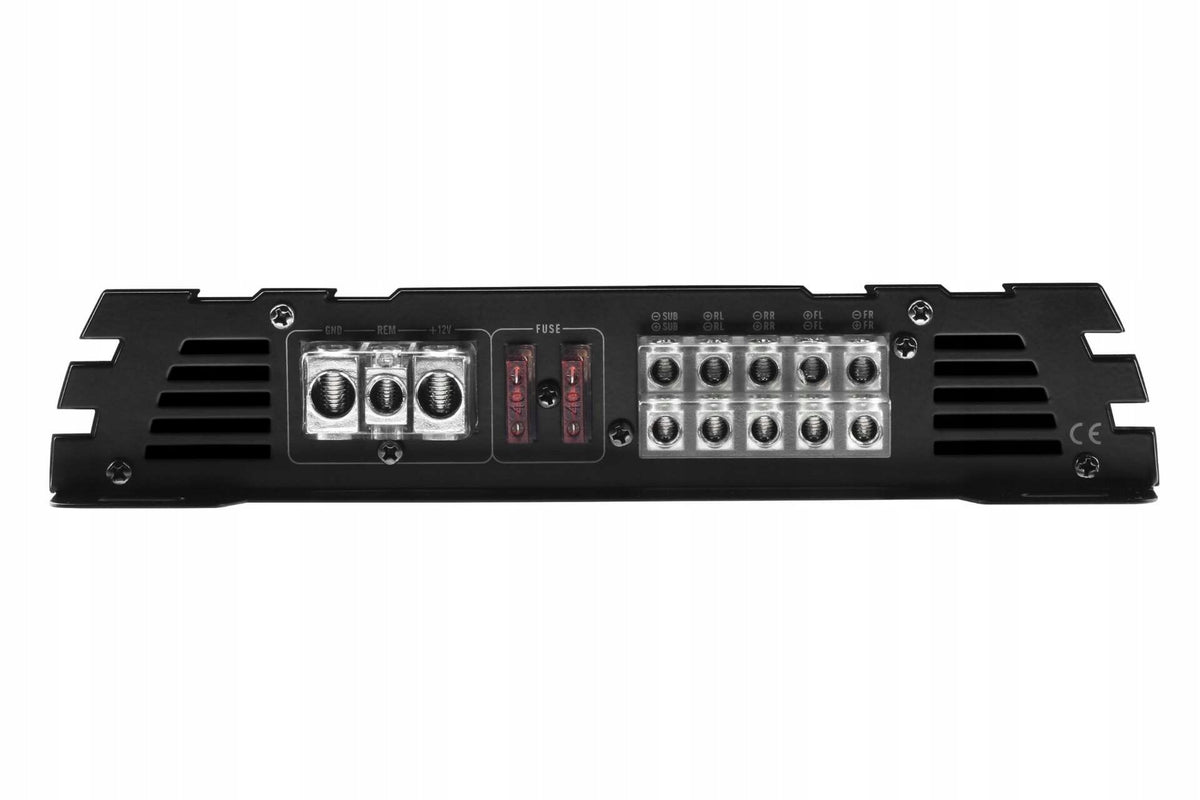

Select power cables, a fuse, and a mounting location appropriate for the amplifier's power consumption and dimensions. Ensure proper ventilation. Set the input sensitivity and filters according to your connected speakers and subwoofer. Always compare RMS power at the same impedance; peak power ratings do not replace continuous (RMS) power ratings.

• Manufacturer: Crunch
• Manufacturer code: Crunch GPX2000.5
• EAN: 4251476402874
• RMS power of channels 1 to 4 at 4 Ω: 75 W
• RMS power of the subwoofer at 4 Ω: 200 W
• RMS power of the subwoofer at 2 Ω: 350 W
• Minimum subwoofer impedance: 1 Ω
• Minimum load impedance: 2 Ω
• Amplifier class: AB/D (hybrid)
• High-level input: No
• Bass regulator included: Yes
• Number of channels: 5
• RMS power of speaker channels at 4 Ω: 4 × 75 W
• RMS power of speaker channels at 2 Ω: 4 × 125 W
• RMS power of subwoofer channel at 4 Ω: 1 × 200 W
• RMS power of subwoofer channel at 2 Ω: 1 × 350 W
• RMS power of subwoofer channel at 1 Ω: 1 × 500 W

Crunch GPX2000.5 – 5-channel amplifier, class AB/D (hybrid). At 4 Ω: 4 × 75 W RMS for speakers + 1 × 200 W RMS for subwoofer. At 2 Ω: 4 × 125 W + 1 × 350 W RMS. Minimum impedance of speaker channels: 2 Ω; subwoofer channel: 1 Ω. Subwoofer channel at 1 Ω: 500 W RMS. Bass regulator included.

Specifications
