Perforatorius SDS+ 2600W, 4 J, HAMMER, su priedų rinkiniu

Trumpai apie prekę

Prekė: Perforatorius SDS+ 2600W, 4 J, HAMMER, su priedų rinkiniu. Kategorija: Perforatoriai.

• Gamintojas: no brand
• Modelis: 5908130044299
• Įtampa: 230 V

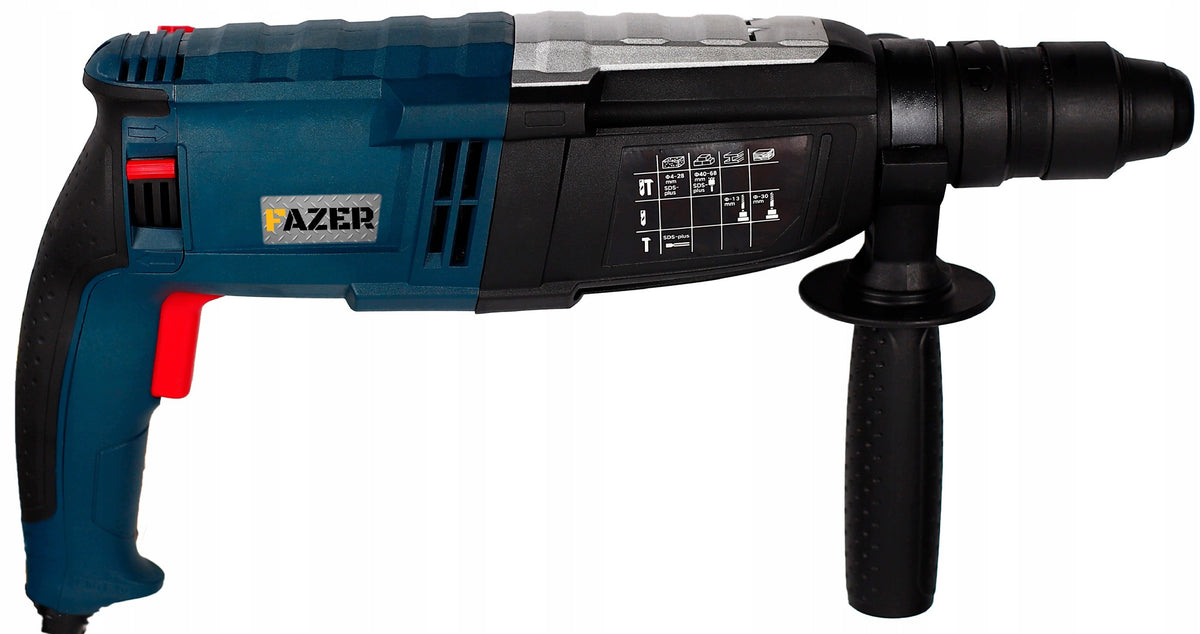

🔨 Hammer drill FAZER FZ-RH-2800

The FAZER FZ-RH-2800 hammer drill is a network power tool designed for drilling, impact drilling, forging and chisel positioning. Maximum power of 2800 W, impact energy of 4,8 J and handle SDS Plus allow you to perform a variety of renovation, assembly and construction works.

The model has 4 working functions, smooth rotation adjustment, change of rotation direction and a system of interchangeable heads. The set also includes a transport case, drills, chisels and additional equipment.

📋 Technical data

• Brand: FAZER
• Model: FZ-RH-2800
• Power supply: network
• Voltage: 230 V / 50 Hz
• Maximum power: 2800 W
• Single stroke energy: 4,8 J
• Rotation speed: 0–1200 rpm /min
• Maximum stroke frequency: 4000 strokes/min
• Mount Type: SDS Plus
• Number of functions: 4
• Rotation adjustment: yes
• Right-left rotation: yes
• Rotation lock: yes
• Cable length: about 220 cm
• Weight of the device: about 3,15 kg

🎯 The most important advantages

• Maximum power 2800 W – designed for renovation and construction works.
• Stress energy 4,8 J – supports drilling and forging of hard materials.
• Pneumatic impact – allows you to work in concrete, brick and stone.
• 4 functions of the device – allow you to adjust the way of work to the material being processed.
• SDS Plus holder – provides quick replacement of SDS+ drills and chisels.
• Replaceable self-clamping head – allows the use of standard drills for wood and metal.
• Smooth speed control – the speed depends on the degree of pressing of the switch.
• Right-left rotation – facilitates the withdrawal of the drill and assembly work.
• Auxiliary grip 360° – allows you to adjust the grip position to the task at hand.
• Case with metal fasteners – makes it easy to store and transport the set.

⚙ Four functions of work

1. 🧱 Drilling with stroke

Mode designed to make holes in concrete, brick, blocks and stone. The rotation of the drill works with pneumatic impact, making it easier to work in hard building materials.

2. 🪵 Drilling without impact

Mode for drilling in wood, metal and plastics. After installing the self-clamping head, standard cylindrical drill bits can be used.

3. 🔨 Forging without rotation

In this setting, the impact mechanism itself works, without turning the working tool. The mode can be used, among others, to:

• tile-making,
• removal of plaster,
• forging mortar,
• making small furrows,
• light demolition work.

📐 Maximum drilling diameters

• Concrete: up to 27 mm
• Wood: up to 31 mm
• Metal: up to 13 mm

The actual drilling performance depends on the type of material used, the drill used and the correct setting of the device.

💥 Pneumatic stroke 4,8 J

The pneumatic mechanism generates a single stroke energy of 4,8 J. Thanks to this, the operator does not have to exert as much pressure on the device as in the case of a traditional impact drill.

The hammer drill can be used to make mounting holes, forging ceramic cladding and removing plaster and mortar fragments.

🔧 Two types of handles

SDS Plus holder

The SDS+ attachment is designed for drills, pointers and chisels with a suitable shank. It allows for efficient replacement of equipment without the use of an additional key.

It works primarily during:

• drilling with impact,
• forging,
• forging,
• making furrows.

Self-clamping head

The included replaceable self-clamping head allows you to mount standard drill bits for wood, metal and plastic.

The head replacement system allows you to customize one device for different types of work without using a long SDS+ adapter.

🎚 Smooth rotation adjustment

The rotation speed is adjustable by the degree of pressing of the switch. Gentle pressing starts the device at a lower speed, while stronger increases the speed to a maximum of 1200 rpm /min.

The adjustment makes it easy to:

• commencement of drilling at the designated point,
• adjusting the speed to the material,
• reducing the risk of shifting the drill,
• controlling work with standard drills.

↔ Right-left rotation

Changing the direction of rotation makes it easier to withdraw the drill from the hole. The function can also be used during selected assembly works after using the appropriate tip and self-clamping head.

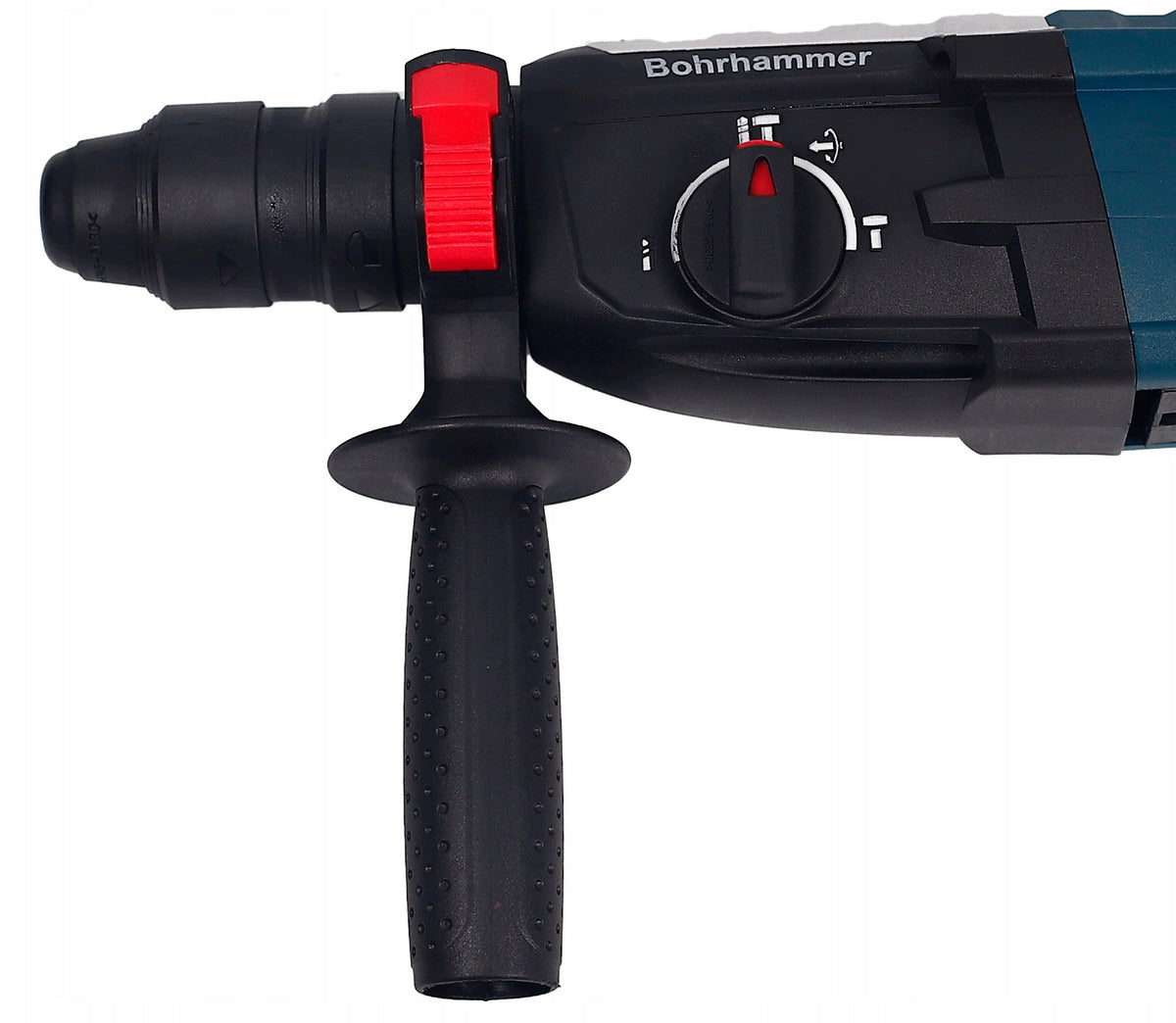

✋ Auxiliary handle 360°

The adjustable additional handle can be positioned conveniently around the body of the device. It provides the possibility of stable driving of the hammer drill with both hands during drilling and forging.

The metal depth gauge allows you to control the depth of the hole.

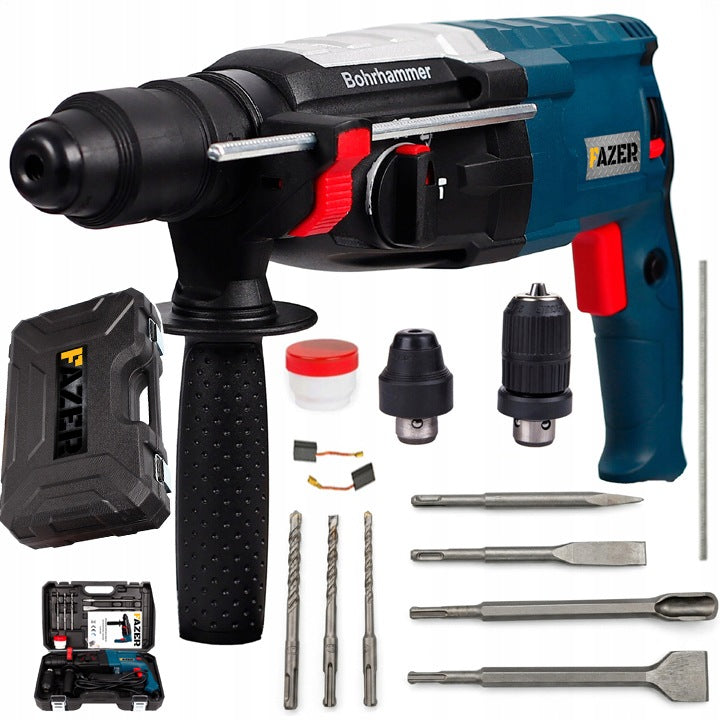

🧰 Contents of the set

• hammer drill FAZER FZ-RH-2800,
• SDS Plus head mounted in the device,
• replaceable self-clamping head,
• SDS+ drill bits in sizes 6, 8 and 10 mm,
• SDS+ cutter,
• SDS+,
• wide SDS+,
• SDS+ fibrillar,
• adjustable auxiliary handle 360°,
• metal depth gauge,
• 2 spare carbon brushes,
• grease for the head,
• instruction manual in Polish,
• transport case with metal fasteners.

🧱 Application

The hammer drill can be used during:

• drilling holes in concrete, brick and stone,
• installation of pins, handles and structural elements,
• forging ceramic tiles,
• removal of old plaster and mortar,
• making small installation furrows,
• drilling in wood, metal and plastics,
• renovation, installation and finishing works.

💼 Transport case

The included case allows you to store your hammer drill and equipment in one place.

The regular shape makes it easy to store the set on the rack, in the workshop or in the car.

🛡 Safe use

Before starting work, check the correct attachment of the head and working tool. When drilling and forging, it is recommended to use:

• protective glasses,
• hearing protectors,
• work gloves,
• dust mask,
• full work shoes.

Before changing the head, drill or chisel, the device should be turned off and disconnected from the power. Do not change the operating mode when the mechanism rotates.

👥 Who is the product for

• Repair and construction teams looking for reliable and multifunctional equipment for everyday tasks.
• DIYers and homeowners carrying out independent finishing and modernization works.
• People who need a strong tool for difficult materials at a reasonable price.

❓ Frequently Asked Questions

What functions does the hammer drill have?

The device offers drilling with impact, drilling without impact, forging and setting the chisel position.

Can standard drills be used?

Yes. The set includes a replaceable self-clamping head designed for standard cylindrical drill bits.

Does the device have a rotation adjustment?

Yes. The speed is adjusted by the degree of pressing of the switch.

Does the hammer drill allow forging without turning the chisel?

Yes. In forging mode, the mechanism performs an impact movement without turning the working tool.

Can the chisel angle be set?

Yes. A separate function allows you to set the chisel position before locking it in forging mode.

Is the suitcase included?

Yes. Hammer drill and accessories are supplied in a transport case with metal fasteners.

📌 Summary

The FAZER FZ-RH-2800 combines a maximum power of 2800 W, a stroke energy of 4,8 J, four working functions and two interchangeable handles. The kit includes equipment for drilling, forging, and performing typical renovation and construction work, as well as a suitcase for easy transport and storage.

Specifications
