Pirštinis pulsoksimetras kraujo prisotinimui matuoti

Trumpai apie prekę

Prekė: Pirštinis pulsoksimetras kraujo prisotinimui matuoti. Kategorija: Pulso ir deguonies matuokliai.

• Gamintojas: no brand
• Modelis: OXP01-EU-PL
• Spalva: white

Pulse oximeter is a medical electronic device that is used to non-invasively measure the level of oxygenation of arterial blood, or oxygenation of the body. Indicates saturation level (SpO2). Saturation determines the degree of saturation of arterial blood with SpO2 oxygen. Its normal level in a healthy person should be from 95 to 99%. The device uses measurement of radiation absorption by tissues of two different wavelengths by pulse oximetry.

• Dedicated to the measurement of SpO2 and PR in both adults and children from 4 years of age.
• Comes with a convenient cord to put on your wrist
• Oxygenation measurement accuracy (SPO2) ranging from 70% to 100% is 2%
• Pulse measurement accuracy 2BPM or 2% (which is greater) at 1BPM resolution
• Pulse oximeter ideal for homes, hospitals, schools, physical examination centers and home use.
• The device is compact and lightweight, has a clear TFT color display

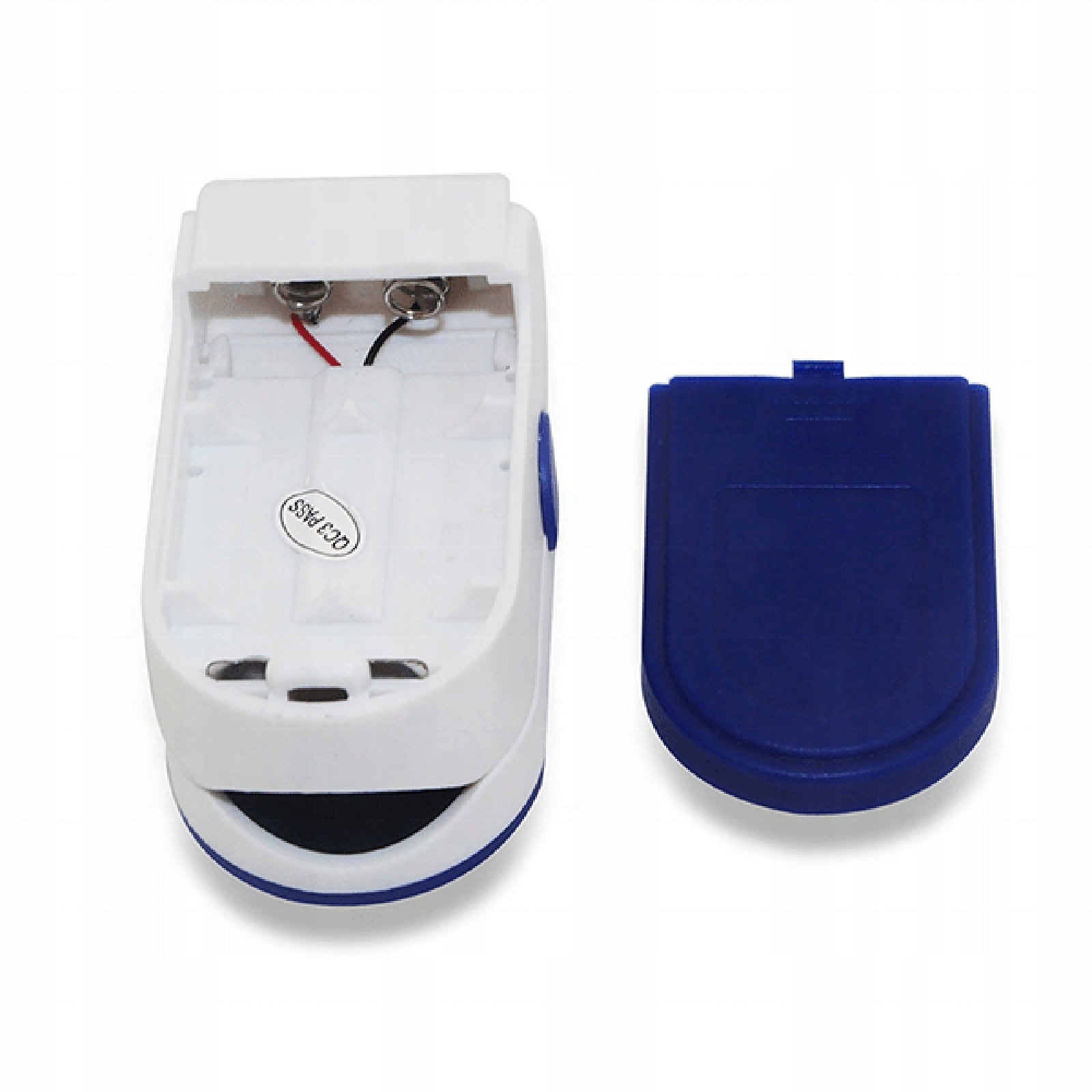

• Powered by 2pcs AAA batteries (not included)
• Note - only works on AAA batteries. Does not work on AAA rechargeable batteries.

Product Description

How does a finger pulse oximeter work?

• The device uses measurement of radiation absorption by tissues of two different wavelengths by pulse oximetry. Blood oxygen saturation (saturation) is marked with the symbol SpO2 and expressed as a percentage. The normal saturation value in healthy people is 93-99%.

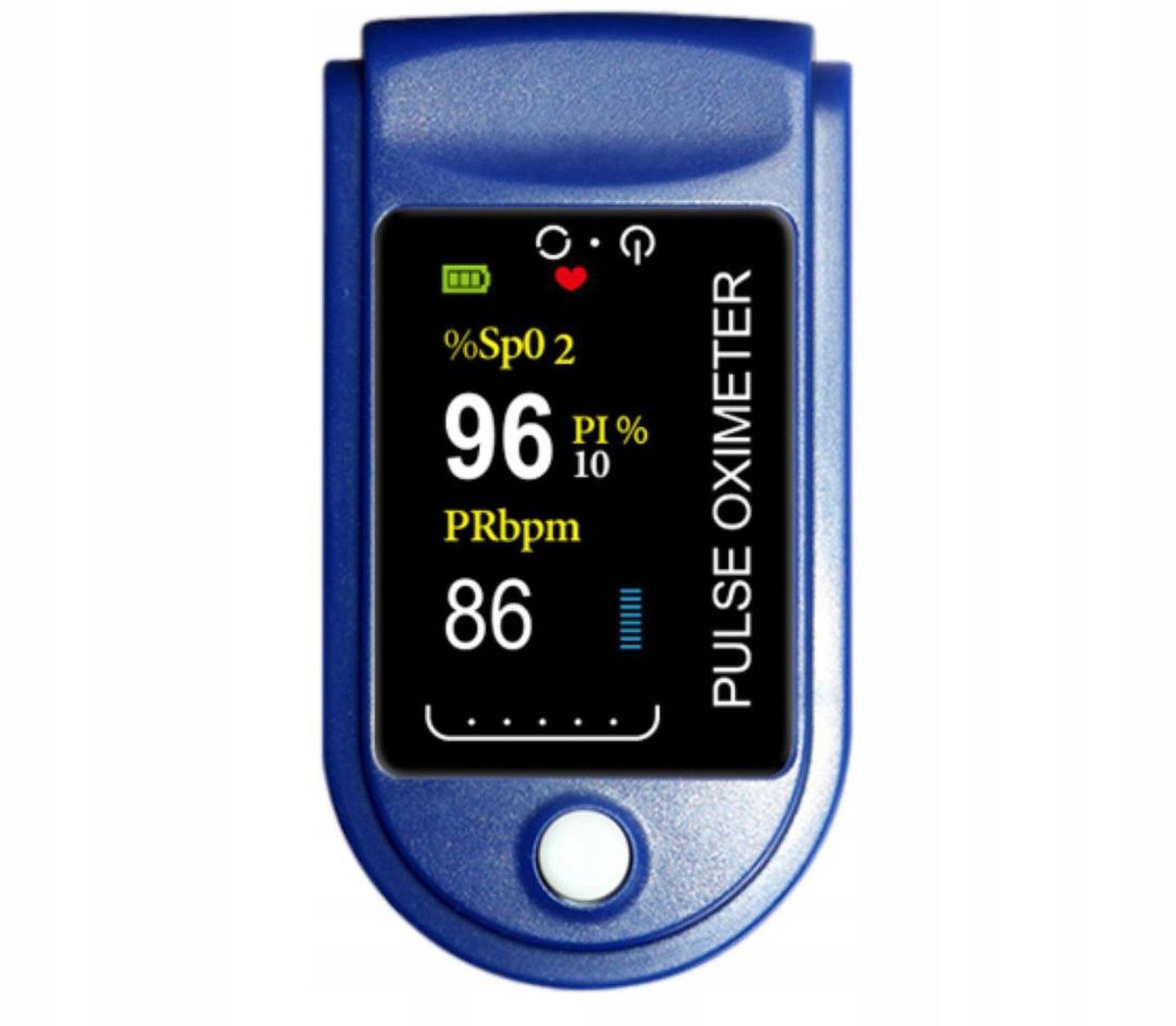

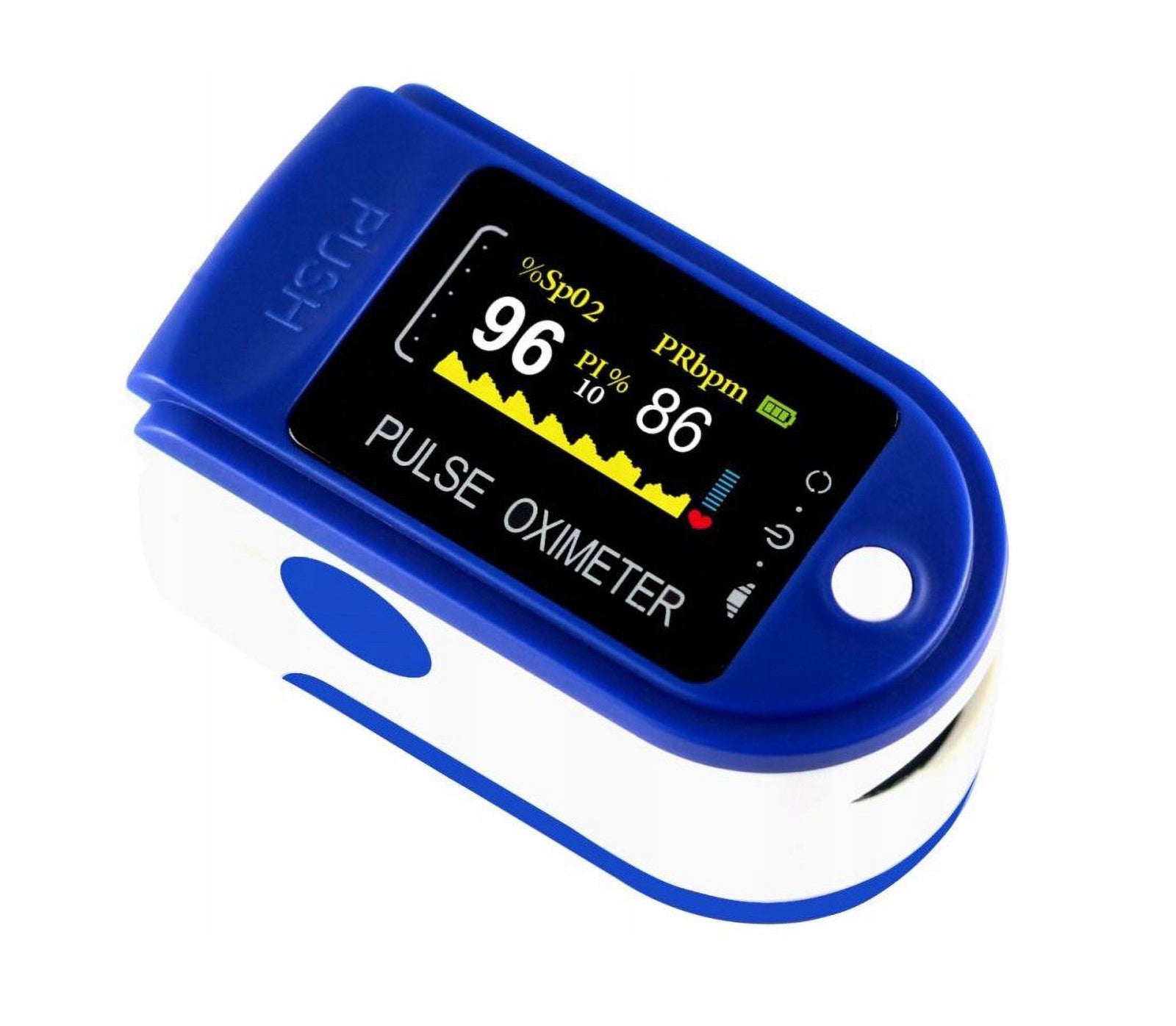

• The pulse oximeter has a clear TFT display with different brightness levels, plethysmographic wave presentation and is characterized by solidity of execution. It is very easy to use. The clear, large color display used here contributes to comfortable work. It all does that. that it is very easy to use.
• This means that red blood cells are measured in the capillaries of radiation from the transmitter. Based on the measurement, using sensors and algorithms, the pulse oximeter calculates the percentage concentration of oxygen saturation of hemoglobin.
• The test result is expressed as a percentage. It represents the amount of hemoglobin saturated with oxygen. For example, the SpO2 97% result means that 97% of hemoglobin carries oxygen to the tissues of the subject at the time of the test.
• The pulse oximeter works by measuring the absorption of radiation by red blood cells in the capillaries of two different wavelengths: red and infrared. The measured signal consists of two components: constant and variable (pulsing). This component describes the absorbance of pulsating arterial blood. The measurement is non-invasive (it is done through the skin) and painless.

Ability to measure heart rate

The offered pulse oximeter has the ability to measure heart rate. Heart rate (heart rate) is indicated by the symbol PRbpm and expressed in the number of beats per minute. The correct heart rate range of a healthy person is within 60-90 beats/minute.

Specification:

• Blood oxygenation measurement range 35% - 100% (resolution 1%)
• Oxygenation measurement accuracy in the range of 70% - 100% is 2%
• Oxygenation measurement accuracy in the range below 70% brak data
• Pulse measurement range 30 - 250 BPM (1BPM resolution)
• 2BPM pulse measurement accuracy
• Accuracy of pulse measurement 1%
• Two measuring diodes - red 660nm, infrared 880nm
• 3V power supply with 2 AAA 1.5V batteries (brak batteries included)
• Easy-to-read TFT color display
• Battery Level Indicator
• Automatic shutdown after 8 seconds of inactivity
• Current consumption < 25mA

Notes on use

• Designed for adults and children over 4. year of life (body weight greater than 15kg and finger thickness minimum 1 centimeter)
• High measurement accuracy even in strong lighting conditions - measurement deviation below 1%

Technical specification

• Dominant color: White
• Power Consumption: Under 30 mA
• Manufacturer: OEM
• Product Type: Pulsoximeter
• Display Type: OLED SpO2,
• Dimensions: 57x32x33 mm
• Measurement range: 0-100 %
• Power supply: 2xAAA 1,5V
• Product code: OXP01-EU-PL
• Catalog number: OXP01-EU-PL
