Aprašymas
Trumpai apie prekę

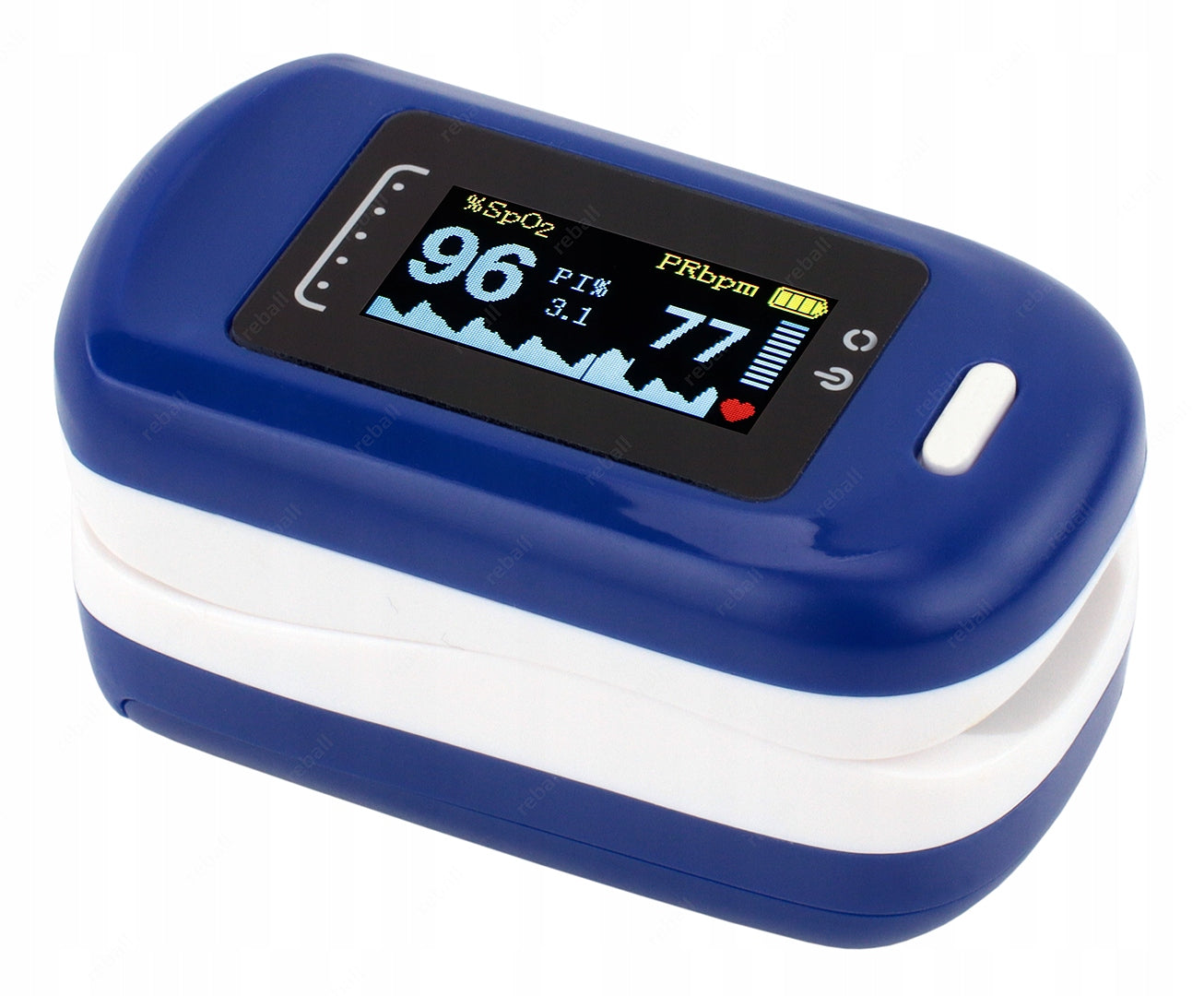

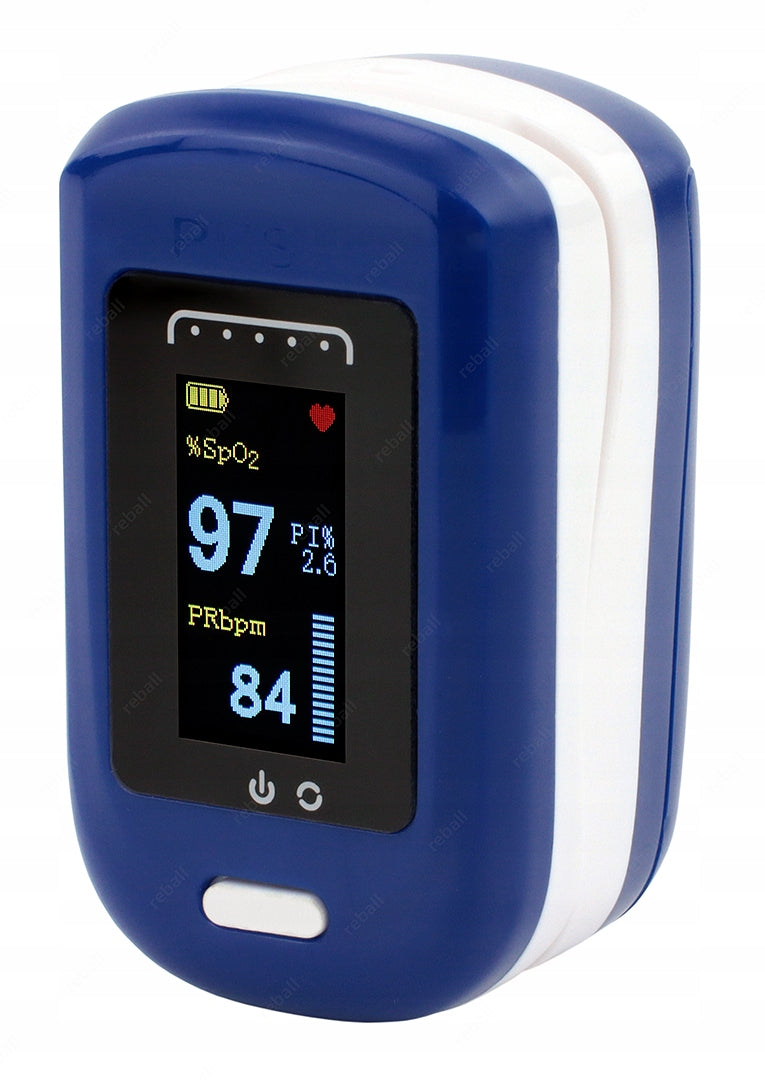

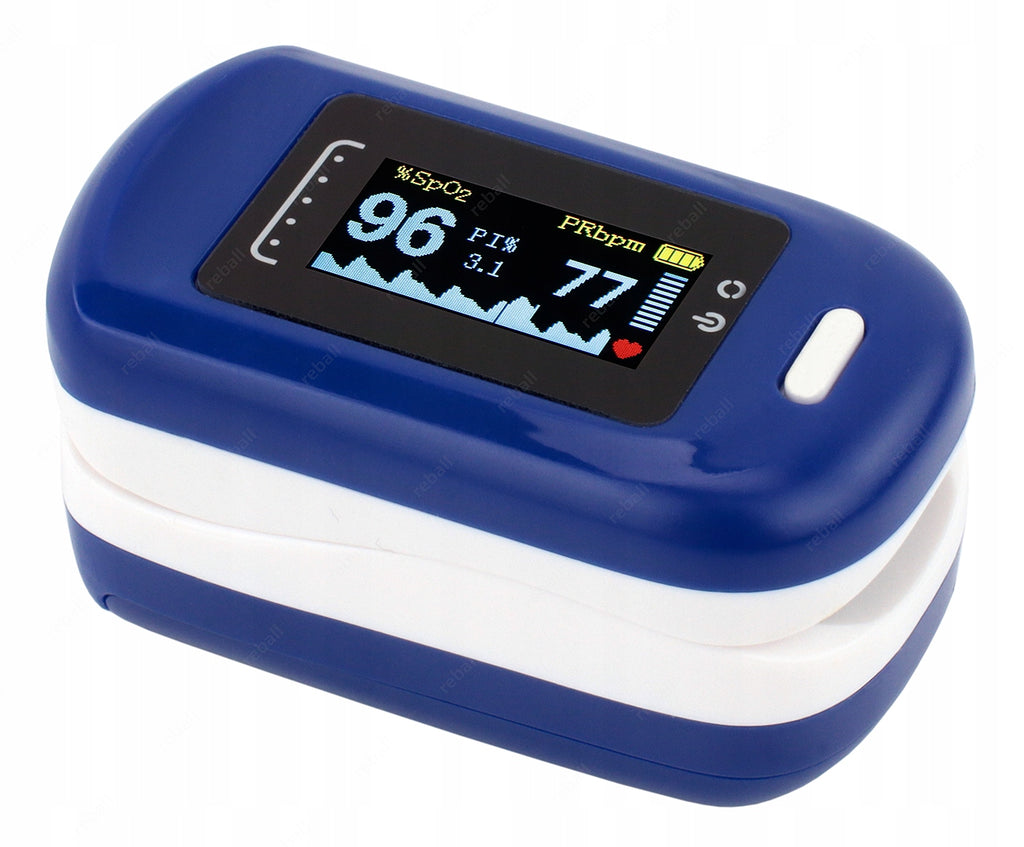

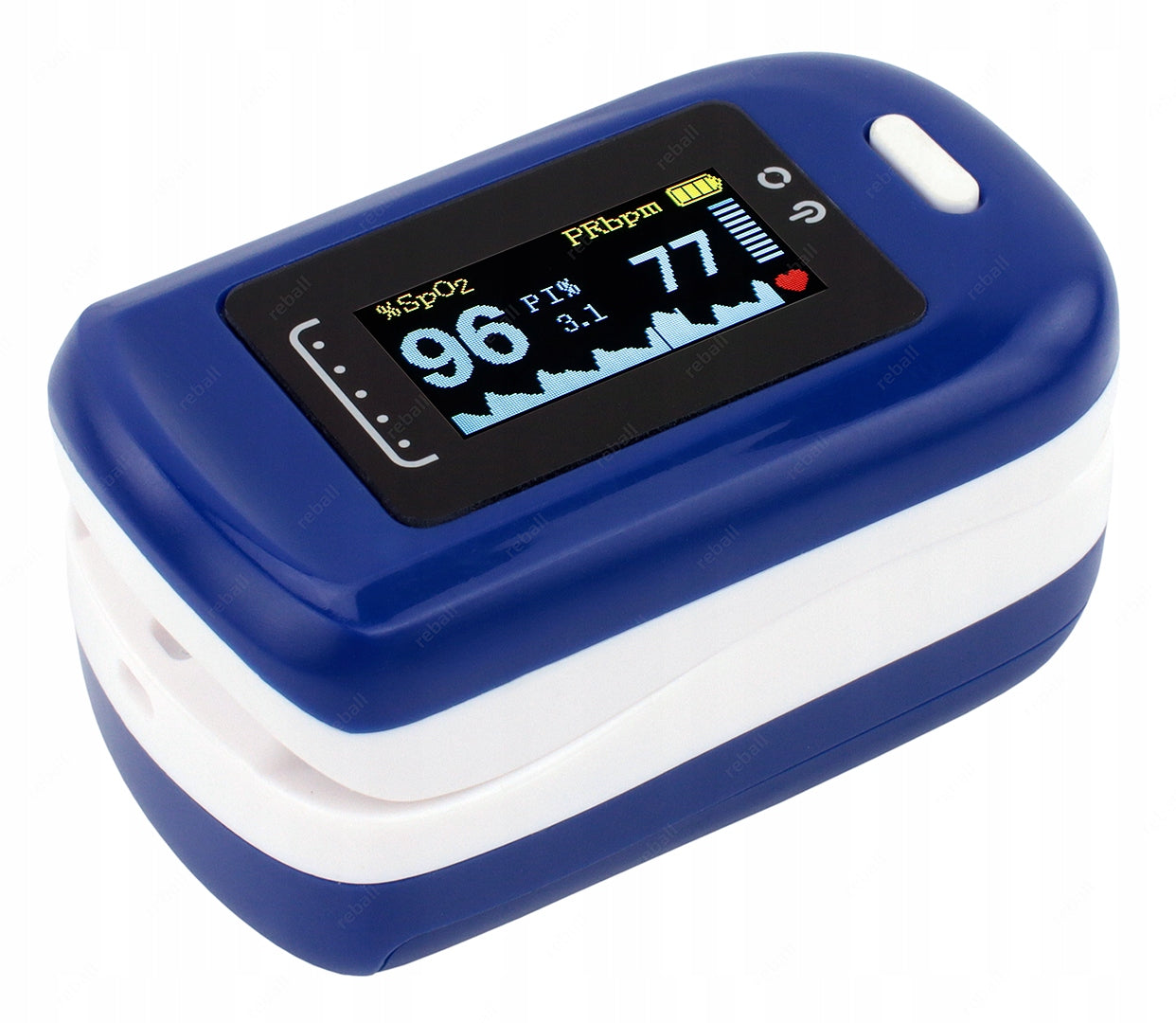

Prekė: Piršto pulsoksimetras su širdies ritmo matuokliu DS101N. Kategorija: Impulsų ir deguonies kraujyje matuokliai.
- Gamintojas: Pulse Oximeter
- Modelis: DS101
- Spalva: white
APO0000028
MODEL WITH MULTICOLOR LCD SCREEN
High-quality finger pulse oximeter is designed to measure:
- blood oxygen saturation [SpO2]
- pulse [PRbpm]
- perfusion index [PI]
- wave of the so-called course PLETH wave
- graphic illustration of heartbeats.
The measurement is non-invasive, it can be used in adults and children. The pulse oximeter is characterized by reliability of execution and accuracy of measurement.
The results are displayed on the LCD display. The image is clear and colorful, can be displayed in four directions, horizontally and vertically. Thanks to this, the operation of the device is intuitive and convenient.
Just press one button to get the result of measuring vital functions.
Features of the device:
- small, lightweight device
- non-invasiveness measurement
- ease of use
- measurement speed approx. 10 s
- colour display LCD
- four directions of display mode
- automatic shutdown of the device in the absence of work
- Convenience at home or on the go
- power supply: 2 AAA batteries (not included)
The device after applying to the finger and pressing the appropriate button after a few seconds on the LCD display indicates the saturation level expressed as a percentage of SpO2, PRbpm heart rate, bar waveform, so-called PLETH wave, perfusion index and graphical indication of heartbeats.
SPO2 is a saturation symbol, meaning oxygen saturation of arterial hemoglobin.
Normal values in healthy people are within the range of 93% to 99%. Measurement accuracy is ± 2% in the range of 70% ~ 99%
Heart rate, or heart rate, is indicated by the symbol PRBpm, which is expressed in the number of heartbeats per minute. The range of 60 to 90 beats per minute is the correct range for a healthy person.
The PI perfusion index is an indicator of pulse strength at the place where the pulse oximeter sensor is installed.
Specification:
Saturation SPO2
- SPO2 measurement range: from 70% to 99%
- Accuracy: ±2% in the range of 70% ~ 99%
- resolution: 1%
Prbpm heart rate
- Measurement range: 30BPM ~ 240BPM
- Accuracy: ±1BPM or ±1%
- resolution: 1%
PI perfusion index
- Perfusion measurement range: 1% - 23% (resolution 1%)
Other parameters:
- power supply: 2x AAA 1.5V battery (not included)
- Power consumption: less than 30 mA
- automatic shutdown: yes
- display: so color LCD
- battery level indicator: yes
The pulse oximeter is designed for people:
- with difficulty breathing
- with asthma
- with cardiovascular problems (with arrhythmia or tachycardia)
- with anaemia
- physically active, exercisers
- wanting to monitor vital signs
- in case of emergency hypoxia of the body
Construction of the device:
- Spring clip
- Large LCD Display
- Indication of saturation SP02
- Indication of PI perfusion index
- Charge icon for installed batteries
- RPbpm heart rate indication
- Control button (switch, display direction switch)
- The waveform of the bar, the so-called. PLETH wave
- Graphical indication of heartbeats
- Placement of finger to measure
The direction of the displayed image can be changed with the only button that is on the housing after starting the device
Instructions for use:
- Slide out the bottom cover of the device and be able to 2 AAA batteries according to the signs on the case
- Extend the clip by pressing the PUSH button
- Slide your finger into the pulse oximeter
- Turn on the device by pressing the button on the top case
- Read the measurement obtained
You will get the result in about 10 seconds. Simplicity and convenience of use!
Contents of the set:
- DS101 pulse oximeter (without battery)
- leash
- original instruction in English
- box packaging
You need service or soldering accessories - check out our other listings.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Product weight with unit packaging | 0.01 kg |
| Parametry | Medical device | no |
| Parametry | Brand | Pulse Oximeter |
| Parametry | Model | DS101 |
| Parametry | Saturation measurement range | 70–100% |
| Parametry | Heart rate measurement range | 30–250 BPM |
| Parametry | Color | white |
| Parametry | Product width | 3 cm |
| Parametry | Product height | 3 cm |
| Parametry | Product depth | 6 cm |
| Parametry | Product weight | 0.03 kg |
| Parametry | Power supply | batteries |
| Parametry | EAN (GTIN) | 5903815902567 |
| Parametry | Manufacturer code | APO0000022 |
| Parametry | Batteries included | no |
| Parametry | Functions | visual alarm,automatic shutdown,battery level indicator,heart rate graph |
