Piršto pulsoksimetras VITAMMY Esaturino, OLED ekranas

Trumpai apie prekę

Prekė: Piršto pulsoksimetras VITAMMY Esaturino, OLED ekranas. Kategorija: Pulso ir deguonies matuokliai.

• Gamintojas: VITAMMY
• Modelis: ESATURINO
• Spalva: black

A non-invasive reusable device that quickly and accurately measures hemoglobin oxygen saturation (SpO2) and heart rate (PR). It works on the principle of spectrophotometry, using two wavelengths of light passed through capillary vessels in the fingertip.

It is equipped with a two-tone OLED screen with the possibility of changing orientation. It has an automatic on and off function, and intuitive operation makes it extremely easy to use.

The motion tolerance algorithm ensures reliable results even with minimal hand movement. In addition, the power supply of one battery, the level of which can be monitored thanks to the consumption indicator, allows you to maintain a small weight of the device.

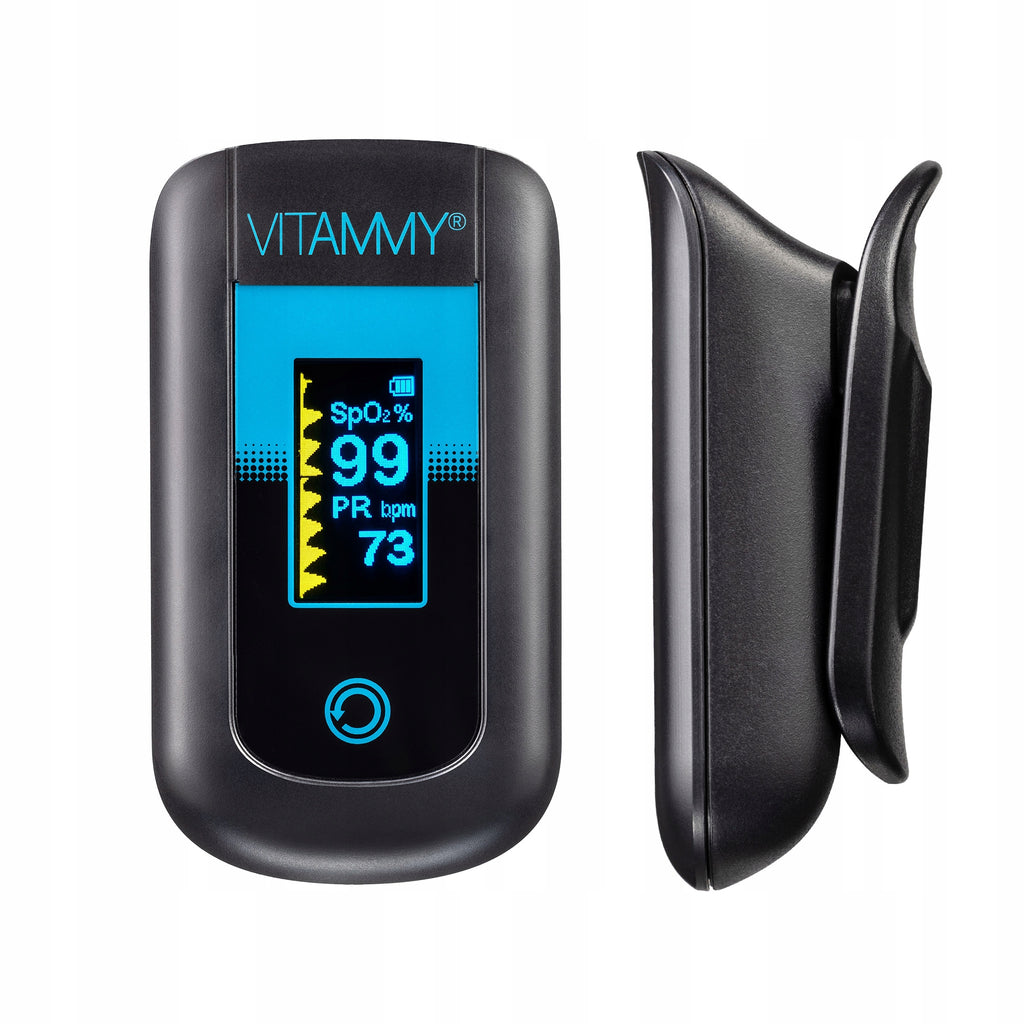

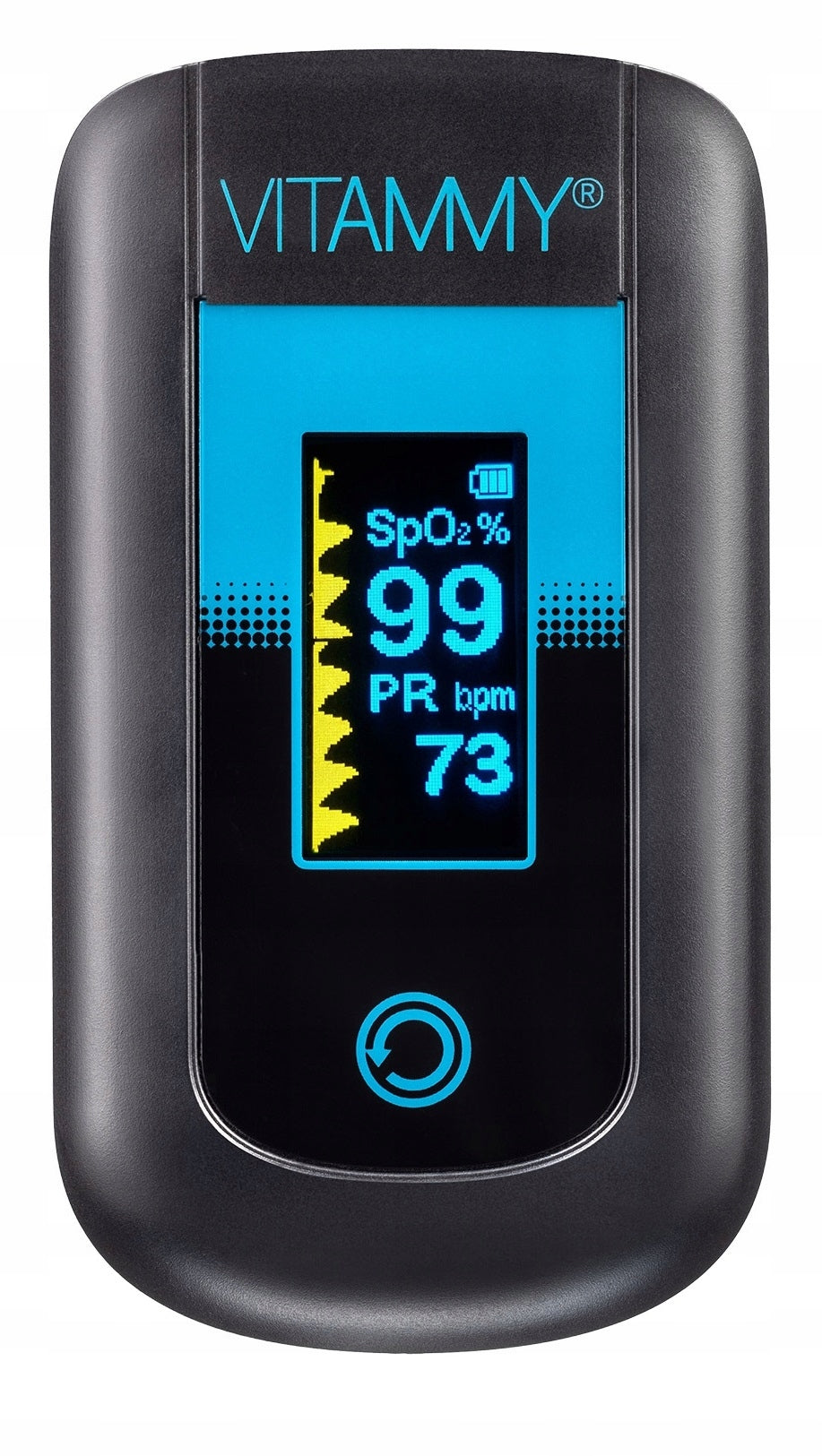

Construction of Vitammy eSaturino

1. SPO2 value
2. Heart rate value
3. Heart rate wave indicator
4. Heart Rate Column Indicator
5. Battery consumption indicator
6. Screen Orientation Change Button

Traffic tolerance algorithm

In traditional pulse oximeters, movement can reduce measurement accuracy. The eSaturino pulse oximeter is equipped with a motion tolerance algorithm that reduces the risk of measurement errors caused by hand movement during the test.

Two-color OLED screen

The two-color OLED screen provides a clear and easy-to-read reading of the results, even for those with reduced visual acuity and in dimly lit rooms. Thanks to energy-saving OLED technology, the device can work longer than models equipped with traditional LED displays.

Change the orientation of the screen

The device offers four display directions that can be easily changed with the touch of a button. This solution facilitates convenient reading of results in any position, also by the patient’s caregiver.

Simple operation

The measurement is carried out automatically, without the need for a button, you only need to slide your finger into the hole with the sensor. The only button on the device is used only to change the orientation of the screen, which makes the operation of the pulse oximeter simple and intuitive.

Powered by one battery

The pulse oximeter is powered by one AAA battery, which provides convenience, low operating cost and light weight of the device.

Battery consumption indicator

On the eSaturino display there is an icon showing the battery level. Thanks to this, you can monitor the status of the battery on an ongoing basis and prepare for its replacement in advance.

Automatic on and off

The eSaturino pulse oximeter turns on automatically when you insert your finger into the reader, and after 8 seconds of removing it, it turns off itself. The user does not have to remember to manually turn off, which extends the battery life.

Quality and safety

The device has obtained CE 2797 certification from the notifying body BSI Group The Netherlands B.V. This means that the product complies with European Union regulations and meets safety and quality requirements.

Composition of the set:

1. Pulse oximeter
2. Instructions for use
3. AAA Alkaline Battery
4. Lanyard

Technical data:

• The saturation measurement range is 0 to 100% SpO2

• Heart rate measurement range is 30 to 250 bpm

• Saturation measurement resolution is 1%

• Heart rate measurement resolution is 1 bpm

• The accuracy of saturation measurement in the range of 70 to 100% is ±2%

• Heart rate measurement accuracy is ±2 bpm or ±2%

• Power supply is 1 AAA 1,5 V battery

• The dimensions of the device are 68 × 37,8 × 27,7 mm

• The weight of the device is about 25 g without batteries
