Pirštų pulsoksimetras PC-60A

Trumpai apie prekę

Prekė: Pirštų pulsoksimetras PC-60A. Kategorija: Pulso ir deguonies matuokliai.

• Gamintojas: Creative
• Modelis: PC60A
• Spalva: black

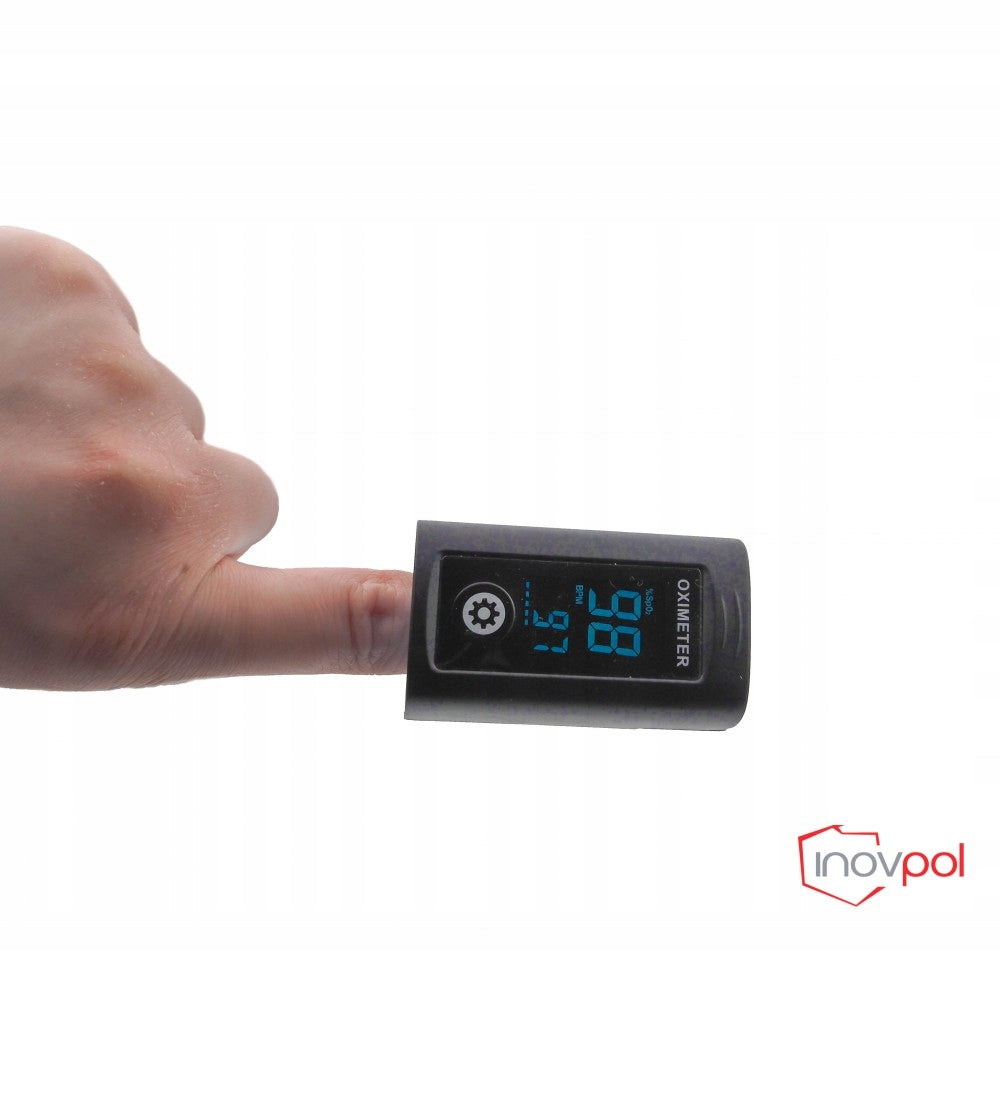

The finger pulse oximeter is designed

for measuring heart rate and functional saturation

oxygen (SpO2) through the patient's finger. Applicable

for random control of SpO2 and patients' heart rate

adults and children at home and in medical clinics.

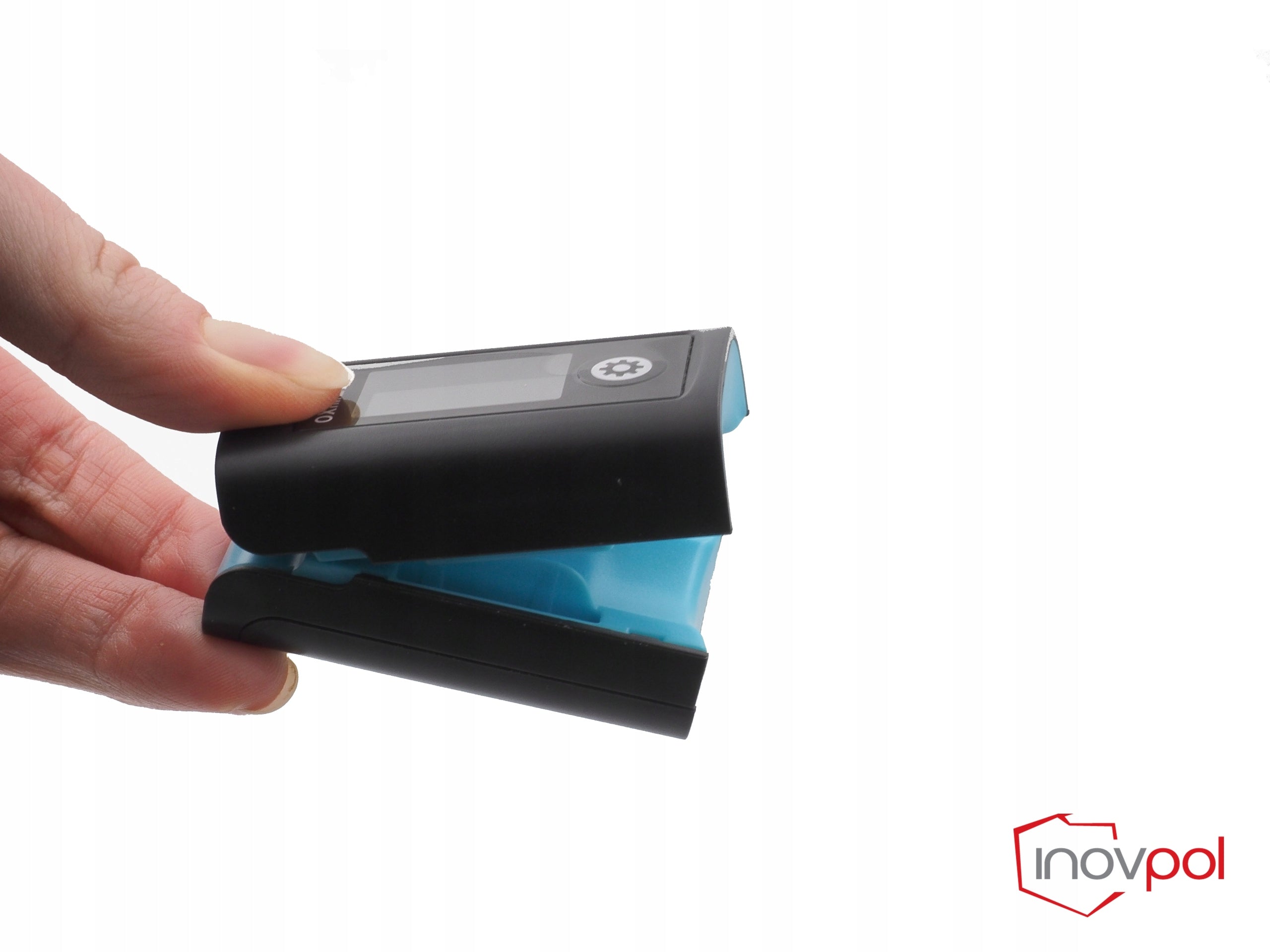

The PC-60A certified pulse oximeter is distinguished by an innovative design that protects the device against the effects of accidental dropping, falling from a height, dropping, hitting other objects.

In addition, the device is resistant to splashes and spills, which makes it extremely versatile.

It provides resistance to interference in situations where ordinary pulse oximeters may not give reliable readings - in unfavorable conditions, in motion, in dynamic situations, sudden. It has a system that eliminates the impact of movement on the Move-Oxy measurement result.

It provides correct readings in people with trembling hands, in seniors, in people practicing sports, during exercise - does not require maintaining complete stillness during measurement.

The PC-60A pulse oximeter is a certified reliability. As a Class IIa medical device, it has the CE Certificate (Certificate of Compliance with Directive 93/42/EEC) issued by an authorized notified body EU: TUV SUD PRODUCT SERVICE GMBH RIDLERSTR 65, D-80339 MUNCHEN, GERMANY. In addition, the device was approved before the FDA.

The certificate of conformity confirms that the device meets the requirements set out in a number of restrictive standards related to the reliability of measurement, device quality, safety (including electrical), marking, risk. e.t.c.

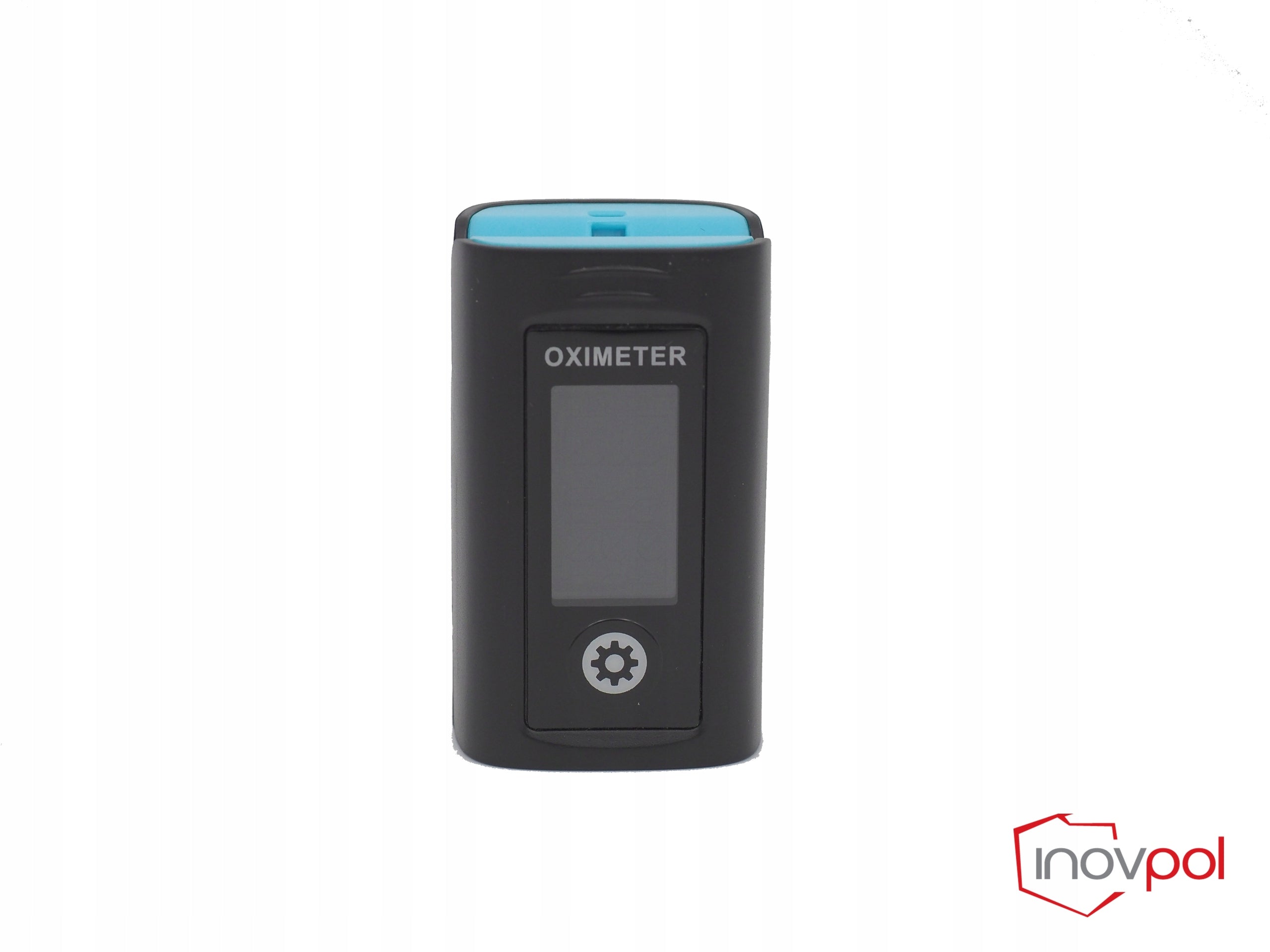

Medical pulse oximeter PC-60A is equipped with an innovative negative screen (white characters on a black background) with very high contrast. Thanks to this, the displayed signs are extremely clear and legible, which greatly facilitates everyday use. The pulse oximeter offers 2 ergonomic display modes: “from the user” and “to the user”. This corresponds to the most common scenario of using the device: self-measurement, assisted measurement, bent finger measurement and straight finger measurement.

THE SET INCLUDES:

• pulse oximeter
• Hanging leash
• 2 AAA batteries
• Storage case
• User manual for the device

outer carton packaging

• Measurement of SpO2, PR (perfusion grade) with pulse rod
• Special splash and fall resistant design
• Indication of low battery level
• 2-way display with perfusion index
• Automatic power on/off
• 2 AAA alkaline batteries

SPECIFICATION:

SpO2

• Dual wavelength transducer LED sensor
• Measuring range 35%~100%
• Measurement accuracy ≤ 2% from 70% to 100%

Pulse:

• Measuring range 30bpm ~ 240bpm
• Measurement accuracy ±2bpm or ±2% depending on which of these values is greater

Perfusion index (PI)

Display Range 0%~20%

Default alarm limit:

• Low limit SpO2 90%
• Heart rate: High limit: 120bpm, Low limit: 50bpm

Power supply:

• 2 x AAA alkaline battery
• Supply Voltage: 3.0V DC
• Operating Current: ≤40mA

M1/R10/K588/AE6154

56 mm × 34 mm × 30 mm

Energy consumption:

52g

Specifications
