Plastikinis korpusas OPU-3 P, tinka valdymo pultui, 18Ah akumuliatoriui, transformatoriui ir plėtikliams SATEL

Trumpai apie prekę

Prekė: Plastikinis korpusas OPU-3 P, tinka valdymo pultui, 18Ah akumuliatoriui, transformatoriui ir plėtikliams SATEL. Kategorija: Išoriniai moduliai.

• Gamintojas: Satel
• Modelis: OPU-3 P obudowa plastikowa - SATEL

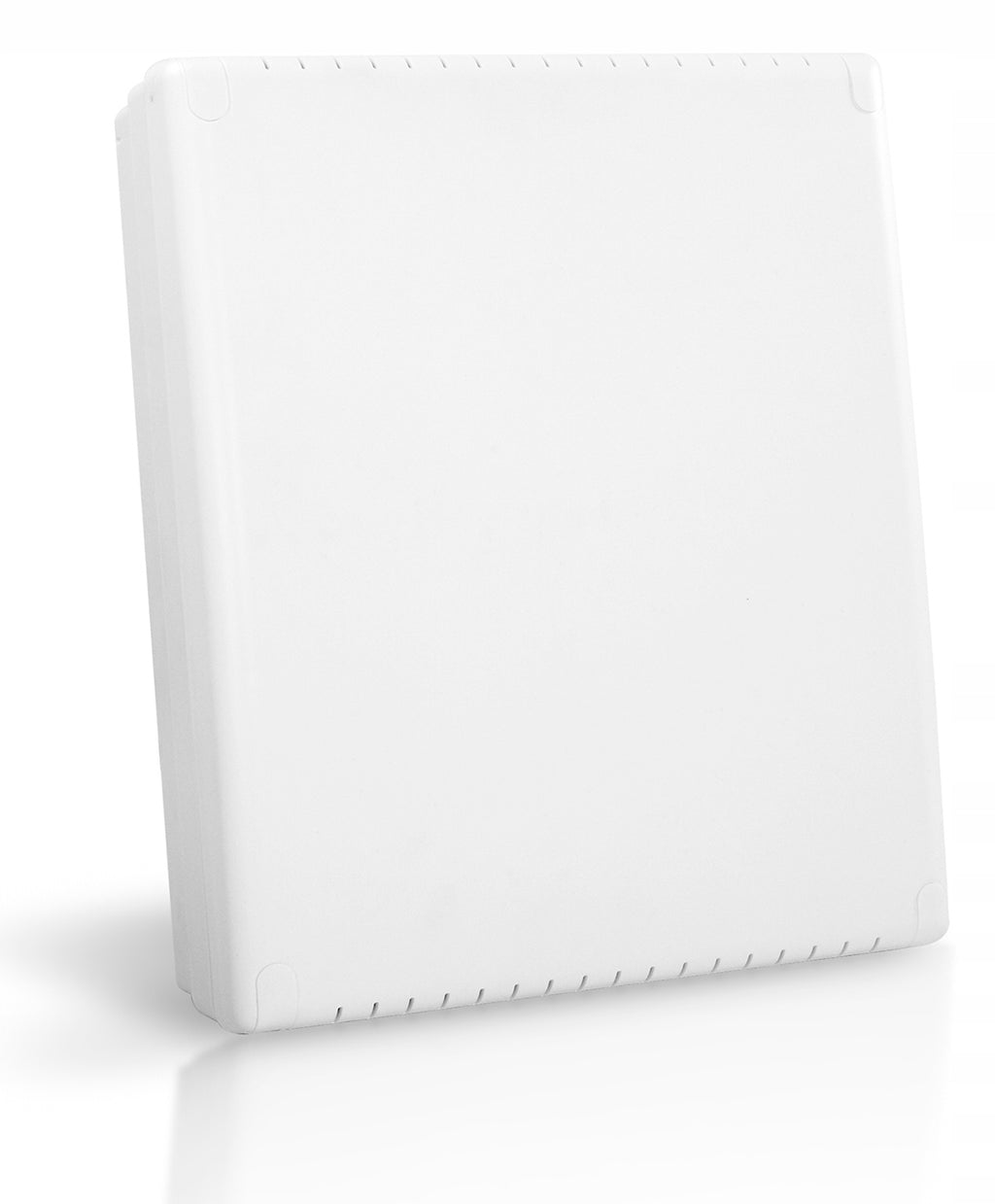

OPU-3 P plastic housing - SATEL.

Universal plastic housing made of polystyrene (plastic with flame retardant) with space for additional accessories.

DESCRIPTION

OPU-3 P is a durable surface-mounted housing, made of polystyrene in white. Thanks to its aesthetic appearance, it is possible to use it in utility rooms, in plain sight. The base of the housing can be embedded into the wall, so that the housing itself will take up less space. The universal nature and extensive dimensions of the housing allow the installation of alarm control panels, expansion modules, communication modules, controllers and many other devices inside it. The use of special dismantled mounting panels further facilitates the installation and maintenance of system components. OPU-3 P is equipped with double tamper protection: against opening the lid and detachment from the wall.

The housing has a place for mounting 40 or 60 VA mains transformers, it can also accommodate a 12 V battery with a capacity of 7 or 18 Ah. It does not block or weaken the radio signal, so wireless devices with antennas can be placed inside it.

• dimensions: 324 x 382 x 108 mm
• Tamper protection against:

  opening

  detachment from the ground

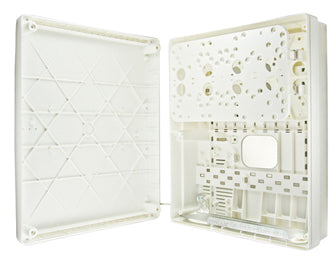

• removable mounting plates for easy installation and maintenance of the system
• possibility of installing wireless devices with antennas inside the housing
• space for transformer: 40 or 60 VA
• possibility of mounting the APS-412 power supply in place of the transformer
• plastic thick base for battery

Properties :

Anti-sabotage protection against:

- opening

- detachment from the ground

Removable mounting plates for easy installation and maintenance of the system.

Possibility of installing wireless devices with antennas inside the housing.

Dimensions: 324 x 382 x 108 mm

Weight: 1,85 kg

Battery space: 7,2Ah lun 18Ah

Transformer space: 40VA or 60VA

Possibility of mounting the APS-412 power supply in place of the transformer

Application :

- alarm control panels manufactured by SATEL

- expansion modules manufactured by SATEL

- GSM communication modules manufactured by SATEL

OTHER enclosures - as well as the entire range of SATEL products, can be found in adjacent auctions.
