Plastikinių vamzdžių suvirinimo aparatas HDPE 50–200 su stabdžiamu manometru ir ratukais

Trumpai apie prekę

Prekė: Plastikinių vamzdžių suvirinimo aparatas HDPE 50–200 su stabdžiamu manometru ir ratukais. Kategorija: Sandarikliai.

• Gamintojas: Hydrotec
• Modelis: HT-200-M

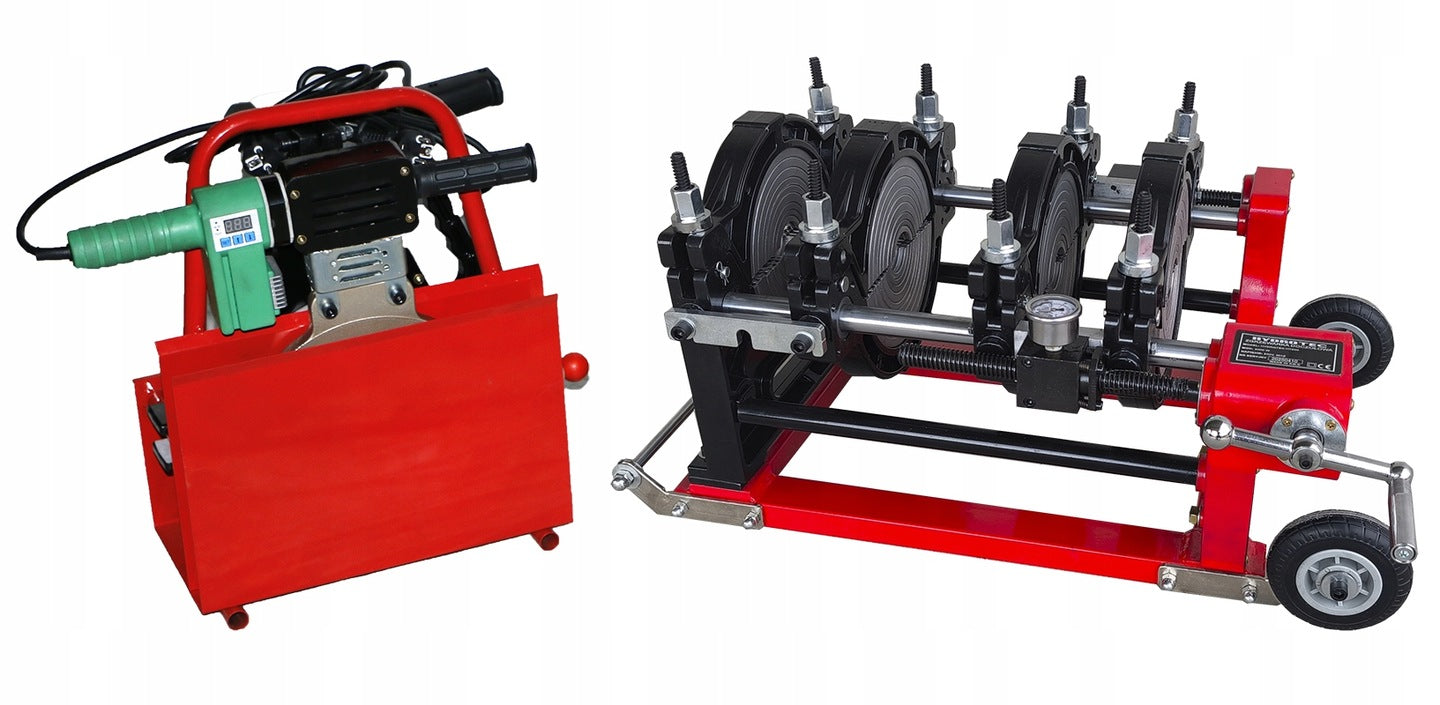

Butt welding machine HT200 for pipes:PP,PE,HDPE,PPR,PVDF,PB with manual pressure and pressure gauge showing the clamping force. After pressing the pipes, no need to hold the pressure to cool, the transmission is self-braking

For professional applications

Manometer ensures repeatability of the weld, wheels facilitate transport

For professional applications

Manometer ensures repeatability of the weld, wheels facilitate transport

Included:

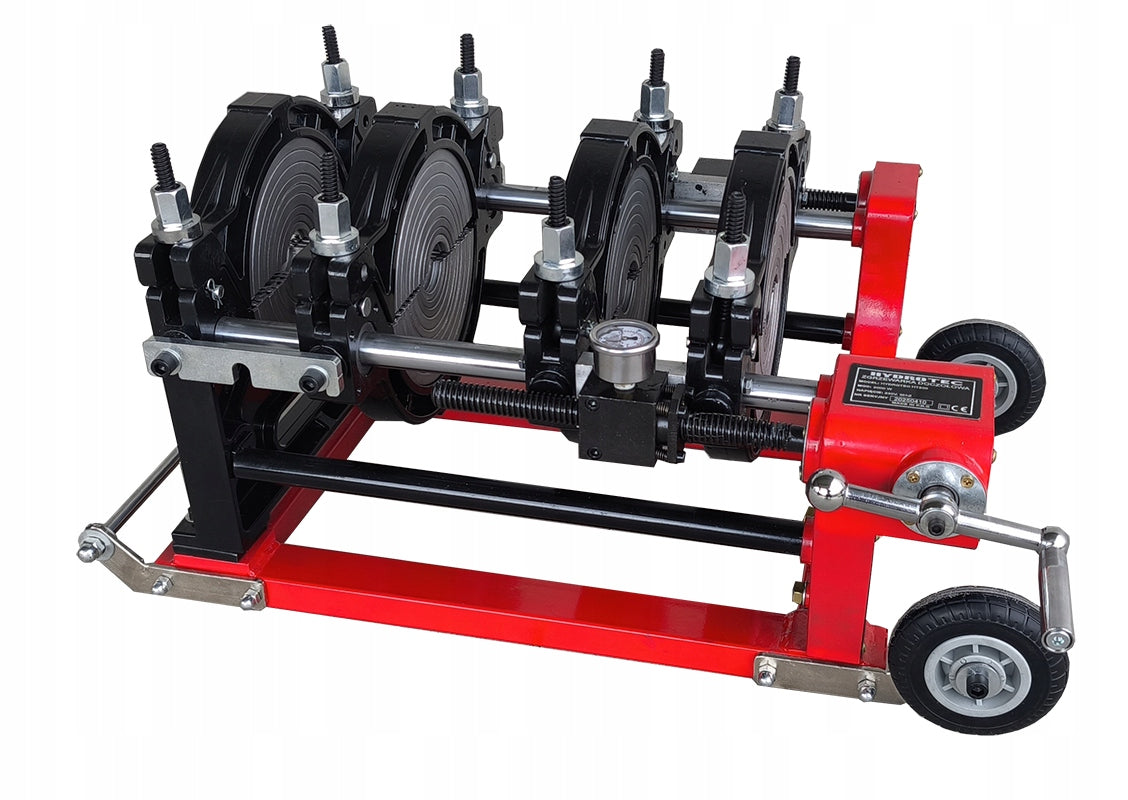

- frame with guide equipped with a worm mechanism to prevent reducing downforce (pressure drop)

during cooling, streamlines the process (does not require additional blocking )

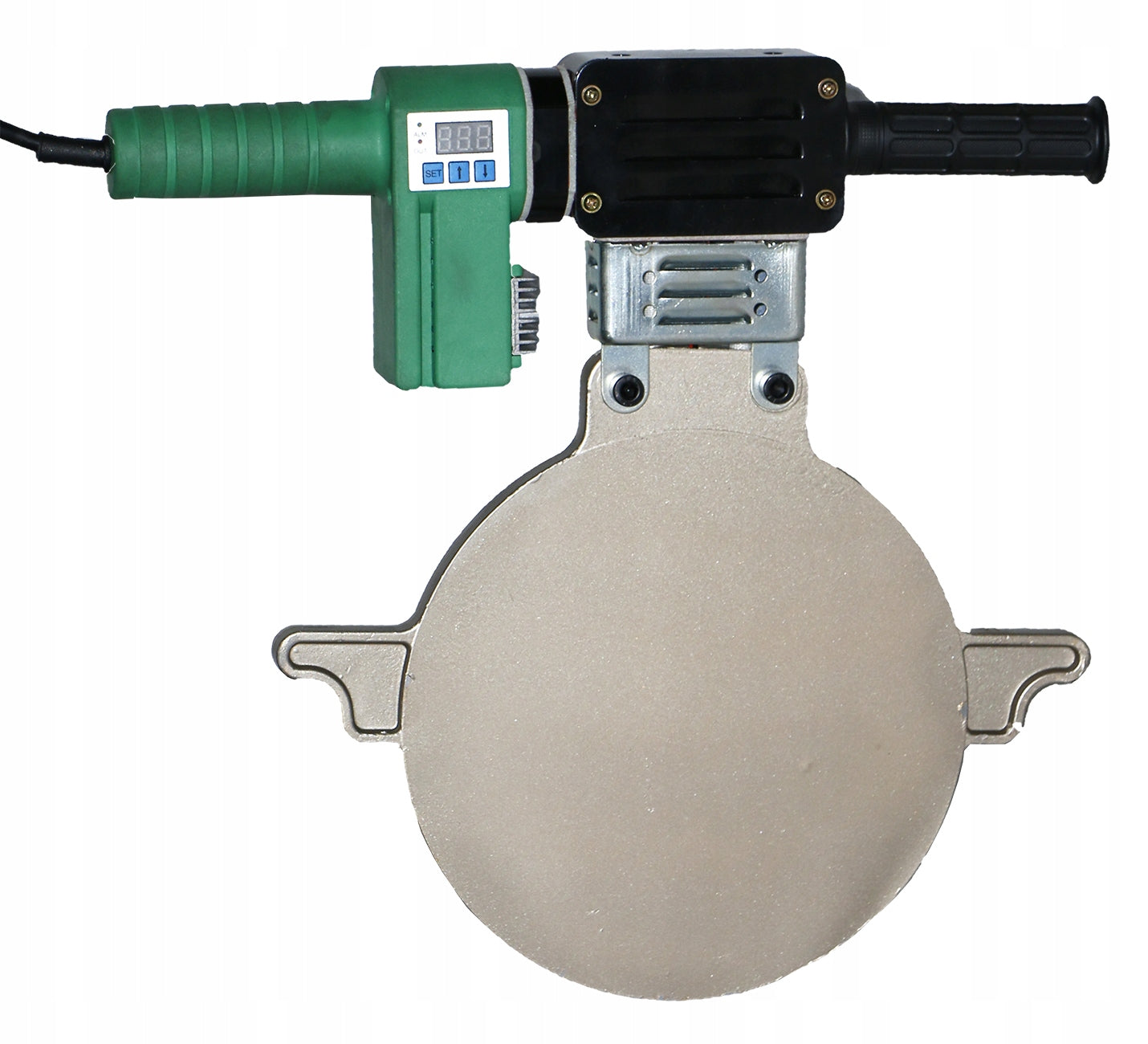

- electronically controlled heating plate (top class Teflon coating)

- 2 fixed clamps, 2 adjustable depending on your preference settings relative to the pipe

- pipe pressure is guided by worm gears (prevents pipe retraction, pressure drops)

- milling machine

- welding machine equipped with a set of reducing rings enabling welding of pipes with diameters: 50-200mm (50,63,75,90, 110, 125, 140, 160, 180, 200)

- stand for milling machine and heating plate electronically controlled

- Necessary tools

- Pressure gauge indicating downforce

- manual, CE certificate, declaration of conformity!

We provide warranty and post-warranty service!

Specification:

Welded pipe range: Pipe diameters: 50-200mm (50,63,75,90, 110, 125, 140, 160, 180, 200)

Operating voltage: 230V，50HZ

Heating plate temperature range: 0-330 St. Celsius

Heating plate power: 2 KW

Milling power: 1,8 KW

Total power of the set: 3,8 KW

The total weight of the set is 62 kg

In the case of shipment, the welding machine is sent in a box with the following dimensions:

77x57x45
