Plastiko suvirinimo aparatas su diafragminiu siurbliu HQ 852D+, 20 vnt.

Trumpai apie prekę

Prekė: Plastiko suvirinimo aparatas su diafragminiu siurbliu HQ 852D+, 20 vnt.. Kategorija: Plastiko suvirinimo aparatai.

• Gamintojas: Yihua
• Modelis: Spawarka do plastiku 852D+ Yihua

CODE: Z23

⚡ Yihua 852D+ welder with smooth temperature control and air blowing ⚡

⚡ A diverse set of plastics - 20 types of 600g. Each in 2 shapes: strip, triangle

⚡ Set nozzles basic including nozzle Ø2mm for welding small parts

⚡ Long nozzle bent at an angle of 45° for welding in hard-to-reach places

⚡ But nozzle for fast drawn welding

⚡ Additional T-K tip for pre-joining cracks

⚡ Stand with sponge for tip soldering iron

⚡ Guide "Welding plastics"

⚡ Grid strengthening the connection point

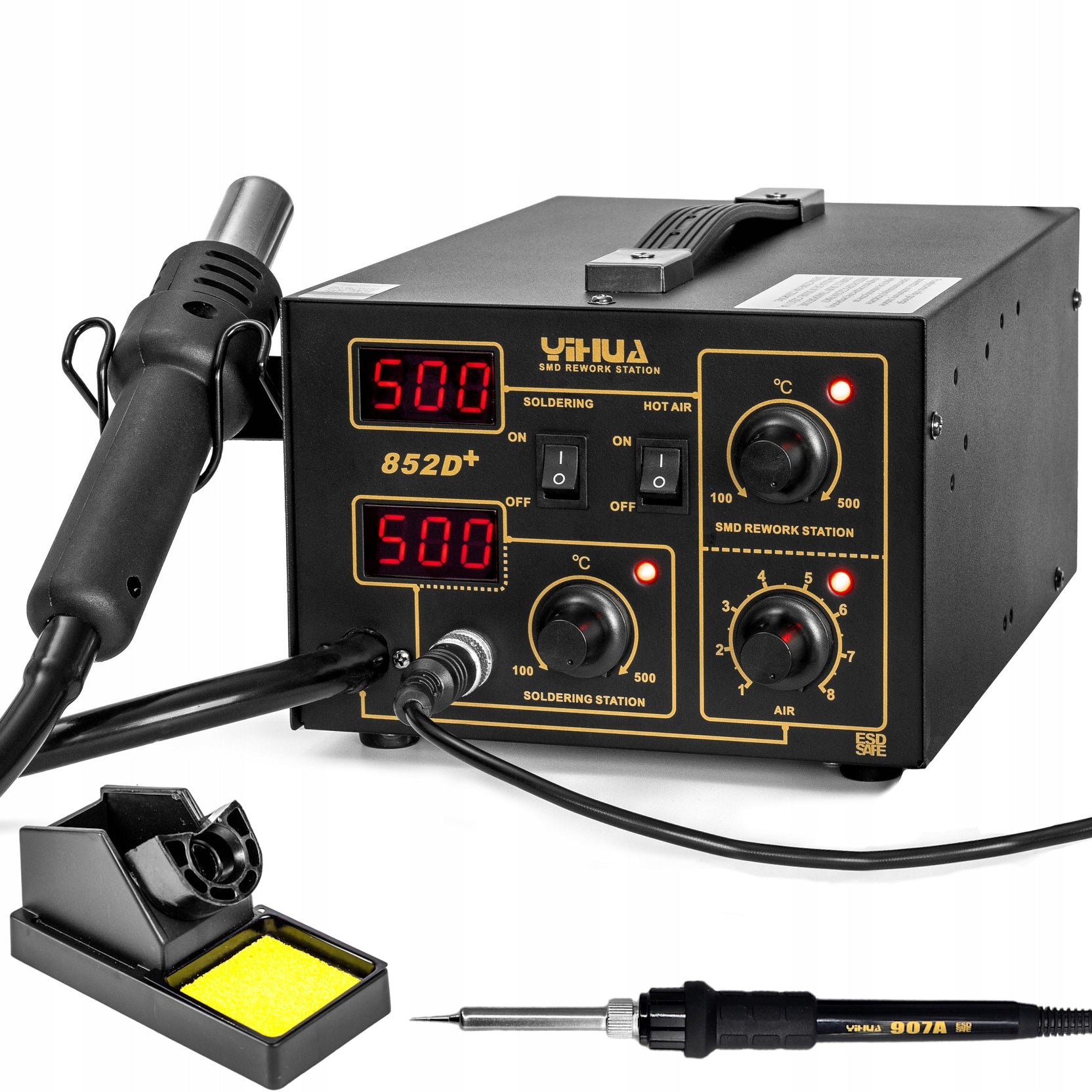

Yihua 852D+ is a versatile plastic welding machine designed for professional repair and regeneration of plastic components.

❗ WARRANTY AND POST-WARRANTY SERVICE❗

Thanks to the powerful high-power Hot-Air flask with temperature control and air blowing and a precise tip soldering iron, which is great for spot melting of small areas of plastic – this model has become a real bestseller among 2-in-1 welding machines. It is a piece of equipment that combines affordable price with the quality that even the most demanding users expect.

✔ Durable ceramic heating element (Hot-Air)

Ceramic heating spiral mounted on a core with good thermal insulation (mic paper) provides fast heating, long service life and stable temperature maintenance. This is crucial when welding plastic, as it provides a uniform temperature without sudden spikes or drops that could damage the material.

✔ Light hot air handle – comfort

The Hot-Air flask is extremely ergonomic and lightweight, which significantly affects the comfort of work, especially during longer plastic welding sessions. Reducing the load on the hand translates into greater precision and less operator fatigue, which is important for precise repairs.

✔ Stepless electronic temperature control

Instead of stepping settings, the device allows for smooth temperature control, both for the Hot-Air flask and the tip soldering iron. The user can very precisely adjust the temperature to a specific type of binder – e.g. POM with melting temperature of 165-175°C or PA which melts at 400-420°C.

✔ Stepless air blowing adjustment

Thanks to the potentiometric airflow control, you can exactly select the force of the air stream to the material being processed. This is extremely useful when working with plastics – stronger blowing at larger surfaces, gentle on thin and sensitive elements.

✔ Precise temperature control – PID system

The built-in digital PID chip provides immediate temperature correction if deviations occur (e.g. when in contact with cool material). This translates into operational stability and material safety, especially with delicate plastic or precise SMD components.

✔ Two independent LED displays

The device has separate temperature displays for soldering iron and hot air flask. This allows you to easily monitor your operating parameters in real-time, without having to interrupt your work.

✔ High versatility of use

The device is suitable for both repair of electronics and for welding and regeneration of plastic. Thanks to this, you do not have to buy two separate devices – one station, many applications.

✔ Simple and intuitive operation

No complicated menus or functions – all set with knobs. Quick start-up and adjustment makes the Yihua 852D+ great not only for professionals, but also for hobbyists.

✅ Specialty

One of the key advantages of the Yihua 852D+ model is the high-end diaphragm pump, which is responsible for generating a stable and precise stream of hot air. It is this element that determines the effectiveness and quality of work during welding and regeneration of plastic elements.

Thanks to constant pressure and uniform blowing, you have better control over the material heating process , eliminate the risk of local overheating of the plastic and distribute heat more accurately along the crack or joint.

The pump operates quietly and efficiently, ensuring comfort of use – even with long-term work on bumpers, housings or car lamps. Its precision also allows for efficient handling of details where control over the direction and intensity of the air stream is required.

✅ Technical data:

✔ Device:

• Power consumption: max 700W
• Length of power cable: 130cm
• Electronics power supply: Transformer
• ESD-Safe system
• Real temperature reading: Yes
• Temperature Stabilization: Digital PID
• LED display of hot air temperature
• Display LED temperature tip
• Controls: single-turn potentiometers
• Dimensions: 188mm x 250mm x 126mm
• Weight: 4,2 kg

✔ Hot-Air flask (Hot-Air):

• Power consumption: max 640W
• Heater supply voltage: 230V AC
• Heater type: spiral, mounted on ceramic core
• Heater insulation: mike paper
• Temperature control: liquid, from 100°C-500°C
• Temperature stability (static): ±1°C
• Length of flask cable: 90cm
• Air supply source: membrane pump
• Pump power: 18W
• Pressure generated: 0,032MPa
• Capacity: max 32 l/min

✔ Tip soldering iron flask:

• Type: 907A "Black Iron"
• Peak power: max 60W
• Nominal power: 45W
• Heater supply voltage: 24V AC
• Temperature control range: liquid, from 200°C-500°C
• Temperature stability (static): ±1°C
• Length of flask: 20cm
• Length of flask cable: 80cm
• Tip: T-I
• Grounding resistance: ≤ 2 Ω
• Grounding potential: ≤ 2mV

✅ Process

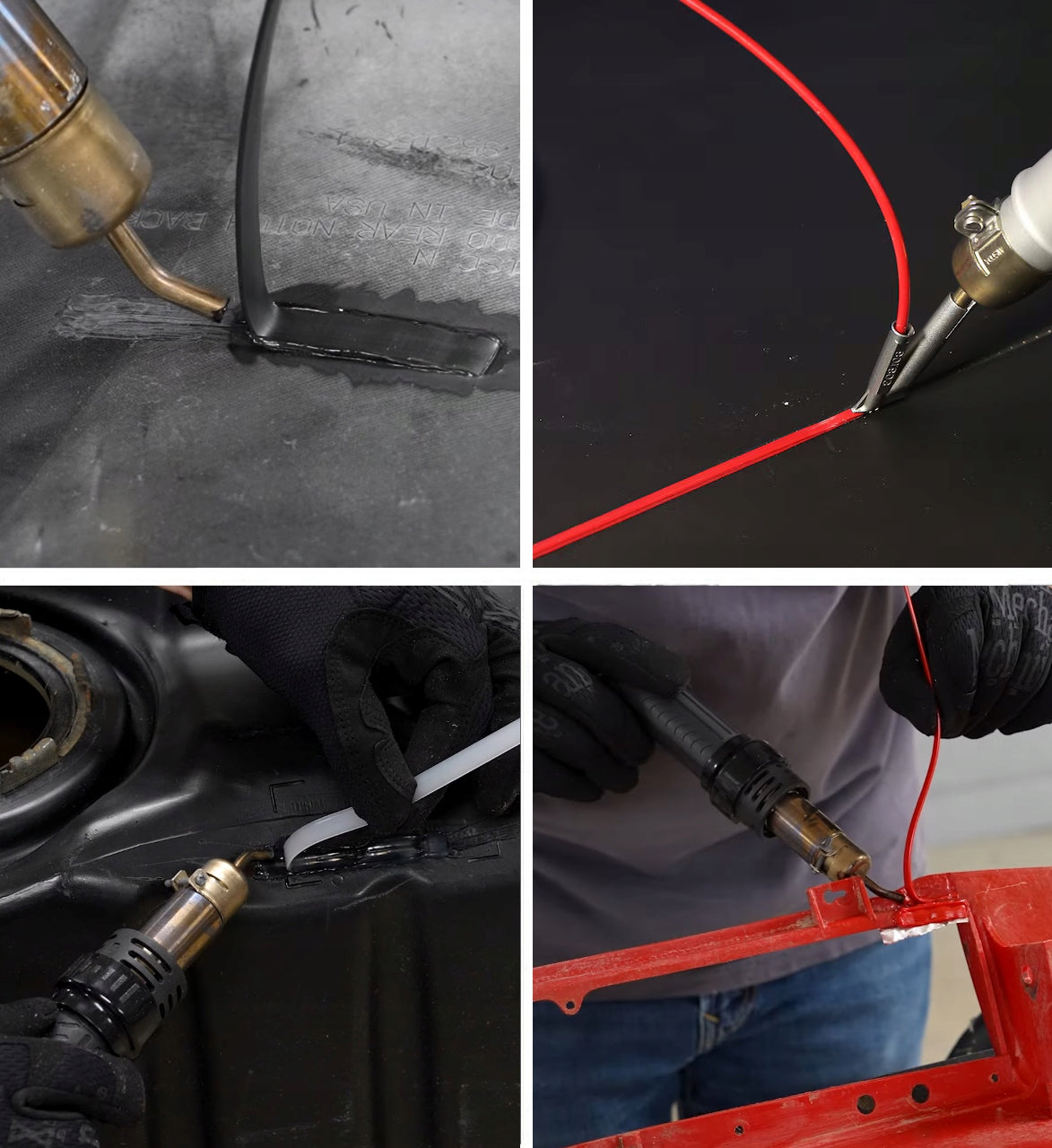

It is carried out by heating the plastic profile and the surface of the welded element, through hot air, to the temperature at which it will be plasticized. The connection is formed when the molten profile is pressed into the molten welded element. The clamping force should be about 2kg.

A well-made weld is characterized by the same physical properties as a homogeneous material.

✅ Application:

For the repair of all elements made of thermoplastic plastics, i.e. - plastics that soften during heating and harden after cooling.

With the help of a plastic welding machine, you can repair: bumpers, housings, covers, household appliances, spoilers, batteries, headlights, all kinds of tanks, coolers, garden equipment, etc. In a word, each element made of thermoplastic.

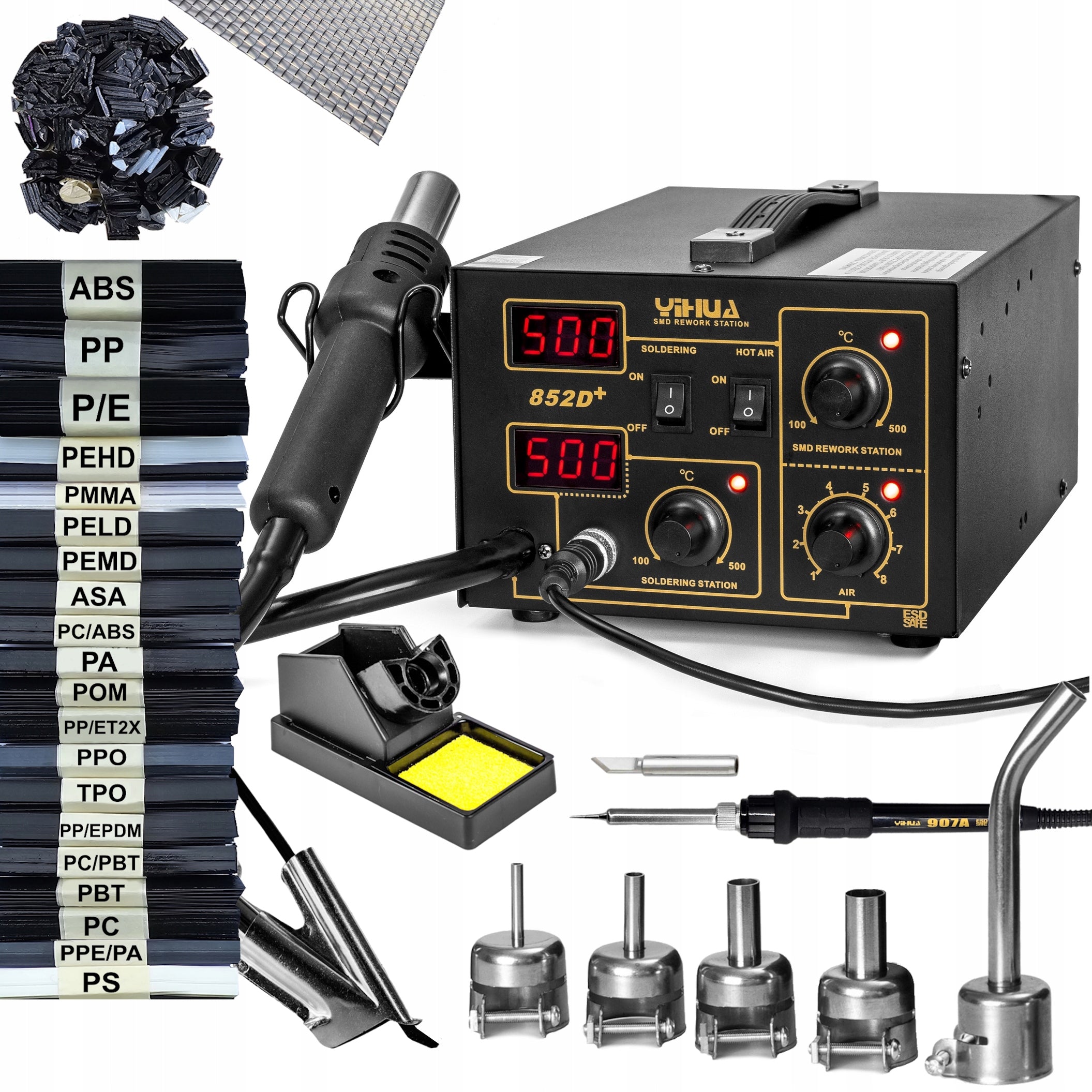

✔ DEVICE Yihua 852D+

✔ HOT AIR KOLBE HOLDER

✔ TIP SOLDERING IRON

✔ STAND for tip soldering irons with sponge

The tip soldering iron stand for dexterous soldering allows you to safely put down the soldering flask and conveniently clean the tip. Sponge for cleaning tips useful during soldering, removes tin residue and dirt. Supplied in compressed form. It should be soaked in water before use.

• Stand: 70mm x 140mm x 90mm
• Sponge: 50mm x 50mm

✔ LONG NOZZLE

• Nozzle 7cm, Ø5mm, bent at an angle of 45° for welding in hard-to-reach places.

✔ BASIC NOZZLES:

• Short nozzle Ø9mm
• Short nozzle Ø7mm
• Short nozzle Ø4mm
• Short nozzle Ø2mm

✔ NOZZLE BUT fast welding

It enables fast and efficient welding of plastics using the drawn method. The uniqueness of the nozzle lies in the fact that its design allows the binder to melt inside the nozzle and its simultaneous pressing to the welded element. It is mounted on a short nozzle Ø9mm.

✔ GROT T-K for pre-joining cracks

✔ GRID strengthening the weld

Mesh made of the highest quality chrome-nickel stainless steel. It is ideal for reinforcing welds and recreating missing elements such as bumper parts, lamp holders, etc.

• Dimensions: 12,5cm x 17,5cm
• Wire Ø 0,32mm
• Eyelet: 1,6mm

✔ PLASTICS 600g

Welding profiles of plastics 20 types in two varieties: strip approx. 8x1,2mm and triangle with side approx 4mm. Length of profiles approx. 415mm.

1. >POM< washer pump,fuel, handles, pulls. Welding temperature: 165-175°C
2. >PP/ET2X< bumpers, slats. Welding temperature: 260-330°C
3. >PMMA< (plexiglass), glasses, advertising elements: illuminated boards, advertising signs, illuminated letters, coffers, decoration elements, frames, machinery and equipment components, covers, containers, laboratory equipment, chemical and optical equipment. Welding temperature: 320°C
4. >PA< coolers, elements in contact with hot air or liquid. Welding temperature: 400°C
5. >PPE/PA< Bumpers in French cars. Welding temperature: 350-420°C
6. >PS< AGD, RTV - enclosures, shelves. Welding temperature: 280-320°C
7. >TPO< Bumpers, wheel arches and side moldings. Welding temperature: 170-220°C.
8. >PPO< enclosures of printers, computer grills, heat sinks. Welding temperature: 320-350°C
9. >ASA< lamps, fairings, mirrors, mock-ups - external housings exposed to UV radiation (Abstract variety). Welding temperature: 350°C
10. >P/E< compensating tanks, washers. Welding temperature: 160°C
11. >PP/EPDM< Bumpers. Welding temperature: 300°C
12. >PC/PBT< Bumpers (Bentley), pulls, dummy, mirrors. Welding temperature: 350°C
13. >PC/ABS< , mirror, lamps, door handles. Welding temperature: 350°C
14. >PBT< headlights, handles, halogen housings. Welding temperature: 320-360°C
15. >PC< mirrors, mock-ups, door handles, lamps. Welding temperature: 350°C
16. >PEMD< packing films, bags, covers. Welding temperature: 300°C
17. >PELD< tanks - expansion tanks, fuels, washers. Welding temperature: 270°C
18. >PEHD< tanks - compensatory, fuels, food containers. Welding temperature: 300°C
19. >ABS< housings, switches, handles, fairings, motorcycles, mirrors. Welding temperature: 350°C
20. >PP< bumpers, filter housing, bacon, reflector, wheel arches, reservoirs. Welding temperature: 300°C

✔ TUTORIAL "Welding plastics"

1. Recognition of plastics
2. Preparation of the external surface
3. Joint
4. Pre-merger
5. Welding
6. Pendulum welding
7. Welding errors
8. Welding seam treatment
9. Varnishing of plastics
10. Welding Process Technology
11. Welding rods for welds
12. General comments
13. Hand welding equipment
14. Manual Welding by Drawn Method

⚠ Note. After receiving the welding machine before starting it, you need to unscrew the screws marked with red paint located on the bottom of the device. The screws hold the pump thus insure it during transport. Notes on the loud operation of the device are the result of leaving screws!

⚠ Note. The set temperature (on the LED display) is not the air temperature at the output of the nozzle. The measuring detector is inside the heater, so the air temperature at the output (about 2-3cm from the nozzle) is 10%-20% lower than the indications on the LED display.
