Plastiko suvirinimo aparatas YIHUA 993DM-4, 1000W, ABS/PP/EPDM

Trumpai apie prekę

Prekė: Plastiko suvirinimo aparatas YIHUA 993DM-4, 1000W, ABS/PP/EPDM. Kategorija: Plastiko suvirinimo aparatai.

• Gamintojas: Reball
• Modelis: SPAWARKA LUTOWNICA HOTAIR YIHUA 993DM ZESTAW

SLU0000837

ADVANTAGES

• POWER 1000W
• SET OF 6 NOZZLES
• SET OF 4 UNIVERSAL BINDERS
• SET OF 3 UNIVERSAL REINFORCEMENT NETS
• ISOPROPANOL FOR DEGREASING

SET PLASTIC WELDING MACHINE 993DM-IV 1000W XL

The device is designed for welding plastics or for soldering and desoldering elements in electronics.

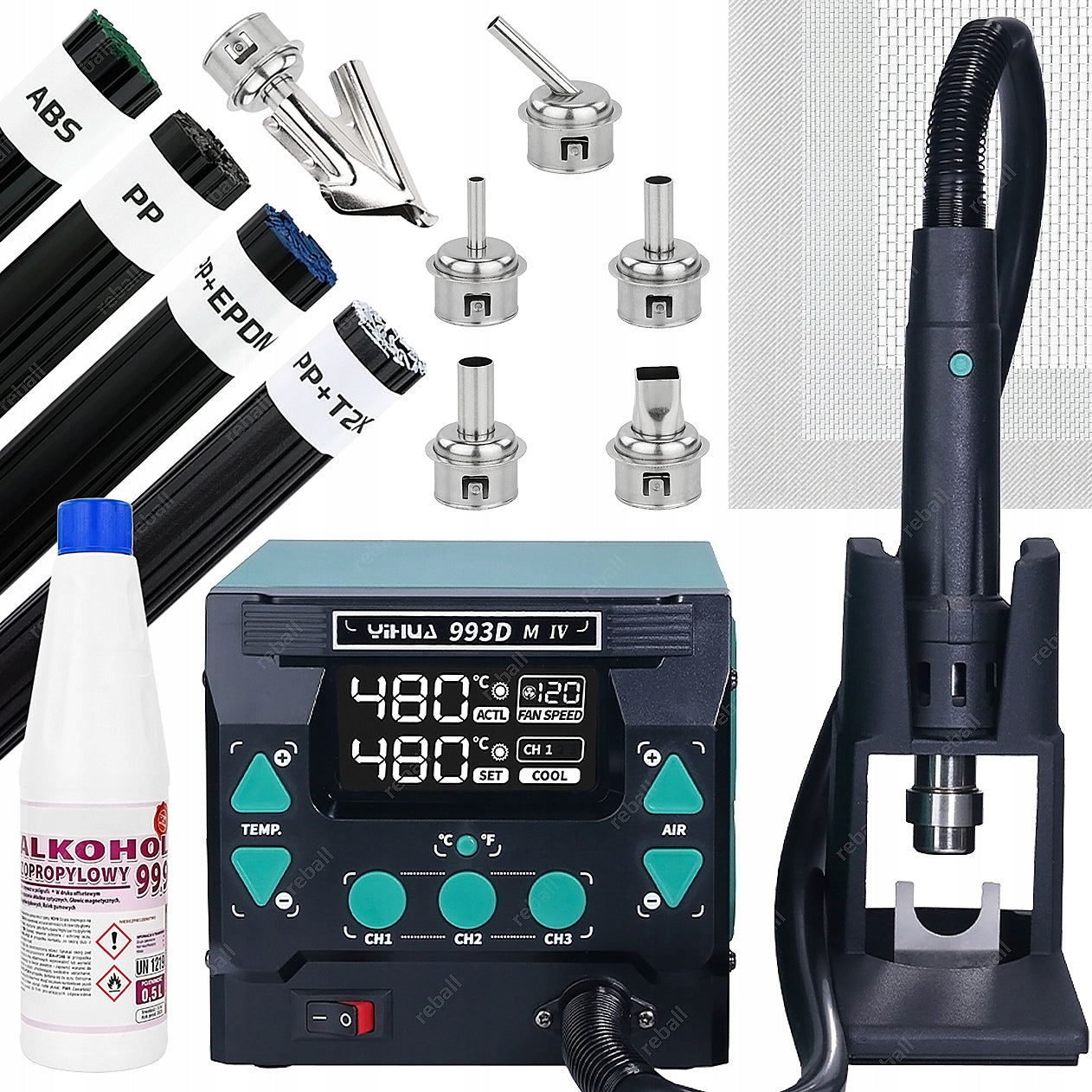

COMPONENTS OF THE SET

• hotair welding machine YIHUA 993DM-IV 1000W
• universal set of 6 nozzles for welding
• universal set of 4 binders for welding
• universal set of 3 reinforcement nets
• isopropanol for degreasing 0,5l
• power cord
• hot air flask stand
• instruction manual

CHARACTERISTIC

• large readable display indicating the set and actual temperature of the hotair flask as well as the flow force entrusts,
• possibility of setting the immediate cooling of the flask after putting it on the handle
• solid and practical housing
• CPU control high operating stability, extending the life of heating elements, energy saving
• remembers the last set temperature
• possibility of digital temperature calibration
• built-in high-performance brushless turbine for much higher durability and reliability of the device
• standard nozzle mounting diameter 22mm allows you to mount a full range of other nozzles available in our offer

TECHNICAL DATA

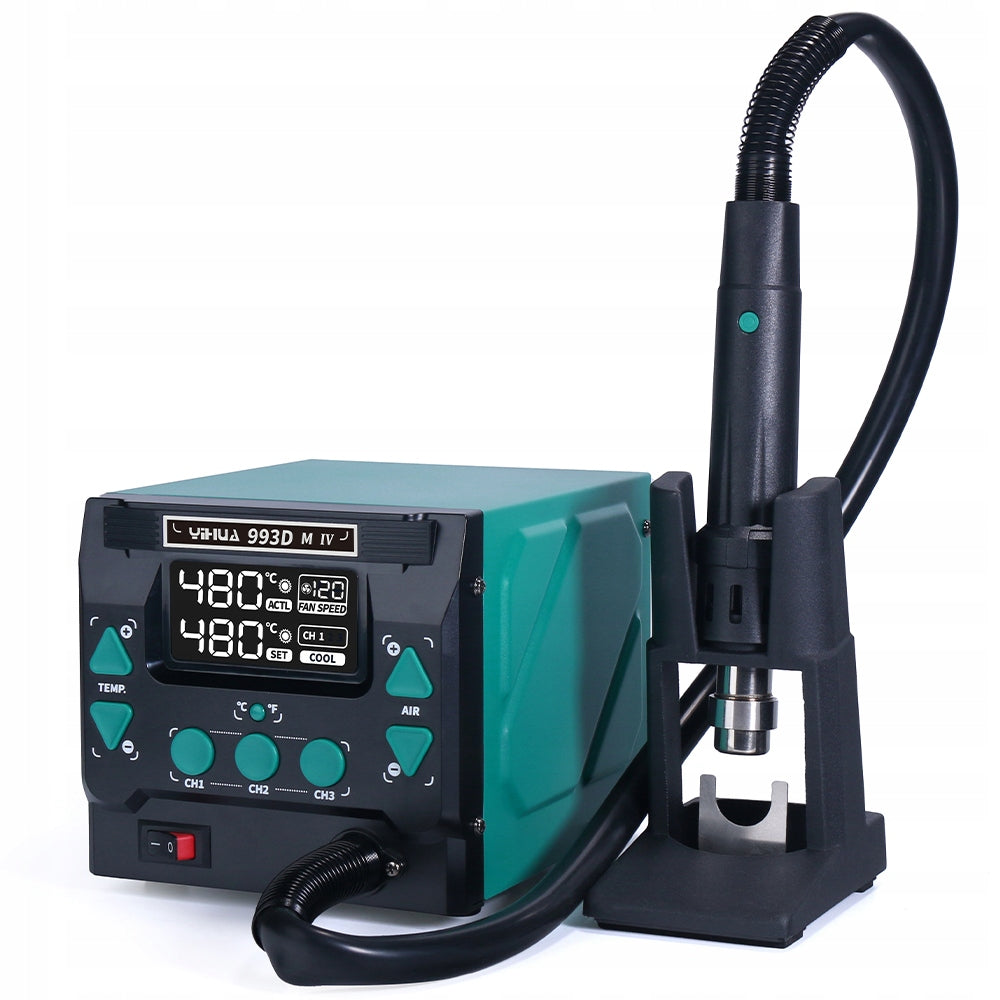

• Model: YIHUA 993DM-IV
• supply voltage: 220-230V 50/60Hz
• Power: 1000W
• air flow up to 120 litres/minute [max]
• hot air temperature control: 100-500°C
• nozzle mounting diameter: 22mm
• dimensions: 200mm x 164mm x 156mm
• Station weight: 4,3kg

In this model, a practical dual-function button in the soldering stock has been introduced:

• A short press of the button causes switching the flask from the heating function to cooling. The flask begins to blow with cold air, and the COL inscription appears on the display. This is a very useful solution when we do not want to damage it with hot air,
• A long press of the button causes the station to go to standby to a temperature of 100°C.

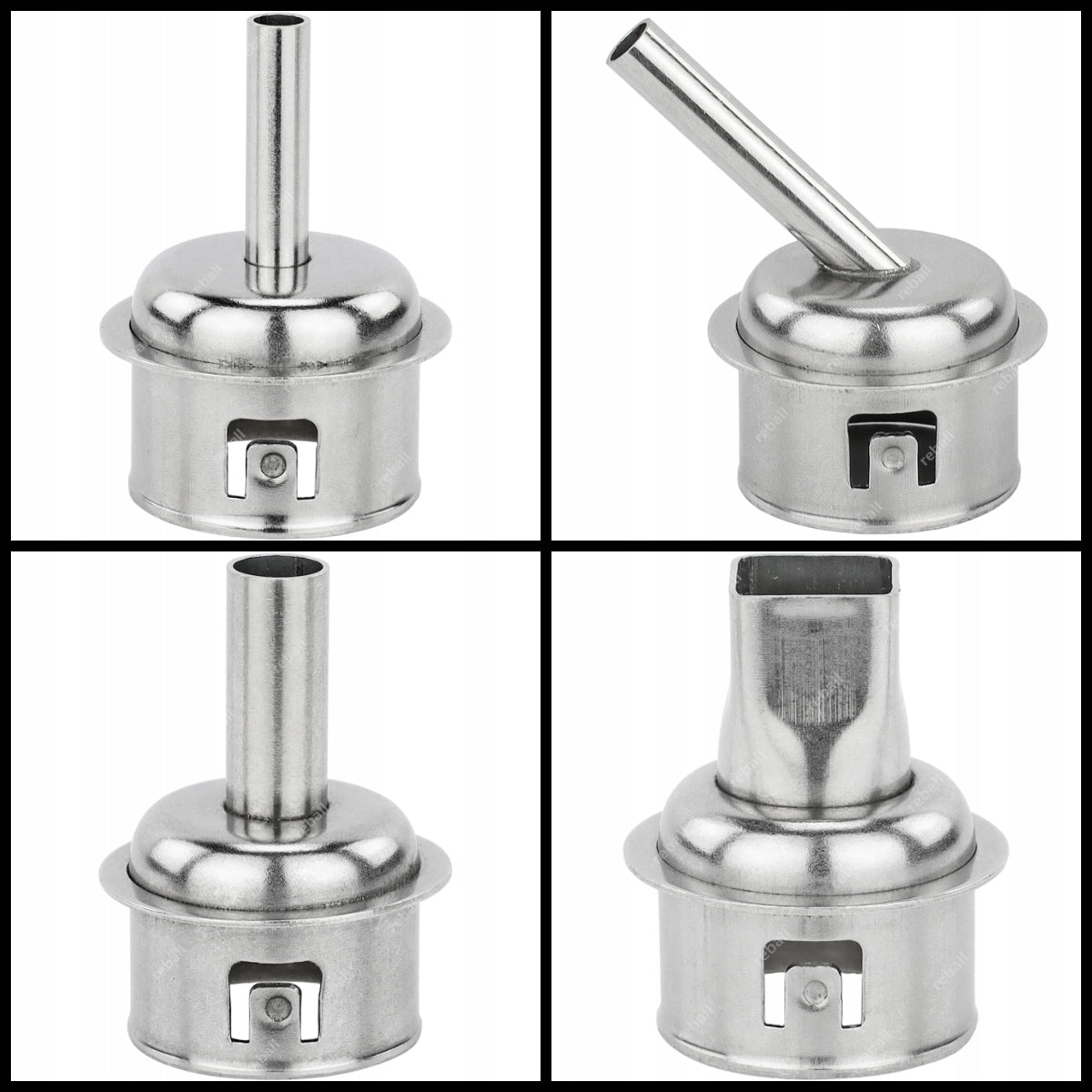

SET OF 6 NOZZLES

• round nozzle with a diameter of 5mm
• round angle nozzle with a diameter of 5mm
• round nozzle with a diameter of 8mm
• square nozzle 12x12mm
• round nozzle with a diameter of 10mm (for fixing the nozzle shoe)
• nozzle shoe for welding plastic

SHOE TYPE NOZZLE

A specialized type of nozzle that enables faster and more effective welding of plastics because the binder is simultaneously melted inside the nozzle and pressed to the welded element.

Significantly facilitates work and improves the quality of the connection.

Nozzle used for binders with round, triangular and trapezoidal profile, the width or diameter of which does not exceed 7mm.

SET OF 3 REINFORCEMENT NETS

NET NO. 1 (from LEFT)

• wire: 0,040mm (very flexible mesh)
• mesh size: 0,063x0,063mm

GRID NO. 2

• wire: 0,2mm (flexible mesh)
• mesh size: 0,8x0,8mm

GRID NO. 3

• wire: 0,6mm (semi-rigid mesh)
• mesh size: 2,5x2,5mm

Sheet dimensions 12,5cm x 20cm, material stainless steel.

UNIVERSAL SET OF 4 BINDERS

The binder set is designed for welding bumpers, fenders and wheel arches, engine housings and covers, hubcaps, side strips, threshold overlays, lamps, bumpers, all flexible elements of dashboards and other elements of the car interior, mirror housings, engine covers, scooter fairings, quads as well as any plastic housings of household appliances, etc.

TECHNICAL DATA

• strap: length 40cm, width 8-12,5mm, height 1,2-2,2mm
• triangle: length 40cm, side wall 1,9-4mm
• Package weight 1 binder :100g
• Made from 100% pure granules!

COMPONENT SET

• ABS (black) - dummy, rear lamps, motorcycle fairings, interior elements, industrial products, electronics and household appliances, toys (1 pack)
• PP+EPDM (black) - welds approx. 70% of car components of different brands, basic binder for welding bumpers (1 pack)
• PP+T2X (black) - lamps, handles, housings, air filters, front belts, elements under the hood of the engine operating at elevated temperatures. (1 pack)
• PP (black) - household appliances, household appliances, toys, industrial components (1 pack)

ISOPROPANOL 500ml

Isopropanol is a very popular and versatile cleaner used for:

• degreasing of plastic surfaces before welding
• cleaning of optical devices, lenses, prisms and CD/DVD/BD laser readers
• audio-video equipment, e.g. magnetic heads, disk drives and rubber rollers
• precision mechanics equipment
• GSM telephony devices
• cleaning of electronic systems, e.g. BGA
• cleaning PCBs after soldering processes
• washing lubricants, waterproof inks, thermal conductive pastes.

Isopropanol is chemically neutral to most commonly used materials, including plastics, in electronics, electrical engineering, optics, automotive, precision industry.

After drying, does not leave traces, quickly evaporates.

Technical parameters:

• purity: 99,99%- 100%
• water content: 0,00%
• acidity: 0,000%
• colour: colourless

You need other soldering or service accessories - check out our other listings.
