Plastiko suvirinimo stotelė 858DII

Trumpai apie prekę

Prekė: Plastiko suvirinimo stotelė 858DII. Kategorija: Plastiko suvirinimo aparatai.

• Gamintojas: Technet
• Modelis: Zgrzewarka do plastiku 700W 858Dll

⚡ Plastic welder with smooth temperature control and air blowing 858D II⚡

⚡ Most popular plastics - 3 types, 75g. Each in 2 shapes: strip, triangle

⚡ Guide "Welding plastics" in paper version

⚡ Shoe nozzle for high-speed towed welding

⚡ Set nozzles including 12x12mm square nozzle

⚡ Mesh strengthening the connection point

Professional precision, high efficiency and reliability in every repair!

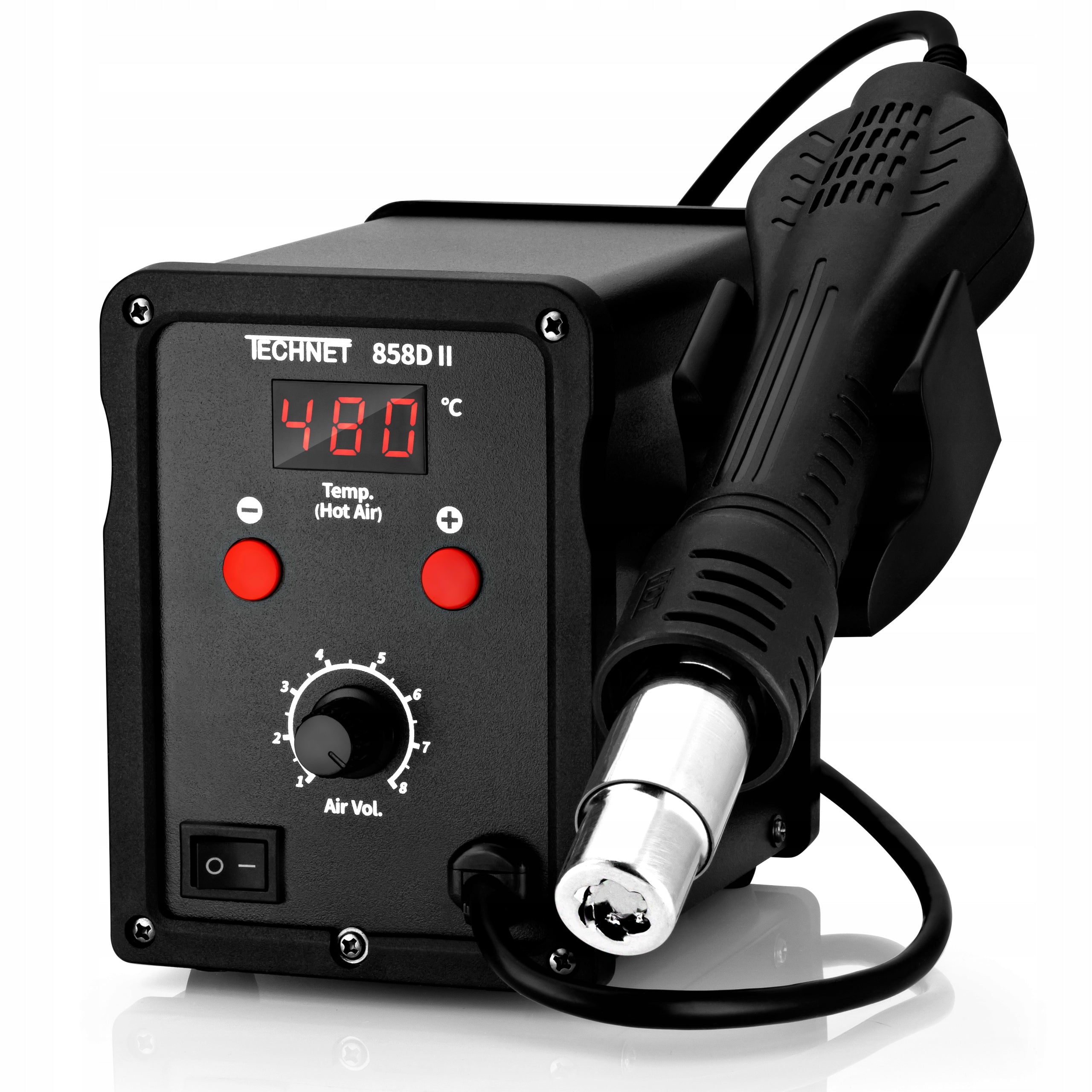

Technet 858D II is the second, improved generation of popular 858D series welding machines, designed for professionals and DIYers looking for a reliable, precise tool for repairing and processing plastics. Thanks to the new metal housing, enhanced handle and modern temperature control system, this device offers the highest comfort and efficiency of work.

❗ WARRANTY AND POST-WARRANTY SERVICE ❗

Technet 858D II is a reliable tool that will work in any workshop – both when repairing bumpers, lamp shades, and when working with electronic components.

✔ 2in1 – plastic welding and soldering of electronic components

The Technet 858D II welder is a versatile device that is perfect for both repairing plastic components and precise electronic work. Perfect for welding bumpers, housings, lamps, as well as shrinking shrink shirts or soldering wires and connectors. Thanks to this functionality, the device becomes an indispensable tool in every service and workshop.

✔ Smooth, precise adjustment

Thanks to electronic, stepless temperature control (100°C – 480°C) and air flow (up to 120 l/min), the user has full control over the work process. You can perfectly choose the parameters for a specific material and type of task – without the risk of overheating or underheating. This guarantees accuracy, safety and efficiency of work.

✔ LED display – everything under control

The modern LED display presents both the set and the actual temperature, which allows you to monitor the status of the device on an ongoing basis. This enables quick response and correction of parameters when needed, increasing comfort and safety at work. The clear interface means that even the less experienced user can handle the operation of the device.

✔ Ceramic heating element – fast heating and durability

The ceramic heater used is characterized by exceptional durability and rapid reaching the set temperature. Provides even heating and long service life, even under heavy use. This solution is not only effective, but also energy-efficient.

✔ Lightweight, comfortable flask

The flask is designed for maximum comfort – it is lightweight, ergonomic and fits well in the hand. Thanks to this, even long-term work does not cause fatigue or discomfort. It facilitates precise maneuvering and provides greater control over every movement.

✔ Simple installation of nozzles

Stable attachment of nozzles to screws prevents accidental slipping of the nozzle even with intense heating, vibration or longer operation – which is a common problem in cheaper models with push-in tips. This solution guarantees exact handling of the hot air stream, which is crucial when welding bumpers, housings and other elements where every millimeter counts. Thanks to this, you have full control over the welding process, without the risk of errors or damage to the material.

✅ Technical data:

• Power consumption: max 700W
• ESD-Safe system
• Air jet capacity: 120 l/min
• Engine Type: brushless
• Air temperature: 100°C - 480°C
• Temperature control: liquid
• Real temperature reading: yes
• Ceramic heating element
• Set and real temperature display LED
• Power cord length: 130cm
• Cable length with flask: 120cm
• Temperature calibration capability: yes
• Weight: 1,2kg
• Dimensions: 150mm x 100mm x 138mm

✅ Process

It is carried out by heating the plastic profile and the surface of the welded element, through hot air, to the temperature at which it will be plasticized. The connection is formed when the molten profile is pressed into the molten welded element. The clamping force should be about 2kg/cm².

A well-made weld is characterized by the same physical properties as a homogeneous material.

✅ Application:

For the repair of all elements made of thermoplastic plastics, i.e. - plastics that soften during heating and harden after cooling.

With the help of a plastic welding machine, you can repair: bumpers, housings, covers, household appliances, spoilers, batteries, headlights, all kinds of tanks, coolers, garden equipment, etc. In a word, each element made of thermoplastic.

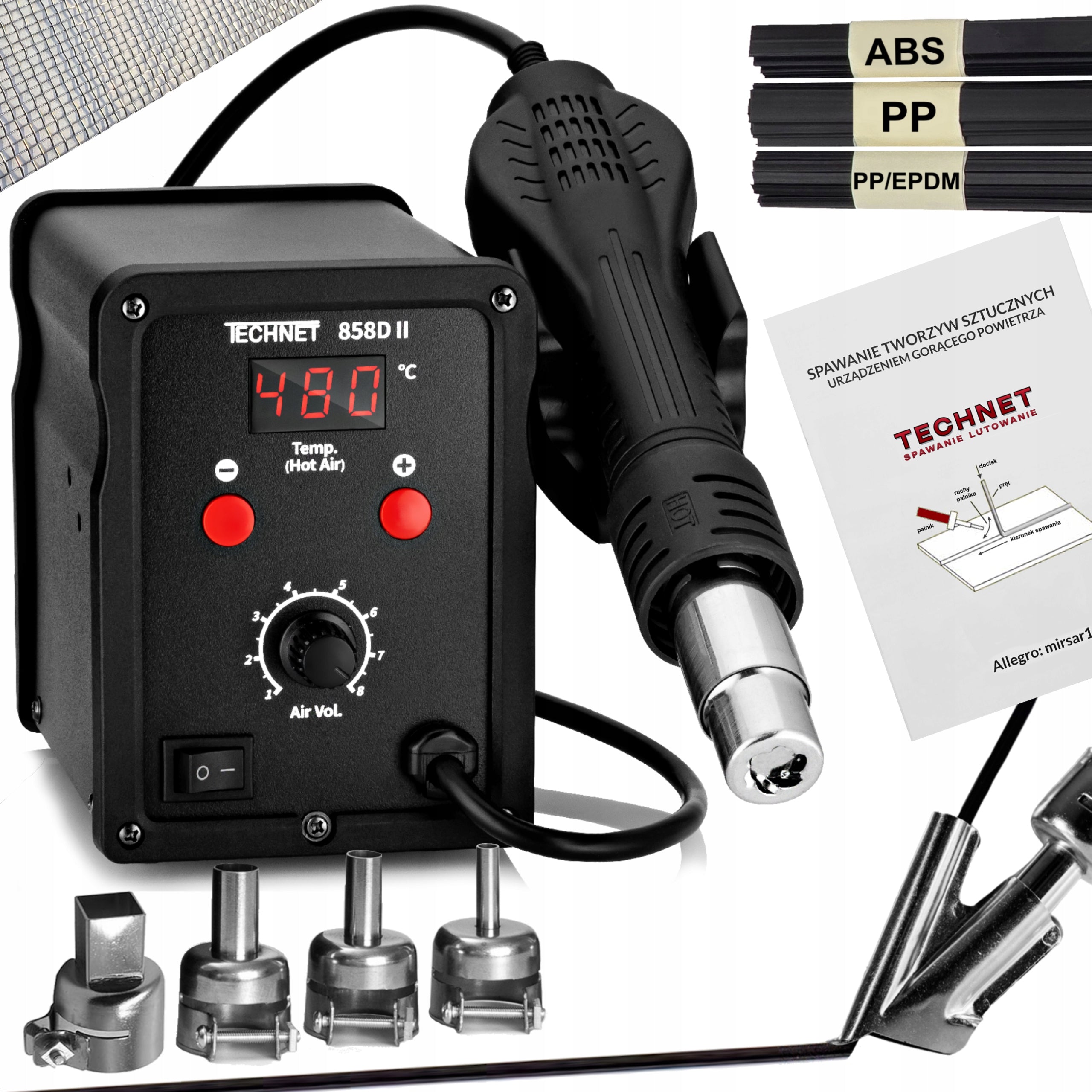

✔ PLASTIC WELDER - Technet 858D II

✔ COB STAND

The hot air station has a sensor in the flask stand, which after putting the flask on the stand cools the heating element and then turns it off (so-called. wake status). Thanks to this, the user saves energy, which allows for a longer life of the heater, increased safety and comfort of work. It is possible to attach the handle on both sides of the welding machine.

✔ INSTRUCTIONS FOR USE

✔ WARRANTY CARD

✔ SET OF BASIC NOZZLES

• Short nozzle Ø4 mm. For detailed and spot repairs – ideal for minor cracks and delicate edges.
• Short nozzle Ø7 mm. Better control over the air stream – for more precise work on smaller surfaces and thinner profiles.
• Short nozzle Ø9mm. Universal nozzle for standard welding – will work with most repairs using round and triangular profiles.
• Square short nozzle 12x12mm. Ideal for wide welds and working with flat profiles – ensures even distribution of hot air.

✔ SPECIALIZED NOZZLE SHOE

The but nozzle is the perfect solution for fast and efficient drawing of plastics. The uniqueness of the nozzle lies in the fact that its design allows the binder to melt inside the nozzle and its simultaneous pressing to the welded element.

Attached to reducing nozzles Ø9mm.

The shoe type nozzle fits under the round and triangular profile of plastic up to 6mm.

✔ PLASTICS 75g

3 types in two varieties: strip approx. 8x1,2mm and triangle with side approx. 4mm. Length of profiles approx. 415mm.

• PP 25g [PP]. Application: bumpers, filter housing, engine housings, side moldings, headlights, wheel arches, reservoirs, etc. Melting point: 260-330°C
• ABS 25g [ABS, ABA, ABAK, ABS/PC ABS+PC, ABS/PET, AES, ASA, ASA/PC, SMA, SB]. Application: tanks in small fuel bases, tanks used in agriculture, tanks in wastewater treatment plants itp. Melting point: 310-360°C
• PP/EPDM 25g [PP/EPDM PP+EPDM PP-EPDM, PP/EPD, PP/EP]. Application: bumpers, wheel arches, fenders, engine housings, side moldings, thresholds and other flexible elements, etc. Melting point: 260-330°C

✔️ MESH for embedding in plastic

This mesh is made of high-quality chromium-nickel stainless steel, ensuring durability and corrosion resistance. It is excellent for reinforcing welds and recreating missing elements, such as bumper fragments or lamp brackets.

x1 Hard measures approximately 12.5cm x 17.5cm. Wire Ø 0.32mm. Mesh size: 1.6mm.

✔ GUIDE "Welding plastics"

1. Recognition of plastics
2. Preparation of the external surface
3. Weld
4. Pre-merger
5. Welding
6. Pendulum welding
7. Welding errors
8. Welding seam treatment
9. Varnishing of plastics
10. Welding Process Technology
11. Welding rods for welds
12. General comments
13. Hand welding equipment
14. Manual Welding by Drawn Method

Welcome to the tab below "Our product series"❗

• Welding binder (PP, ABS, PP/EPDM, P/E, PA, PMMA, PPE/PA, PC, TPO, PS, etc. )
• Plastic Welding Machines
• Staplers for plastic
• Staples
• Nozzles and spare parts for equipment
