Aprašymas
Trumpai apie prekę
Prekė: Plazminis pjoviklis IDEAL PLASMA 45 PRO1. Kategorija: Plazminiai pjovimo aparatai.
- Gamintojas: IDEAL
- Modelis: Plasma 45 PRO
- Ilgis: 560 mm
- Plotis: 270 mm
- Aukštis: 340 mm

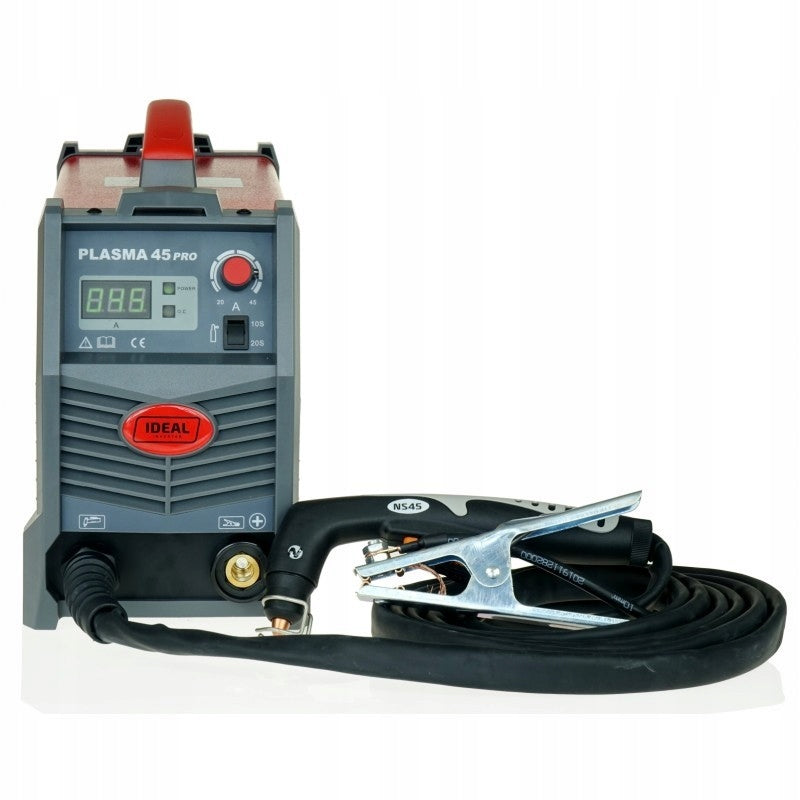

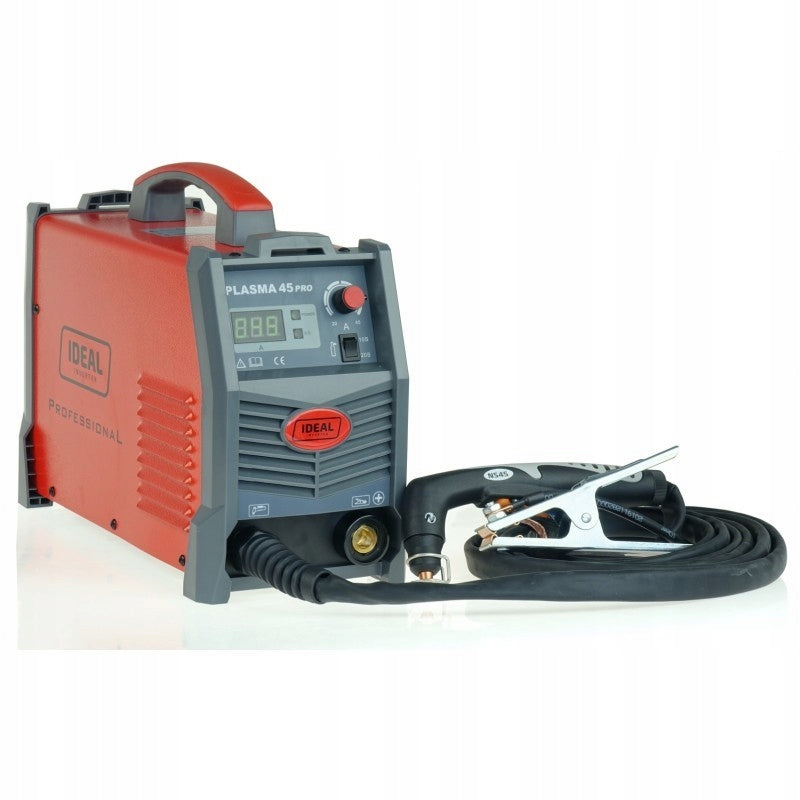

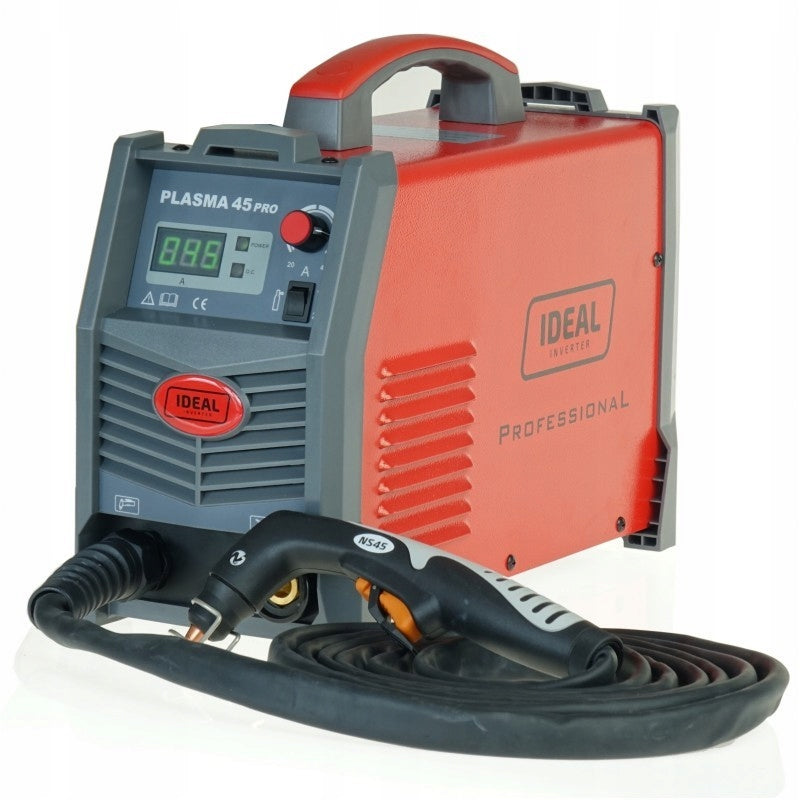

IDEAL Plasma cutter PLASMA 45 PRO
IDEAL
Technical parameters
PLASMA 45 PRO is a professional plasma cutting machine. It allows cutting without distortion: steel, stainless steel, aluminum, brass and copper. Electronically controlled, smooth cutting current adjustment. The small size and weight make the device perfect for both workshop work and field work.
CUTTING PARAMETERS
- Compressed air pressure 5 - 6 bar
- Cutting thickness (max) 12 mm
- Compressed air capacity 100 l/min
- Cutting current adjustment range 20 - 40 A
- PHYSICAL PARAMETERS
- Degree of protection IP 21
- Weight 9 kg
- Package dimensions L x W x H 560x270x340 mm
- TECHNICAL PARAMETERS
- Power 5 kW
- Idle Voltage 230
- Current at work 60% 40 A
- POWER SUPPLY PARAMETERS
- Current taken from the mains 21 A
- Rated supply voltage 230 V; 50Hz (1ph)
The easy-to-read digital display allows for precise adjustment of the device, ensures stable parameters and high cutting quality.
The device has adjustment of the cooling time of the handle after cutting.
Physical parameters
The device has a fan cooling system which definitely increases its efficiency.
The device is equipped with overload protection, which increases its reliability.
Power supply parameters
Single-phase power supply 230V. The device is equipped with a power plug.
A1537964069)
Delivery includes device with S45 direct hand plasma holder and mass cable
Inverter plasma cutting device. Power supply 230V, cutting current 40A.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | IDEAL |
| Parametry | Welding methods | plasma cutting |
| Parametry | Power consumption | 7.5 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Device weight | 9 kg |
| Parametry | Maximum cut width | 12 mm |
| Parametry | Air pressure | 6 bar |
| Parametry | Cutting current | 40 A |
| Parametry | Height | 340 mm |
| Parametry | Length | 560 mm |
| Parametry | Width | 270 mm |
| Parametry | Length of ground cable | 160 cm |
| Parametry | Welding cable length | 400 cm |
| Parametry | Product weight with unit packaging | 10 kg |
| Parametry | Manufacturer code | PLASMA45 |
| Parametry | Model | Plasma 45 PRO |
| Parametry | Additional features | infinitely adjustable welding current,LCD display |
