Plazminis pjoviklis IDEAL PRAKTIK PLASMA CUT 40A, 16 mm

Trumpai apie prekę

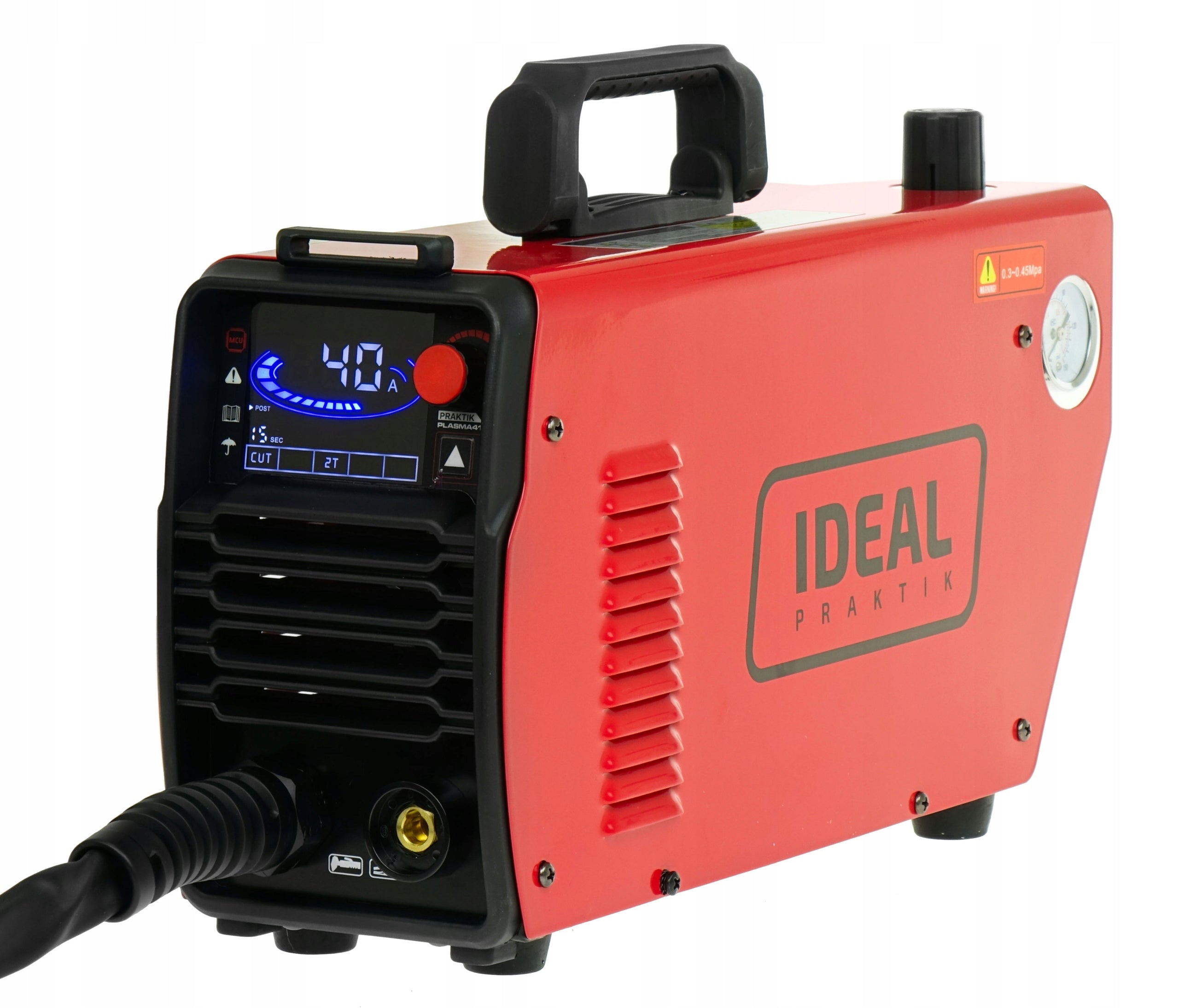

Prekė: Plazminis pjoviklis IDEAL PRAKTIK PLASMA CUT 40A, 16 mm. Kategorija: Plazminiai pjovimo aparatai.

• Gamintojas: IDEAL
• Modelis: PPLASMA40
• Ilgis: 420 mm
• Plotis: 125 mm
• Aukštis: 215 mm

✅advanced MCU controller - better edge of cut details,

✅contactless glow of Blow Back arc - no interference with HF,

✅professional plasma torch IPT-40,

✅gas test - easy regulation of gas flow,

✅ function TPOST - that is, cooling the burner after cutting,

✅adjustable cutting current every 1 amp in the range of 20-40A,

✅maximum cutting thickness of black steel up to 16mm,

✅easy to use function panel,

✅includes air preparation block, i.e. filter-reducer with pressure gauge,

✅low air intake.

⏭WHAT WILL YOU FIND IN THE PACKAGE?

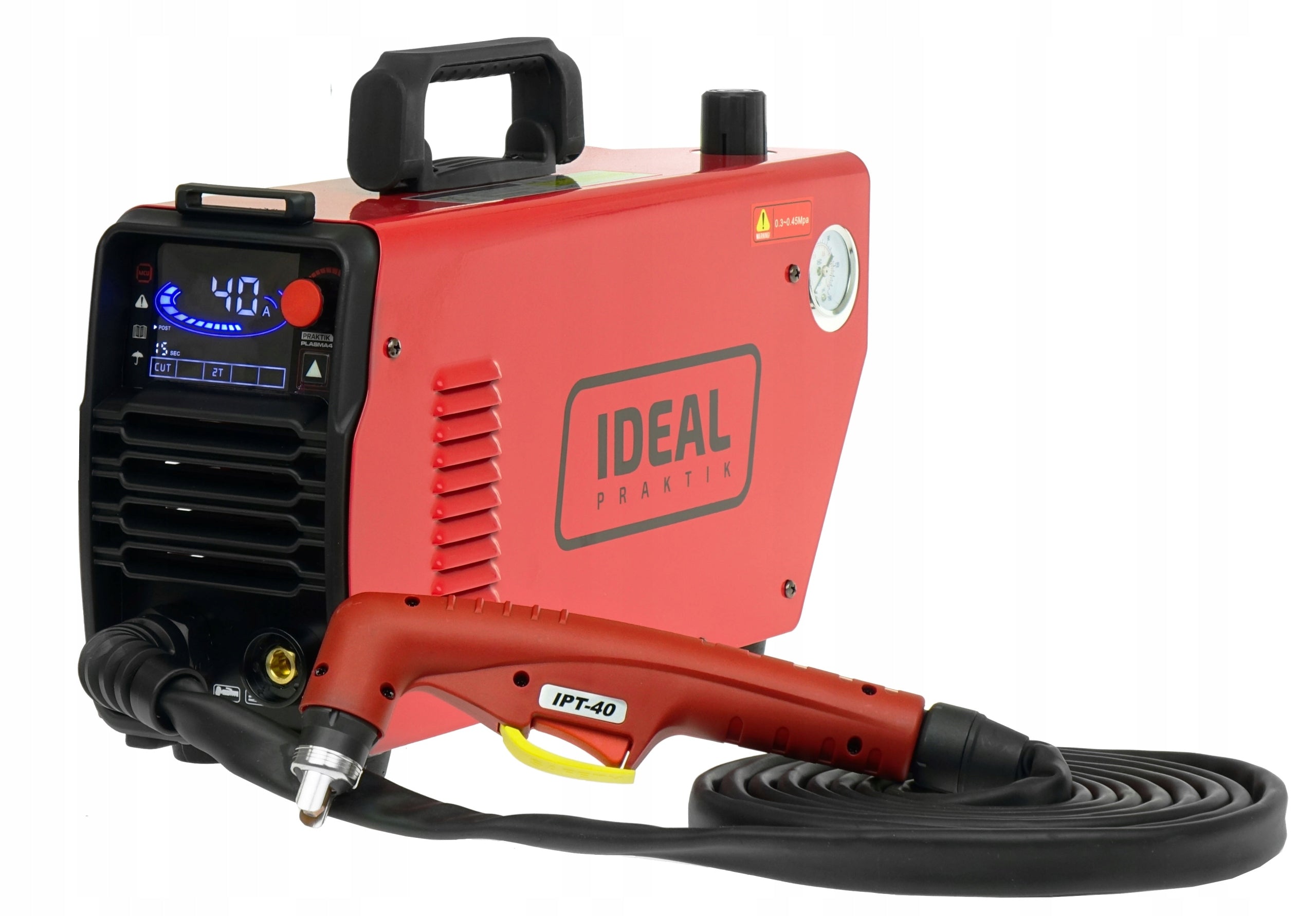

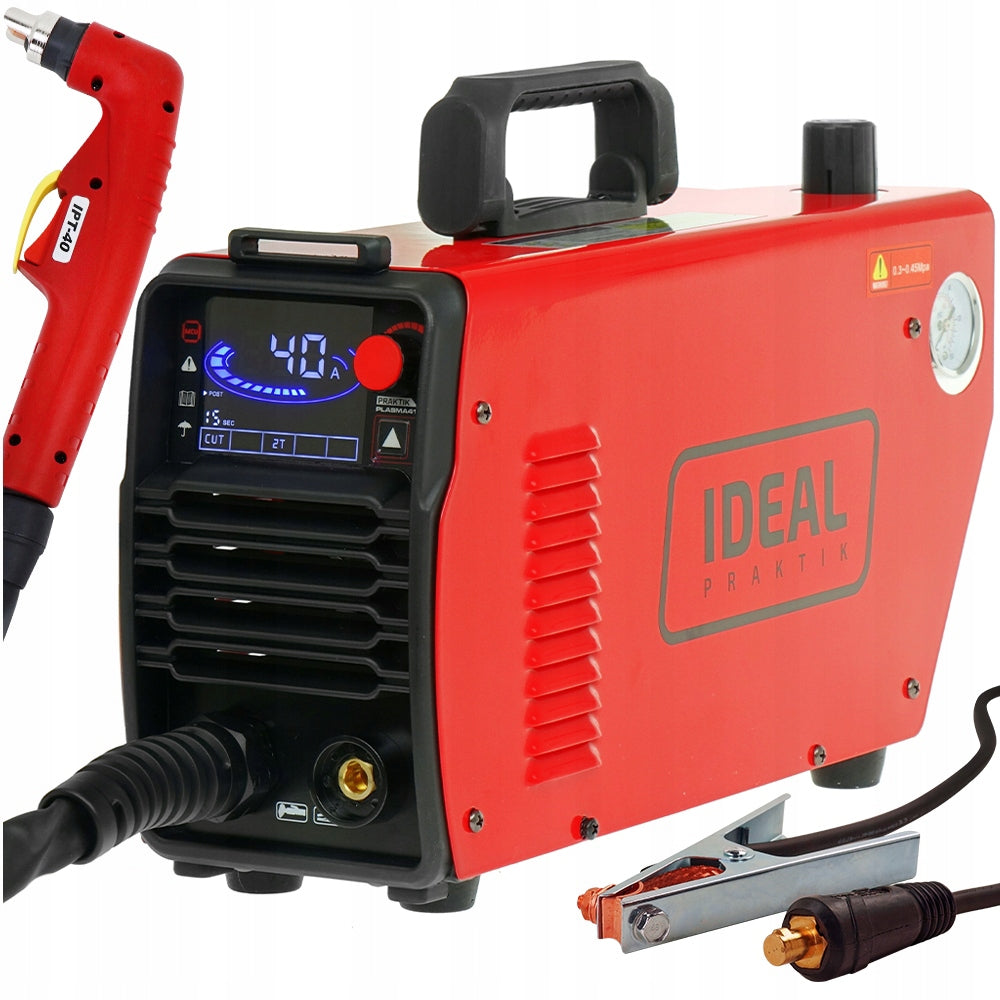

✔ Plasma cutter Ideal Praktik PLASMA

✔ Plasma holder IPT-40 4m

✔ Mass cable 2m

✔ Filter-reducer with pressure gauge

✔ User Manual

⏩POWER SUPPLY PARAMETERS

• Cutting current range: 20 - 40A
• Operating cycle: 30% 40A, 60% 28A
• Maximum cutting thickness: 16mm
• How to light: contactless Blow Back
• Idle Voltage: 296V
• Operating pressure: 5-6 bar
• Compressed air capacity: 100 l/min
• Working handle: integrated IPT-40

⏩Working parameters:

• Power supply voltage: 230V 1ph
• Max. Power consumption: 5kW
• Current Protection: C20A
• Dimensions: 420x125x215 mm
• Weight: 7kg

• CONTACTLESS ARCING "BLOW-BACK" - This method consists in reversing the electrode during arcing. The big advantage of this solution is lower consumption of consumables and reduction of electromagnetic interference to a minimum, compared to HF,

• 2T - or so-called. two-bar is a mode of operation in which the plasma cutting process is carried out when we hold the button pressed on the handle,

• 4T - so-called. four-bar is an ideal mode of operation for cutting longer details. Press-let to cut without holding your finger on the button, press-let to extinguish the plasma arc.

Choose a brand whose history dates back to the beginning of the twenty-first century. Ideal is the leading brand of welding equipment in Poland.

A wide range of Ideal devices meets the needs of not only novice users, but also more advanced ones. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.

Customers choose the Ideal brand most often due to its high quality, affordable price and reliability.
