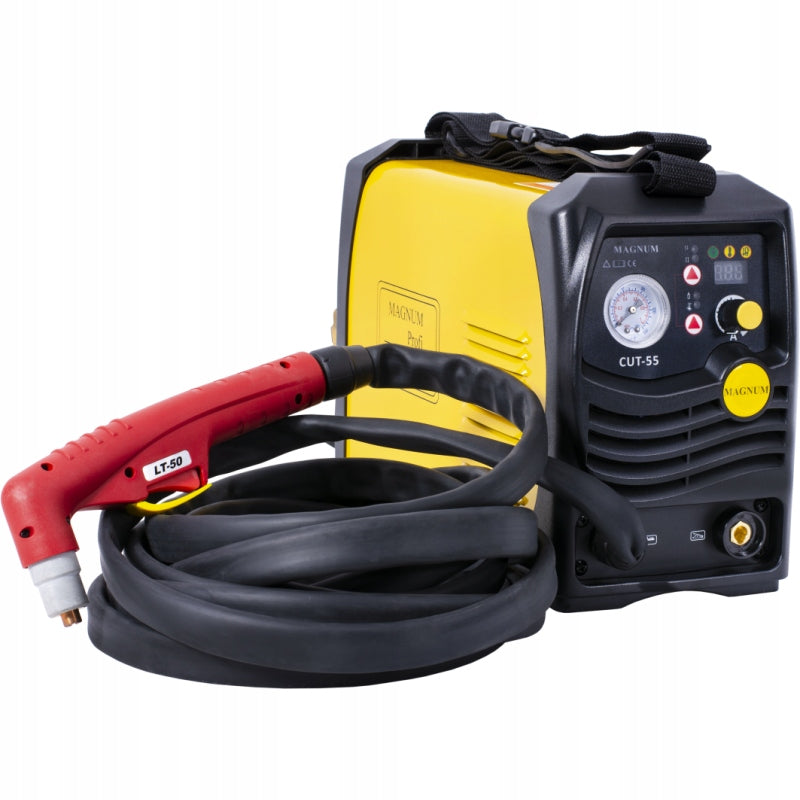

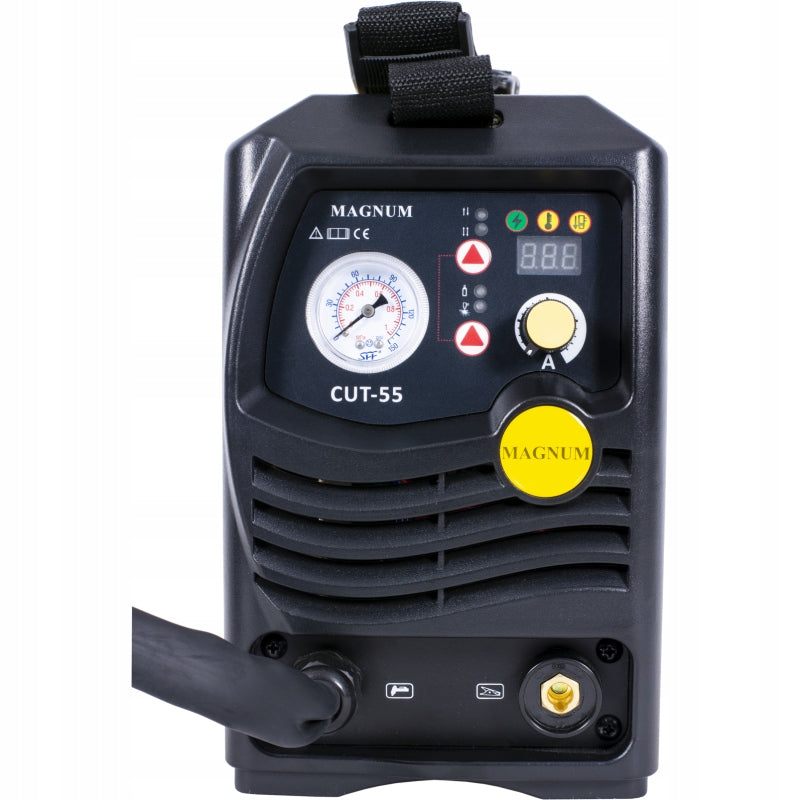

Plazminis pjoviklis Magnum CUT 55, 15 mm

Trumpai apie prekę

Prekė: Plazminis pjoviklis Magnum CUT 55, 15 mm. Kategorija: Plazminiai pjovimo aparatai.

• Gamintojas: Magnum
• Modelis: U P CUT 55 WP
• Ilgis: 405 mm
• Plotis: 160 mm
• Aukštis: 265 mm

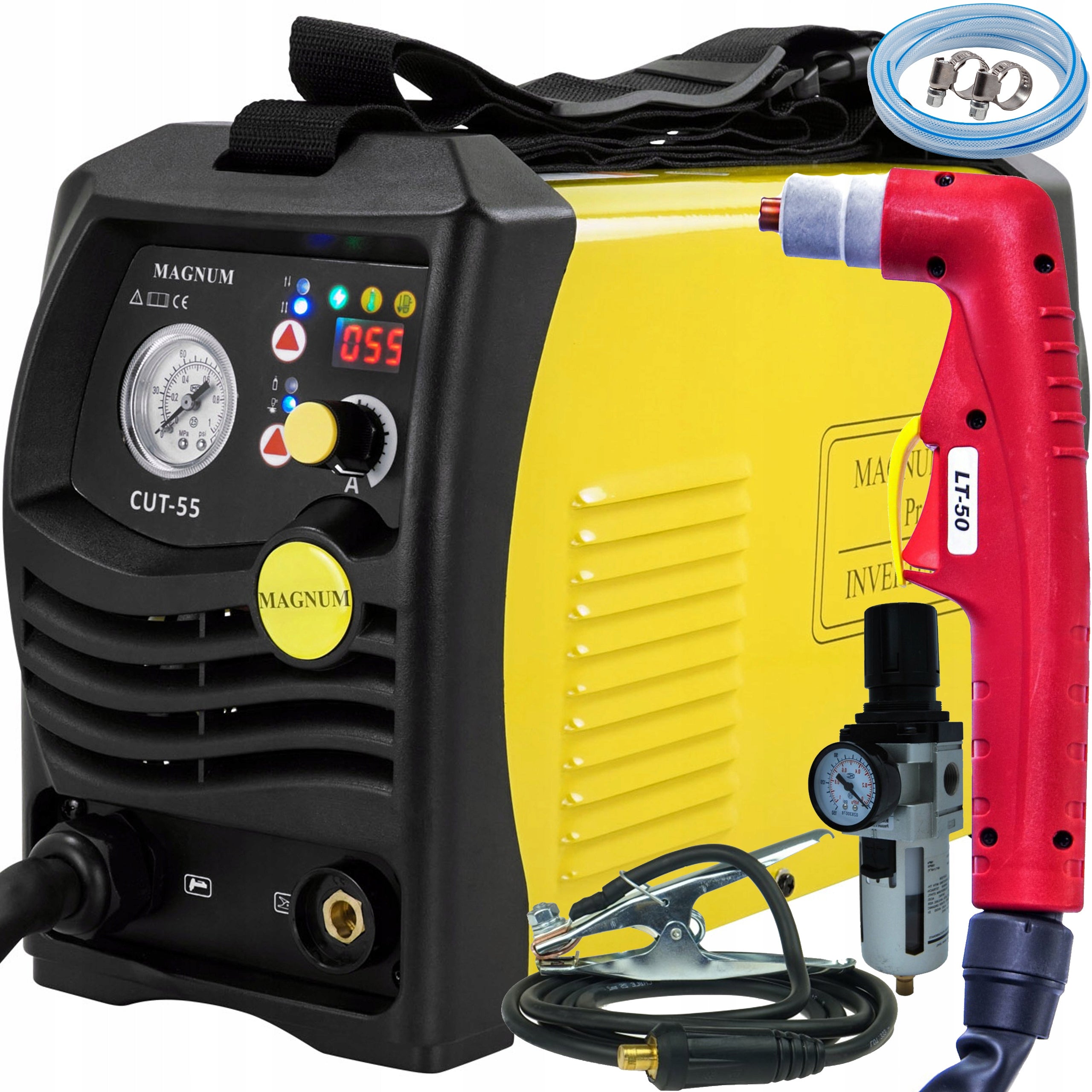

✅Plasma cutter MAGNUM CUT 55

✅Plasma holder type CB-50 - 6m

✅Handle mass

✅Strap for carrying

✅Filter-reducer

✅Nozzle and tips to start

✅Instruction manual in Polish

✅Invoice or receipt

✅Manufacturer: MAGNUM

✅Efficiency [%]: 60

✅Power protection [A]: 25

✅ Power supply: 230 V

✅Cutting current: 50A

✅Contactless glow: HF

✅Cutting thickness: 15mmType of material cut:steel,aluminium,copper

✅Air pressure required: 5 bar,

✅Air consumption: 165 l/min.,

The MAGNUM CUT-55 device is built based on the latest technology using IGBT transistors , which translates into reduced electromagnetic interference, low power losses, increased efficiency and reliability of the power source and reduced energy consumption . The cutter is equipped with thermal overload protection . Its advantage is low weight and smooth regulation of the cutting current ensuring high quality of material cutting.

The MAGNUM CUT-55 plasma cutter is designed for manual or machine air plasma cutting of electrically conductive elements made of carbon and alloy steel, aluminum and its alloys, brass, copper and cast iron.

The device is equipped with a burner that allows cutting in hard-to-reach places and in all possible positions . The CUT-55 plasma cutter has contactless arc ignition and a pilot arc . The cutter can be used for workshop and renovation work, as well as for cutting scrap metal . It has the function of cutting openwork materials, without the need to constantly re-ignite the arc after each hole. You can cut e.g. metal mesh continuously.

Specifications
