Plazminis pjoviklis TECNO PLASMA 65 LED, 40 mm, 230/400V, BLOW BACK

Trumpai apie prekę

Prekė: Plazminis pjoviklis TECNO PLASMA 65 LED, 40 mm, 230/400V, BLOW BACK. Kategorija: Plazminiai pjovimo aparatai.

• Gamintojas: IDEAL
• Modelis: TECNO PLASMA 65 LED
• Ilgis: 530 mm
• Plotis: 210 mm
• Aukštis: 310 mm

🔥 Plasma cutter TECNO PLASMA 65 LED 230/400V IDEAL ! Large stocks, immediate shipping!

60A | CNC | BLOW BACK | Professional Metal Cutting

TECNO PLASMA 65 LED by IDEAL is a modern, efficient plasma cutter designed for precise and fast cutting of metals. Ideally suited for workshops, industrial plants and CNC systems, where repeatability, accuracy and reliability count.

With a double power supply of 230 V / 400 V, the device is extremely versatile – you can use it both stationary and in the field.

⭐ The most important advantages

🔹 Contactless arc glow BLOW BACK

Arc initiation is done by reversing the electrode, without the use of high frequency HF.

✔ less wear of consumable parts

✔ minimal electromagnetic interference

✔ ideal solution for CNC and electronics

🔹 Wide application

Cutting: carbon steel, stainless steel, aluminum, brass and copper.

🔹 Two operating modes

• CUT (continuous) – classic, precise cutting
• GRID (interruptible) – ideal for meshes and perforated elements

🔹 Smooth cutting current regulation – full control over operating parameters

🔹 Readable LED display – excellent visibility of settings in all conditions

🔹 2T/4T function in the handle – comfort for short and long cuts

🔹 Adjustable handle cooling time – extended burner life

🔹 Full compatibility with CNC – possibility of integration with plotters and cutting tables

🔹 Efficient cooling and overload protection – stable, safe operation

📦 Set equipment

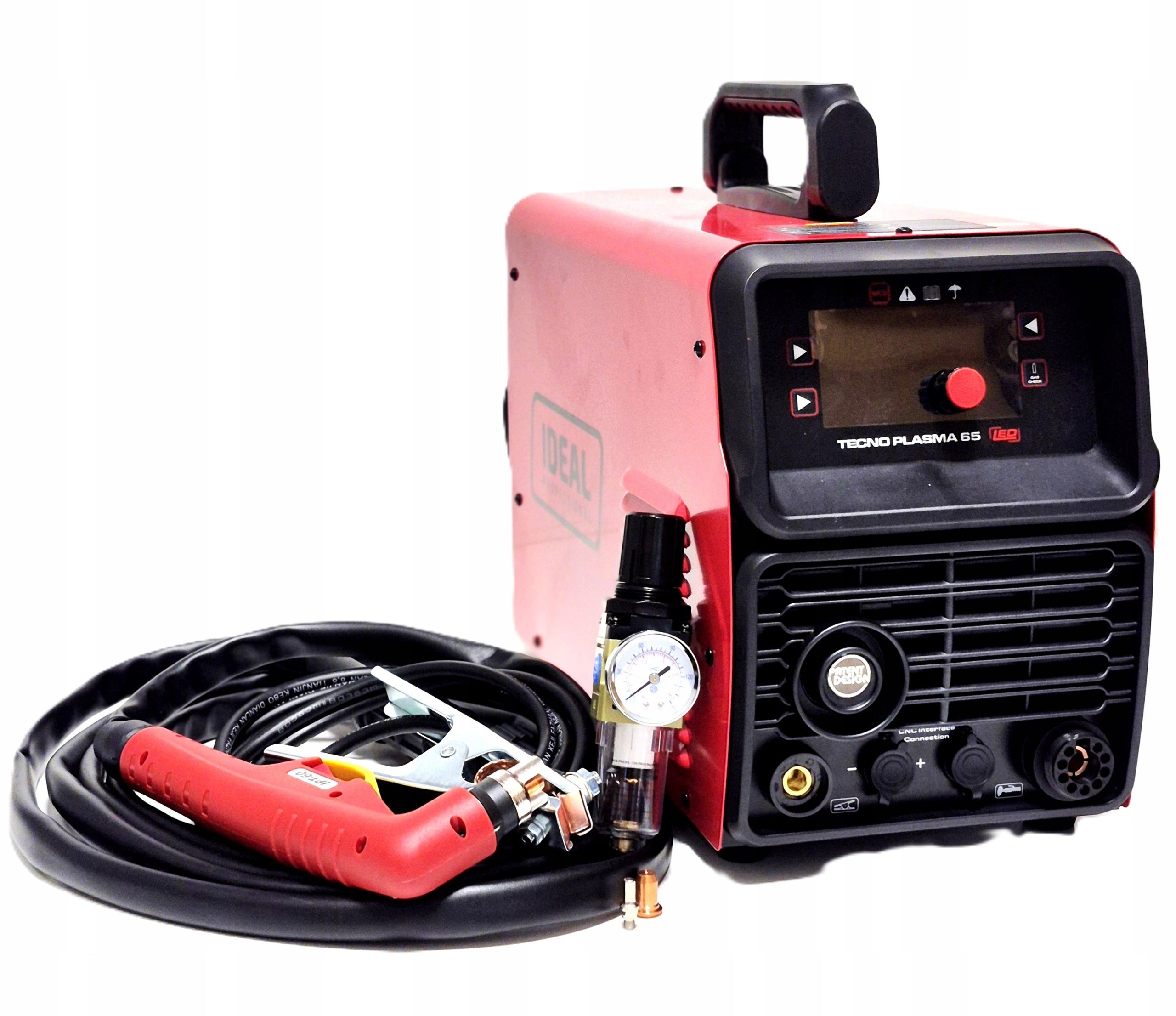

✔ Handheld plasma holder IPT60 – 4 m (central connector)

✔ Mass cable – 2 m

✔ Control plugs for CNC

✔ Nozzle, spare electrode for IPT60 holder

✔ User Manual

⚙ Technical data

• Power supply: 230 V (1~) / 400 V (3~), 50 Hz
• Power: 7,5 kW (230 V) / 8,8 kW (400 V)
• Max. cutting current: 50 A (230 V) / 60 A (400 V)
• Working cycle 100%: 39 A / 46 A
• Working cycle 60%: 50 A / 60 A
• Idle voltage: 365 V / 320 V
• Current adjustment range: 20 – 50 A / 20 – 60 A
• Max. cutting thickness: 35 to 40 mm
• Air consumption: 120 l/min
• Working pressure: 5 to 6 bar
• Degree of protection: IP21S
• Dimensions: 530 × 210 × 310 mm
• Weight: 12,5 kg

✅ Why choose TECNO PLASMA 65 LED?

✔ Professional cutting precision up to 40 mm

✔ Stable operation even under heavy use

✔ Ready to work with CNC

✔ Lightweight, compact design – easy transport

✔ Proven brand quality IDEAL + service support

✔ Perfect for workshops and industry

🔧 Ready to go as soon as you plug it in

Simply connect the power supply and compressed air to start cutting.

Maximum precision. Minimum effort. Professional effect.

Professional plasma cutter TECNO PLASMA 65 LED 230/400V Ideal – 60A, CNC, CUT/GRID modes, LED, 2T/4T function. Precision cutting up to 40 mm, IPT60 handle included. Ideal for workshops and industry.
