Aprašymas
Trumpai apie prekę

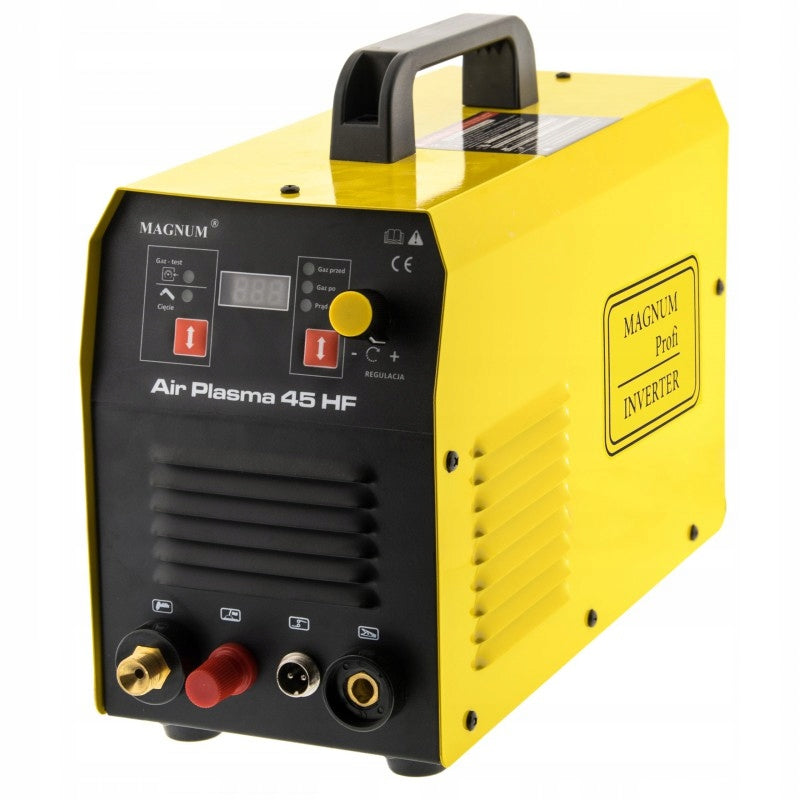

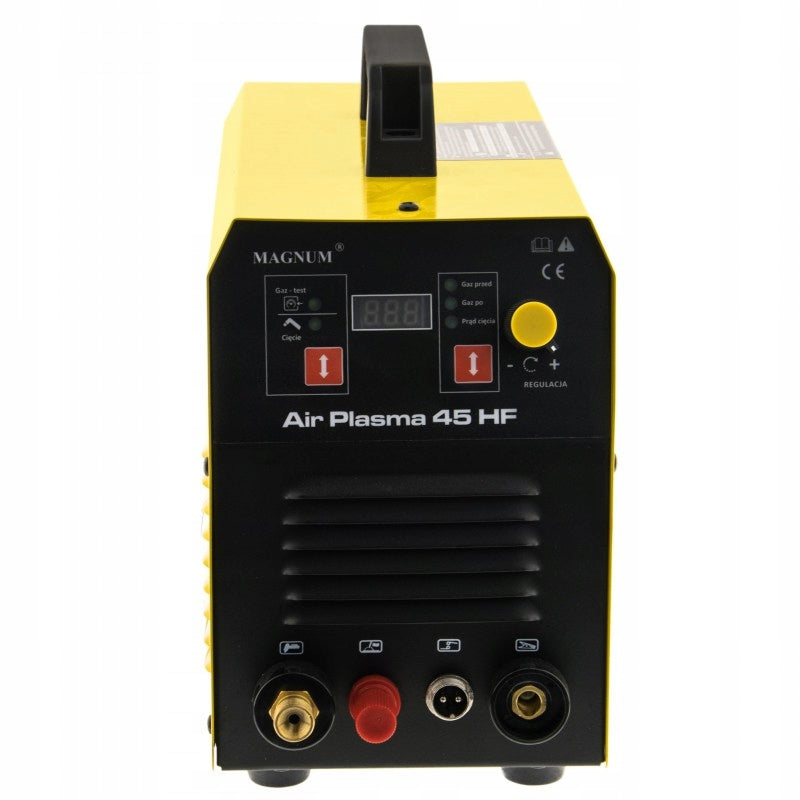

Prekė: Plazminis pjovimo aparatas MAGNUM AIR 45 HF, 15 mm. Kategorija: Plazminiai pjovimo aparatai.
- Gamintojas: Magnum
- Modelis: U P AIR 45 HF
The MAGNUM AIR PLASMA 45 HF plasma cutter is designed for manual or machine air plasma cutting of electrically conductive elements made of carbon and alloy steels, aluminum and its alloys, brass, copper and cast iron.
The MAGNUM AIR PLASMA 45 HF device was built based on the latest technology using IGBT transistors, which translates into reduced electromagnetic interference, low power losses, increased efficiency and reliability of the power source and reduced energy consumption.
The cutter is equipped with overload thermal protection. Its advantage is low weight and smooth adjustment of cutting current ensuring high quality of material cutting.
The device is equipped with a burner that allows cutting in hard-to-reach places and in all possible positions.
The AIR Plasma 45 HF plasma cutter has a contactless arc and pilot arc.
The cutter can be used in production processes, for workshop work, renovation, as well as scrap metal cutting.
TECHNICAL DATA:
- Cutting current: 20 - 450A,
- Efficiency: 60%,
- Power supply: 230 V / 50Hz,
- Power protection: 25A
- Power consumption: 5,5 kVA,
- Approximate cutting thickness for structural steel: separating max. 15 mm, quality max. 8 mm,
- Arch glow: contactless HF and pilot arc.
- Required air pressure: 5 bar,
- Air intake: 160 l/min.,
- Housing protection: IP21S,
- Cooling: Air - fan,
- Idle voltage: 280 V,
- Net weight: 6.8kg.

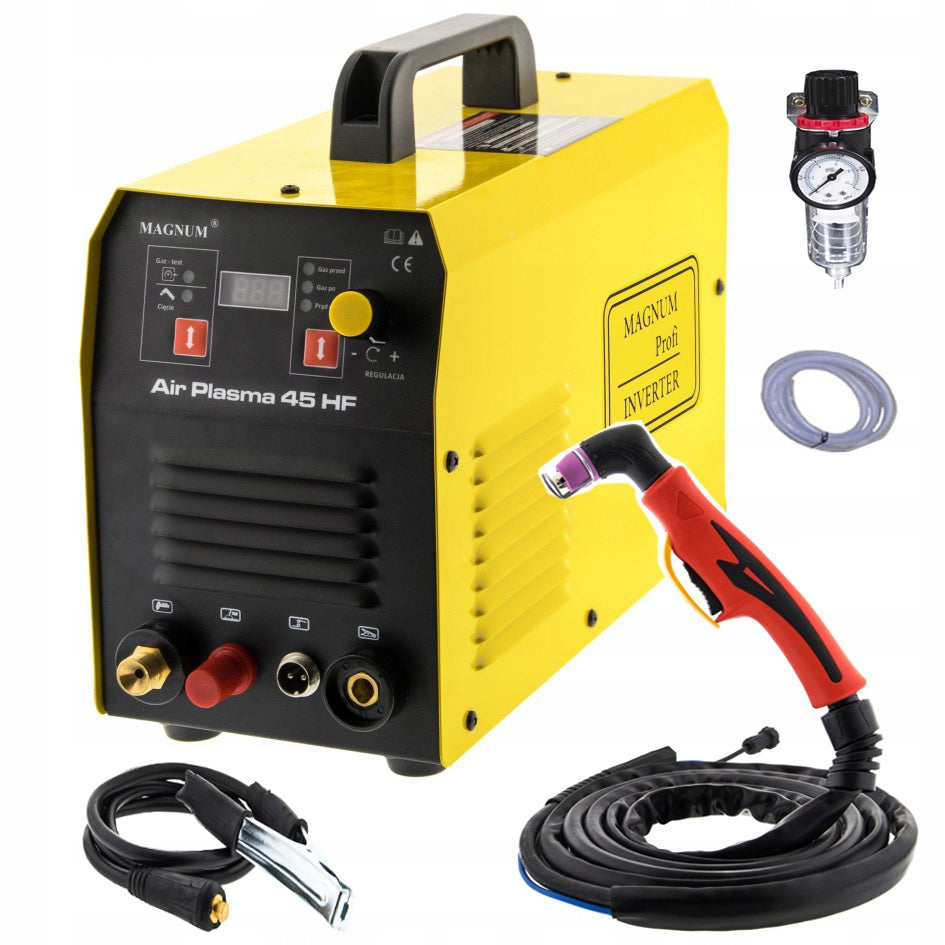

SET INCLUDES:
- Complete AIR 45 HF device with power plug,
- Plasma cutting handle AG-60 - 4M,
- Mass cable with clamp,
- Filter-reducer.
- Hose for gas
- Instruction manual in Polish
- Original packaging
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Magnum |
| Parametry | Welding methods | plasma cutting |
| Parametry | Power consumption | 5.4 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Device weight | 6.8 kg |
| Parametry | Welding range | 20–40 A |
| Parametry | Maximum cut width | 15 mm |
| Parametry | Air pressure | 5 bar |
| Parametry | Cutting current | 40 A |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 400 cm |
| Parametry | Additional features | infinitely adjustable welding current |
| Parametry | Product weight with unit packaging | 8 kg |
| Parametry | Manufacturer code | U P AIR 45 HF |
