MAGNUM AIR PLASMA CUTTER 45 HF 230V 15MM FOR STEEL AND ALUMINIUM
MAGNUM AIR PLASMA CUTTER 45 HF 230V 15MM FOR STEEL AND ALUMINIUM Packaging status original
MAGNUM AIR PLASMA CUTTER 45 HF 230V 15MM FOR STEEL AND ALUMINIUM Manufacturer code U P AIR 45 HF
Paslinkite virš paveikslėlio, kad priartintumėte Spustelėkite paveikslėlį, kad priartintumėte
MAGNUM AIR PLASMA CUTTER 45 HF 230V 15MM FOR STEEL AND ALUMINIUMMAGNUM AIR PLASMA CUTTER 45 HF 230V 15MM FOR STEEL AND ALUMINIUM Packaging status originalMAGNUM AIR PLASMA CUTTER 45 HF 230V 15MM FOR STEEL AND ALUMINIUM Manufacturer code U P AIR 45 HF

Plazminis pjovimo aparatas MAGNUM AIR PLASMA 45 HF, 230V, iki 15 mm plienui ir aliuminiui

Kaina:
€364,90
Sandėlys:
Yra sandėlyje

Aprašymas

Trumpai apie prekę

Prekė: Plazminis pjovimo aparatas MAGNUM AIR PLASMA 45 HF, 230V, iki 15 mm plienui ir aliuminiui. Kategorija: Plazminiai pjovimo aparatai.

  • Gamintojas: Magnum
  • Modelis: AIR PLASMA 45 HF
  • Type: plasma cutting
  • Power supply: 230V
  • Operating cycle 60% with maximum cutting current 40A
  • Gas taken: air
  • For cutting: steel, copper, aluminium and iron
  • Max. cutting thickness: 8 mm
  • Smooth adjustment of cutting current
  • Functions: air outflow before and after, test air outflow
  • Contactless glow - HF
  • Rear-mounted filter-reducer
  • To work in hard-to-reach places
  • Overload switch
  • Made in IGBT technology

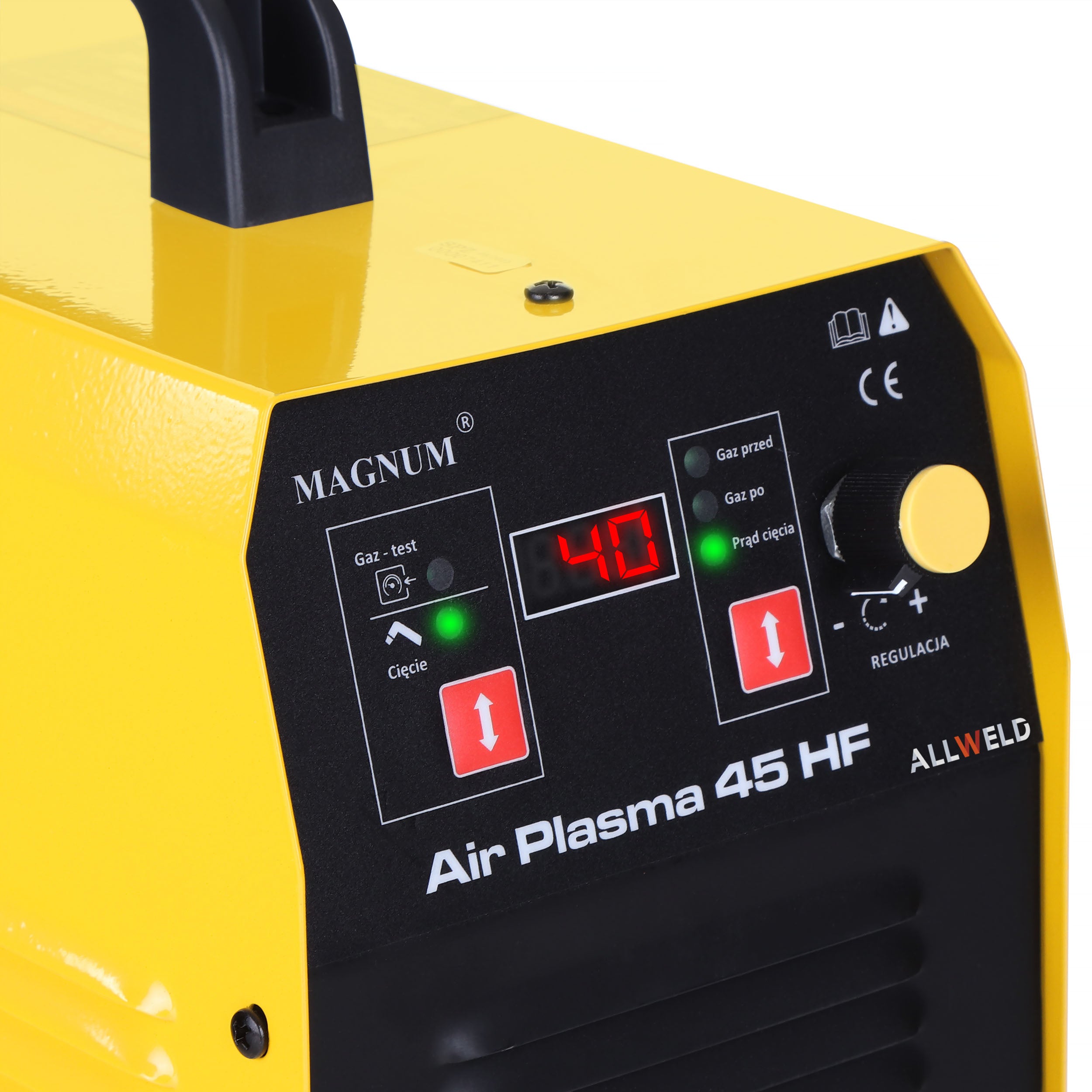

OPERATION WITH A SINGLE POTENTIOMETER

Easy and fast adjustment of parameters is provided by a potentiometer with which you can control the cutting process. Thanks to it, the user can precisely adjust settings, such as e.g. cutting current. The knob allows you to quickly adjust the settings to different materials and thicknesses, which increases efficiency and comfort.

✔ FEATURES AND ADVANTAGES:

  • HF - contactless arc glow through a built-in ionizer; uses high-frequency current; the weld is free from tungsten contamination,
  • OVERLOAD SWITCH - protects against overvoltage, cutting off power to protect the network and device from damage,
  • IGBT- bipolar transistors increase the efficiency and reliability of the device, ensure lower power consumption.

⚙ TECHNICAL SPECIFICATION:

  • Power Supply: 230V/50Hz (1ph)
  • Network security: 25A
  • Cutting current: 20 - 40A
  • Power consumption: 5,5kVA
  • Max. quality cutting thickness: 8mm
  • Max. thickness of separation cutting: 15mm
  • Idle voltage: 280V
  • Air consumption: 160l/min
  • Air pressure: 4.5 - 5 bar
  • Degree of protection: IP21S
  • Weight: 6.8kg

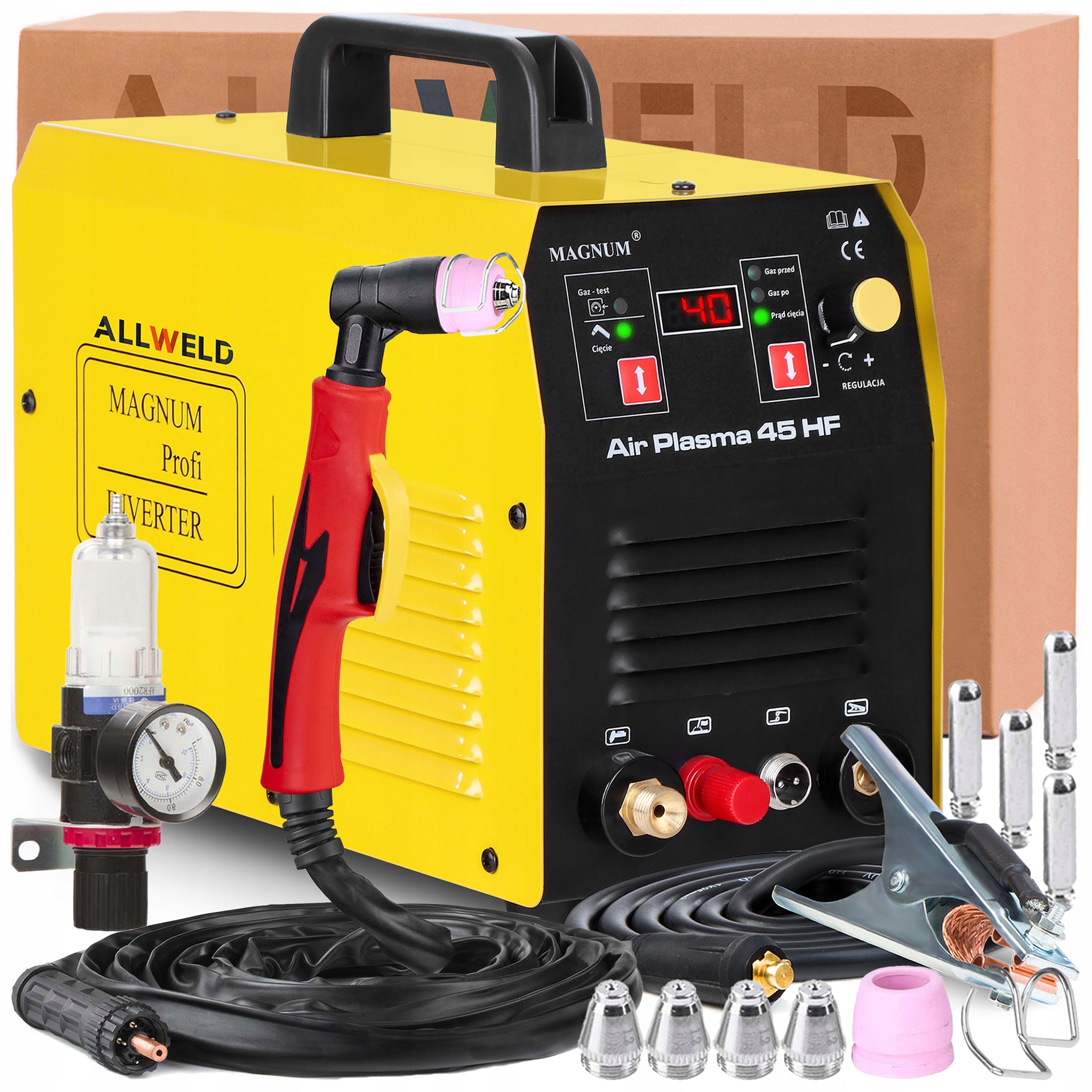

THE SET INCLUDES:

  • Cutter MAGNUM AIR PLASMA 45 HF,
  • Plasma holder type AG-60 - 4 m,
  • mass handle,
  • Distance spring - 1pcs ,
  • Ceramic cover - 1pcs ,
  • Nozzle 1.0 mm - 4pcs ,
  • Electrode - 4pcs
  • Filter-reducer,
  • User manual in Polish.

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Brand Magnum
Parametry Welding methods plasma cutting
Parametry Power consumption 5.5 kVA
Parametry Supply voltage (V) 230
Parametry Duty cycle time 60%
Parametry Device weight 6.8 kg
Parametry Welding range 20–40 A
Parametry Maximum cut width 15 mm
Parametry Air pressure 5 bar
Parametry Cutting current 40 A
Parametry Length of ground cable 200 cm
Parametry Welding cable length 400 cm
Parametry Manufacturer code U P AIR 45 HF
Parametry Packaging status original
Parametry Model AIR PLASMA 45 HF

Pristatymo terminas visoje Lietuvoje: 5-7 d.d.
Pristatymo kaina nurodytu adresu: 3 eur
