Plazminis pjovimo aparatas SPARTUS EASY CUT 40S

Trumpai apie prekę

Prekė: Plazminis pjovimo aparatas SPARTUS EASY CUT 40S. Kategorija: Plazminiai pjovimo aparatai.

• Gamintojas: Spartus
• Modelis: EASYCUT 40SL
• Ilgis: 415 mm
• Plotis: 145 mm
• Aukštis: 245 mm

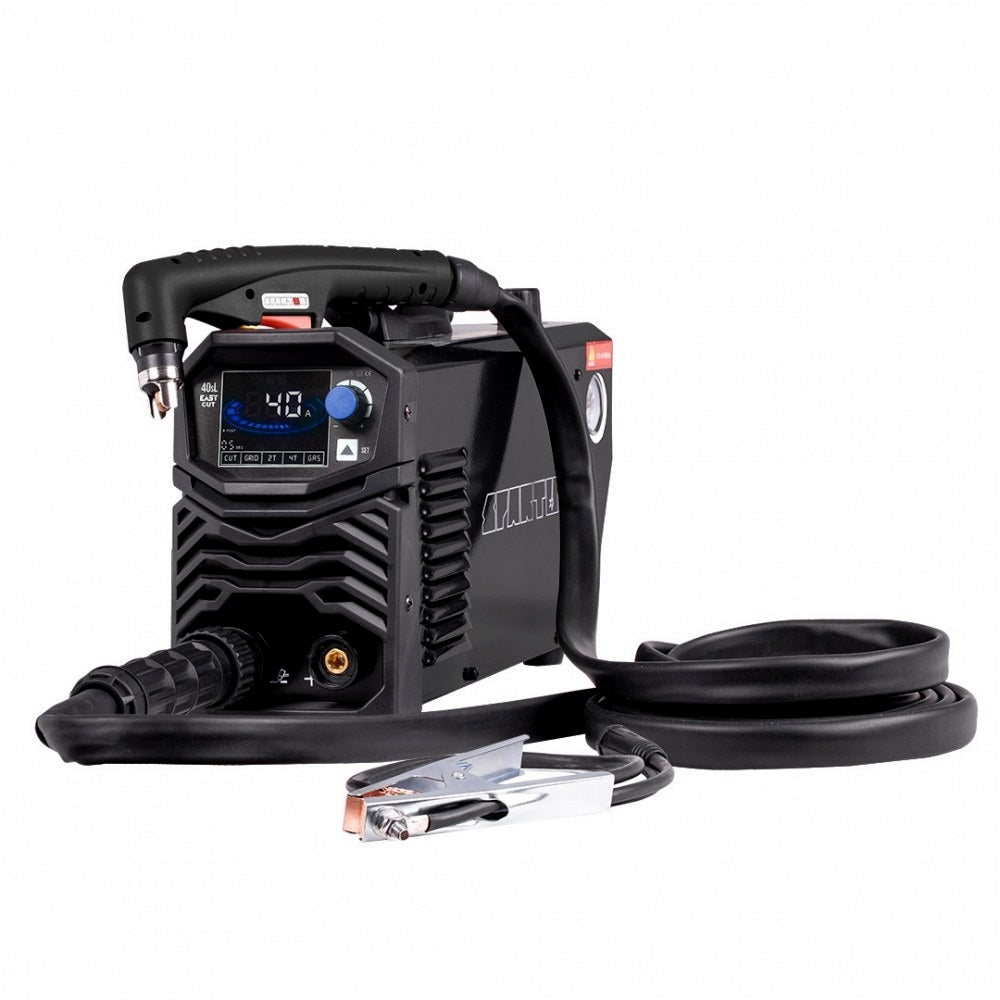

SPARTUS® EASYCUT 40SL is a plasma cutter whose cutting current adjustment is in the range of 20 - 40A. Devices made in IGBT technology used for air plasma cutting sheets and steel, aluminum and copper elements. The equipment is perfect for home, and workshop and scrap metal cutting and thanks to its light weight and small size it will be irreplaceable when working in the field.

The cutter has a built-in contactless pilot arc initiation system without high frequency HF provides excellent cutting quality, with extended service life of consumable parts.

The 2T/4T mode button allows you to work with the handle according to the user's preferences. The front panel is also equipped with a SK35 socket and a central plug for mounting the plasma holder.

The SPARTUS® 40SL plasma cutter is designed for air plasma cutting of electrically conductive elements made of:

✔ Carbon and alloy steels,

✔ Aluminium and its alloys,

✔ Brass,

✔ Copper,

✔ Cast iron.

EASYCUT 40SL is equipped with a pressure reducer with a filter block, which is mounted on the back of the housing, in a place specially designed for this purpose (protected air preparation block from damage, e.g. during the transfer).

ADVANTAGES AND FUNCTIONS OF PLASMA CUTTER:

⭐ IGBT INVERTER TECHNOLOGY - ang. Insulated Gate Bipolar Transistor - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has an impact on significantly extending the reliable operation of welding equipment.

⭐BLOW-BACK FUNCTION - contactless arc ignition.

⭐ MOBILITY OF THE DEVICE - thanks to the light weight of the device and the transport handle allows you to work in hard-to-reach places.

⭐EASE OF USE - The cutter is equipped with an easy-to-use control panel and a large easy-to-read display.

⭐SMOOTH CURRENT REGULATION - provides extraordinary accuracy when selecting cutting parameters.

⭐POST GAS – Gas outflow delay – giving less wear of consumable parts, and better quality ending of the edge of the cut material.

⭐HOME WORK - equipment is recommended mainly for hobby applications and for light, casual workshop work.

⭐TWO-TACT 2T - pressing the button initiates a plasma arc, releasing the button turns off the arc and completes the cutting process.

⭐FOUR-BAR 4T - pressing and releasing the handle button initiates a plasma arc, pressing and releasing the button again completes the cutting process.

ADVANTAGES OF PLASMA CUTTING:

✔ High cutting speeds (cutting without heating), fast piercing - 5 to 7 times faster than in the case of oxygen-gas cutting.

✔ Narrow cutting impact zone - relatively small temperature impact on the entire material due to high speeds and highly concentrated heat action.

✔ Good surface quality and small cutting gap, the ability to cut without burning thin materials.

✔ Wide cutting range up to 16mm.

✔ Easy automation of the cutting process.

CONTROL OF THE CUTTER:

⭐ 2T – two-bar mode. In this mode, press the button in the handle of the plasma handle, light the arc and continue cutting with the button pressed. To complete the cut, release the button in the handle.

⭐ 4T – four-bar mode. In this mode, press the button in the handle of the plasma handle, light the arc, release the button and make a cut with the button released.

OPERATING MODE:

⭐ GAS TEST – This mode is used to check the correct operation of the air system and its cleaning. When starting the device after its night stop, blow the plasma handle of the cutter in TEST mode for about 30 seconds to remove condensate from the circuit. This process will extend the working time of consumable parts and facilitate the start-up of the cutter.

⭐ CUT – working mode (cutting).

⭐ GRID - intermittent cutting, extremely useful when cutting grates or nets.

The device is equipped with a contactless arc "BLOW-BACK" system. This method involves reversing the electrode during arcing. The big advantage of this solution is lower consumption of consumables and reduction of electromagnetic interference to a minimum, compared to HF. This has a big impact on the protection of electrical devices such as controllers, stepper motors, etc. An additional advantage is the lower failure rate of the device by eliminating the HF module. .

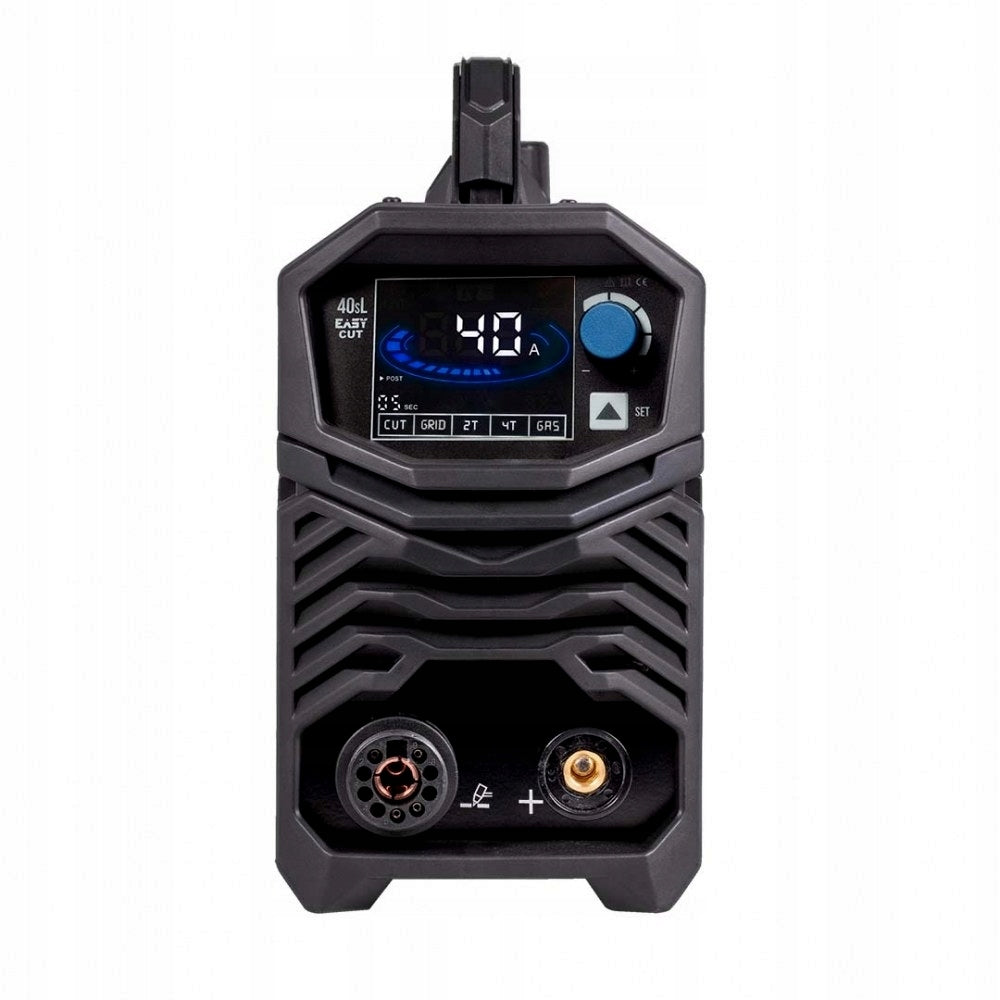

CONTROL PANEL

The EASYCUT 40SL cutter has an easy-to-use function panel with a knob that allows smooth and precise regulation of cutting current in the range 20 – 40A. The front panel of the cutter is equipped with:

A. Display voltage / cutting current / 2T/4T / gas test.

B. cutting current adjustment knob and grid cutting mode.

C. Select button for gas test / 2T/4T mode.

PHYSICAL PARAMETERS

✔ The device has a fan cooling system which significantly increases its efficiency.

✔ The device is equipped with overload protection, which increases its reliability.

POWER SUPPLY PARAMETERS

The device is powered from a single-phase 230 V network

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

PLASMA HOLDER SPARTUS 45H

The 45H handle is a perfect combination of quality and simplicity. Designed primarily for easy operation and comfortable work with the handle. Flexible and lightweight cable package and ergonomic handle ensure adequate comfort of work.

Handle advantages:

1. high quality and ease of use
2. solid execution
3. Compliance with global standards

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

TECHNICAL PARAMETERS

• Cutting current: 20 - 40A
• Max. cutting thickness: 16mm
• Working cycle: 30%
• Efficiency: η77
• Power factor (cosφ): 0.73
• Output voltage: 88 - 96V
• Recommended working pressure: 4.5 bar
• Arc glow: without HF
• Power supply voltage: 230V ± 10%
• Frequency: 50/60Hz
• Number of phases: 1ph

PHYSICAL PARAMETERS

• Degree of protection: IP21S
• Isolation class: H
• Dimensions: 440×145×245mm
• Weight: 6,5kg

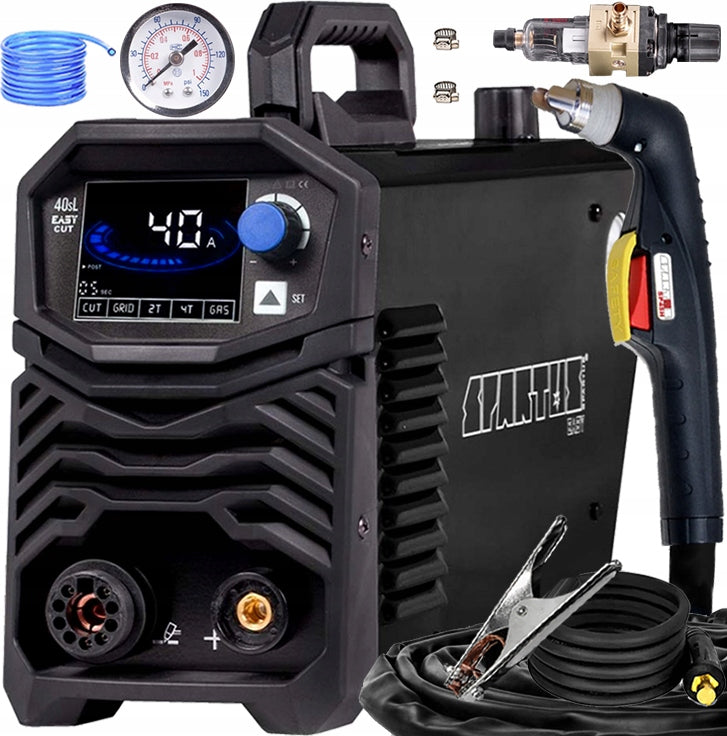

WHEN YOU BUY FROM US, YOU GET:

• Plasma cutter SPARTUS EASYCUT 40SL
• Armed with a handle SPARTUS® 45H - 4m
• mass cable - 2m,
• Instruction for operating in Polish,
• Air filter with reducer
• Guarantee card
• Gas hose
• Straps gas hose - 2pcs.
