Plazminis pjovimo aparatas TECNO PLASMA 105 LED IGBT, 50 mm, IDEAL

Trumpai apie prekę

Prekė: Plazminis pjovimo aparatas TECNO PLASMA 105 LED IGBT, 50 mm, IDEAL. Kategorija: Plazminiai pjovimo aparatai.

• Gamintojas: IDEAL
• Modelis: TPLASMA105LED

Plasma cutter

Cutting thickness up to 40 mm.

CUTTING PARAMETERS

• Compressed air pressure: 5 - 6 bar
• Cutting thickness (max): 50 mm (separating)
• Cutting thickness (max): 45 mm (quality)
• Compressed air capacity: 120 l
• Cutting current adjustment range: 20 - 100 A

PHYSICAL PARAMETERS

• Degree of protection: IP 21S
• Weight: 19 kg

TECHNICAL PARAMETERS

• Power: 13,5 kW
• Idle voltage: 325 V
• Current at 60% operation: 100 A
• Current at work 100% 77A

POWER SUPPLY PARAMETERS

• Power supply network protection: C25 A
• Rated supply voltage: 3x400 V; 50Hz (3ph)

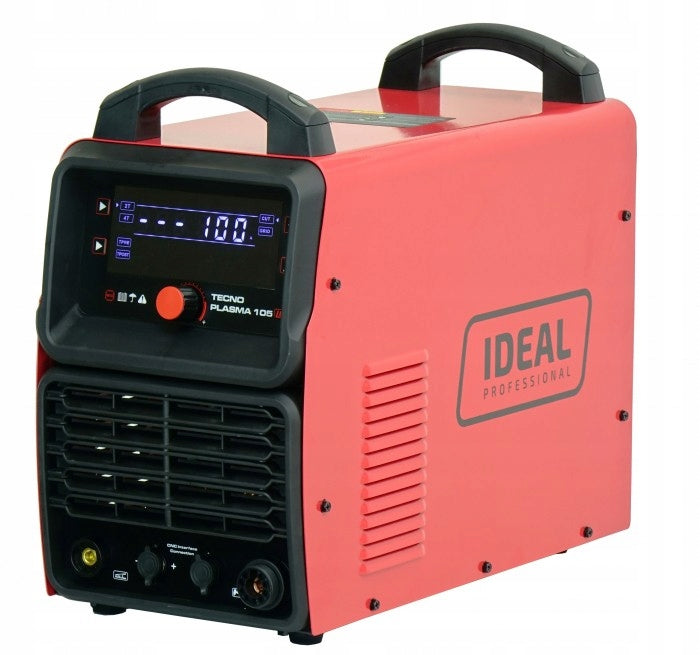

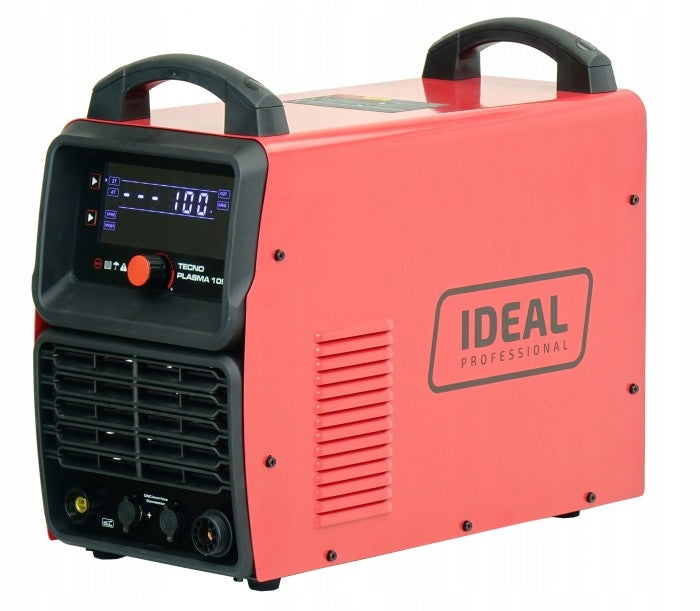

TECNO PLASMA 105 LED is a professional plasma cutting machine. It allows cutting without distortion: steel, stainless steel, aluminum, brass and copper. Electronically controlled, smooth cutting current adjustment.

The cutter has two operating modes: CUT (continuous operation) and GRID (interruptible work).

The easy-to-read LED display allows precise adjustment of the device, even in very strong lighting.

Possibility to choose the button function in the handle between operation in 2T mode (without button lock) / 4T (button lock for long cuts).

The device has an adjustable cooling time of the handle after cutting.

Plasma cutter is compatible with CNC systems

PRODUCT CHARACTERISTICS

• Three-phase power supply 400 V - enables operation of the device practically anywhere with access to the electrical network (the device is not equipped with a power plug)
• The easy-to-read digital display allows precise adjustment of the device, ensures stable parameters and high cutting quality.
• Electronically controlled smooth cutting current adjustment
• The device has a fan cooling system which significantly increases its efficiency
• The device is equipped with overload protection, which increases its reliability
• Thanks to the use of the hand plasma handle LT100 , the device is able to cut separatingly 50 mm of black steel, quality 45mm
• The warranty service is carried out in the door-to-door system without transport costs on the part of the user.

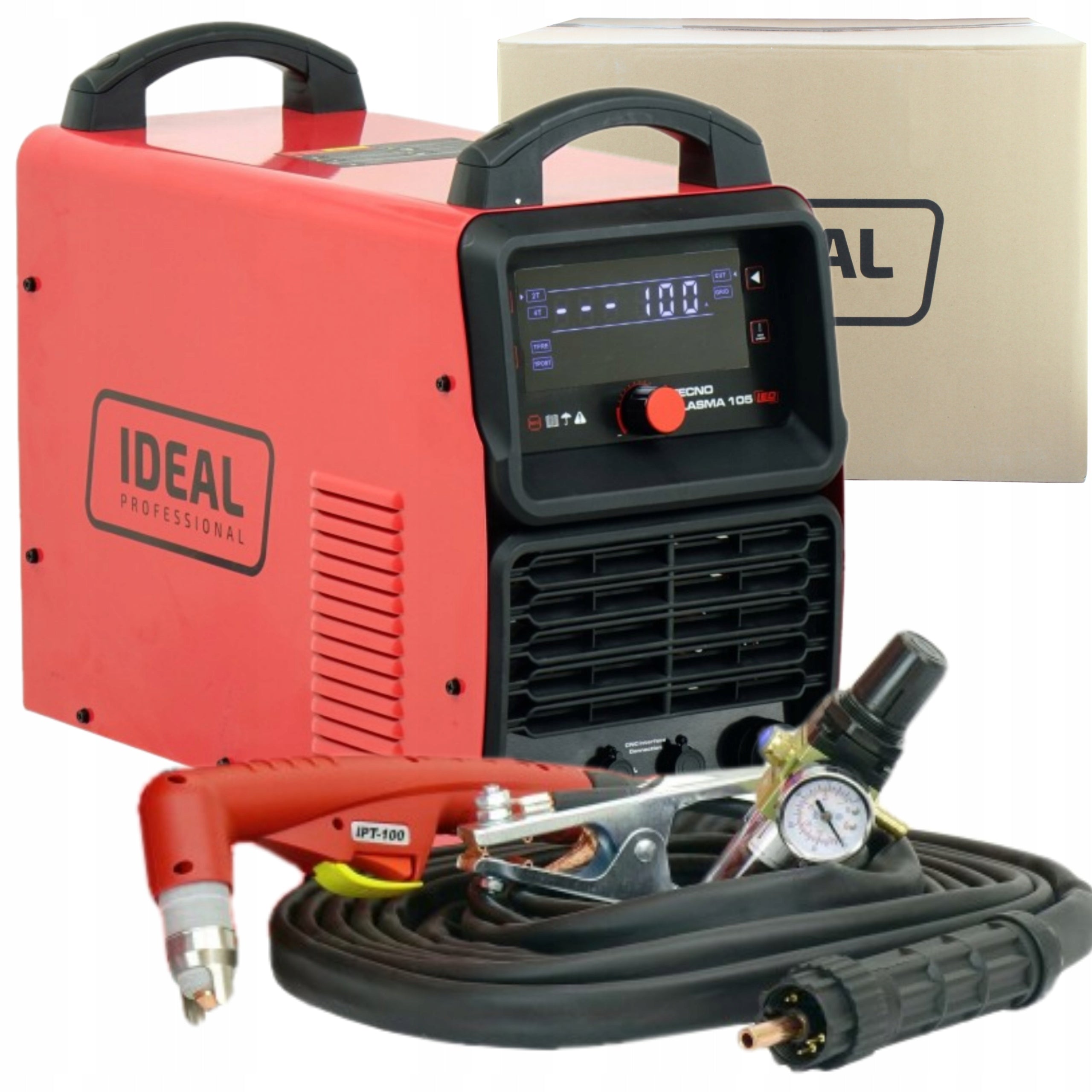

DELIVERY INCLUDES

• Plasma cutter with handle LT-100 with a length of 6m
• Mass cable 3m
• Operating instructions
• Warranty card
