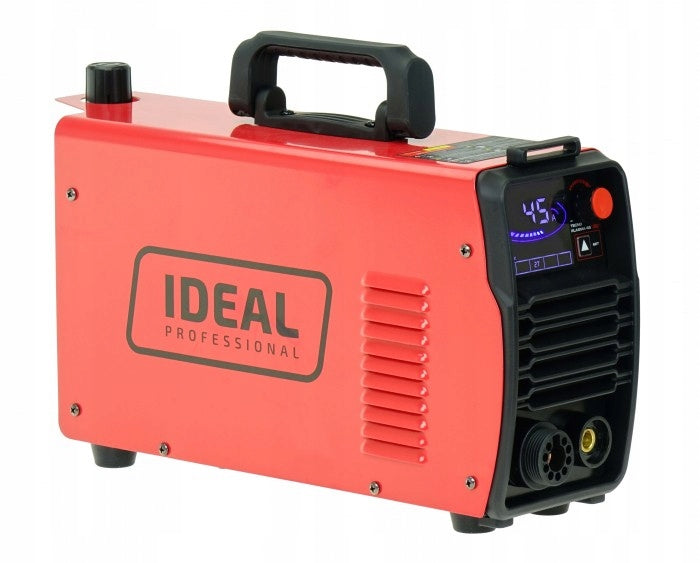

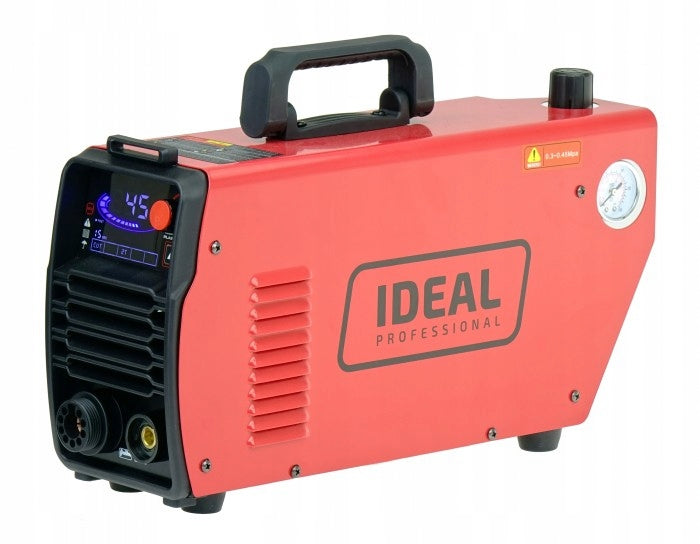

Plazminis pjovimo aparatas TECNO PLASMA 45 LED, pjauna iki 18 mm

Trumpai apie prekę

Prekė: Plazminis pjovimo aparatas TECNO PLASMA 45 LED, pjauna iki 18 mm. Kategorija: Plazminiai pjovimo aparatai.

• Gamintojas: IDEAL
• Modelis: TPLASMA45LED

Plasma cutter

with cutting up to 18mm

CUTTING PARAMETERS

• Compressed air pressure: 4 - 5 bar
• Separating cutting thickness (max): 18 mm
• Quality cutting thickness (max): 14 mm
• Compressed air capacity: 100 l
• Cutting current adjustment range: 20 - 45 A

PHYSICAL PARAMETERS

• Degree of protection: IP 21S
• Weight: 6 kg
• Overall dimensions L x W x H: 420x125x215 mm

TECHNICAL PARAMETERS

• Power: 6,5 kW
• Idle voltage: 290 V
• Maximum current 60%: 45 A
• Maximum current 100%: 35A

POWER SUPPLY PARAMETERS

• Power supply network protection: 25 A (C)
• Rated supply voltage: 230 V

TECNO PLASMA 45 LED is a professional plasma cutting device. It allows cutting without distortion: steel, stainless steel, aluminum, brass and copper. Electronically controlled, smooth cutting current adjustment. The small size and weight make the device perfect for both workshop work and field work.

The cutter has two operating modes: CUT (continuous operation) and GRID (interruptible operation).

The easy-to-read LED display allows precise adjustment of the device, even in very strong lighting.

Possibility to choose the button function in the handle between 2T (without button lock) / 4T (button lock for long cuts).

The device has an adjustable cooling time of the handle after cutting.

PRODUCT CHARACTERISTICS

• Single-phase power supply 230 V - enables operation of the device practically anywhere with access to the electrical network
• The easy-to-read digital display allows precise adjustment of the device, ensures stable parameters and high cutting quality.
• Electronically controlled smooth cutting current adjustment
• Compact dimensions
• The device has a fan cooling system which significantly increases its efficiency
• The device is equipped with overload protection, which increases its reliability
• Thanks to the use of the hand plasma handle IPT40 , the device is able to cut 18mm of black steel separatingly.
• Adjust the cooling time of the handle after cutting.

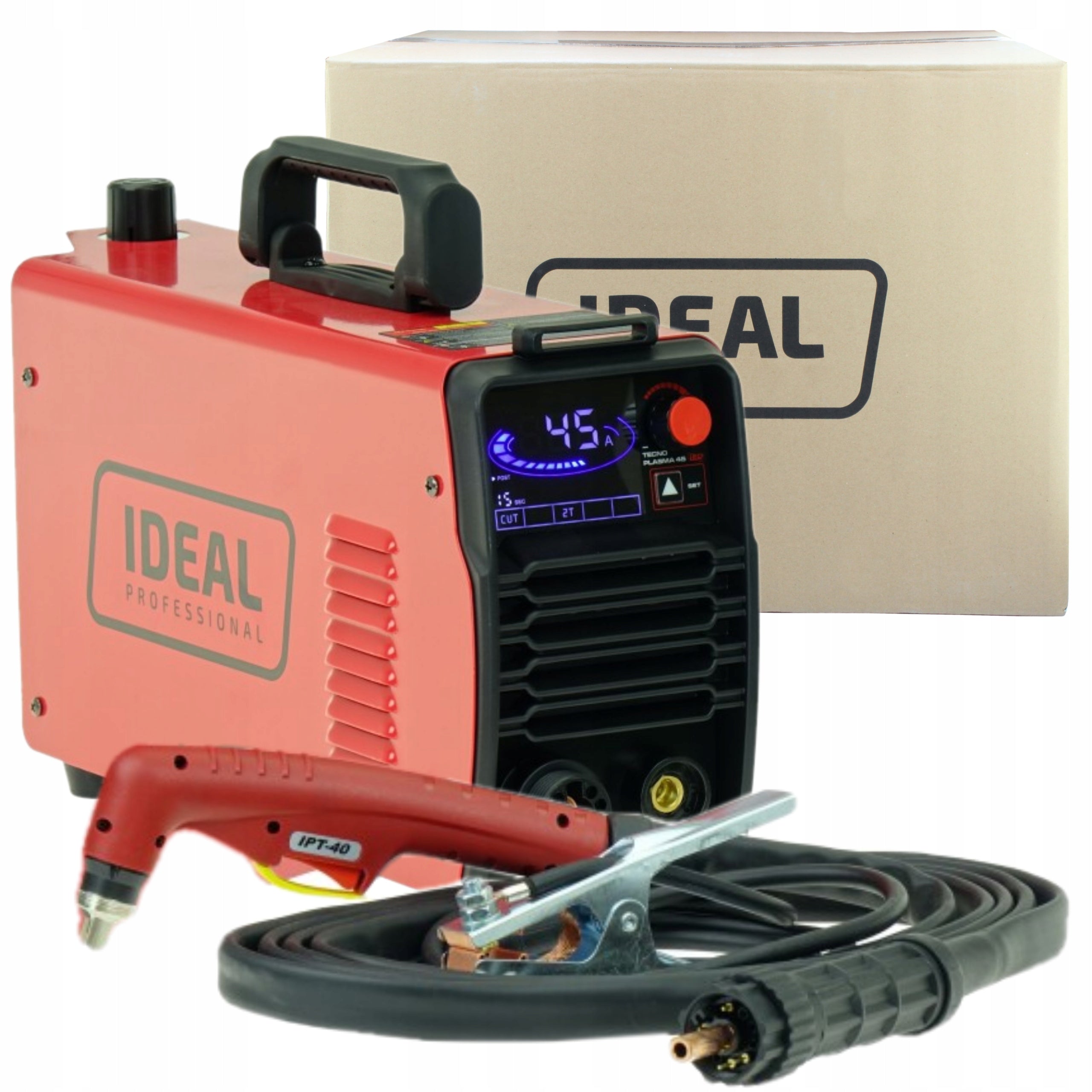

DELIVERY INCLUDES

• Plasma cutter with handle ITP40 length 4m
• Mass cable 2m
• Air pressure reducer
• Operating instructions
