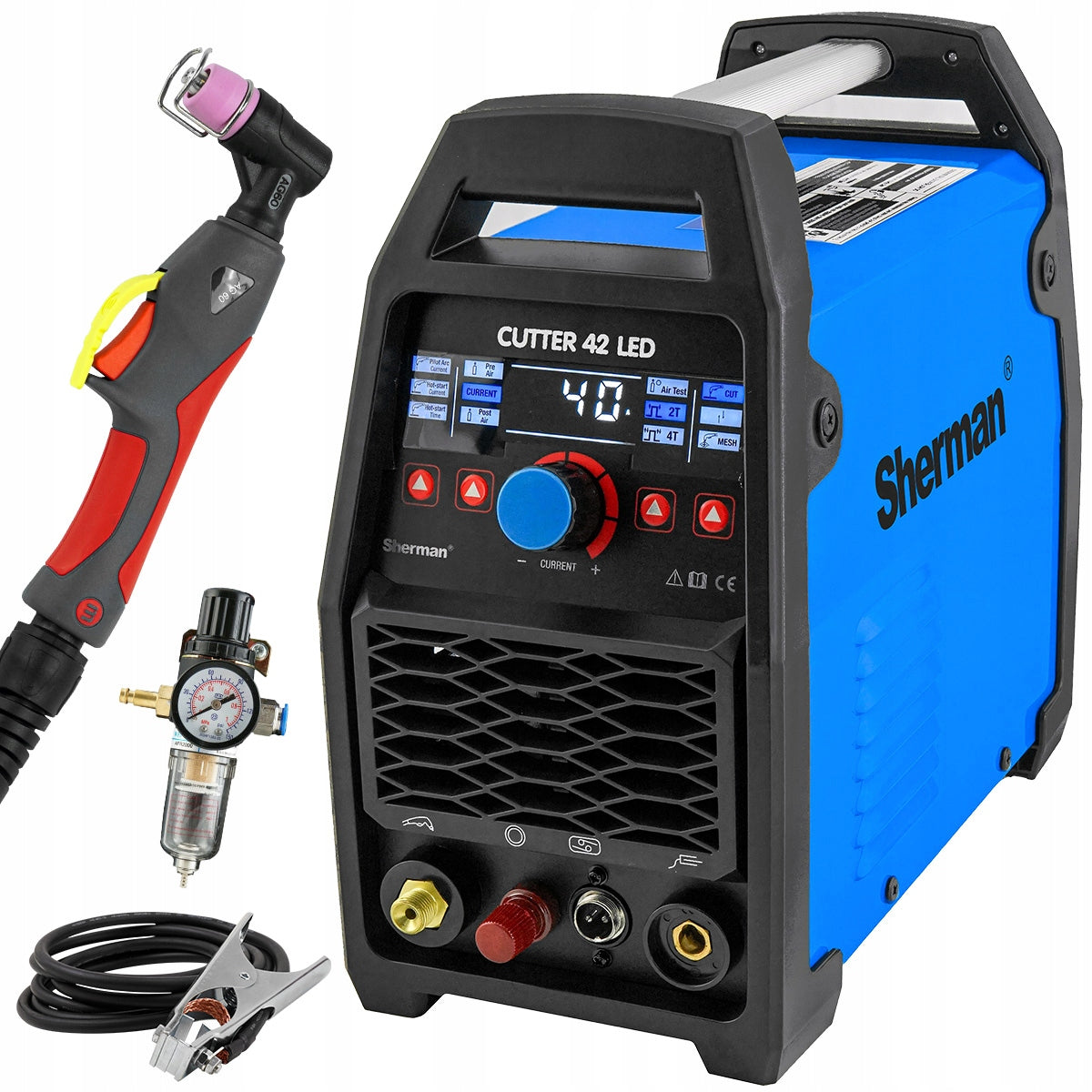

Plazminis pjovimo įrenginys Sherman Cutter 42 LED, 20 mm, AG60, 2T/4T

Trumpai apie prekę

Prekė: Plazminis pjovimo įrenginys Sherman Cutter 42 LED, 20 mm, AG60, 2T/4T. Kategorija: Plazminiai pjovimo aparatai.

• Gamintojas: Sherman
• Modelis: 7813265
• Ilgis: 330 mm
• Plotis: 163 mm
• Aukštis: 306 mm

Manufacturer: Sherman | Cutting current: to 40A | Cutting thickness: to 20mm

SHERMAN CUTTER 42 - QUALITY THAT CAN BE SEEN IN EVERY CUT

The CUTTER 42 LED is a high-tech, digitally controlled device designed for precise plasma cutting using compressed air. It enables efficient machining of a wide range of materials such as carbon steel, stainless steel, aluminum and copper, ensuring high edge quality and repeatability of the process.

Thanks to its modern design and intuitive control panel, the CUTTER 42 LED guarantees stable operation and easy operation, even with longer operating cycles. The device is perfect for production plants with moderate cutting intensity, where reliability and efficiency count, as well as in service and craft workshops that require a versatile and versatile tool for everyday work.

Advantages of the device:

• Control 2T/4T - convenient adjustment of the operating mode to the needs of the operator.
• Air handle blow - extends the service life of consumable parts.
• Maximum cutting thickness up to 20mm.
• Pilot arc current adjustment - precise adjustment of parameters without the risk of damage to the material.
• Pilot Arc and Hot Start - facilitate material puncture and arc initiation, ensuring reliable cutting even on surfaces with paint, rust or oxides.
• Mesh mode - automatic switching on the pilot arc when the cutting continuity is lost (e.g. on grids), which minimizes time-consuming and energy-consuming re-ignition of the arc.
• Plasma holder 4m with HF - for comfort and precision.

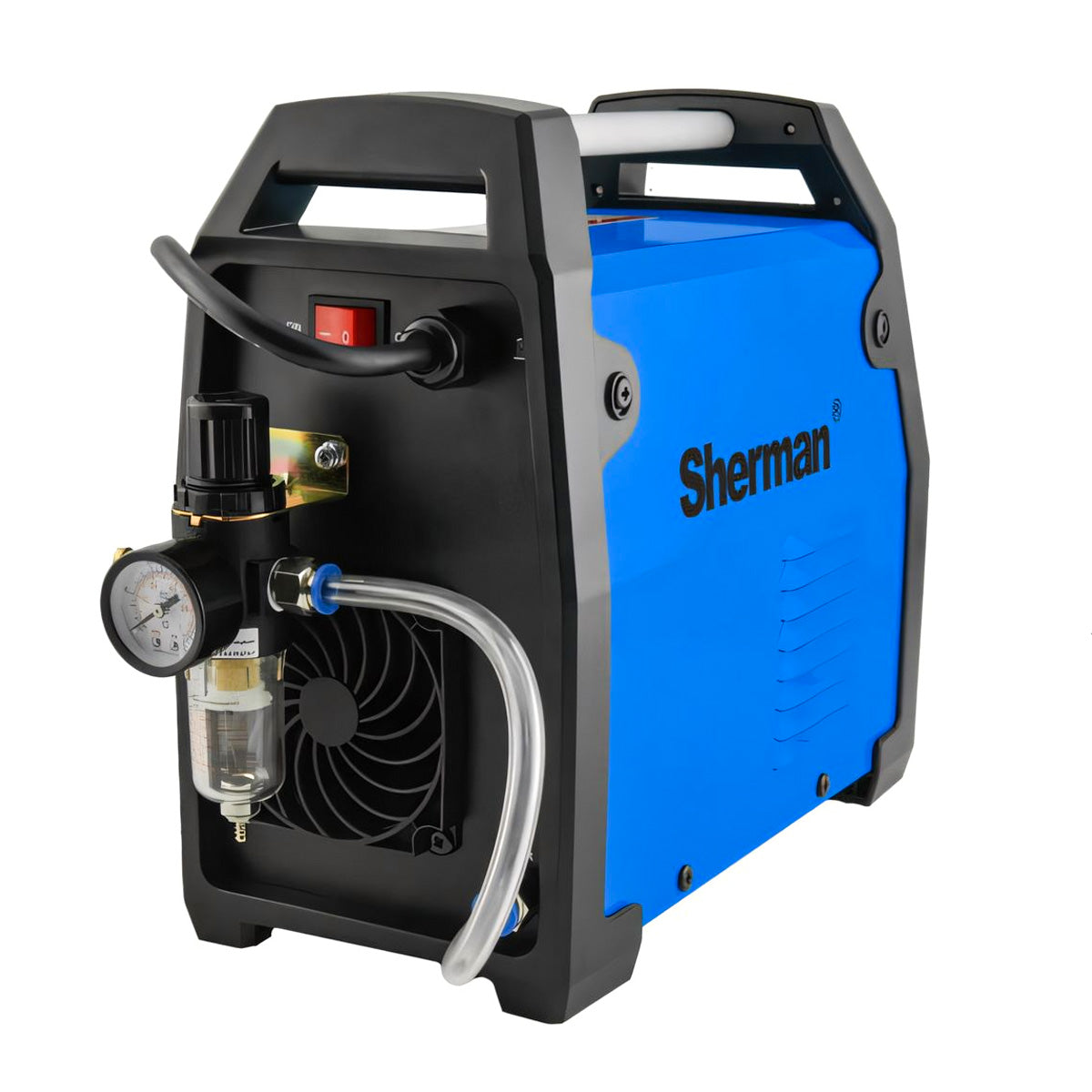

• Air preparation unit with reducer - allows you to adjust and control air pressure.

INCREASED EFFICIENCY - LEARN ABOUT THE BENEFITS OF PLASMA CUTTING

The plasma cutting process is used to cut electrically conductive materials. It involves local melting of the material and blowing it out, using a plasma stream with a high concentration of thermal and kinetic energy.

ADVANTAGES OF PLASMA CUTTING PROCESS:

• high quality of cutting surface,
• high efficiency and stable process flow,
• The process is much safer compared to oxygen-gas cutting.

Operating modes and functions of the device

• 2T - function means to start working after pressing the button on the handle and stop it after releasing the button on the handle.

• 4T - pressing the button on the handle opens the solenoid valve, there is a preliminary gas outflow and an electric arc ignites. After ignition, the current has the value of the initial current. When the button is released, the value of the output current increases to the value of the welding current. Stopping the welding process occurs after pressing the button on the handle again.

• TEST - used to check the correct operation of the air system and its cleaning

• Mesh mode – automatic switching on of the pilot arc when the cutting continuity is lost (e.g. on grids), which minimizes time-consuming and energy-consuming re-ignition of the arc.

Ready to work after unpacking

The cutter has a mass cable, plasma handle 4m with pilot arc and an external air preparation unit with reducer for adjusting and controlling air pressure. The gas line is also included.

The air preparation unit with reducer is responsible for the correct conditioning of compressed air supplied to the device. It enables precise adjustment and constant control of the working pressure, which has a direct impact on the stability of the cutting process and the quality of the obtained edge. Thanks to the use of a reducer, the operator can easily adjust the air parameters to current needs, while protecting the components of the device from overload and ensuring its safe and reliable operation.

Contactless HF (pilot arc)

The plasma cutter is equipped with the function of non-contact plasma arc ignition. It consists in the fact that the ignition occurs without the need to contact the material, for which the built-in ionizer is responsible. The resulting plasma arc melts metal without any problems and, with the help of kinetic energy given by compressed air, ejects it from the fissure.

Ergonomic plasma handle AG-60

The plasma handle with a length of 4 meters, equipped with an HF ignition system with a pilot arc, ensures high comfort and precision when cutting.

• Maximum cutting current: 60A
• Working cycle: 60%
• Airflow: 120 l/min
• Air pressure: 3,5 - 4,5 bar
• Length: 4m
• Method of ignition: HF

Power supply parameters

• Supply Voltage: 230V 50Hz
• Technology: IGBT inverter
• Rated cutting current: 40A
• Cutting Current Range: 15 to 40A
• Working cycle: 60%
• Maximum cutting thickness: 20 mm
• Lighting method: HF (contactless)

Plasma cutting parameters

• Air outflow: 0,1 – 1 s
• Air flow: 4 – 60 s
• Pilot Arch (Pilot Arc): 16 – 20 A
• Hot Start Function (current): 15 – 45 A
• Hot Start function (time): 0,1 – 1 s
• Maximum current consumption: 30,8 A
• Network Security: 16 A
• Operating air pressure: 3,5 – 4,5 bar
• Weight of the device (without accessories): 5,7 kg
• Dimensions: 330 × 163 × 306 mm
• Functions: TEST (Air Test), 2T/4T, Remote Arc, Hot Start, Mesh

• Plasma cutter Sherman Cutter 42 LED
• Plasma holder AG-60 4m
• Bulk cable
• User manual

+ ADDITIONAL ACCESSORIES

• air preparation unit with reducer,
• gas line.
