Aprašymas
Trumpai apie prekę

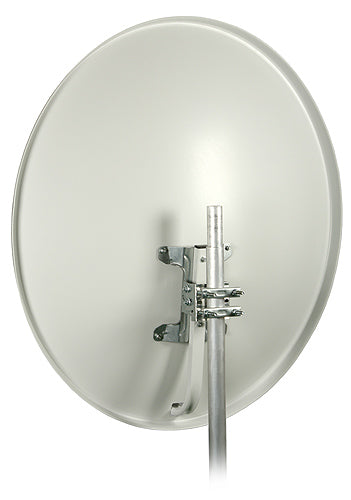

Prekė: Plieninė palydovinė antena CORAB COR-900, 90 cm, HD, 4K. Kategorija: Antenos.
- Gamintojas: Corab
- Modelis: AS-90/STAL
Product Polish
The COR 900 SA-J satellite antenna is characterized by very good technical parameters. Mirror made of steel sheet, hot-dip galvanized, painted with powder paint. Antenna arm made of steel with a rectangular profile ensures stability of the converter mount.
The diameter of the canopy allows seamless reception of HD channels from Hotbird and Astra satellites throughout Polish.
Distinguishing features:
- high quality and resistance to weather conditions
- DURABLE CONSTRUCTION
- new reinforced cover
- wide range of AZ-EL regulation
Technical data:
- Frequency of converter operation [GHz]: 10,7-12,75
- Dimensions of the working part of the headlamp [mm]: long axle 904, short axle(D) 800
- External dimensions of the headlamp [mm]: 948 x 844
- Angle offset [deg]: 27,77
- Focal (f ) [mm]: 393
- F/D ratio: 0,49
- Energy gain for 10,7 GHz [dB]: 38,8
- Energy gain for 11,7 GHz [dB]: 39,1
- Energy gain for 12,75 GHz [dB]: 41,2
- Azimuth angle adjustment range [°]: 0-180
- Facing angle adjustment range [°]: 5-80
- Mast diameter [mm]: 32-60
- Thickness of reflector plate [mm]: 0,6
- Converter mounting [mm]: 40
- Wind operating speed [km/h]: 98
- Maximum wind speed [km/h]: 123
- Mass [kg]: 5
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | AS-90/STAL |
| Parametry | Model | AS-90/STAL |
| Parametry | Brand | Corab |
| Parametry | Product weight with unit packaging | 5.42 kg |
| Parametry | Converter | no |
| Parametry | Dish size | 90 cm |
| Parametry | EAN (GTIN) | 5902887015724 |
