Aprašymas
Trumpai apie prekę
Prekė: Plokščias sieninis televizoriaus laikiklis 50–90″, VESA. Kategorija: Rankenos.
- Gamintojas: Ergosolid
- Modelis: ULTRA-10F
Model: ErtuSolid Ultra-10F
- ✅ Maximum working capacity 60 kg
- ✅ Universal for 50″- 90″ TVs
- ✅ Distance from wall: 10 mm!
- ✅ Quick and easy installation
- ✅ Magnetic lock of the TV against accidental photo
- ✅ Powder coated in black
- ✅ Compatible with VESA 100x100 ~ 800×600 mm
- ✅ Brand: ErtuSolid (Ergosolid® group)
TECHNICAL PARAMETERS
- ✅ Maximum working capacity 60 kg
- ✅ For TVs 50″- 90″
- ✅ Rotation adjustment ±60°
- ✅ Distance from wall 10 mm
- ✅ Finish: powder coated
- ✅ Colour: black
- ✅ Compatible with VESA (mounting hole spacing) standard:
- ✔ VESA 100×100
- ✔ VESA 100×200
- ✔ VESA 200×100
- ✔ VESA 200×200
- ✔ VESA 300×200
- ✔ VESA 300×300
- ✔ VESA 400×200
- ✔ VESA 400×300
- ✔ VESA 400×400
- ✔ VESA 500×300
- ✔ VESA 500×400
- ✔ VESA 600×400
- ✔ VESA 800×400
- ✔ VESA 800×500
- ✔ VESA 800×600
- ✅ and all others in the range from 100×100 to 800×600 mm.

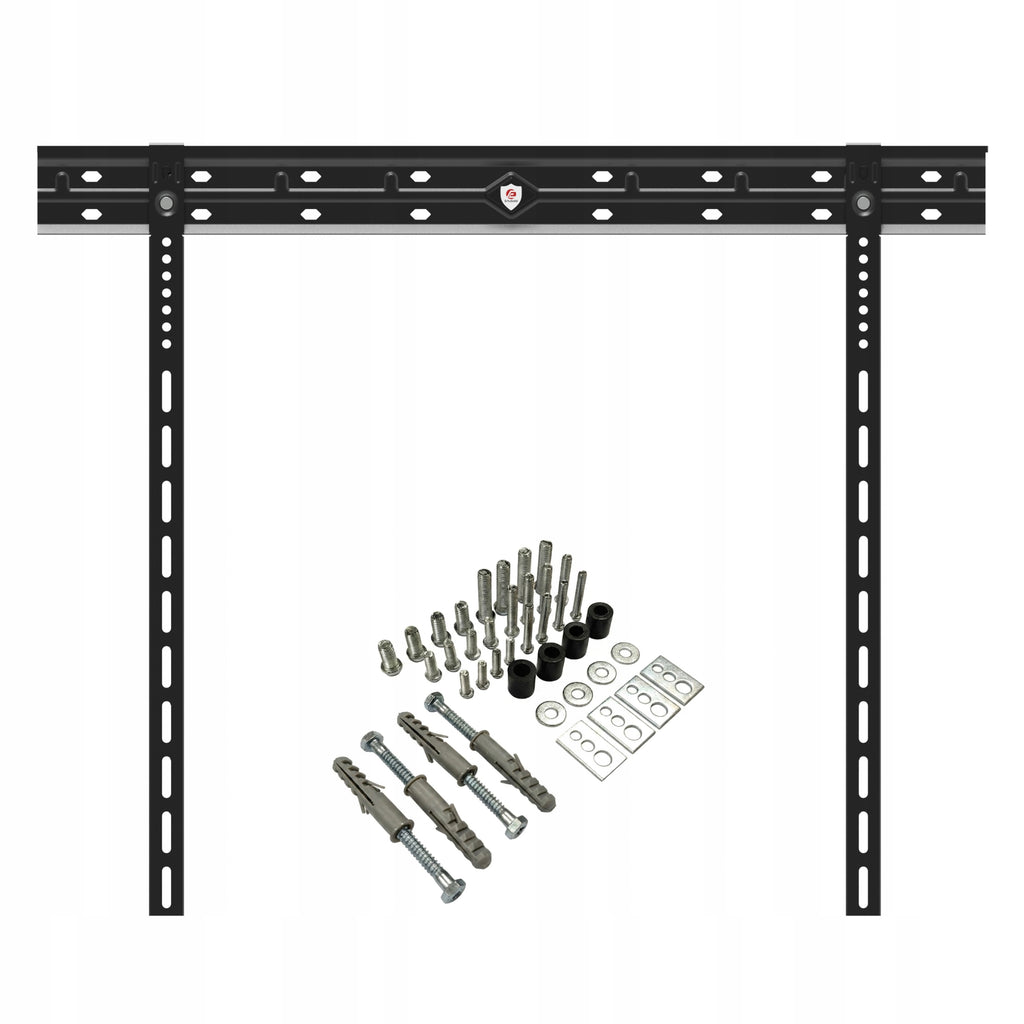

MOUNTING KIT
- ✔ Screw M5×30 – 4 pcs.
- ✔ Screw M5×15mm – 4 pcs.
- ✔ Screw M6×30mm – 4 pcs.
- ✔ Screw M6×15mm – 4 pcs.
- ✔ Screw M8×30mm – 4 pcs.
- ✔ Screw M8×15mm – 4 pcs.
- ✔ Distance 15mm – 4 pcs.
- ✔ Universal washer – 4 pcs.
- ✔ Washer M6 – 4 pcs.
- ✔ Screw ST6,3×55 – 4 pcs.
- ✔ Pin 10×50mm – 4 pcs.
SET COMPOSITION
- ✅ Handle
- ✅ Set of screws*
- ✅ Assembly instructions
* standard/universal screws are included to fit most TVs, if they don't fit, then you should buy the right screws on your own!
When choosing the right TV mount, you should first of all pay attention to the weight of the TV and the VESA mounting hole spacing, the screen size itself is given by the manufacturers indicatively. Information on the VESA compatibility of the TV can be found in the user manual or on the manufacturer’s website. You can also check and measure the hole spacing yourself.
The VESA standard specifies the locations of the four mounting holes from the back of the TV. The spacing of these holes depends on the make, model and size of the screen. Dimensions are given in millimeters: the first parameter determines the distance between the holes horizontally (left - right), and the second parameter the distance between the mounting holes vertically (upper - lower).
EXAMPLE
To better understand how to measure VESA mounting holes, we have prepared an example photo of a TV with a hole spacing of VESA 400x200. In this example, the distance between the horizontal holes is 400 mm, and the distance between the vertical holes is 200 mm.
Product code: ERGOSOLIDULTRA10FBLK STL
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | ULTRA-10F |
| Parametry | Model | ULTRA-10F |
| Parametry | Maximum TV size | 90" |
| Parametry | Brand | Ergosolid |
| Parametry | Maximum load | 60 kg |
| Parametry | Kind | solid |
| Parametry | Product weight with unit packaging | 3 kg |
| Parametry | EAN (GTIN) | 3760280392468 |
| Parametry | Packaging status | original |
| Parametry | VESA Standard | 100 x 100,150 x 100,200 x 100,200 x 150,200 x 200,200 x 300,300 x 200,300 x 300,300 x 400,400 x 300,400 x 200,400 x 400,600 x 300,600 x 400,800 x 400,800 x 600 |
