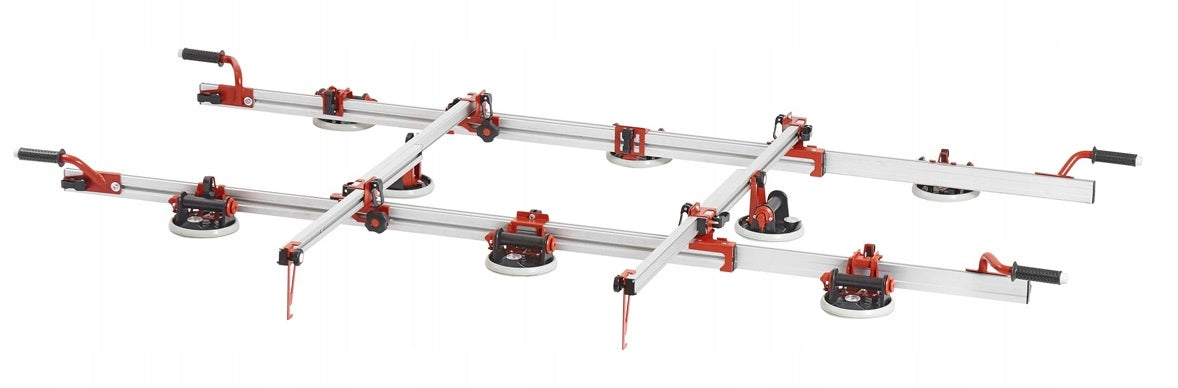

Plokščių kėlimo sistema RAIMONDI MK.IV, ART. 432EM04TA

Trumpai apie prekę

Prekė: Plokščių kėlimo sistema RAIMONDI MK.IV, ART. 432EM04TA. Kategorija: Plytelėms skirtos siurbtukai.

• Gamintojas: Raimondi
• Modelis: RAI432EM04TA

ART. 432EM04TA

TECHNICAL DATA

• Length of plate: 100-320cm
• Length of transverse profiles: 90-160cm
• Suction cup tilt: +/- 1,25°
• Weight: 22,6kg

SET INCLUDES

• 2x aluminium profile
• 2x transverse profile
• 8x vacuum suction cup with pressure gauge
• 4x single handle

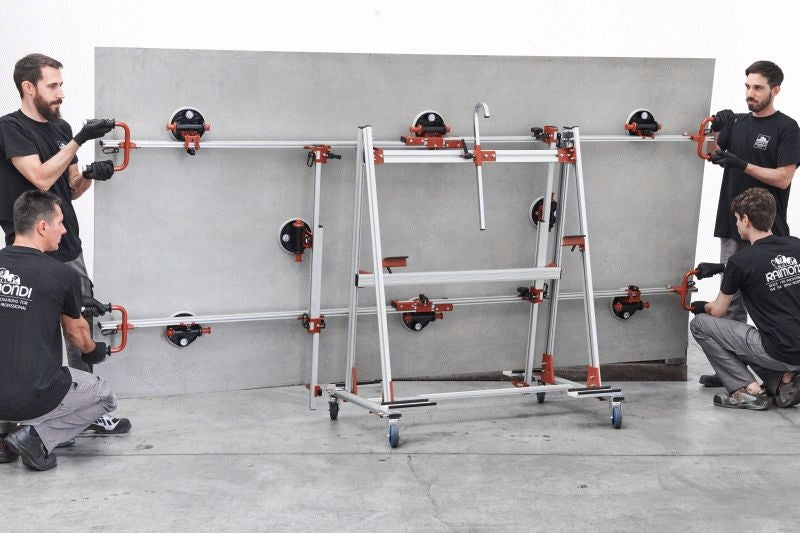

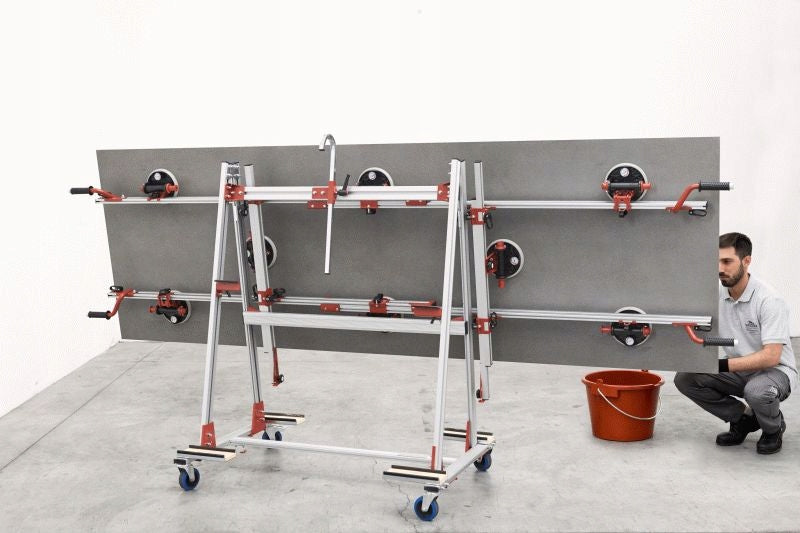

• Completely redesigned fourth-generation Easy-Move frame for large format board support
• Increased functionality and efficiency in moving large format boards
• Weight reduced by more than 25% compared to the previous version.
• Equipped with innovative RV175 suction cups (ideal for textured tiles)
• Maximum safety thanks to vacuum sensors (located in the protected position), which constantly indicates the degree of vacuum inside.
• The pump system allows you to restore and increase suction at any time when the suction cup is still in place and running
• The movement between the main aluminium profiles is extremely smooth thanks to anti-friction pads
• All suction cups (including middle ones) can be easily inserted into any position along the profiles
• Version with two telescopic crossbars of variable length (min. 90 cm / 35 1⁄2”; max. 160 cm/ 63”) to allow easy handling and adaptation to boards of any width
• Crossbars can be easily tilted at an angle (compared to the main profiles) to adapt to even the most complex plate layouts
• Each crossbar is equipped with RV175 suction cup, which can be moved along the entire length
• The suction cup can be quickly and easily positioned both inside and outside the main profiles
• Sliding and movements are extremely smooth to quickly and easily adjust the frame configuration to the board layout
• Tilting suction cups (+/- 1,25°)
• The system is particularly useful for textured boards
• All suction cups are lined up to allow EASY-MOVE MkIV to be used also on boards with reduced width (minimum width 19 cm / 7 1⁄2”)
• 4 sliding handles with non-slip and dirt-resistant ring provide the best ergonomics and handling even when mounted on the wall
• Each handle equipped with a soft rubber grip
• Maximum plate length 320 cm, minimum 100 cm
