Plokščių kėlimo sistema RAIMONDI XLIGHT

Trumpai apie prekę

Prekė: Plokščių kėlimo sistema RAIMONDI XLIGHT. Kategorija: Plytelėms skirtos siurbtukai.

• Gamintojas: Raimondi
• Modelis: 432EM04TC

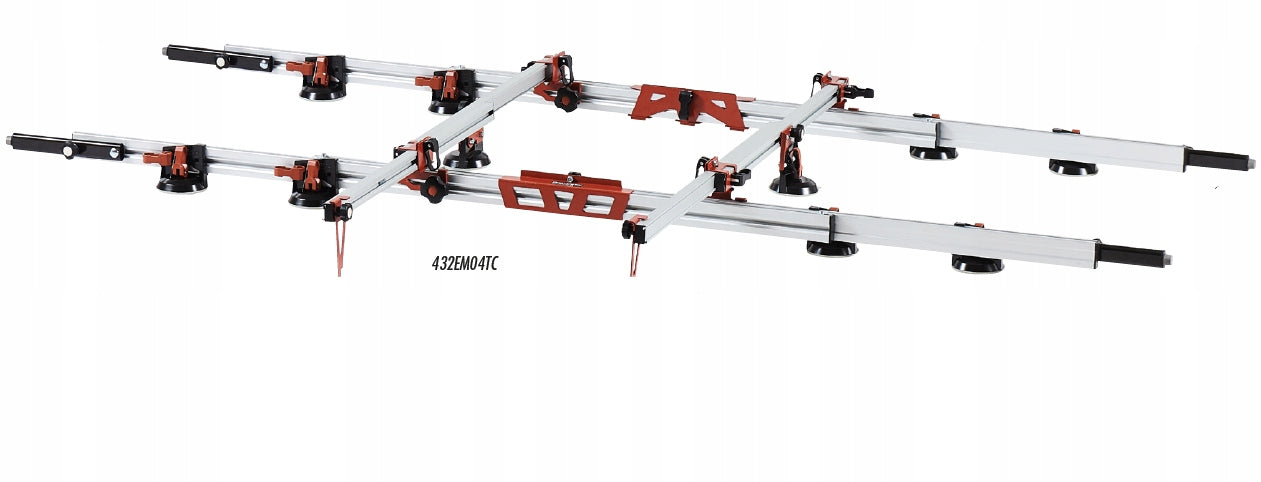

Carrying frame equipped with single suction cups, provides even greater lightness (weight reduced by more than 16% compared to the previous version with double suction cups);

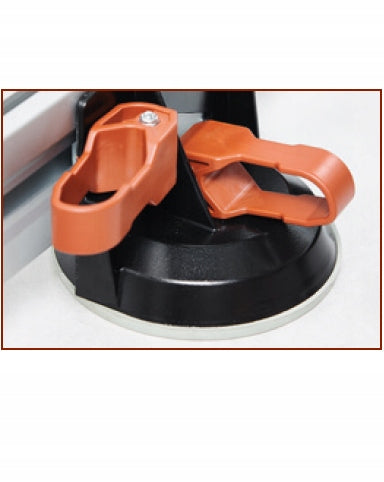

• Equipped with a single suction cup with rubber suitable for tiles with a smooth surface;

• Grey rubber leaves no stains;

• Suction cup diameter 115 mm;

• Suction cup body made of die-cast aluminum for strength and lightness;

• All suction cups (including the middle ones) can be easily moved in any position along the profiles;

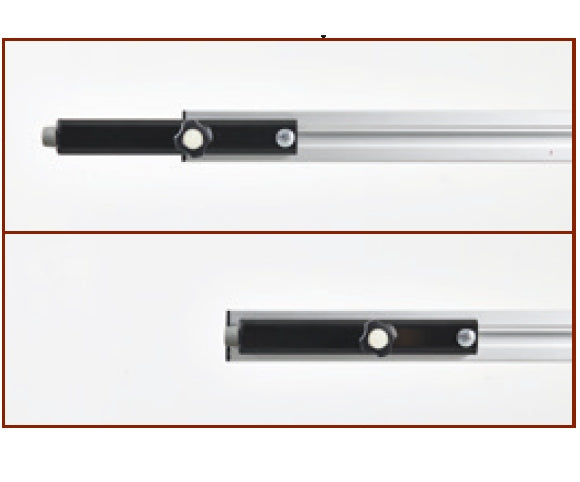

• Available version with two telescopic crossbars of variable length (min 90 cm -max 160 cm) to allow easy entry into the box and adaptation to plates of any width;

• Crossbars can be easily tilted at an angle (compared to the main profiles) to adapt to even the most complex plate shapes;

• Each crossbar is equipped with a single suction cup that can be moved along its entire length. The suction cup can be quickly and easily placed both inside and outside the main profiles;

• All shifts and movements are extremely smooth to quickly and easily adjust the frame configuration to the shape of the plate.

• Telescopic handles equipped with a plate support protection;

• 4 sliding handles equipped with a non-slip and stain-resistant foot provide the best ergonomics and handling even when mounted on the wall;

• Maximum plate length of 320 cm;

• Minimum permissible plate length: 120 cm with crossbars (10 suction cups), 100 cm without crossbars (8 suction cups), 55 cm (4 suction cups);

• Minimum plate width allowed: 20 cm using a frame made of one pofil (p4 suction cups);

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Raimondi
Parametry	Manufacturer code	432EM04TC
Parametry	EAN (GTIN)	8050532027039
Parametry	Series	Mk.IV X-LIGHT
