Plytelių perkėlimo sistema su siurbtukais BIHUI

Trumpai apie prekę

Prekė: Plytelių perkėlimo sistema su siurbtukais BIHUI. Kategorija: Plytelėms skirtos siurbtukai.

• Gamintojas: Bihui
• Modelis: LFCSV4

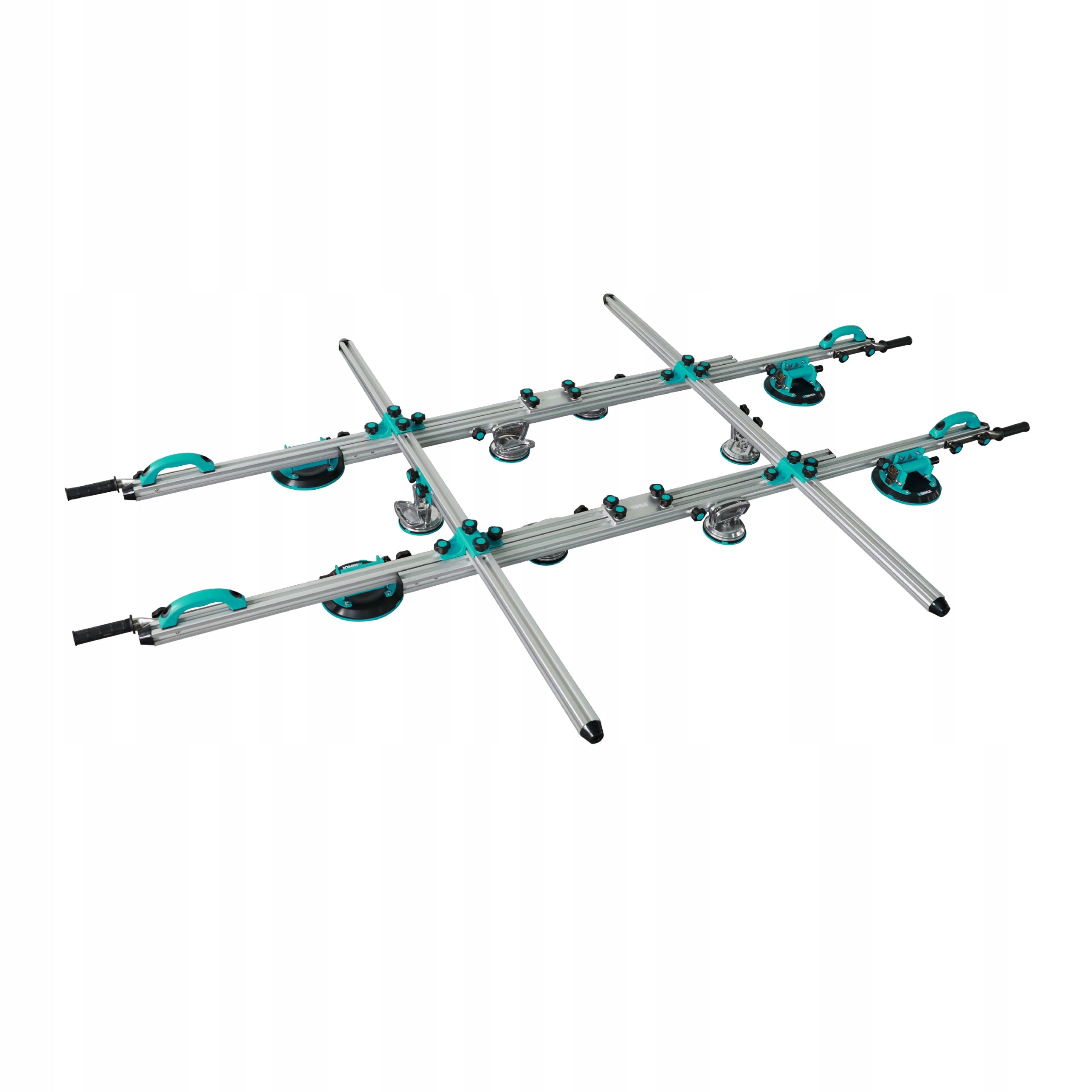

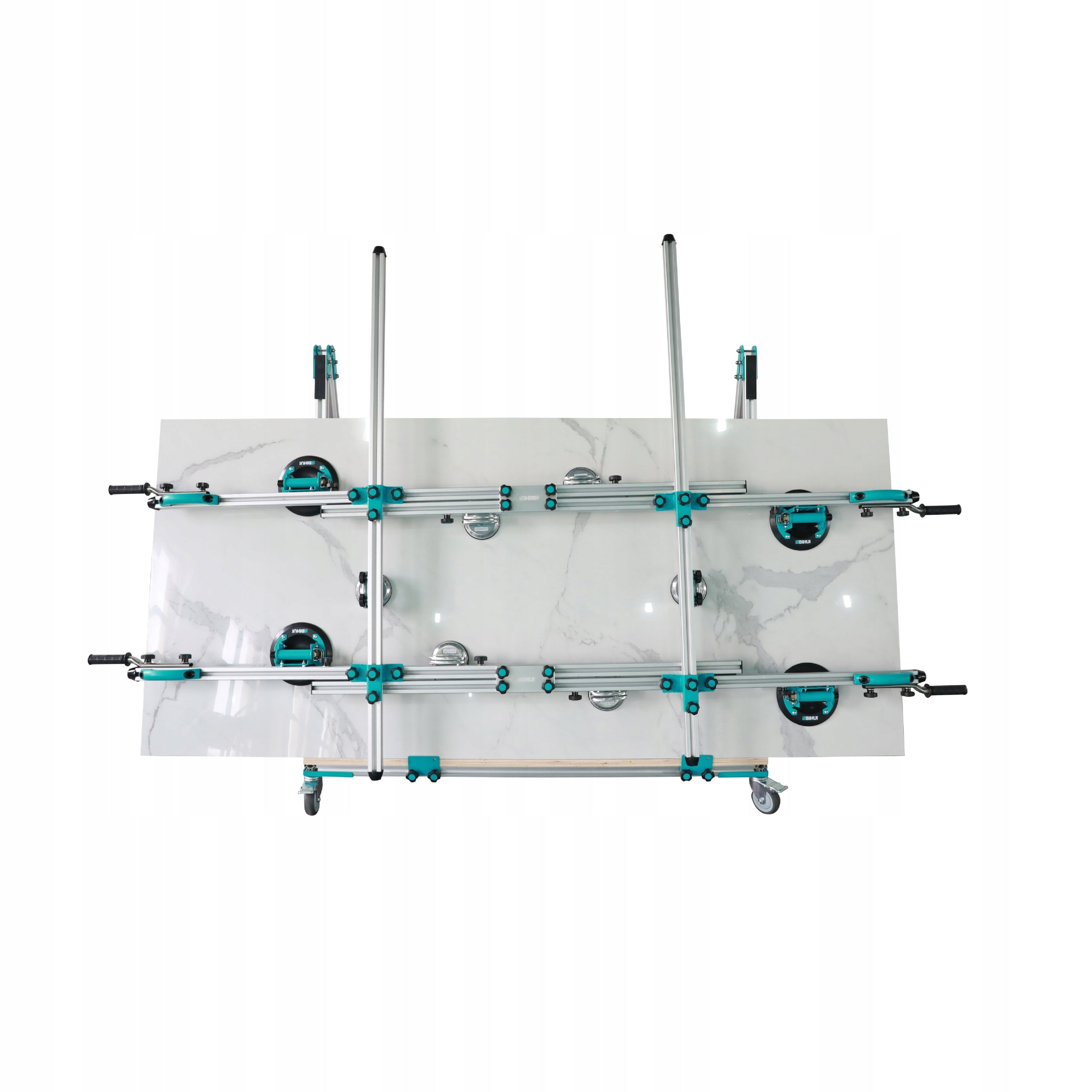

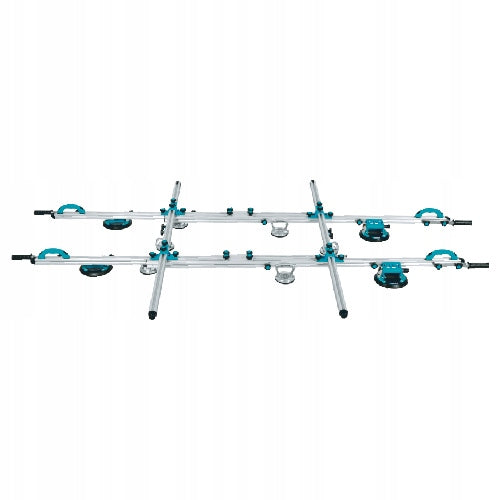

TILE TRANSFER SYSTEM WITH 4 SUCTION CUPS BIHUI

The BIHUI large format tile transfer system is an advanced tool designed for convenient and safe transfer of large ceramic, stoneware and stoneware tiles. This system is distinguished by its solid construction and versatility, thanks to which it provides stability and full control over transported materials with larger dimensions, minimizing the risk of damage. Designed for large formats, it supports boards with a maximum size of 3,2 m x 1,6 m and a lifting capacity of up to 130 kg.

The system is equipped with 4 vacuum suction cups and 6 aluminum suction cups, which provide a secure grip and stability. Thanks to the adjustable length ranging from 1700 mm to 3200 mm, the system can be adapted to different tile dimensions.

Key features:

• Model: BIHUI large format tile handling system
• Purpose: Transfer of ceramic, stoneware and stone tiles with large dimensions
• Plate dimensions: Supports formats up to 3,2 m x 1,6 m
• Maximum lifting capacity: 130 kg – ensures safety under heavy loads
• Suction cups: 4 vacuum and 6 aluminum for a stable grip
• Longitudinal rails: 2 pieces with soft handles for comfort and a secure grip
• Adjustable length: From 1700 mm to 3200 mm, allows you to adapt to different tile sizes

Application:

• Handling and installation of large format ceramic, stoneware and stone tiles during assembly and finishing works.
• Ideal for professional tilers and assembly teams, ensuring comfort and safety when working with large-size materials.

The BIHUI large format tile conveying system is an indispensable support for the installation of heavy, large format materials, allowing for precise and safe handling.
