Plytelių pjaustyklė 120 cm, rankinė, su lazeriu, tinka akmens masės ir glazūruotoms plytelėms

Trumpai apie prekę

Prekė: Plytelių pjaustyklė 120 cm, rankinė, su lazeriu, tinka akmens masės ir glazūruotoms plytelėms. Kategorija: Plytelių pjaustytuvai.

• Gamintojas: Delphi tools
• Modelis: Maszyna do Cięcia z Laserem 1200 mm Ręczna

The Delphi Tools 1200mm Precision Manual Tile Cutter is a reliable tool for tilers and DIY enthusiasts who value accuracy and ease of use. Its robust construction, smooth cutting mechanism, and laser guide make cutting large tiles quick, easy, and incredibly precise.

➡️1200 mm Working Length - Allows for cutting large format tiles.

➡️Laser Guide - Ensures precise and perfectly straight cuts.

➡️Solid Aluminum Construction - Durability and resistance to deformation.

➡️Double Rail and Roller Bearings - Smooth movement of the cutting carriage without jamming.

➡️Non-Slip, Wide Side Arms - Stable support for large tiles.

➡️High Pressure Force - Enables effective cutting of thick and hard materials.

➡️Cutting Adjustment - Ability to adjust settings for different types of tiles.

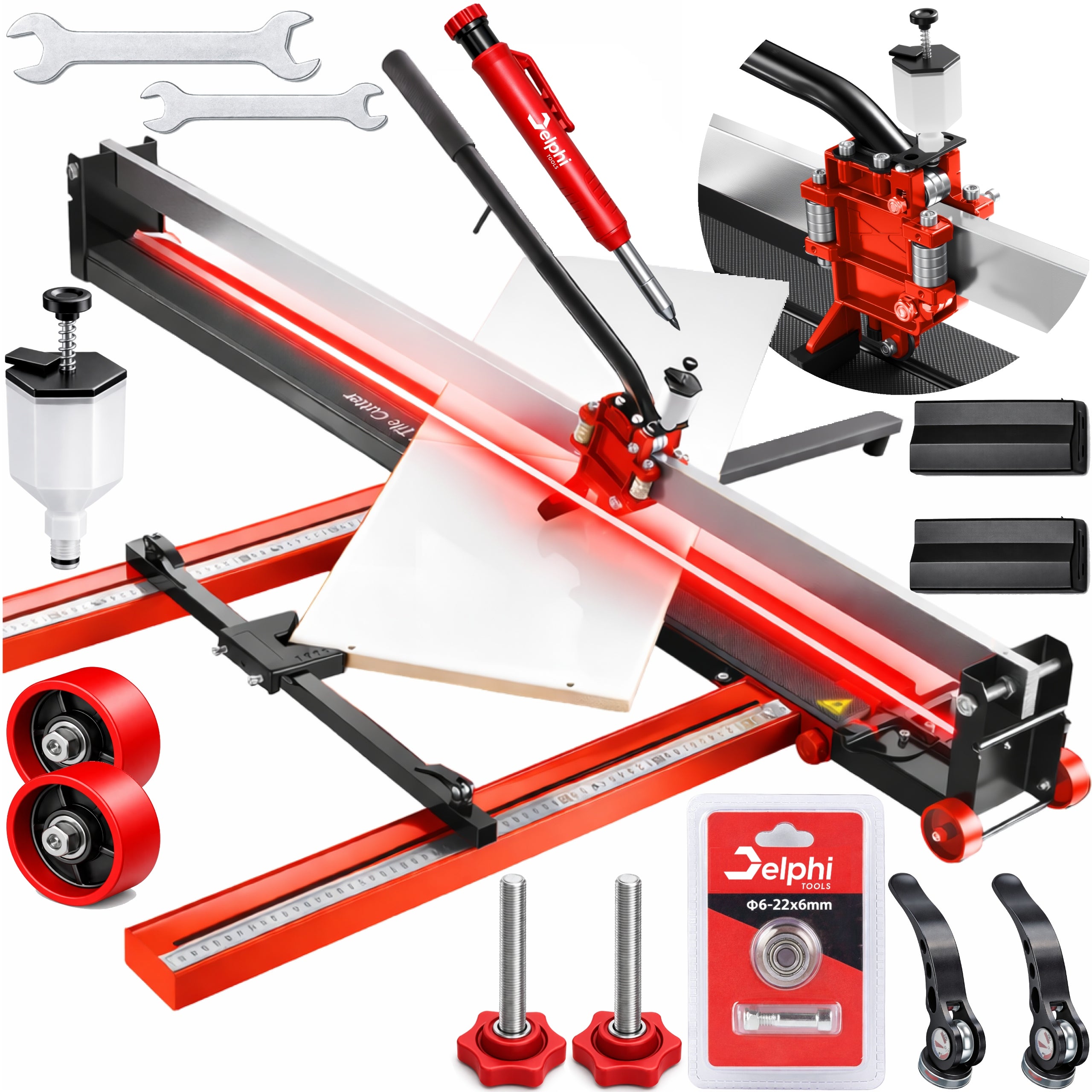

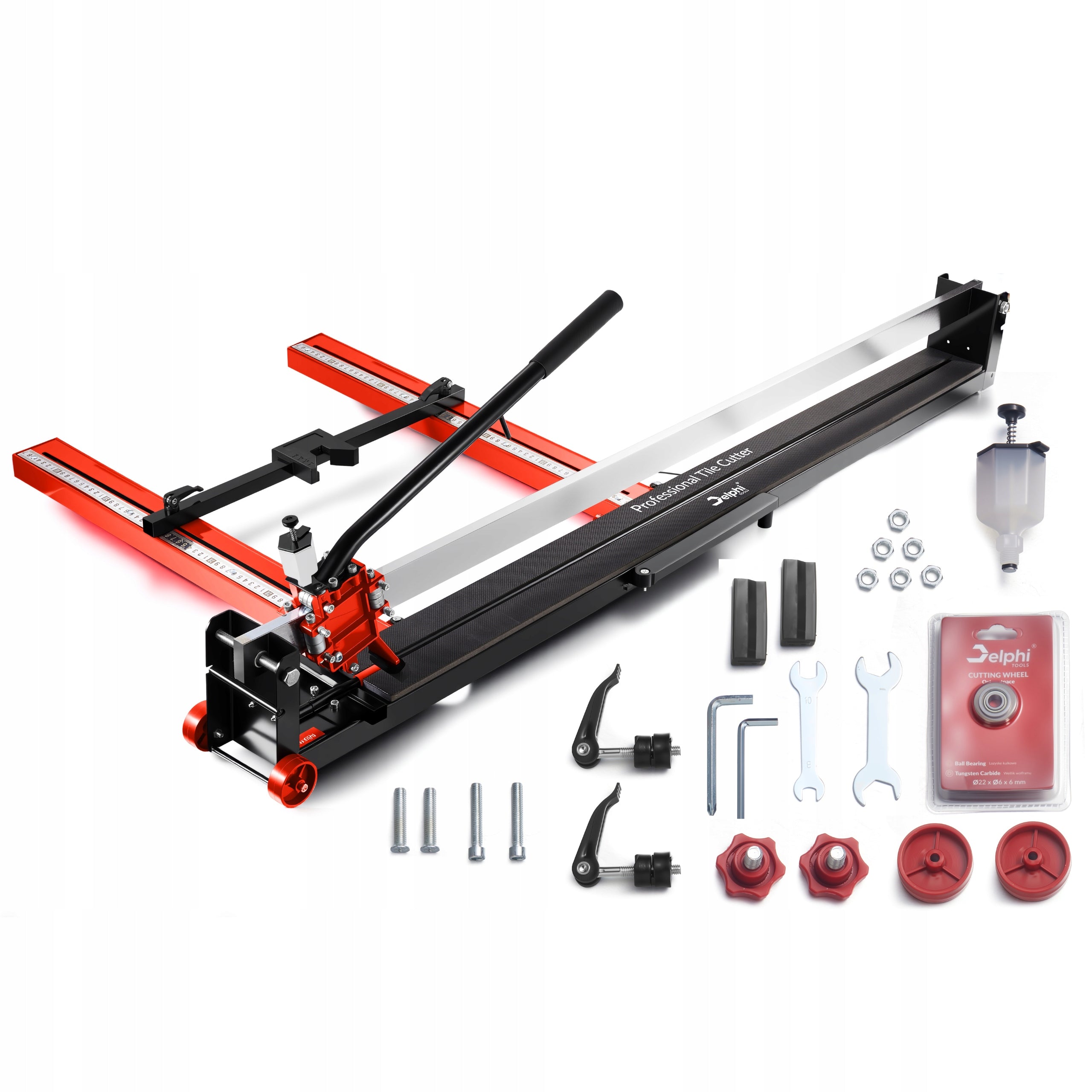

✳ Set includes:

• 1x Delphi tools tile cutter
• 1x Oiler
• 2x Cutting wheel (one mounted, one spare)
• 2x Flat Wrench
• 2x Allen Wrench
• 4x Mounting screw
• 6x Hex Nut
• 2x Adjustment Knob
• 2x Quick-clamp handle
• 2x Rubber stop
• 2x Circle
• 2x Linear guide
• 1x Plastic Stand
• 1x V-shaped limiter
• 1x User Manual

🎁 Free 1x Automatic Pencil

✳ Specification:

• Maximum cutting length: 1200 mm
• Cutting thickness: 16mm
• Guide type: Double steel reinforced guides
• Cutting mechanism: Trolley with ball bearings - very smooth movement
• Cutting wheel material: Tungsten Carbide
• Diameter of cutting wheel: Ø22 x Ø6 x 6 mm
• Measuring guides: Aluminum arms with precise graduation
• Built-in laser: YES
• Tile breaking system: Upper pressure with rubber cushioning
• Tile support: Two side arms + one plastic arm
• Weight of the device: approx. 16 kg
• Purpose: For cutting ceramic tiles, stoneware, terracotta, glaze

✳ Cutting large format tiles - up to 1200 mm!

The cutter is perfect when working with large format tiles - its working length of up to 1200 mm allows for precise cutting of large tiles without the need to rotate them or move them repeatedly.

✳ Interchangeable cutting wheel - 2 pieces included!

The cutter is equipped with a replaceable cutting wheel, which significantly increases its service life and functionality. The blade made of hard tungsten carbide (Tungsten Carbide) guarantees clean, precise cuts of even the toughest ceramic or stoneware tiles.

Thanks to the use of ball bearing, the wheel moves smoothly and stably on the guide, minimizing resistance and the risk of tile breakage. The ability to quickly replace it ensures that the tool is always ready to work - just mount a new element to restore full efficiency and accuracy of cutting.

It is a practical solution for professionals who value reliability, economy and precision.

Dimensions of the cutting wheel:

• Ø22 x Ø6 x 6 mm

✳ Laser cutting gauge

Laser cutting indicator is an extremely practical convenience used in this cutter, which significantly increases accuracy and convenience.

• It sets the perfect cutting line, so you can precisely position the tile without having to mark it first.
• It facilitates fast and even handling of the cutting trolley, even with very long tiles.
• Especially useful for large format elements, where every millimeter of deviation counts.
• The laser is visible even in brighter rooms, which increases the comfort of work inside and on the construction site.

It is a solution that raises the standard of the cutter, allowing you to make cuts with the highest precision - quickly, without corrections and without material loss.

✳ Hydraulic Breaker

The Hydraulic breaker used in this cutter is a professional mechanism that significantly facilitates breaking hard and thick tiles after cutting them.

• Thanks to the use of hydraulic force, the breaker provides even and controlled pressure on the entire length of the plate, which minimizes the risk of cracking it in an undesirable place.
• It works perfectly with gres, ceramics and tiles with a greater thickness, which are difficult to cut using traditional methods.
• The mechanism works smoothly and precisely, does not require the use of high physical strength, which translates into comfort and efficiency of work.
• Rubber cushioning elements protect the surface of the tile from damage during breaking.

It is an ideal solution for professionals who expect maximum control and precision when cutting even the most demanding materials.

✳ Linear guide arms

Linear guide arms and a V-shaped stop are key elements of the cutter that increase stability, precision and comfort, especially for large formats.

Linear guide arms:

• Made of durable aluminum, extendable to the sides - allow stable support of large and heavy tiles during cutting.
• They increase control over the positioning of the tile, eliminating the risk of breakage or displacement during operation.

V-shaped limiter:

• It enables quick and precise determination of the cutting position - the plate automatically centers in the groove.
• It helps to maintain the perfect angle with repetitive cuts of the same format.
• It works particularly well with plates of irregular shape or narrow formats, where accuracy is required.

These are solutions that make the cutter not only cut with precision, but also increases the pace and ergonomics of work, which is of great importance in everyday use on the construction site or in the glazing workshop.

✳ Convenient movement

The cutter is equipped with practical transport wheels, which significantly facilitate its movement - both on the construction site and in the workshop.

• Thanks to the integrated wheels, the device can be easily moved without lifting, even despite its larger size and weight.
• Ideal for tilers working in different rooms - mobility without effort.
• The wheels are durable and stable, ensuring that the cutter can be safely transported even on uneven surfaces.

This functional convenience makes the cutter not only precise and efficient, but also easy to move where you need it.

Gallery

Delphi Tools is a brand created for people involved in DIY both in their free time and on a daily basis. We focus on comfort in the use of equipment, which in addition to interesting design is characterized by high durability. For many years, we have been trying to provide you with tools that will facilitate repairs and save time, and also meet the highest quality standards and exceed the expectations of users.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Delphi tools
Parametry	Series	Przecinarka do Glazury Kafelek Terakoty
Parametry	Kind	manual cutter
Parametry	Maximum tile cutting thickness at 90 degrees	16 mm
Parametry	Maximum tile cutting thickness at 45 degrees	16 mm
Parametry	Maximum cutting length	1200 mm
Parametry	Device weight	16 kg
Parametry	Manufacturer code	Maszyna do Cięcia z Laserem 1200 mm Ręczna
Parametry	EAN (GTIN)	5905108474751
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
