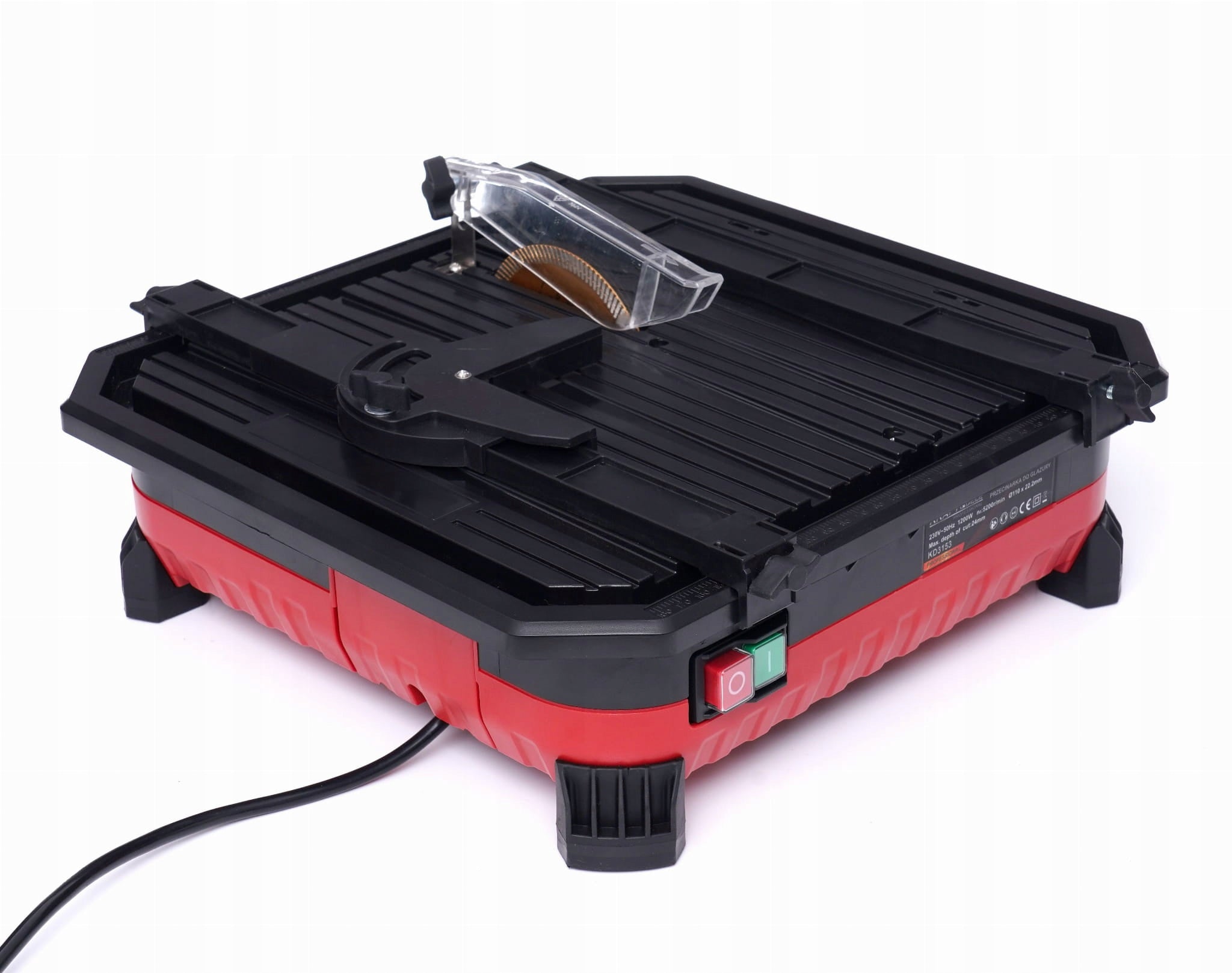

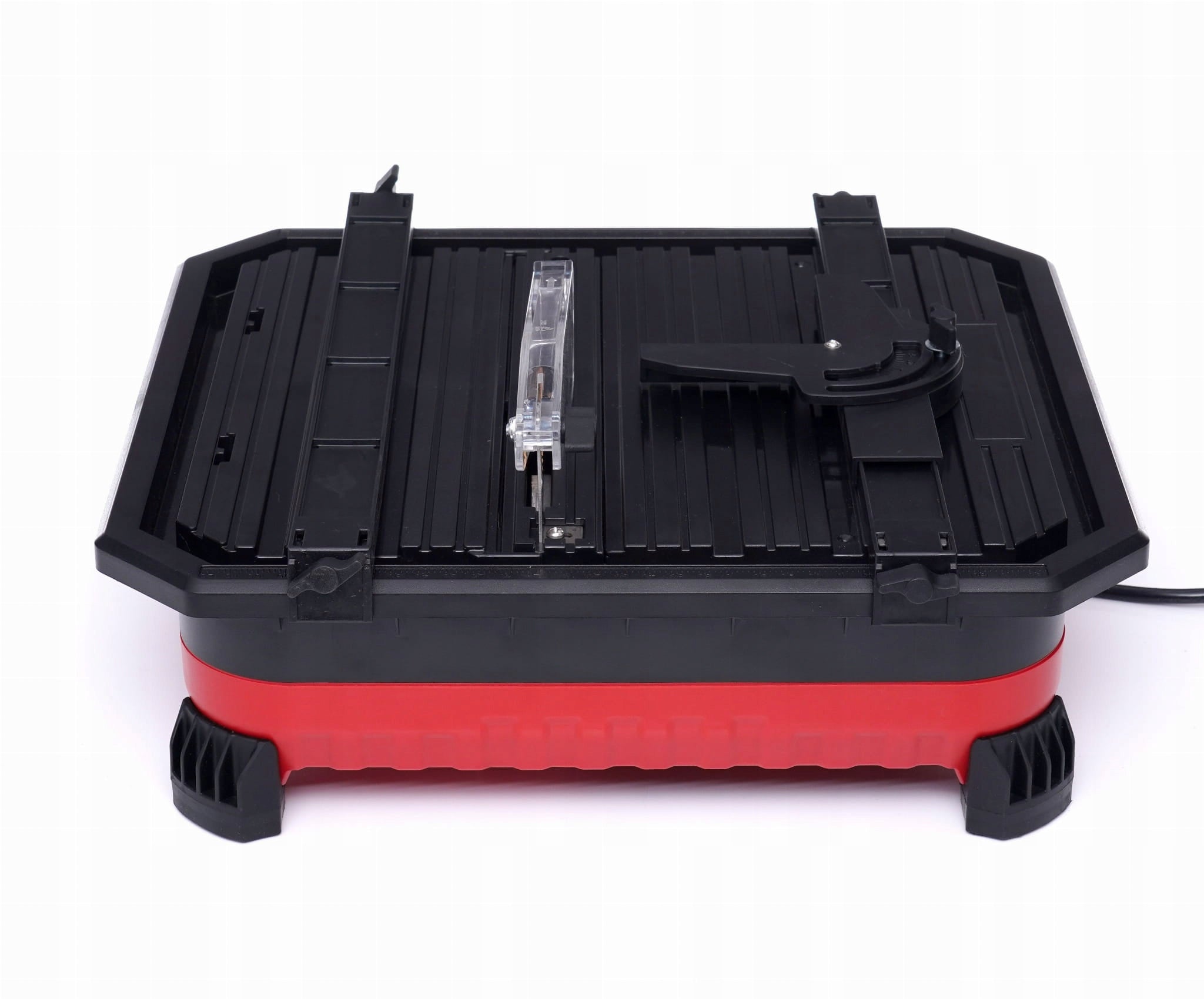

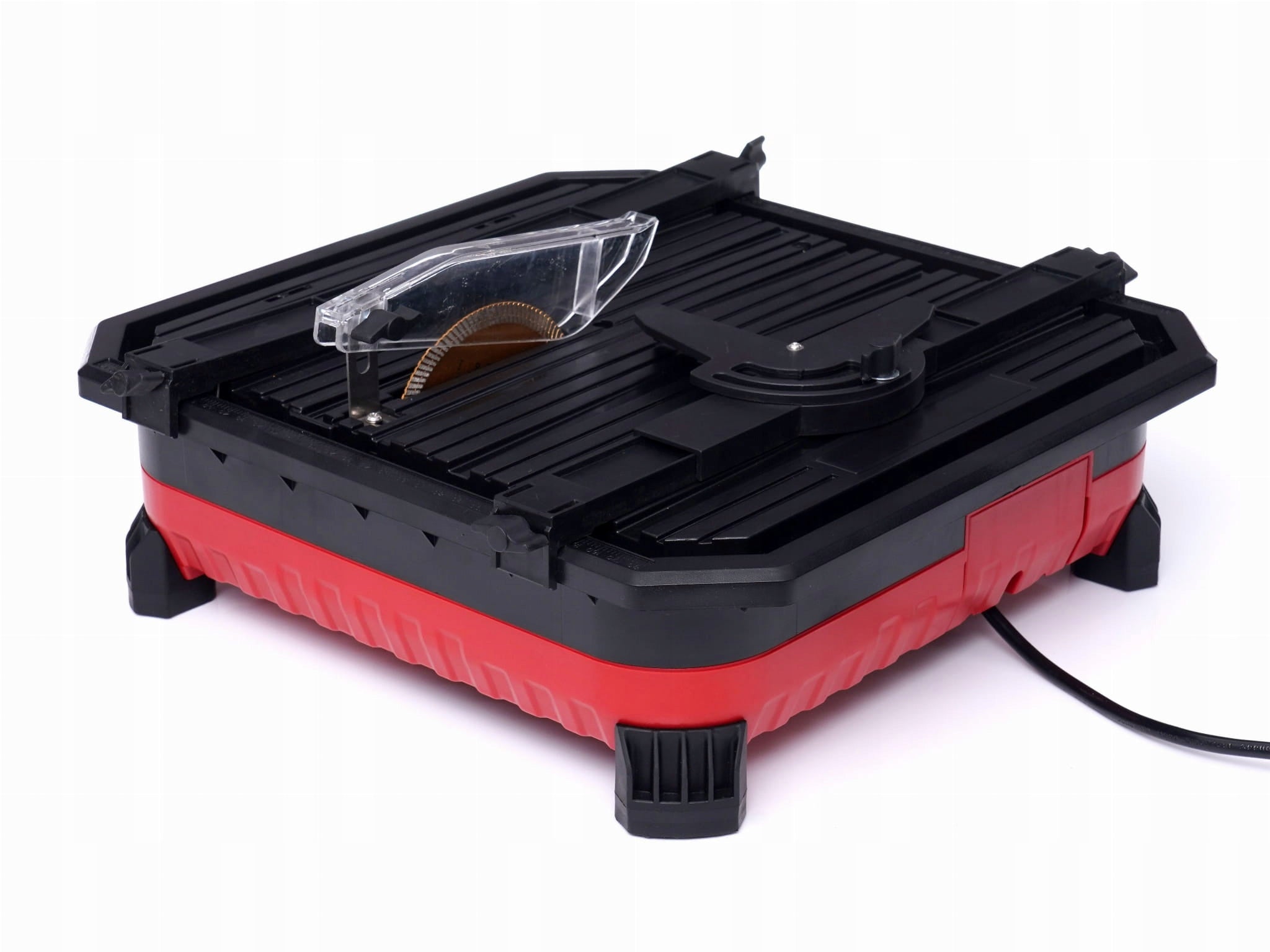

Plytelių pjaustyklė 1200W KD3153 KRAFT&DELE

Trumpai apie prekę

Prekė: Plytelių pjaustyklė 1200W KD3153 KRAFT&DELE. Kategorija: Plytelių pjaustytuvai.

• Gamintojas: Kraft&Dele
• Modelis: KD3153
• Galia: 1200 W

Electric table cutter for ceramic tiles with wet cutting, designed for glazing work requiring repetitive precision. The 1200W motor provides stable operating parameters for cutting ceramic materials of various thicknesses and hardnesses.

Engine power 1200 W Disc speed 5200 rpm Max. cutting depth 24 mm Disc diameter 110 mm

Characteristics of the device

Engine 1200 W

The power of 1200W allows you to maintain a constant rotational speed of the disc even when cutting harder porcelain tiles and stoneware. The motor operates at a voltage of 230V/50Hz, which corresponds to the standard mains power supply.

Cutting depth 24 mm

The maximum cutting depth of 24 mm allows the processing of typical floor and wall tiles, including thicker stoneware formats. It exceeds the standard thickness of most tiles available on the market (6 to 20 mm).

Worktop 365 × 390 mm

The steel worktop with dimensions of 365 × 390 mm provides stable support for the material being cut. This surface allows you to freely guide tiles of popular formats without the risk of tilting when cutting.

Transport case included

The device comes in a dedicated carrying case that makes it easy to carry and store. The solution is useful when working on various construction sites or in conditions requiring frequent transport of equipment.

Technical specification

Model KD3153 Power device 1200 W Rated voltage 230 V ~ 50 Hz Speed without load 5200 rpm Disc Ø110 × Ø22,2 mm Max. cutting depth 24 mm Tabletop size 365 × 390 mm Sound pressure level 93 dB(A), K=3 dB(A) Sound power level 108 dB(A), K=3 dB(A) Weight 3,4 kg

Noise level and occupational safety

The sound pressure level of 93 dB(A) exceeds the threshold of 85 dB(A) at which the use of hearing protectors is recommended. When working with the device for a long time, use ear cups or anti-noise inserts in accordance with health and safety regulations.

Typical applications

• Cutting ceramic wall and floor tiles
• Processing of porcelain stoneware up to 20 mm thick
• Making straight cuts when laying glaze in bathrooms and kitchens
• Trimming tiles to non-standard dimensions when finishing jambs and corners
• Glazing works on construction sites and residential renovations
• Cutting terrace and clinker tiles within the depth parameters

Use and maintenance

The KD3153 works with a wet cutting system – the water tank cools the disc and reduces dust during operation. Before each use, check the water level in the tank and the condition of the cutting disc. The Ø110 × Ø22,2 mm disc can be replaced in case of wear – the manufacturer provides access to the spare parts database.

After finishing work, it is recommended to empty the tank from the water and dry the worktop, which prevents corrosion of metal elements. The device weighs 3,4 kg, which allows it to be carried by one person without additional equipment.

Composition of the set

Glaze cutter KD3153 • Transport case • Original packaging •

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Kraft&Dele
Parametry	Series	KD3153
Parametry	Kind	Circular saw
Parametry	Maximum tile cutting thickness at 90 degrees	24 mm
Parametry	Maximum tile cutting thickness at 45 degrees	12 mm
Parametry	Maximum cutting length	600 mm
Parametry	Power	1200 W
Parametry	Rotational speed	5200 RPM
Parametry	Disc bore diameter (mm)	22,2 mm
Parametry	Device weight	3.4 kg
Parametry	Manufacturer code	KD3153
Parametry	EAN (GTIN)	5903957003252
Parametry	Product weight with unit packaging	4 kg
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE
