Plytelių pjaustyklė DEDRA DED7819

Trumpai apie prekę

Prekė: Plytelių pjaustyklė DEDRA DED7819. Kategorija: Plytelių pjaustytuvai.

• Gamintojas: Dedra
• Modelis: DED7819
• Galia: 1200 W

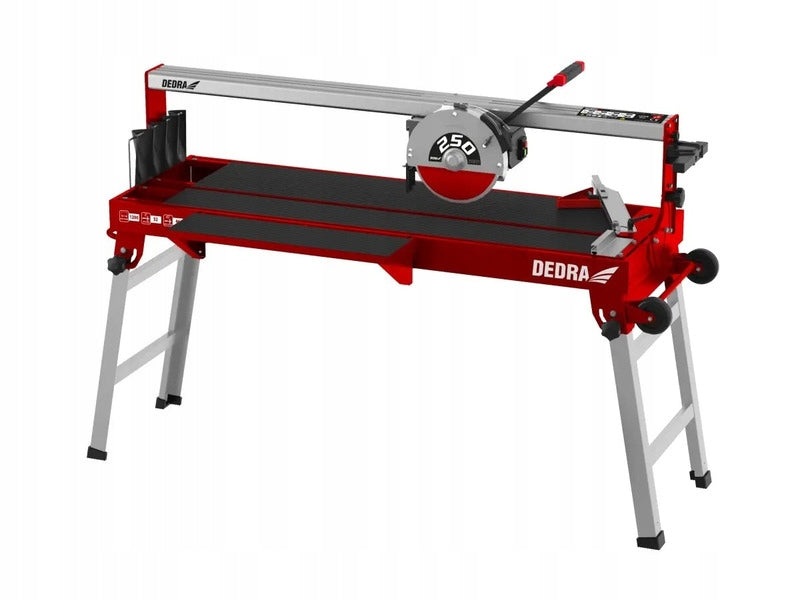

Tile cutter DEDRA DED7819

• Cutting element: Disc
• Miter cutting: Yes
• Cutting length [mm]: 1200
• Maximum plate dimensions (cut in karo) [mm]: 848 X 848

• Index: 1077855

The DEDRA tile cutter is a professional-grade tool designed for precise cutting and machining of ceramic materials. Equipped with a sliding head, it allows you to perform a variety of operations on tiles such as: longitudinal cutting of strips, transverse cutting, cutting along the diagonal, beveling of the edges.

The equipment includes a steel worktop with dimensions of 1250x460 mm, the working surface of which can be further increased by spreading additional side table tops - this is an important convenience, especially when working with large plates, when additional support is needed. In addition, the table top has been covered with a layer of rubber, ensuring high adhesion of the tile to the surface - thanks to this, the material holds securely, which facilitates precise cutting.

The cutter uses a double cooling system of the disc with water, which acts as a cooling and dust agent, which effectively reduces the spread of excavation during operation. In addition, the device uses a special rubber that protects the user from splashing water during the cutting process.

The DED7819 tile cutter is also equipped with a laser that helps maintain the cutting of tiles along a straight line - this allows you to maintain precision and significantly facilitates work, while the angle gauge and recess function allow you to perfectly adjust the cutting parameters to the current needs of the user. All this together creates a very versatile and practical device.

Features of the cutter:

Flapper - additional rubber to protect against water splashes

Laser - cutting support along a straight line

Table top made of steel, additionally covered with rubber - high stability and adhesion of the plate to the table top

Additional side table top - possibility of increasing the working surface, easier processing of large-size materials

Depth function - the ability to adjust the cutting depth to individual needs

Double disc cooling system during operation - double water feeding tube for shield

Wet treatment - significant reduction of dust spread during cutting

Folding work table legs + transport wheels - ease of transport and storage

Additional transport foot - convenience when moving the device

Angle gauge - precise angle determination

Technical data:

- Power supply: 230v~50 Hz

- Disc diameter: 250/25,4 mm

- Max. plate length: 1200 mm [848 mm when cutting in karo]

- Max. cutting thickness: 90°: 52 mm; 45°: 46 mm

Tabletop dimensions:

- Working (main): 1250 x 460 mm

- Additional (side): 640 x 20 mm

- Working height of the cutter: 790 mm

The set includes:

- Ceramic cutting machine

- Diamond blade, continuous for glaze H1126E [1 pc]

- AAA batteries [2 pcs]

• Attached documentation: Warranty card
• Weight [kg]: 53
• Weight with packaging [kg]: 67
• Diameter of disc/circle [mm]: 250
• Cutting element: Disc
• Miter cutting: Yes
• Cutting length [mm]: 1200
• Maximum plate dimensions (cut in karo) [mm]: 848 X 848
• Power [W]: 1200
• Number of revolutions [rpm]: 2990
• Maximum plate thickness (vertical cutting) [mm]: 52
• Wet cutting: Yes
• Electric: Yes
• Additional Features: Laser Pointer

Specifications
