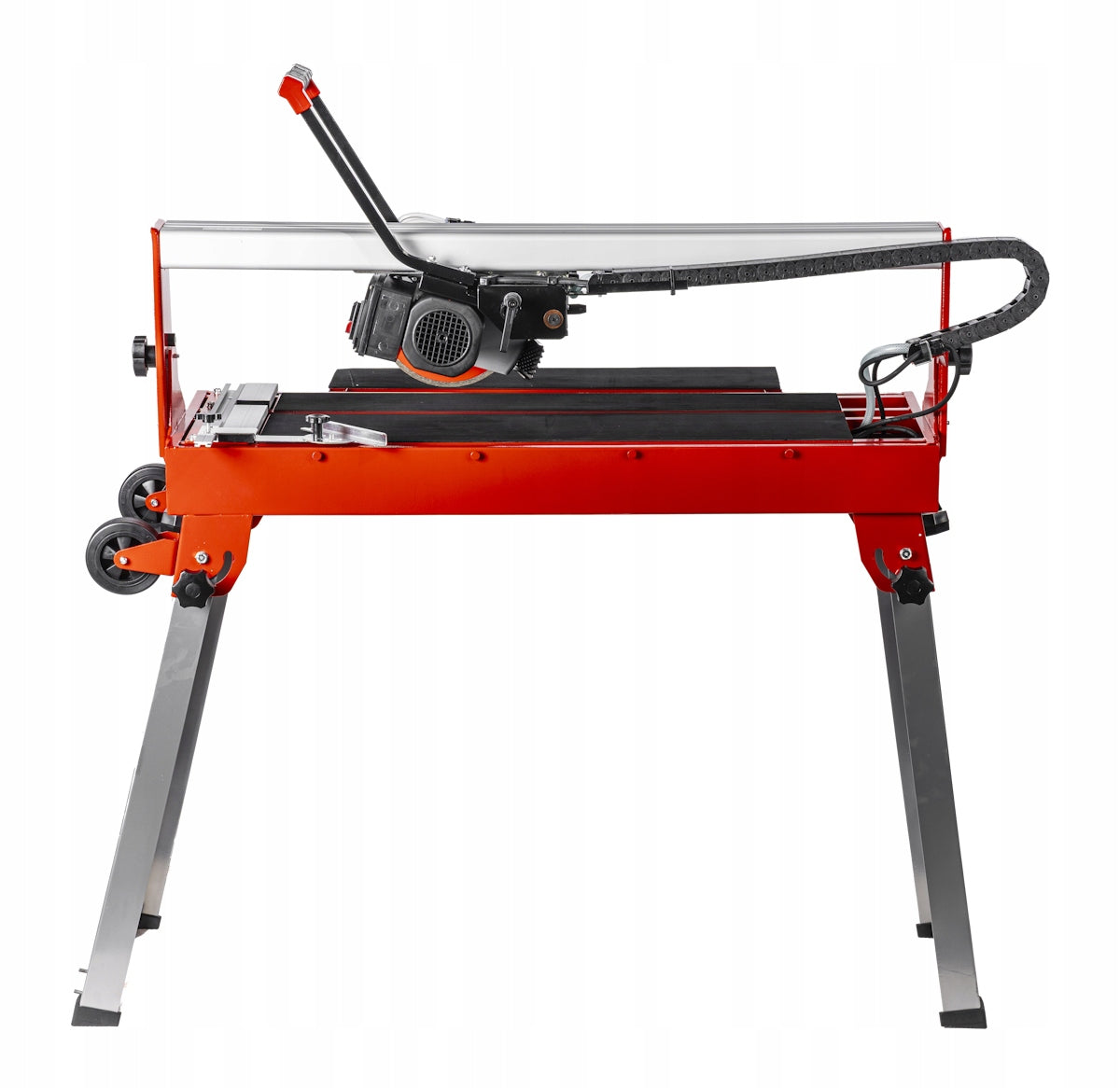

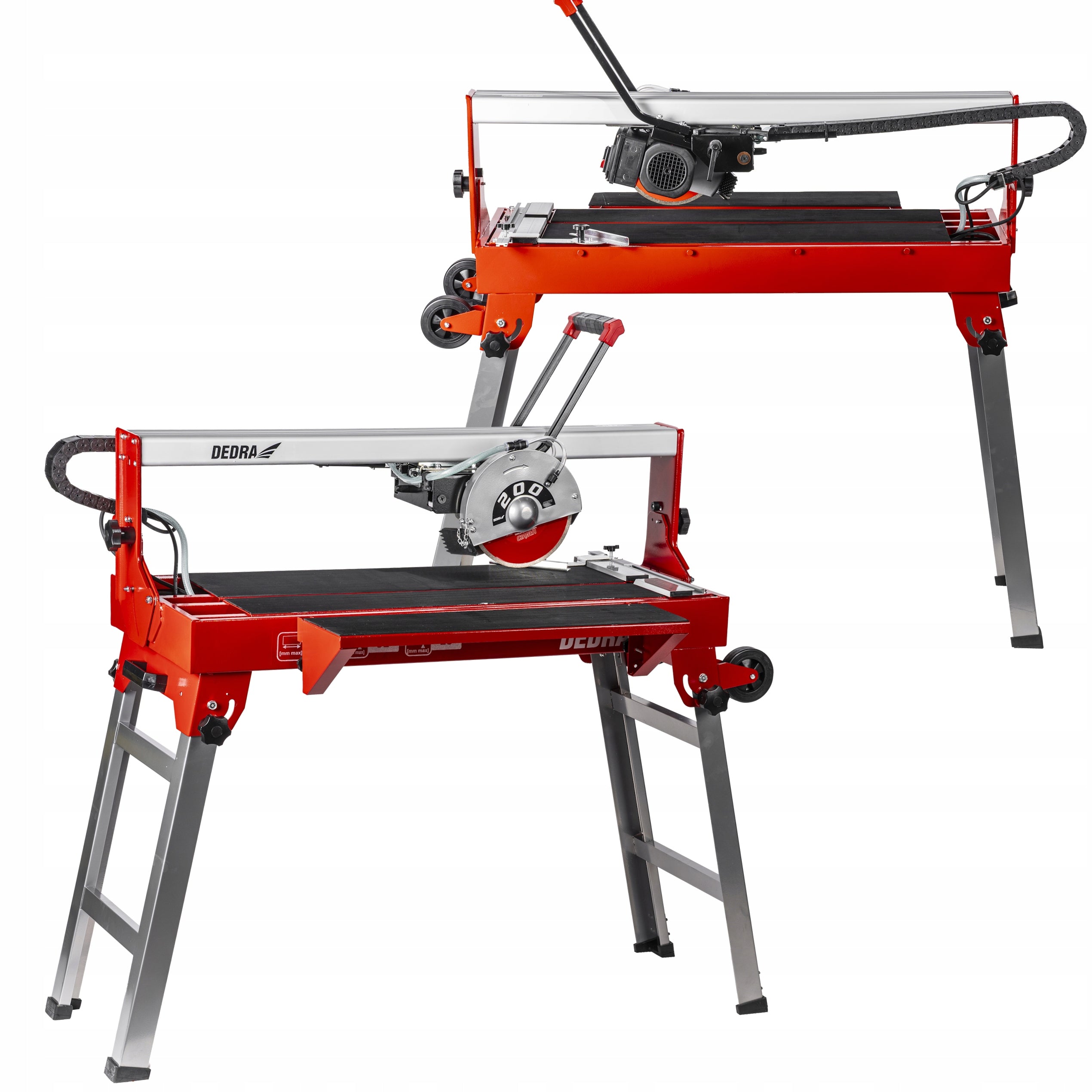

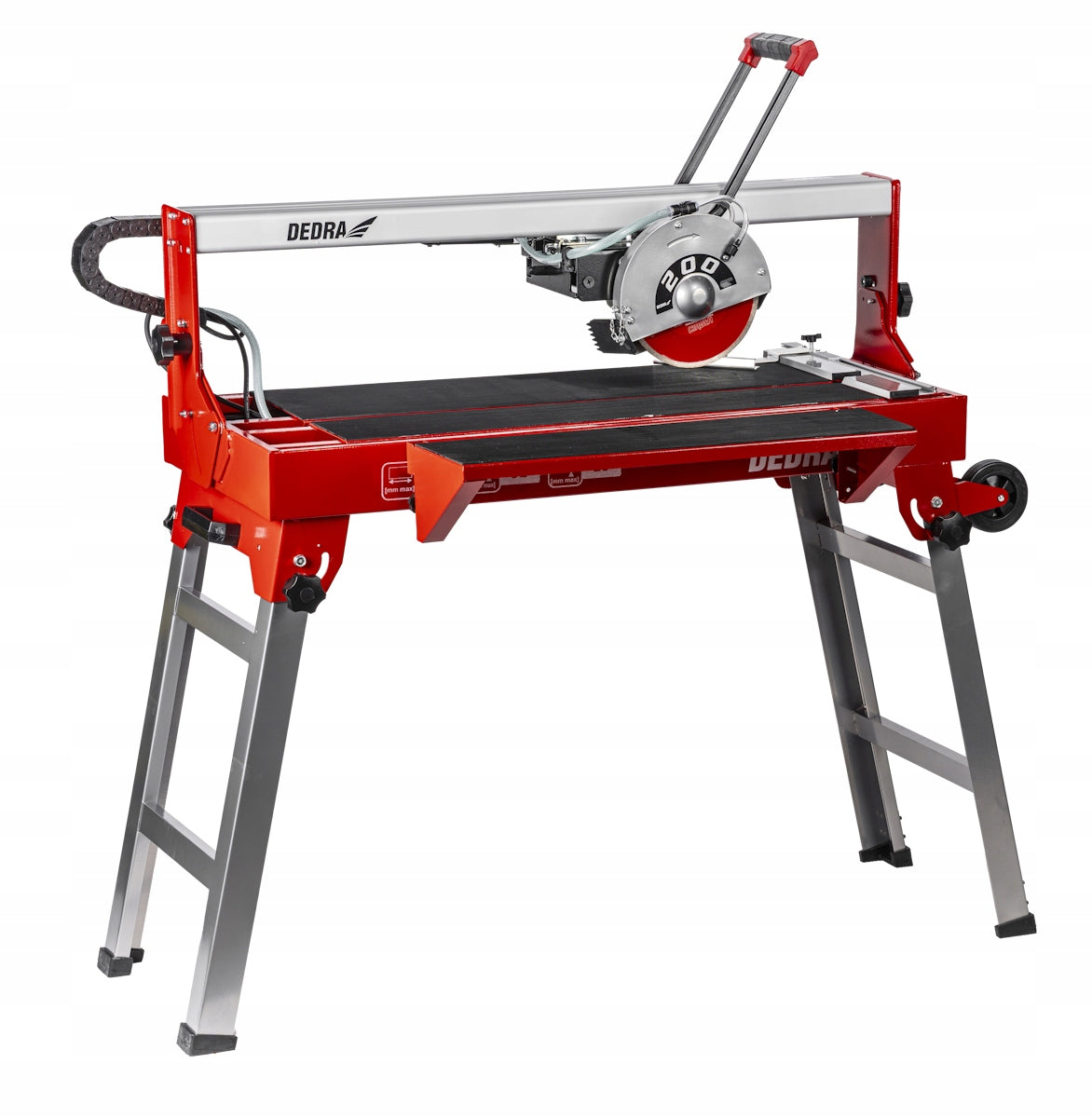

Plytelių pjaustyklė DEDRA, stalinė, šlapio pjovimo, 800 W, 720 mm

Trumpai apie prekę

Prekė: Plytelių pjaustyklė DEDRA, stalinė, šlapio pjovimo, 800 W, 720 mm. Kategorija: Plytelių pjaustytuvai.

• Gamintojas: Dedra
• Modelis: DED7817
• Galia: 800 W

Glaze cutter DEDRA, wet cutting machine 800 W, cutting length 720 mm + diamond blade 200 mm.

DED7817

Features of the DEDRA DED7817:

• Table top made of steel, additionally covered with rubber - high stability and adhesion of the plate to the table top
• Additional side table top - the possibility of increasing the working surface, easier processing of large-size materials
• Depression function - the ability to adjust the cutting depth to suit individual needs
• Dual disc cooling system during operation - double water feeding tube for the disc
• Wet treatment - significant reduction of dust spread during cutting
• Folding work table legs + transport wheels - easy transport and storage
• Angle Measurement - Precise Angle Determination

Technical data of the DED7819:

• Type: electric
• Engine power: 800W
• supply voltage: 230V, 50 Hz
• Disc diameter: 200 mm
• Disc hole diameter: 25,4 mm
• Rotation speed: 2990 rpm
• Purpose: glaze, stoneware
• maximum cutting height at an angle: 90°: 32 mm
• maximum cutting height at an angle: 45°: 28 mm
• maximum cutting length: 720 mm
• maximum cutting length in karo: 500 mm
• water cooling: yes
• material: steel + rubber
• device weight: 44 kg

Dimensions of the working table:

• working (main): 780 x 390 mm
• additional (side): 640 x 20mm
• working height of the cutter: 790 mm

Additional features:

• depression function
• Dual disc cooling system
• folding legs
• transport wheels
• Angular fitting

Included with cutter:

• Diamond disc, continuous for glaze H1123E
• User manual in Polish
• Warranty card - 2 years of service protection

• Link to the video "Electric ceramic cutters DEDRA" to be pasted into the browser window

https://www.youtube.com/watch?v=V04VY0HOM1I&t=104s

• Link to the video "Adjustment of electric cutters DEDRA" to be pasted into the browser window

https://www.youtube.com/watch?v=y-seOttl8Co&t=81s

DED7817 cutter with diamond disc is a product designed for precise and reproducible cutting of all kinds of cladding tiles, both wall and floor tiles, as well as stone, brick, clinker brick and other ceramic materials with dimensions in the field of use.

The electric water cooling cutter is an essential piece of equipment for any tiler.

This is a cutter powered by a powerful 800 W motor, a used disc has a size of 200 mm. This model has been adapted to cut tiles with a maximum length of 720 mm. The device reaches a maximum rotational speed of 2990 rpm. ensuring efficient and precise cutting.

The DED7817 uses a wet treatment system using water as a cooling and dusting agent fed directly onto the diamond disc. Thanks to this, the spread of excavation was significantly reduced during work.

The four-bearing guide in the cutter is used to ensure smooth and stable movement of the cutting disc.

With four bearings, the guide allows for precise tool guidance along the cutting line, minimizing vibration and resistance.

The machine equipped with a sliding head enables basic operations of cutting ceramic elements:

• longitudinal cutting of strips
• transverse cutting
• cutting along the diagonal
• Beveling of the edges in the range of 45°

  In all types of cutting described below, ceramic tiles are laid on the table facing upwards.

The cutter has the ability to lower and lift the disc so you can start cutting the tile anywhere or cut a hole.

The maximum cutting height of at an angle of 90° is 32 mm.

The maximum tilt range of the disc is 45°. This allows a maximum cutting height of 28 mm.

Angle fitting will allow cutting the tile into the karo, and the recess function allows you to perfectly adjust the cutting parameters to the current needs of the user.

The set with the cutter includes a high-quality diamond disc DEDRA H1123E with a disc diameter of 200 mm.

It is used for cutting glaze, stoneware and terracotta. A continuous wreath will provide the user with an ideal surface of the material being cut.

Tabletops made of steel and additionally covered with rubber together with an additional table top ensure high stability and adhesion of the tile to the table top. This ensures that the material holds securely, making it easy to make accurate cuts.

The basic worktop with dimensions of 780 x 390 mm can be enlarged by spreading an additional auxiliary worktop, which is particularly useful when we want to cut large format tiles.

On the side of the device there is a "spill" to protect against splashing water.

The design of the DEDRA DED7817 has a solid base. Folding legs, wheels and an additional kickstand ensure easy storage and movement. The weight of the machine 44 kg guarantees stability during operation. All elements are very precisely made.

The cutter is pre-adjusted, but before the first start it is necessary to check whether the device does not require additional adjustment.

Technical data of the DED7819:

• Type: electric
• Engine power: 800W
• supply voltage: 230V, 50 Hz
• Disc diameter: 200 mm
• Disc hole diameter: 25,4 mm
• Rotation speed: 2990 rpm
• Purpose: glaze, stoneware
• maximum cutting height at an angle: 90°: 32 mm
• maximum cutting height at an angle: 45°: 28 mm
• maximum cutting length: 720 mm
• maximum cutting length in karo: 500 mm
• water cooling: yes
• material: steel + rubber
• device weight: 44 kg

Dimensions of the working table:

• working (main): 780 x 390 mm
• additional (side): 640 x 20mm
• working height of the cutter: 790 mm

Additional features:

• depression function
• Dual disc cooling system
• folding legs
• transport wheels
• Angular fitting

Included with cutter:

• Diamond disc, continuous for glaze H1123E
• User manual in Polish
• Warranty card - 2 years of service protection
