Plytelių pjaustyklė MONTOLIT MASTERPIUMA 63P5 XL su atrama

Trumpai apie prekę

Prekė: Plytelių pjaustyklė MONTOLIT MASTERPIUMA 63P5 XL su atrama. Kategorija: Plytelių pjaustytuvai.

• Gamintojas: MONTOLIT
• Modelis: 63P5

Technical data:

• Max. cutting length: 63 cm
• Max. diagonal cut tile format: 44x44 cm
• Max. thickness of cut tile +/- 2 cm
• Adjusting the thickness of the cut tile in the handle

Standard equipment:

• Titanium wheel - ART. 245T - as standard
• Oil vial - ART.515-5 - as standard (1 pcs. )

Product Description:

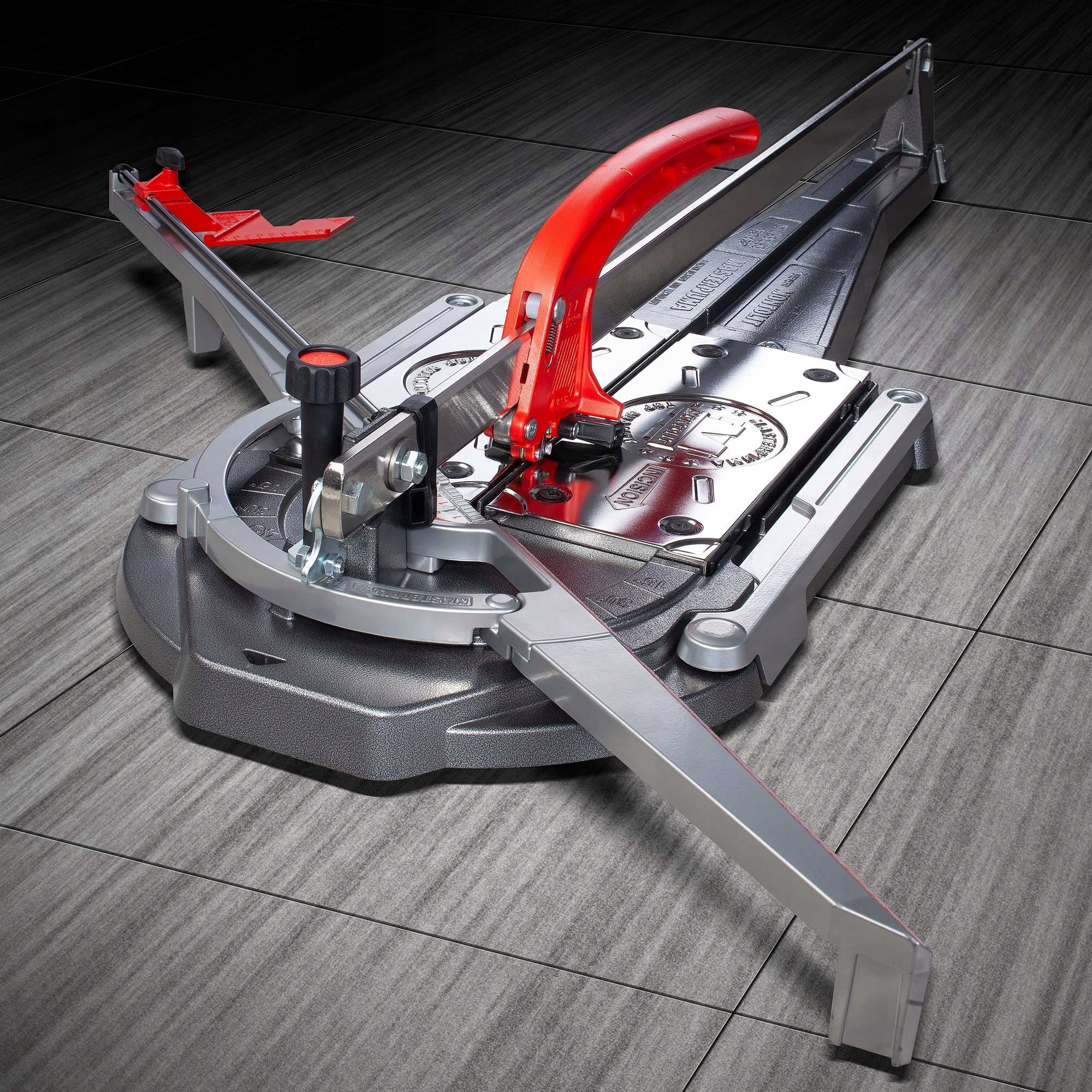

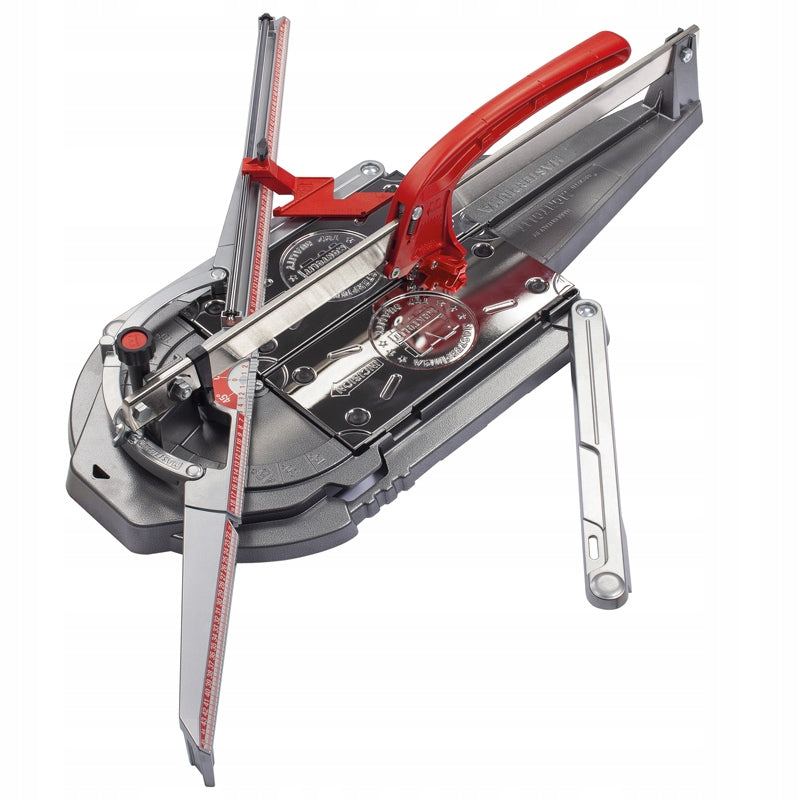

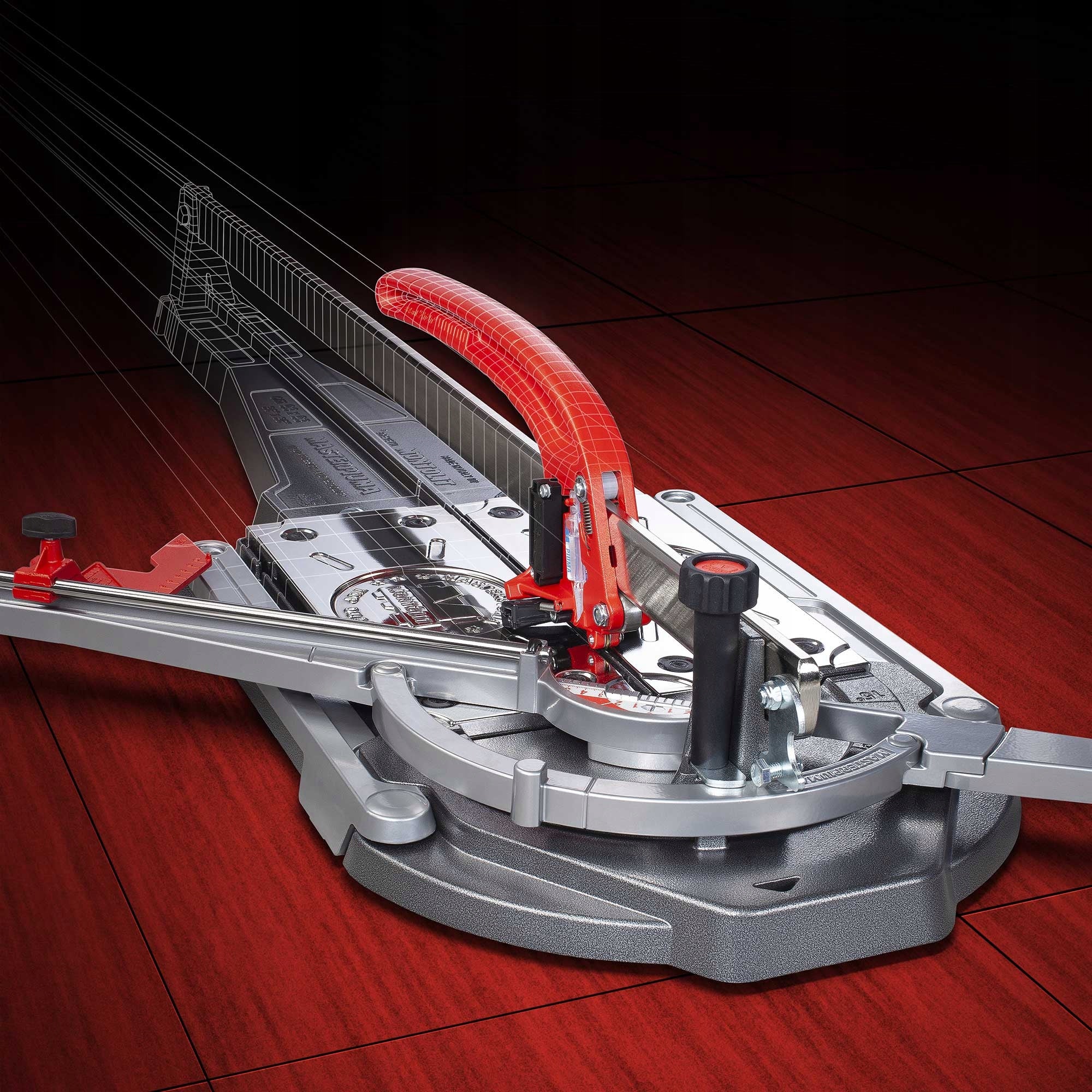

Tile cutting machine MONTOLIT Masterpiuma 63P5 XL

The new Power 5 line of machines is a continuation of the excellent "Masterpiuma" design.

MACHINE EQUIPPED WITH SIDE SUPPORTS

All components are 100% recyclable, machine 100% made in Italy.

Product Features:

• EXTENDED AND REINFORCED BODY of the machine made of light alloys, with an extended formula and reinforced at the points of greatest loads.
• MULTIFUNCTIONAL ADJUSTABLE WINE (EKIERKA) with the ability to rotate both right (+45°) and left (-45°), allowing precise cuts at any angle
• CUTTING SYSTEM - The handle (handle) for guiding the cutting wheel allows the operator to adjust the pressure. Thanks to this, it perfectly copes with extra thick tiles (up to 20mm) as well as with thin, glazed mosaic. – The cracker covered with a special polymer does not leave marks on the broken plate. This is a single piece that can be closed for normal cutting (this does not require withdrawing the handle after the first incision), and then opened for cuts on tile corners or on mosaic sheets. – Integrated lubrication module of the cutting wheel, which can be used if necessary, by lightly squeezing the dispenser. – Cutting wheel made of tungsten carbide, titanium coated, guaranteed 5000 meters of cuts, easy to replace. - R.A.S. (Roller Adjuster System) Cutting wheel clamping system made of friction and wear resistant material, which effectively eliminates any lateral movements and guarantees the perfect, precise cut.
• SIDE SUPPORTS In the 75P5, 93P5, 131P5 and 161P5 models, fold-out, stable side supports have been added that allow stable and reliable support of the cut tile in any position. Especially with diagonal cuts.
• DESIGNED FOR LARGE SIZES 63P5 (cm 63×63), 75P5 (cm75x75) and 93P5 (cm 93×93) and brand new 131P5 (cm 131×131) and 161P5 (cm 161×161).
