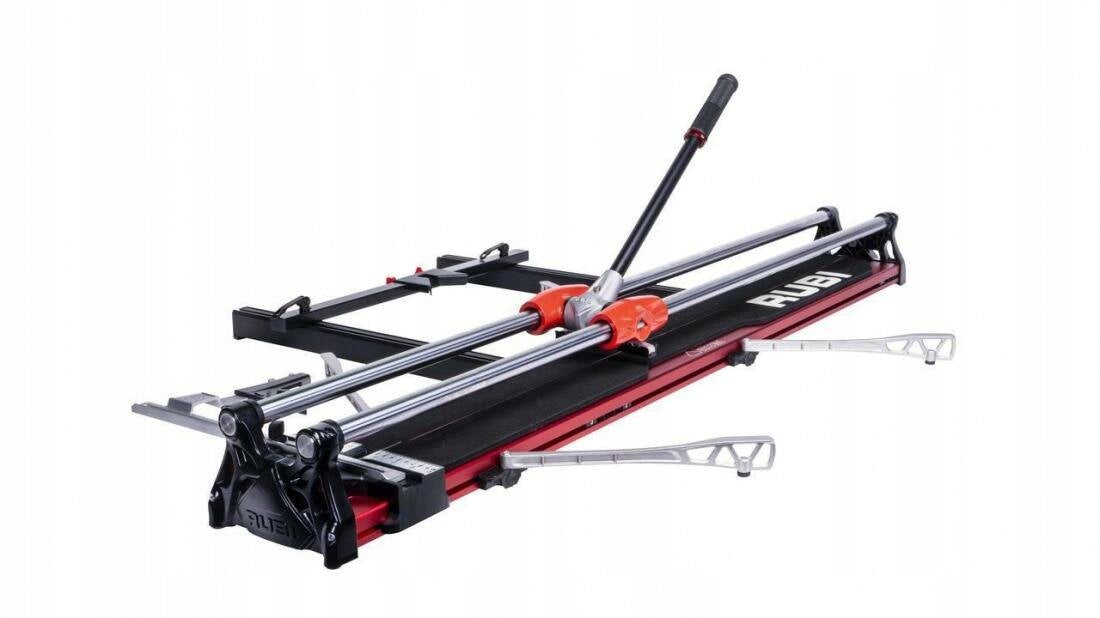

Plytelių pjaustyklė RUBI HIT-1200 PLUS, 120 cm

Trumpai apie prekę

Prekė: Plytelių pjaustyklė RUBI HIT-1200 PLUS, 120 cm. Kategorija: Plytelių pjaustytuvai.

• Gamintojas: Rubi
• Modelis: 27900

• The HIT-PLUS manual cutter is a strong and precise tool designed for the most demanding work with large format ceramic tiles.
• Ideally suited for cutting ceramic tiles of all types ( porcelain stoneware, glazed stoneware and wall tiles).
• The trolley in HIT-PLUS cutters is equipped with rolling bearings for a smoother and more comfortable notching.
• The M breaker mechanism with MAGNET system allows you to lock and unlock the breaker foot with one hand, which significantly speeds up the process of cutting and breaking the plate.
• The position of the breaker foot in front of the knife improves the visibility of the incision line.

• The HIT-PLUS cutter is equipped with a breaker system with high efficiency and maximum pressure up to 900 kg when breaking tiles with a thickness of 3-18 mm (16 mm when using breaker foot covers).
• The guides in HIT-PLUS cutters made of steel, chrome-plated rods with anti-corrosion protection, with a cross-section of 25 mm, provide better bending resistance.
• The extruded aluminium base with closed structure provides greater structural rigidity.

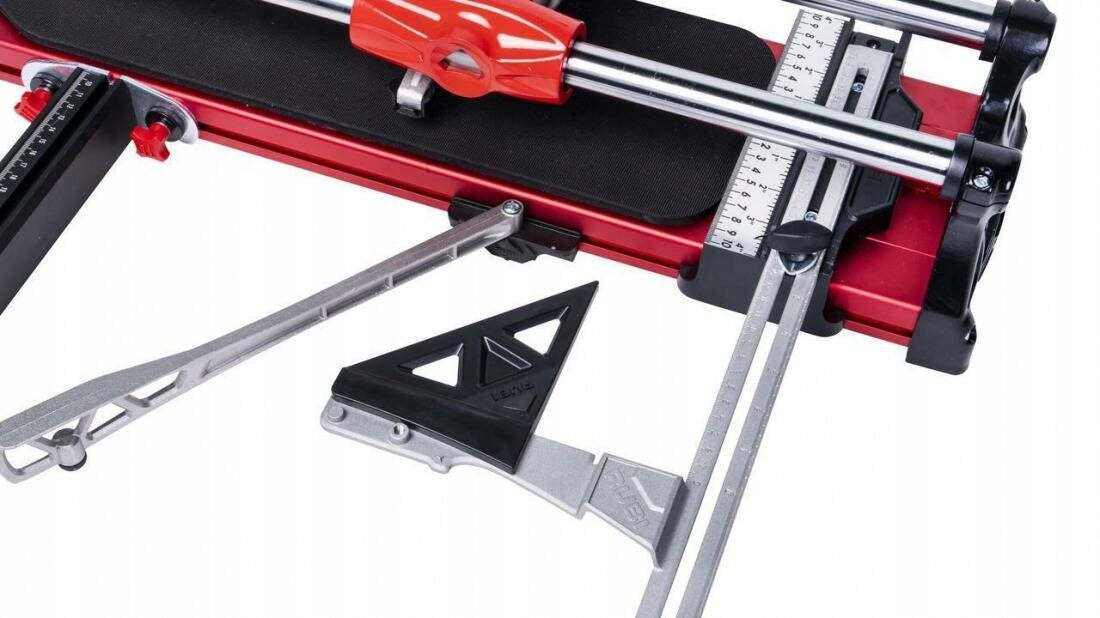

• Hand cutters HIT-PLUS have additional aluminum arms, which increase the support surface when working with large format tiles and a side gauge, which facilitates the measurement and implementation of repetitive straight cuts and positioning of the plate at an angle of 45º.
• The breaker lever holder is made of soft plastic for higher ergonomics and comfort of the tiler.
• The HIT-PLUS cutter is equipped with a 22mm EXTREME knife and is compatible with the entire range of SILVER, GOLD and ENDURE knives.

Technical data of 27900 RUBI:

• Cutting length: 1200 mm
• Maximum breaker strength: 900 kg
• Maximum dimension of the broken plate diagonally: 85 x 85 cm
• Material Thickness: 3-18mm
• Maximum material thickness with breaker foot guards used: 16 mm
• Weight: 20,4 kg
• Dimensions: 1400 x 235 x 148

Scope of delivery of the cutter 27900 RUBI:

• HIT-1200 Plus cutter
• Cutting knife 22mm EXTREME

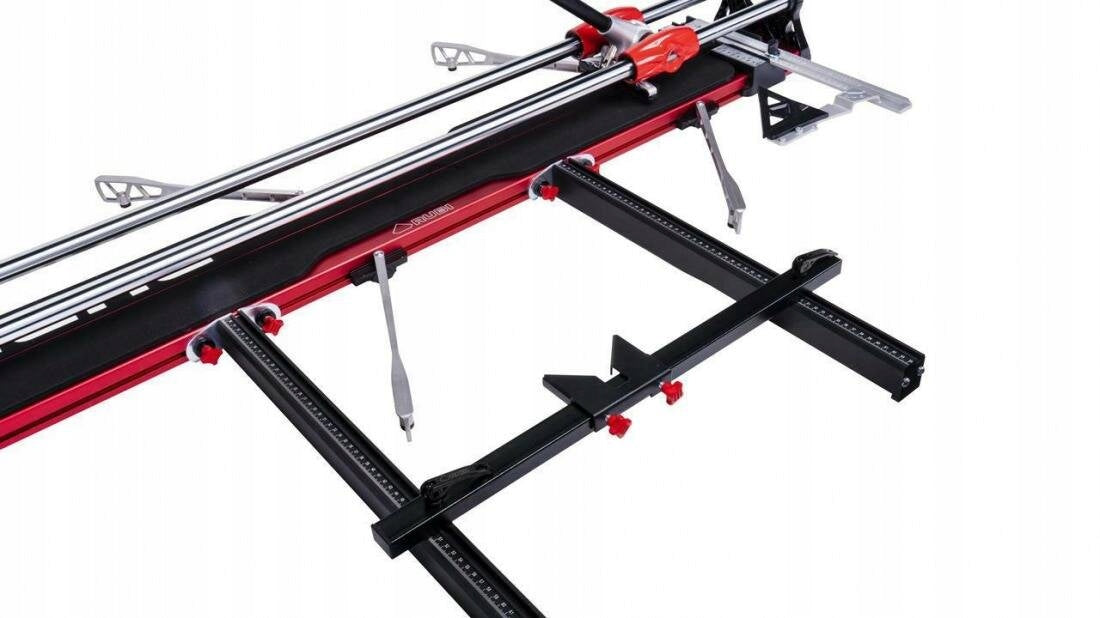

• Two pairs of folding metal arms
• Side stop for repetitive cuts with millimeter and inch graduations
• 45° angle gauge for cutting in karo
