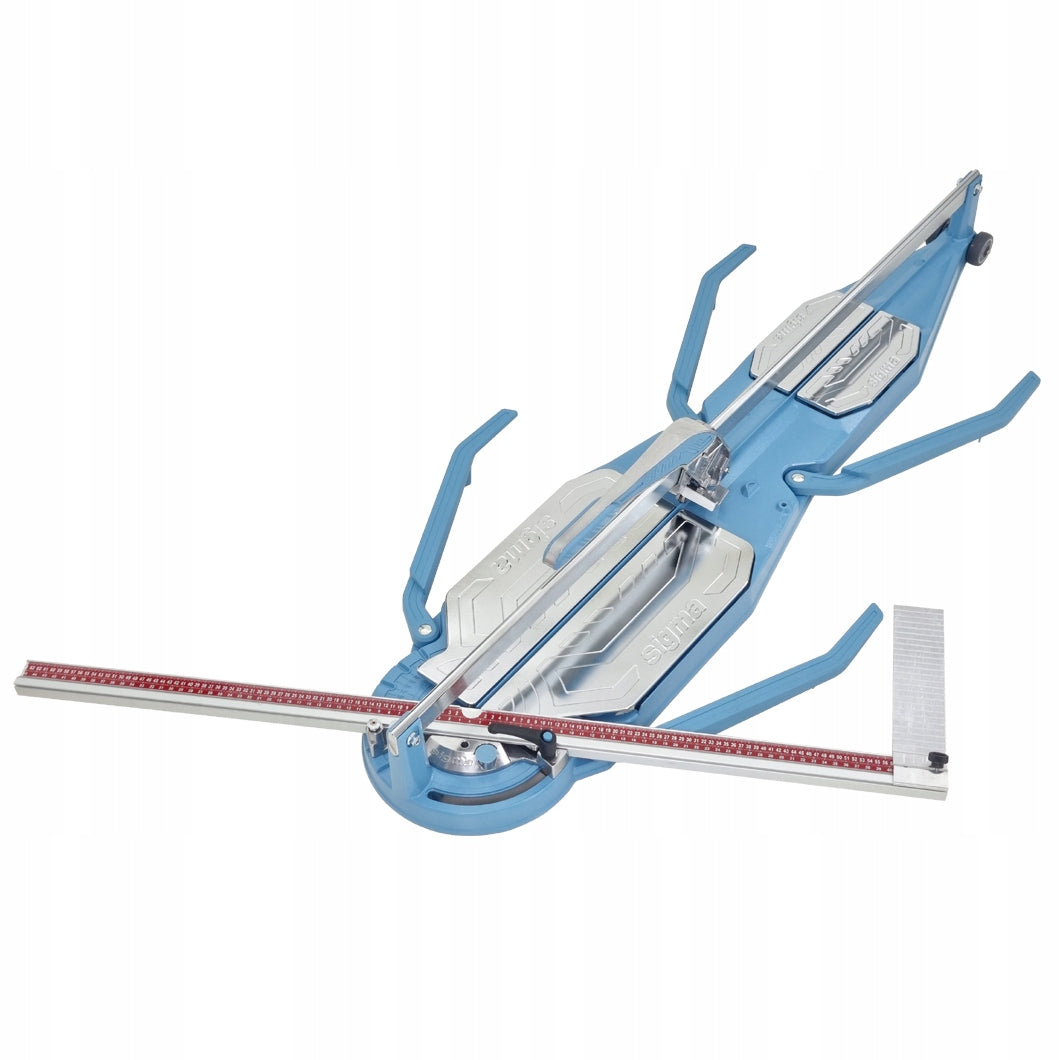

Plytelių pjaustyklė SIGMA NEX 4EN, rankinė, 125 cm

Trumpai apie prekę

Prekė: Plytelių pjaustyklė SIGMA NEX 4EN, rankinė, 125 cm. Kategorija: Plytelių pjaustytuvai.

• Gamintojas: Sigma
• Modelis: 4EN

• Material: aluminum+steel+plastics
• Maximum length of longitudinal cutting: 125 cm
• Maximum cutting length diagonally: 88,4 cm
• Maximum thickness of cut tile: 19mm
• Breaking force: 1200 kg
• Weight: 21,1 kg
• Producer: Sigma
• Product Code: 4EN

Sigma 4EN cutter – main features

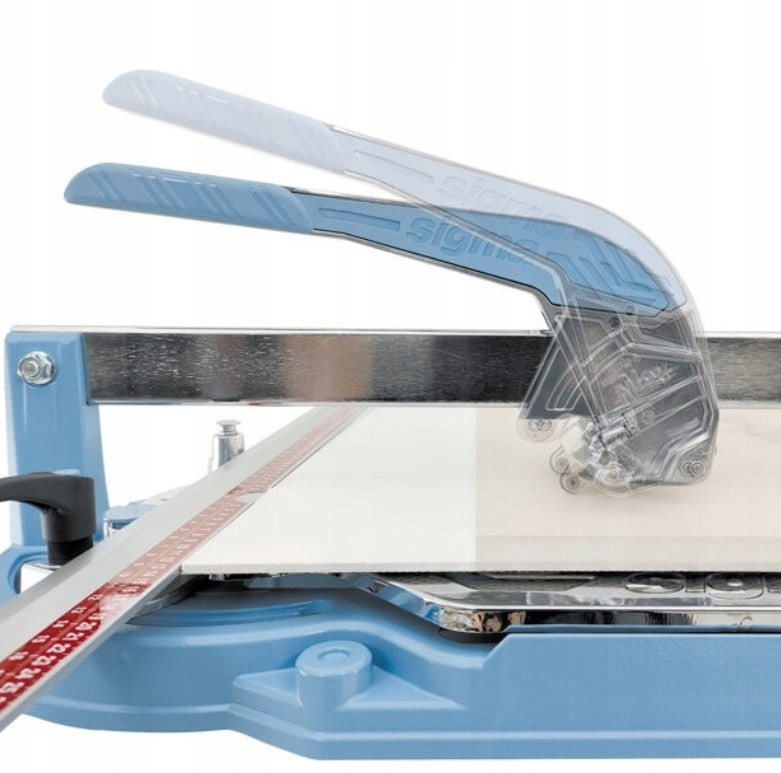

• Cutting all thicknesses of tiles without the need for adjustment.
• Sliding guides, very durable for perfect straight scoring.
• Possibility of fixing the laser
• Metric bar with angle and measurement always close to the operator.
• Measuring rod rotated on a steel pin to the center of the cutting line, rotating +45° 0° – 45°.
• Adjustable stop for quick positioning of the metric post to the angle for accurate positioning.
• Metric scale with the possibility of setting the angle.
• Long support element with the possibility of mounting on any length of the measuring strip.
• Possibility to extend the metric on the right or left side.
• Front dimension 410 – 0 – 410 mm.
• Spare space for the cutting wheel.
• Spring-loaded support brackets that can be opened to support large tiles.
• Reduced size for easy transportation.
• Possibility to buy a non-slip magnetic mat for cutting mosaics.
• Suitcase with wheels available in an additional option.
• Aluminum construction lightweight and durable.

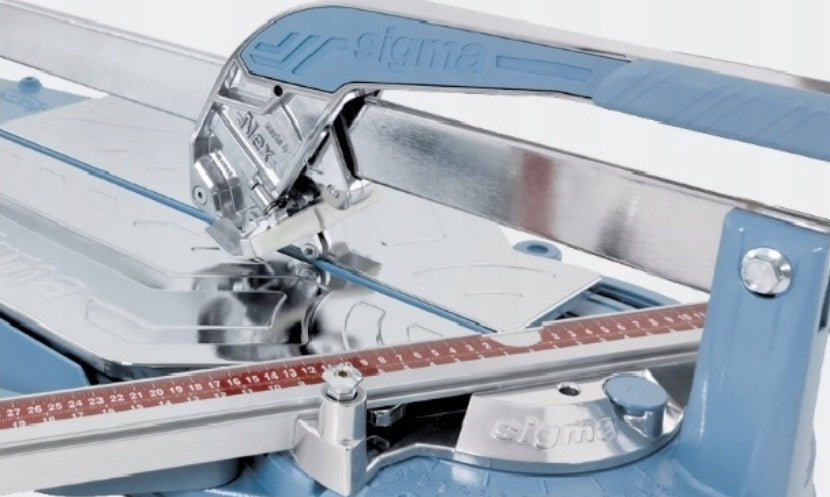

• Ergonomic handles with sliding on ball bearings.

The latest series of NEX cutters

The new “Series 4” is the maximum evolution of tile cutters, completely redesigned, offering maximum cutting performance and practicality!

Years of research and improvement have come together to create a new line that combines innovation, precision mechanics and design to deliver an exceptional cutting experience.

Specifications
