Plytelių pjaustyklė SIGMA Series 4 NEX 4CN, 76 cm, stumiama

Trumpai apie prekę

Prekė: Plytelių pjaustyklė SIGMA Series 4 NEX 4CN, 76 cm, stumiama. Kategorija: Plytelių pjaustytuvai.

• Gamintojas: Sigma
• Modelis: 4CN

Catalog number: 4CN

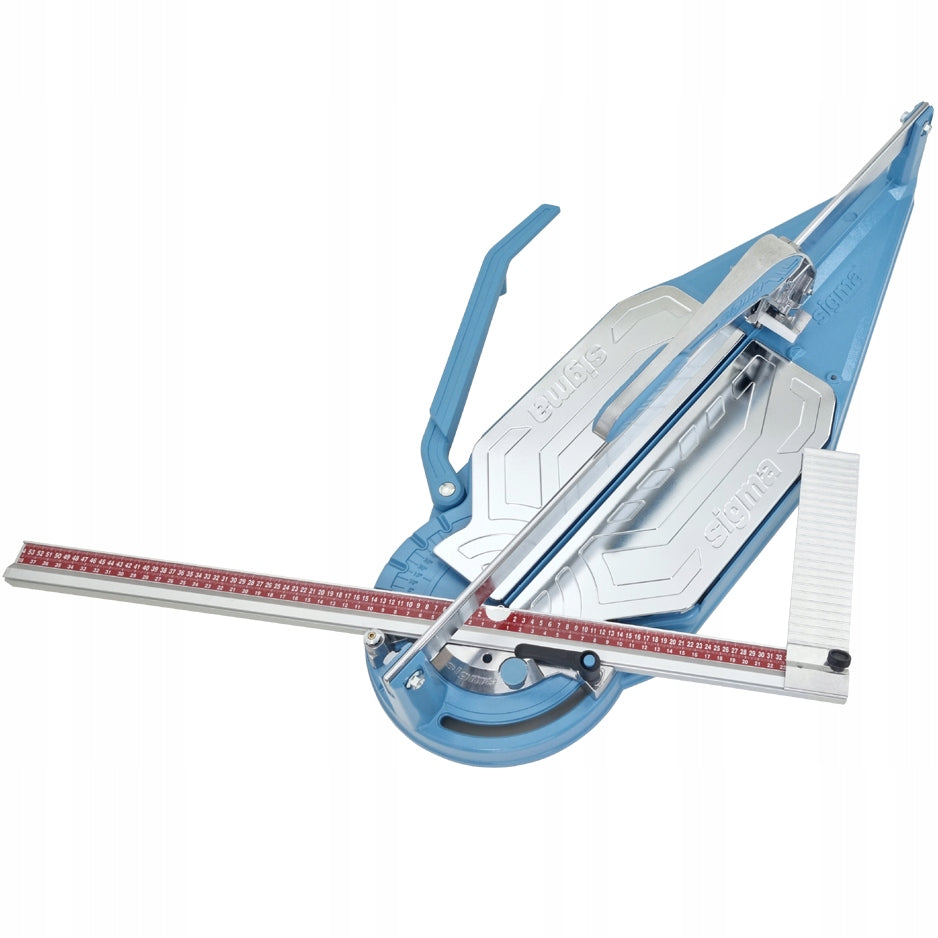

SIGMA 4CN NEX PUSH Tile Cutter 76 cm:

• Sigma ART-4CN is the fourth generation tile cutting machine of the Italian brand Sigma.
• It is designed for cutting tiles, including structural ones.
• It allows you to make a longitudinal cut with a length of 76 cm and 53,7 cm diagonally.
• The machine is dedicated to tiles with a thickness not exceeding 19 mm.

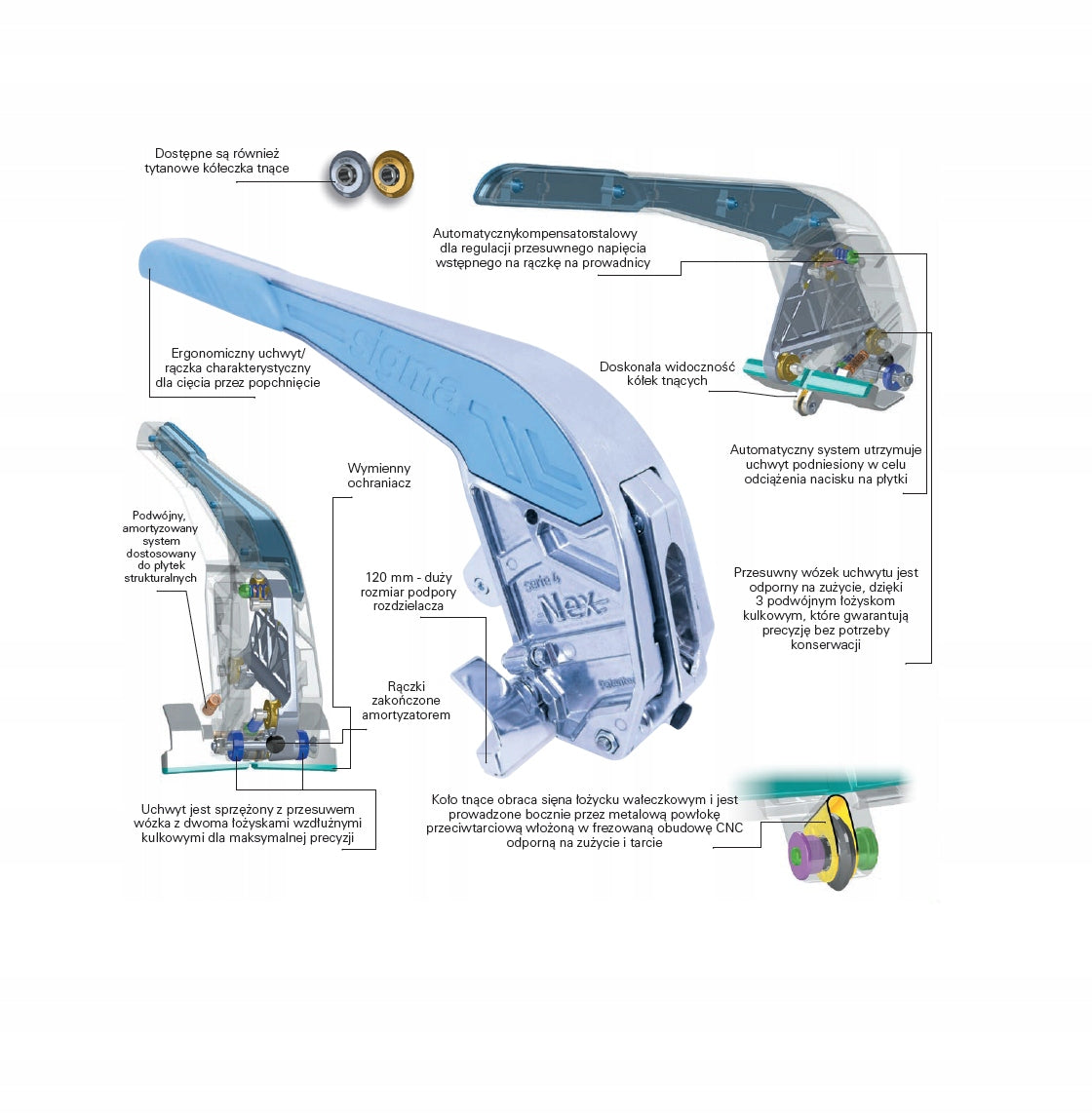

• The handle is designed to be ergonomic and comfortable to use.
• The cutting wheel fixed in the handle rotates on the roller bearing and is guided laterally through the metal anti-friction coating.
• This solution ensures excellent handling of the cutting wheel, elimination of side clearances of the wheel and its long service life.
• In addition, the handle with the cutting wheel moves on a reinforced rail, which has an anti-corrosion coating.

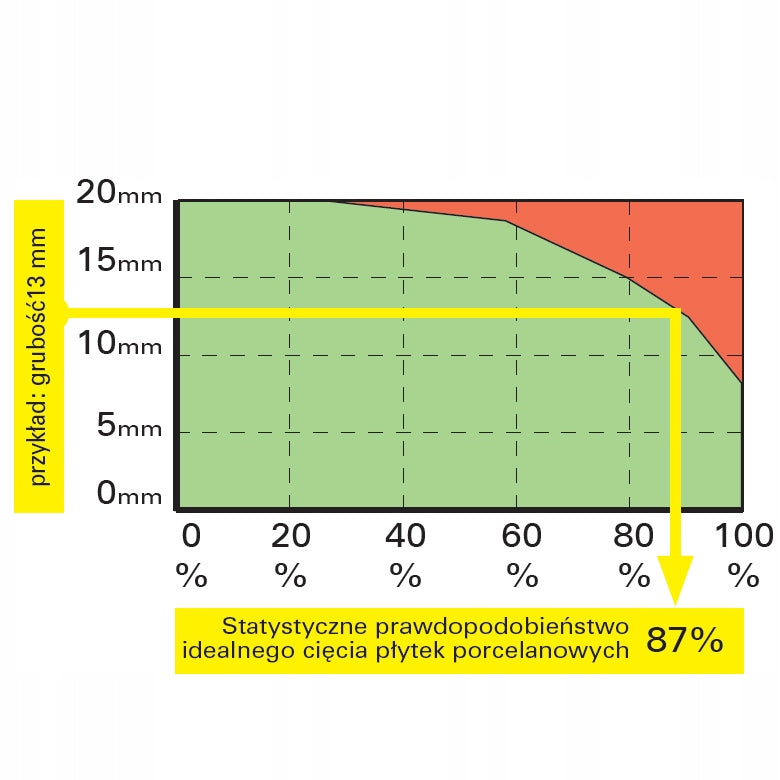

• When cutting tiles with a thickness of 13 mm, the probability of an ideal cut is 87%. The machine is built on a solid aluminum base, which guarantees stability when cutting tiles.
• The weight of the device is 12,7 kg.

Technical data:

• Material: aluminum+steel+plastics
• Maximum length of longitudinal cutting: 76 cm
• Maximum cutting length diagonally: 53,7 cm
• Maximum thickness of the cut plate: 19 mm
• Breaking force: 1200 kg
• Weight: 12,7 kg
• Producer: Sigma
• Product code: ART-4CN
