Plytelių pjovimo staklės SIGMA GLAZE STONEWARE 4CU, 84 cm

Trumpai apie prekę

Prekė: Plytelių pjovimo staklės SIGMA GLAZE STONEWARE 4CU, 84 cm. Kategorija: Plytelių pjaustytuvai.

• Gamintojas: Sigma
• Modelis: 4CU

Catalog Number: 4CU

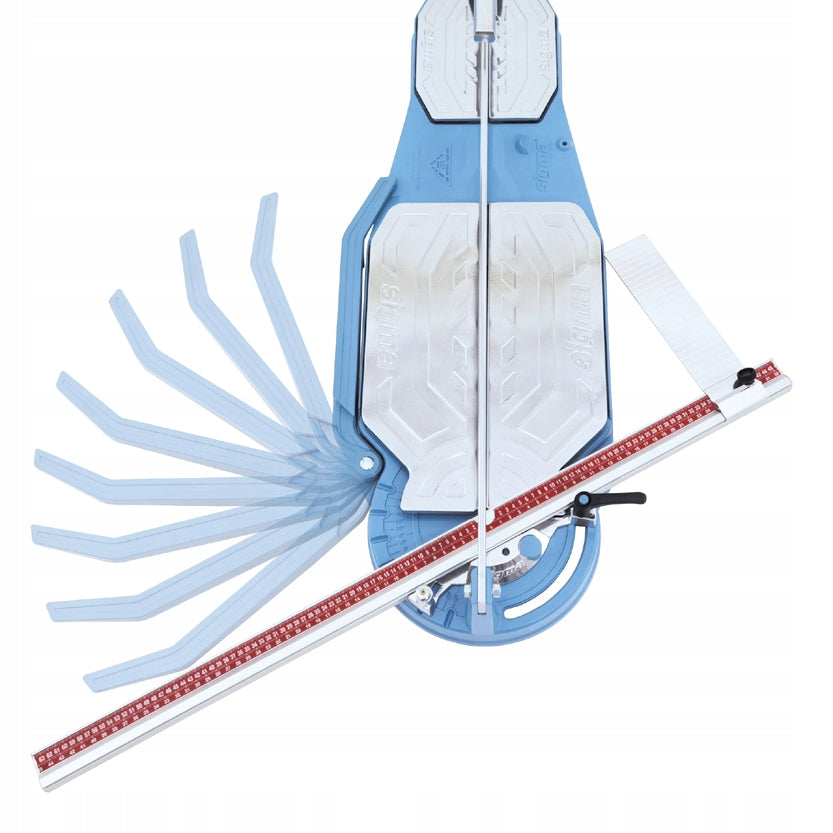

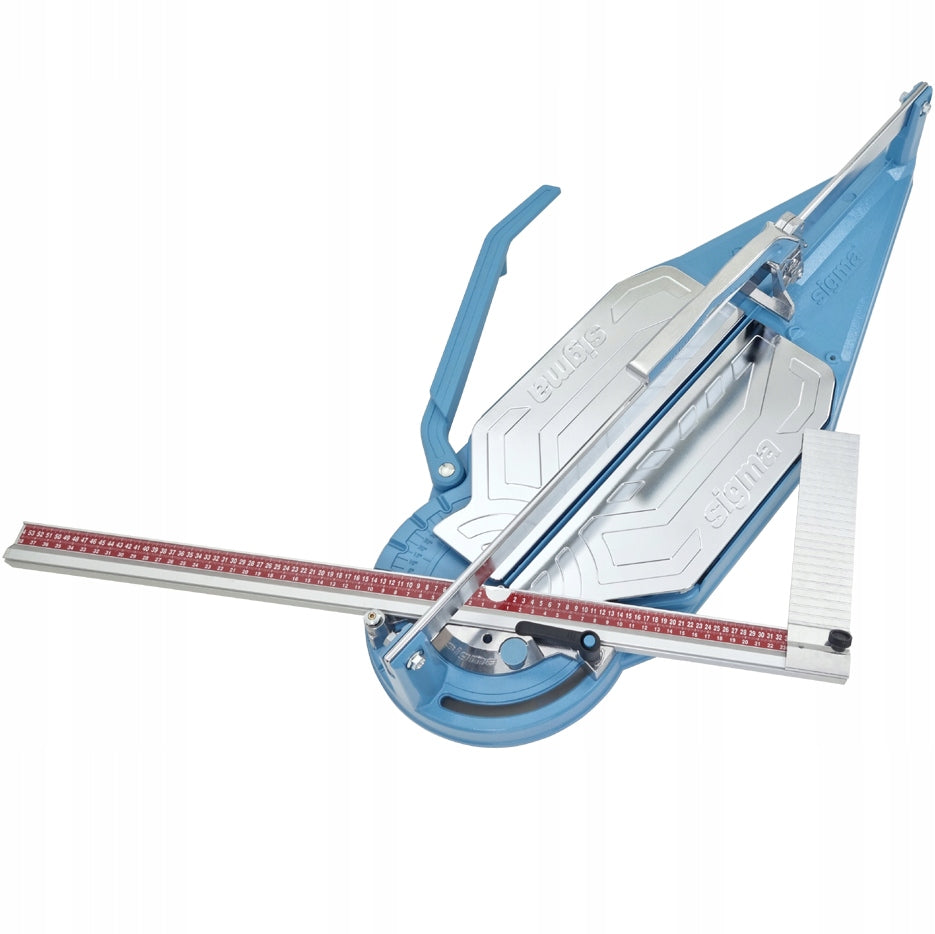

SIGMA 4CU NEX PULL Tile Cutter 84 cm:

• Sigma ART-4CU is the fourth generation tile cutting machine of the Italian brand Sigma.
• It is designed for cutting tiles.
• It allows you to make a longitudinal cut with a length of 84 cm and 59,4 cm diagonally.
• The machine is dedicated to tiles with a thickness not exceeding 17 mm.

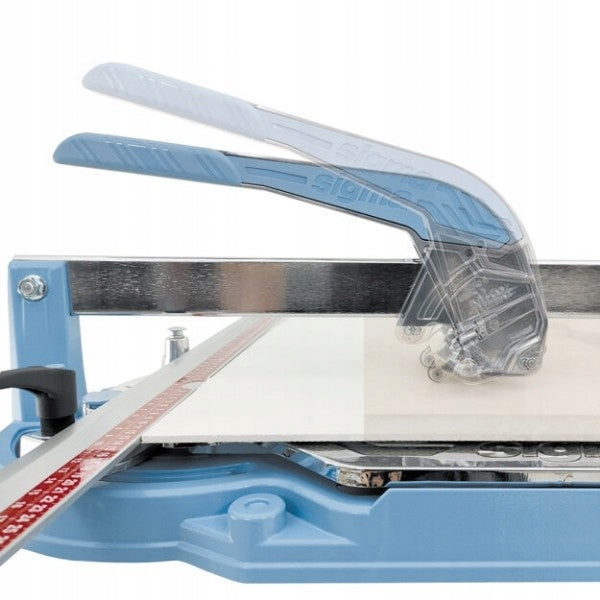

• The handle is designed to be ergonomic and comfortable to use.
• The handle is designed so that the operator can see the cutting line.
• The cutting wheel fixed in the handle rotates on the roller bearing and is guided laterally through the metal anti-friction coating. This solution ensures excellent handling of the cutting wheel, elimination of side clearances of the wheel and its long service life.
• In addition, the handle with the cutting wheel moves on a reinforced rail, which has an anti-corrosion coating.
• When cutting tiles with a thickness of 12mm, the probability of an ideal cut is 87%.
• The machine is built on a solid aluminum base, which guarantees stability when cutting tiles.
• The weight of the device is 12,3kg.

Technical data:

• Material: aluminum + steel + plastics
• Maximum length of longitudinal cutting: 84 cm
• Maximum cutting length diagonally: 59,4 cm
• Maximum thickness of the cut plate: 17 mm
• Breaking force: 1050 kg
• Weight: 12,3 kg
• Producer: Sigma
• Product Code: ART-4CU
