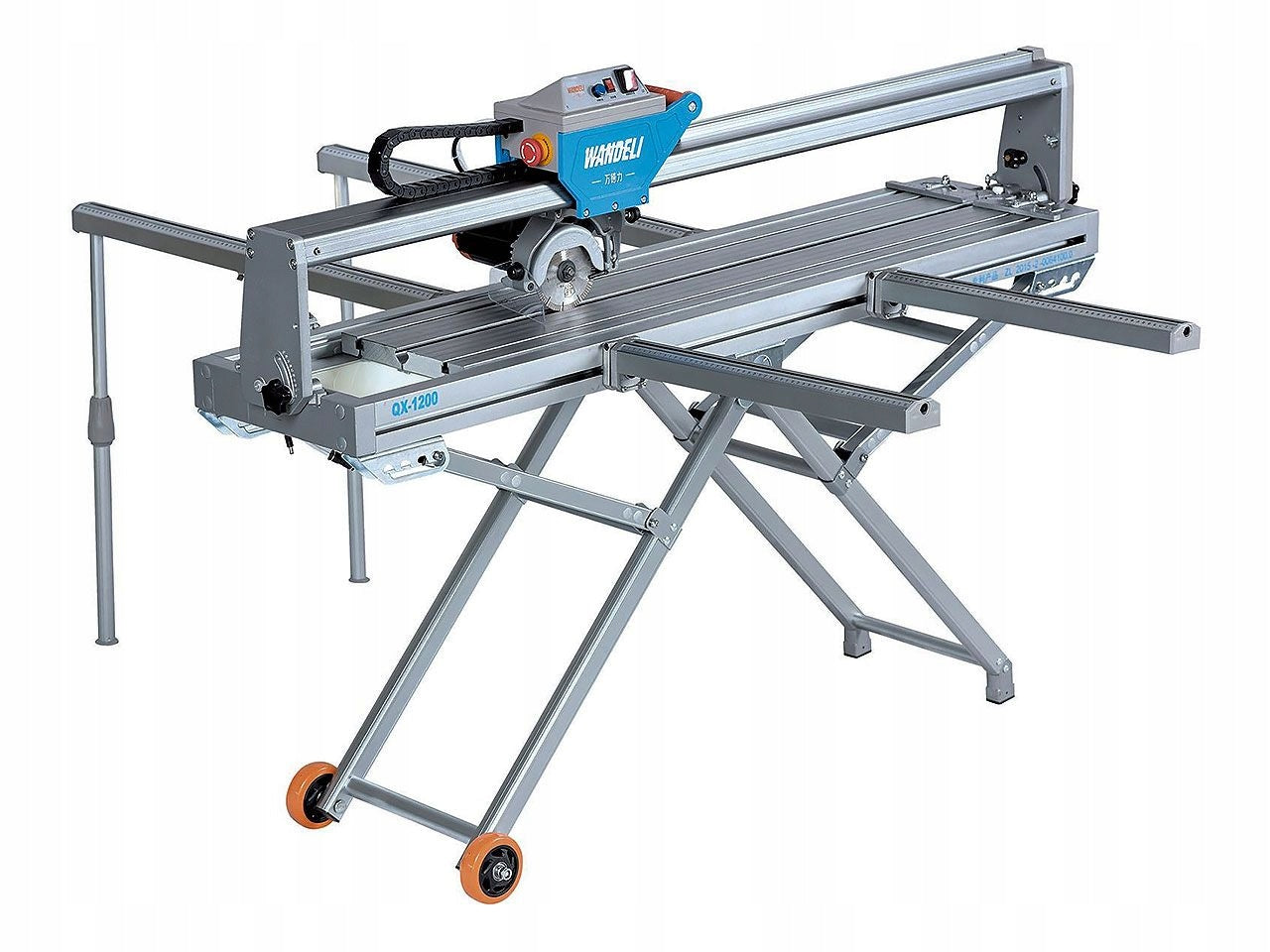

Plytelių pjovimo staklės WANDELI QX-ZD1200 automatinės su apsauga

Trumpai apie prekę

Prekė: Plytelių pjovimo staklės WANDELI QX-ZD1200 automatinės su apsauga. Kategorija: Plytelių pjaustytuvai.

• Gamintojas: Wandeli
• Modelis: qxzd1200
• Galia: 1550 W

Electric cutter Wandeli QX-ZD 1200

Professional Glaze and Stone Cutter with Automatic Feed

NEW VERSION 2024 BRUSHLESS MOTOR GREEN LASER!!!

Wandeli Stoneware Cutter

⭐ ⭐ ⭐ ⭐ ⭐

✅ PRODUCT FEATURES

• Maximum cutting length: 1200mm;
• Aluminum body
• Weight: 37kg;
• Low cost of discs (Discs up to 125mm, max cutting thickness 30mm, optimally 115mm);
• Possibility of using special discs on the machine to make anti-slip grooves and sloping edges on the tile
• Possibility of installing two discs at once, which allows you to cut the tile and create an original edge at the same time
• Side supports included
• Sliding tabletop
• The raised motor allows you to adjust the cutting depth and cut holes in tiles.

✅ TECHNICAL PARAMETERS

• Brushless motor + SMOOTH START
• – 220V/50Hz
• Motor power – 1550W
• Engine speed – 8000rpm
• Maximum disc diameter – Ø125mm optimally 115mm
• Maximum cutting thickness 90° – 30mm
• Maximum cutting thickness 45° – 20mm
• Maximum cutting length – 1250mm
• Table dimensions – 1200 x 350mm
• Water pump – DC24V 36W 9m 6l/m
• Packaging dimensions – 1760 x 455 x 505mm
• Net/gross weight – 37/43Kg

Automatic Cutting Machine

⭐ ⭐ ⭐ ⭐ ⭐

✅ KIT INCLUDES

• 1 x QX ZD 1200 WANDELI CUTTER
• 1 x laser ensures comfortable work and precise cutting
• 2 x short foldable side supports, 53cm long, with stops for repeatable cuts 45*/90*
• 2 x long folding supports with extendable legs, 75 cm long
• and a latch strip to lock the plate
• 2 x stops for repeatable 45° cuts* attached to the tabletop
• 2 x Clamp for discs with 20mm and 22.23mm holes
• 2 x J&P Wandeli 116mm disc with 20mm center hole
• 1 x 36W-24V water pump with filter
• 1 x Set of keys for operating the machine
• 1 x Rubber adapter for connecting an external water supply
• 1 x Warranty card (24-month warranty for the cutter from the date of purchase for all machine components and accessories, excluding the water pump)

Professional Electric Cutter

⭐ ⭐ ⭐ ⭐ ⭐

✅ PRODUCT DESCRIPTION

Wandeli QX-ZD 1200 is an uncompromising, solidly constructed tile cutting machine that combines all the functions and equipment necessary for professional equipment.

The "QX-ZD" version means that the machine has three operating modes:

1. Automatic mode - automatic cutting and after cutting is completed, the working head automatically returns to the starting point of the cut;
2. Semi-automatic mode - automatic cutting and shutdown after cutting is completed;
3. Manual mode - cutting in manual mode as with a regular electric cutter.
