Plytelių siurbtukai RAIMONDI didelėms plytelėms

Trumpai apie prekę

Prekė: Plytelių siurbtukai RAIMONDI didelėms plytelėms. Kategorija: Plytelėms skirtos siurbtukai.

• Gamintojas: Raimondi
• Modelis: 432EM04V150

SUCTION CUP HOLDERS FOR CARRYING LARGE FORMATS OF RAIMONDI EASY-MOVE 150 BOARDS

• Product code: 432EM04V150
• Producer: RAIMONDI

DESCRIPTION AND CONTENT:

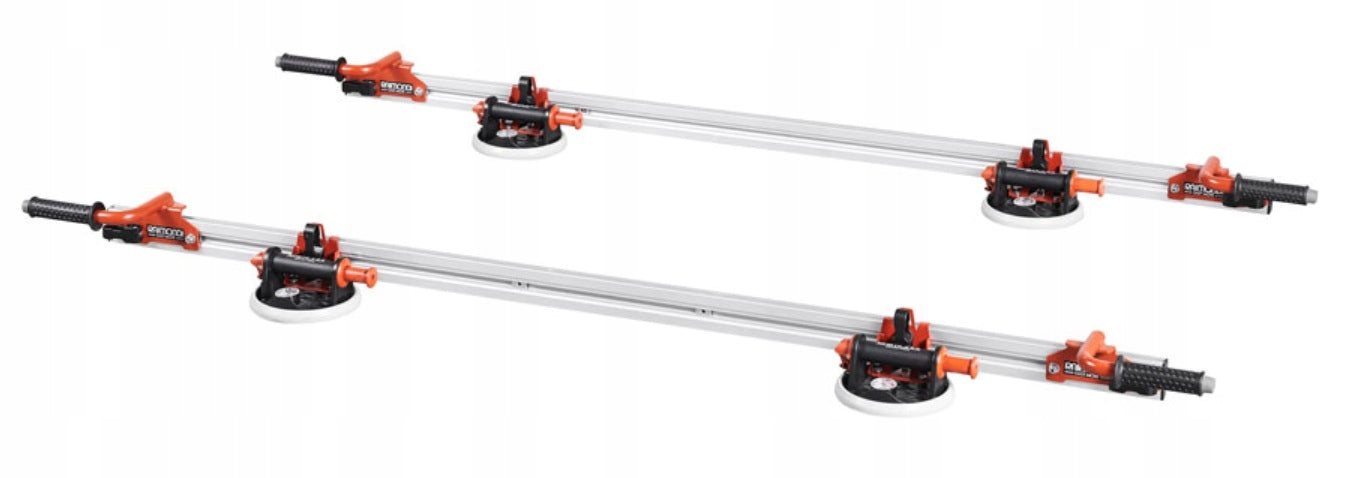

• Pack of 1 set. (2 longitudinal aluminium handles, 4 suction cups)
• Maximum lifting capacity per 1 suction cup 130kg
• Suction cup diameter: 175 mm

DESCRIPTION:

• Suction cups for transferring tiles/plates up to 150 cm (4,9') in length
• Fixed length aluminium profiles
• Equipped with 4 vacuum suction cups "RV175" (2 for each profile), also ideal for textured tiles/plates
• The vacuum suction cups "RV175" (with cast aluminum body) are equipped with a vacuometer and rubber, which are very easy to replace if needed, as well as a corrosion resistant vacuum valve
• Maximum safety thanks to vacuometers (placed in a secured place), which constantly indicate the level of vacuum inside the suction cup. The pump system allows you to restore/increase the vacuum level at any time with the suction cup on
• Each vacuum suction cup can be easily moved along the entire length of the aluminum guide
• Tilting suction cups (+/- 3,5°) adapt to the possible bending of the plate and guarantee an excellent grip in any situation. This feature is especially useful for textured boards

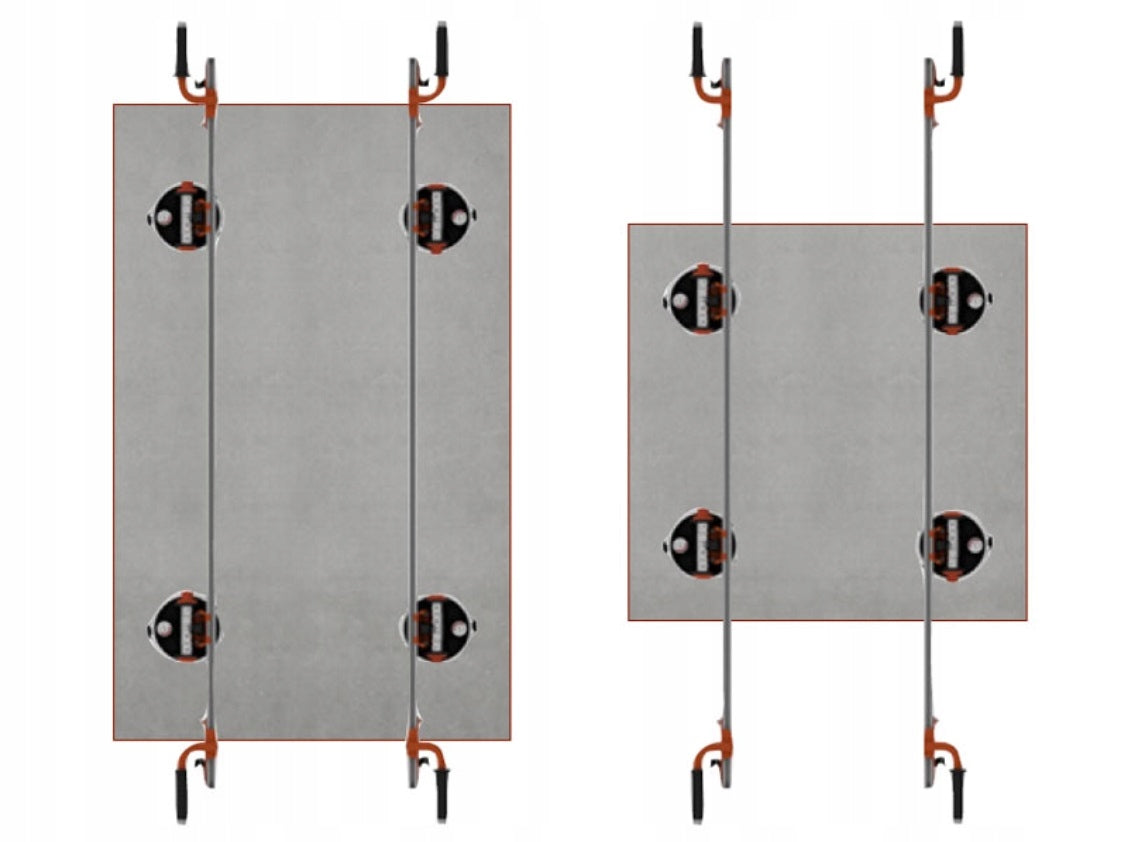

• All suction cups are aligned to allow EASY-MOVE 150 to be used also on reduced width plates (minimum width 19 cm / 7 1/2”)

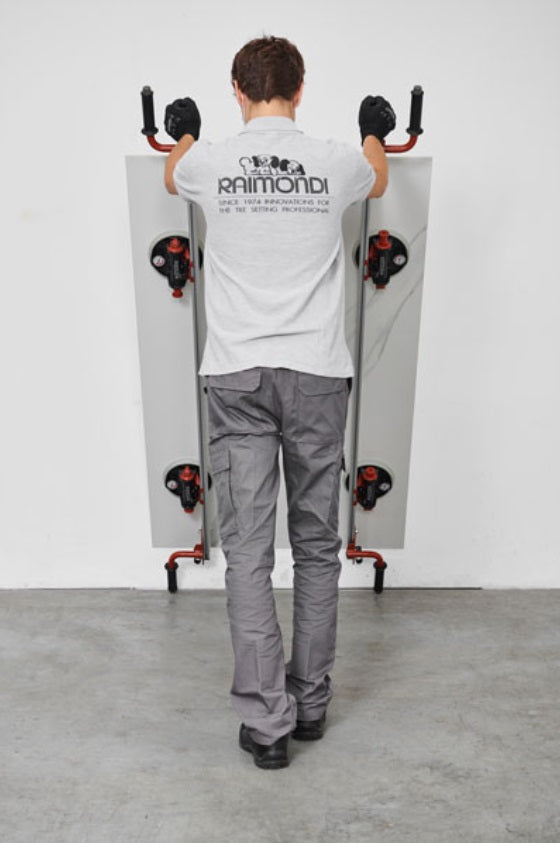

• 4 sliding handles equipped with a non-slip and stain-resistant grommet provide the best ergonomics and handling even when mounted on the wall. Each handle is equipped with a soft rubber grip
• Can be used in conjunction with EASY-MOVE MkIV crossbars, easy to assemble and disassemble thanks to quick release lock system and safety hooks for added security
• Pair of crossbars and crossbar suction cups are available as accessories
• Equipped with plastic suction cup covers, instruction manual and maintenance.
