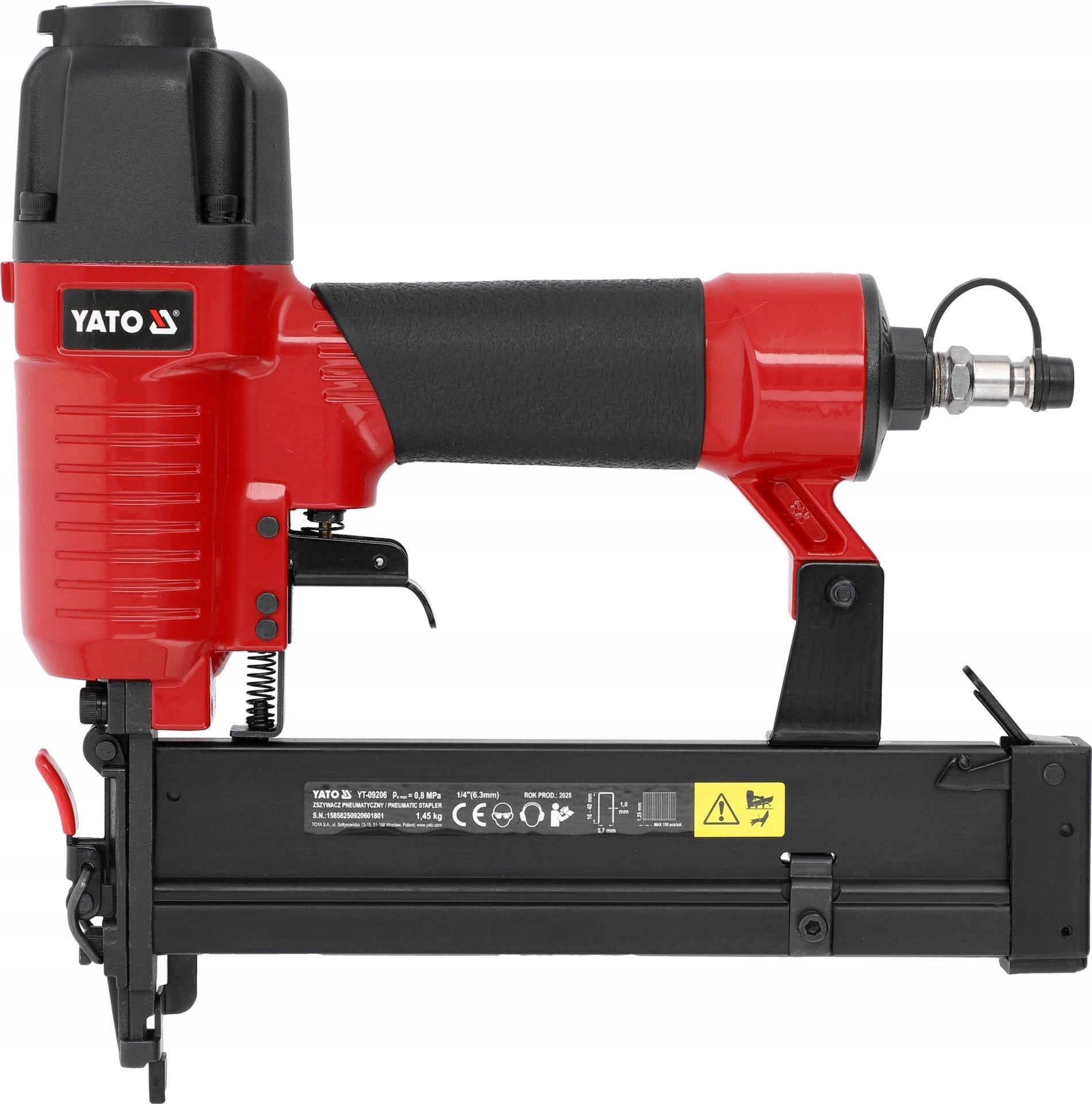

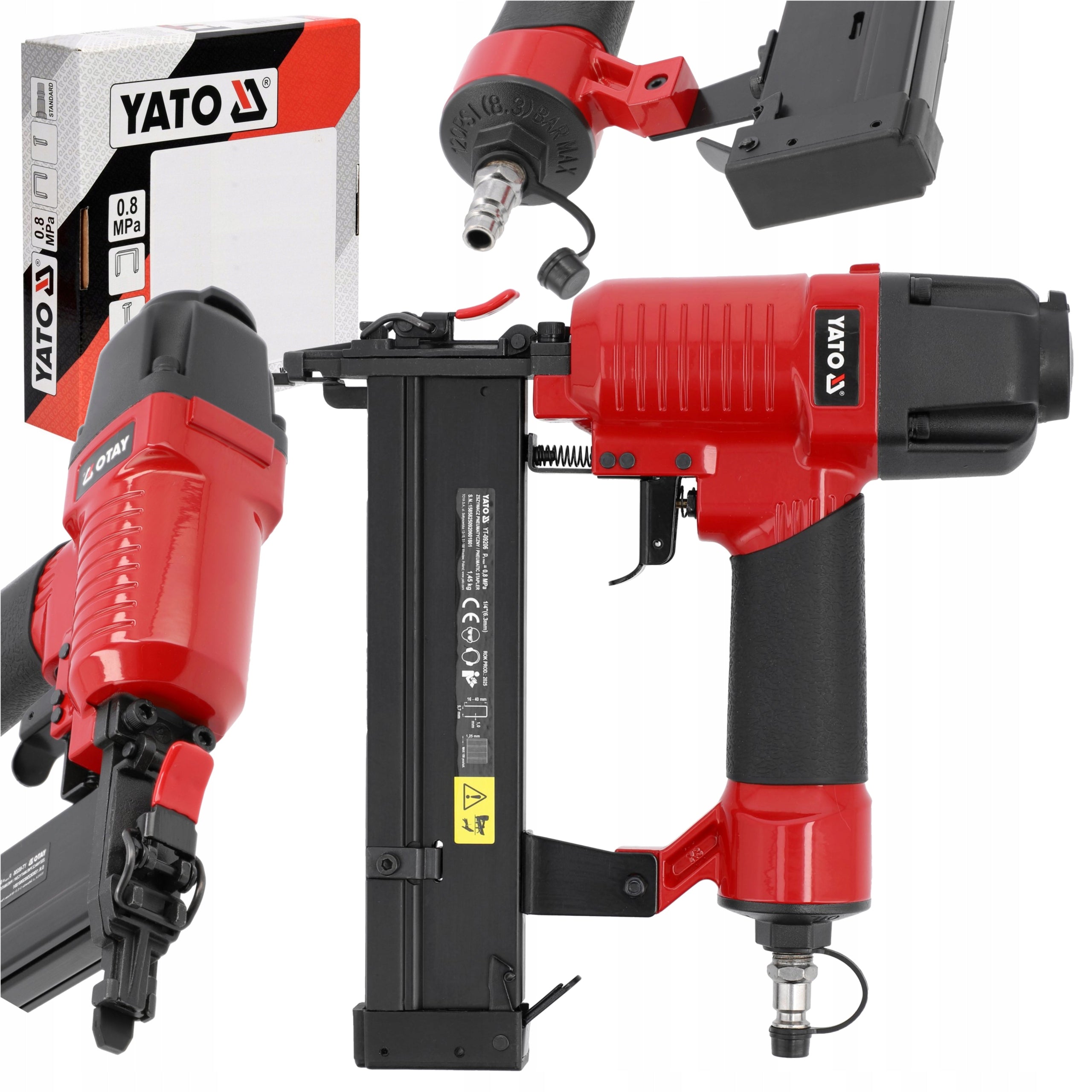

Pneumatinis ATO baldų segiklis, 16–40 mm vinims ir kabėms

Trumpai apie prekę

Prekė: Pneumatinis ATO baldų segiklis, 16–40 mm vinims ir kabėms. Kategorija: Universalūs įrankiai.

• Gamintojas: no brand
• Modelis: YT-09206

STICK 10-45 mm

STAPLES 16-40 mm

⚙ Professional and reliable pneumatic stapler designed for intensive upholstery, assembly and carpentry work. Robust construction and practical functions ensure fast, safe and accurate joining of materials – both in serial operation and for precise tasks.

⚙ TECHNICAL DATA:

• Handle material: rubber
• Length of elements . onwards: 16-40 mm
• Acoustic pressure: 86.3 ± 2.5 dB(A)
• Twisting: 2.2 ± 0.89 m/s²
• Mass: 1.45 kg
• Internal diameter of air supply hose: 3/8" (9.5 mm)
• Body material: aluminium
• Air connection diameter (PT): standard
• Fuse: yes
• Dimensions: 55x196x245 mm
• Max. operating pressure: 0.8 MPa
• Capacity of tray: 100 pcs.
• Acoustic power: 99.3 ± 2.5 dB(A)
• Recommended operating pressure: 0.4-0.8 MPa
• Application: upholstery / carpentry / finishing works
• Dimensions of elements . on: 16-40x1x5.7 (staples) / 10-40x1x2 (nails) mm
• Type of elements . s: staples / nails
• Functions: sequential operating mode

⚙ Stapler supports staples and nails from 16 to 40 mm in length. With two formats. The stump works well with thin upholstery fabrics and harder wood materials.

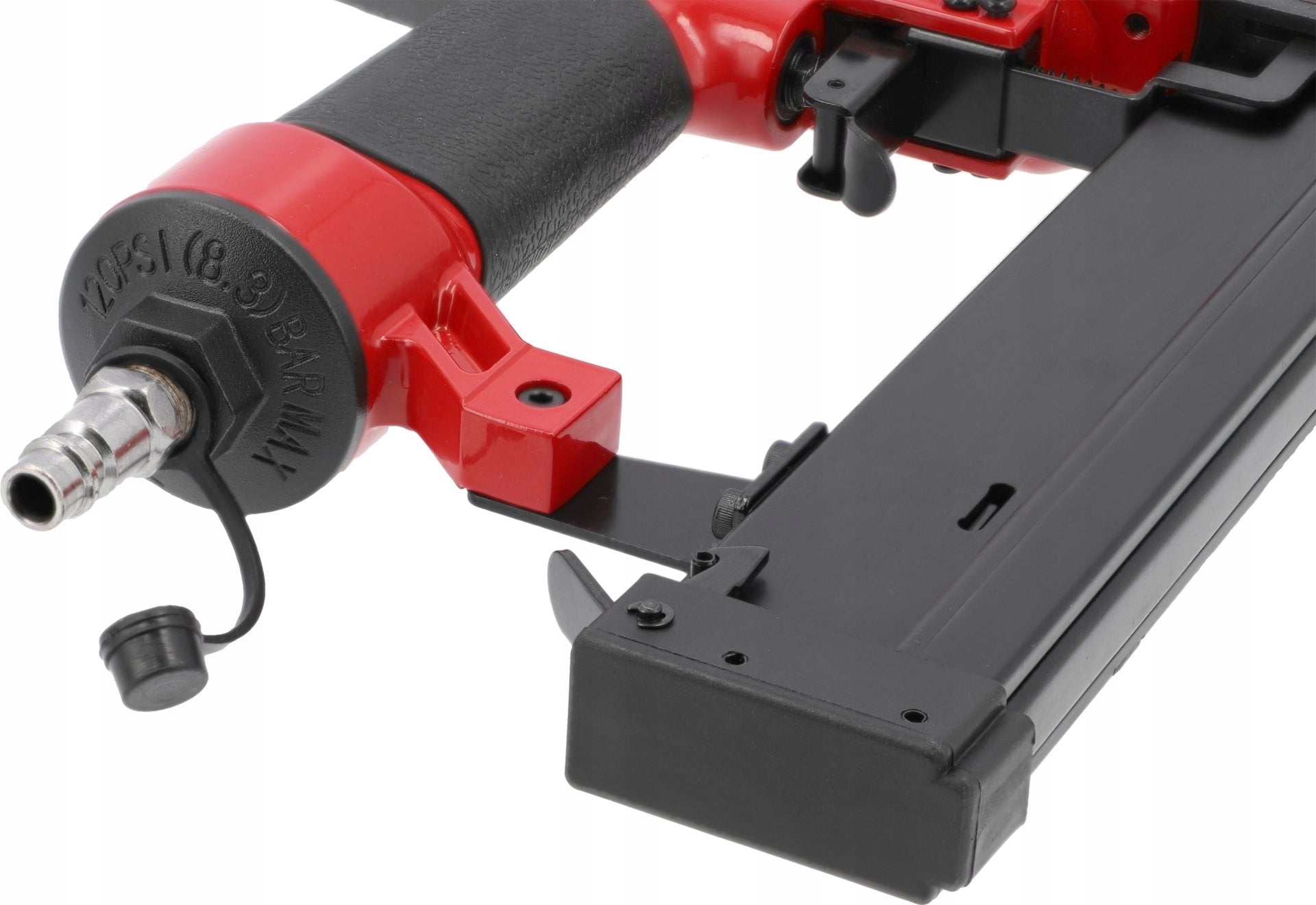

⚙ Pneumatic power supply with a maximum operating pressure of 0,8 MPa ensures constant driving force and high efficiency. The standard air connection and fit to the 3/8" (9,5 mm) cable make the tool easily cooperate with most compressors available on the market.

• length of elements . 16-40 mm
• dimensions of elements . 16-40 x 1 x 5,7 mm (staples), 10-40 x 1 x 2 mm (nails)
• max. Operating pressure: 0,8 MPa
• Air connection diameter: standard
• inside diameter. Air supply hose: 3/8" (9,5 mm)
• Storage capacity for 100 pieces of staples or nails allows longer work without the need for frequent refills
• The sequential operating mode function allows for controlled, rhythmic hammering of elements. effluents
• fuse minimizes the risk of accidental tool start-up
• aluminum body guarantees high resistance to mechanical damage, while maintaining the low weight of the device, especially appreciated during long hours of work
• Non-slip rubber handle provides a secure grip and reduces vibration transmission to the hand
• compact dimensions: 55 x 196 x 245 mm allow for easy maneuverability, even in hard-to-reach areas
• Weight: 1,45 kg
