POE jungtis kamerai maitinti, jungčių rinkinys

Trumpai apie prekę

Prekė: POE jungtis kamerai maitinti, jungčių rinkinys. Kategorija: Dalys ir komponentai.

• Gamintojas: no brand
• Modelis: KOMPLET ZŁĄCZY DO ZASILANIA KAMERY PO SKRĘTCE

POE ADAPTER FOR POWER SUPPLY AFTER TWISTED PAIR POE-UNI

Product Number: 28066

POE ADAPTER FOR POWER SUPPLY AFTER TWISTED PAIR POE-UNI

The passive Power over Ethernet (PoE) adapter allows you to power devices operating in LAN networks using a 4-pair twisted pair cable (e.g. UTP)

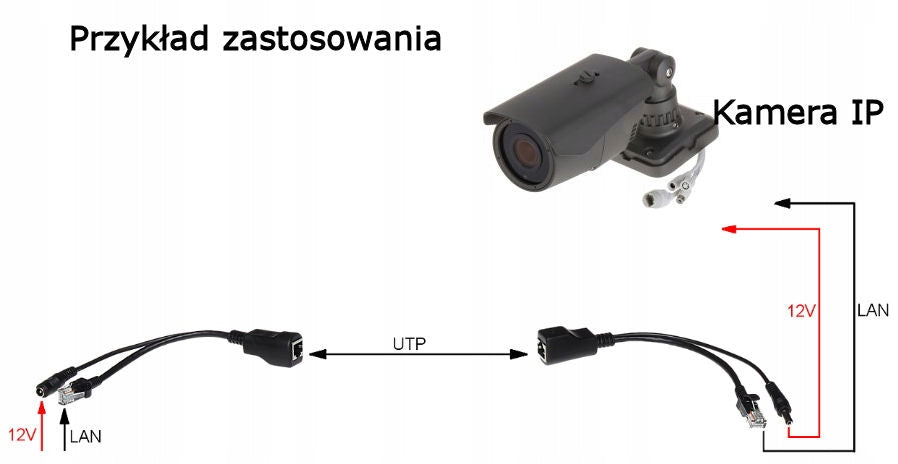

Using this solution, you can power the access point placed in an airtight housing at the antenna (to reduce losses on the antenna cable), using a twisted pair cable from the power supply located inside the building

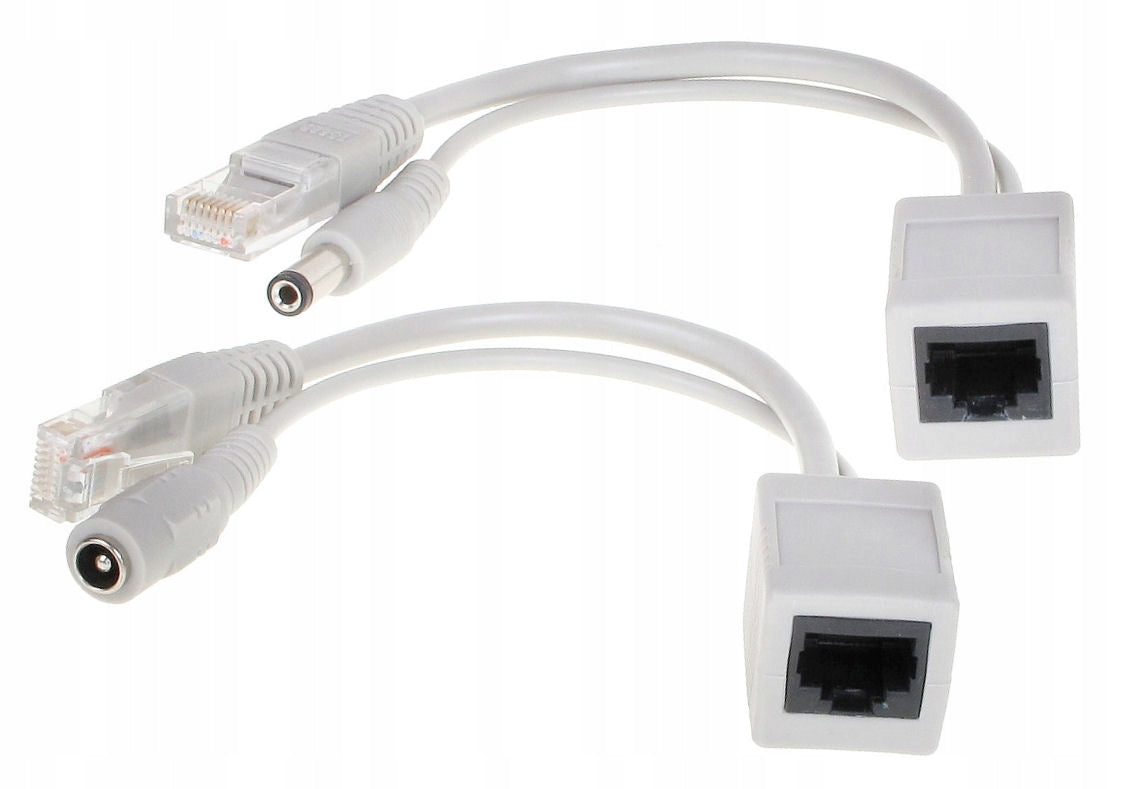

The set includes two passive devices visible in the following photos. They have an integrated RJ-45 connector and 2.1/5.5 mm power supply, which fit most popular brands of WLAN devices on the market

Attention! The product comes in two colors, depending on the delivery (not available).

Number of inputs:

1 pc. LAN port 1 pc. Power supply

Input voltage: max. 48 V

Output voltage: max. 48 V DC

Signal Diodes: No

Security: No

Housing: Plastic

Selected Features: Color: White

Weight: 0.060 kg

Dimensions: 200 x 20 x 19 mm

Operating temperature / relative humidity: 0 ... 55 °C / 10 ... 90 %

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	no brand
Parametry	Manufacturer code	KOMPLET ZŁĄCZY DO ZASILANIA KAMERY PO SKRĘTCE
