Polistirolo pjaustyklė STR CUT SC-132X

Trumpai apie prekę

Prekė: Polistirolo pjaustyklė STR CUT SC-132X. Kategorija: Terminiai peiliai.

• Gamintojas: STR-CUT
• Modelis: SC-132X
• Svoris: 17.5 kg

Machine polish production

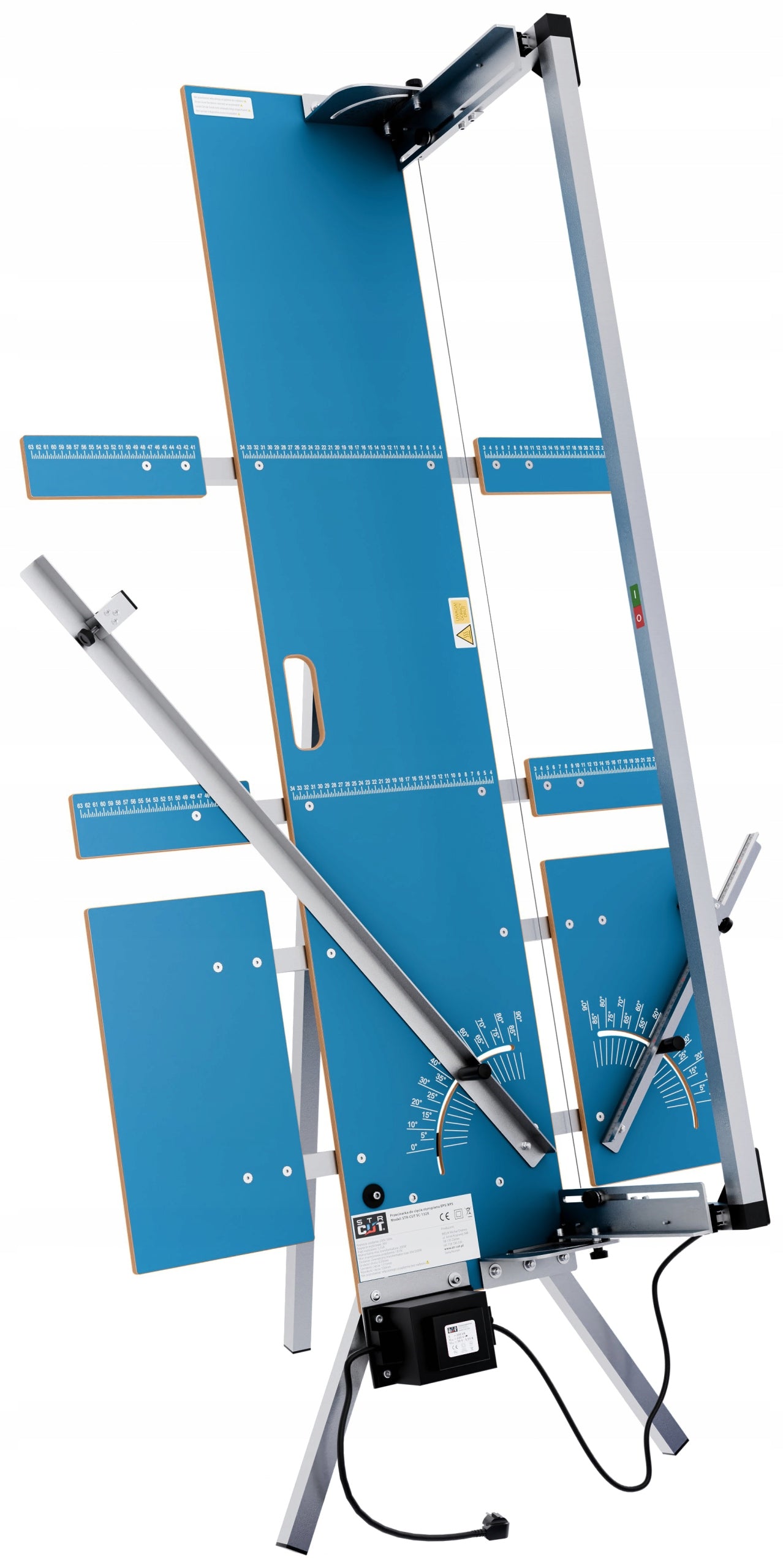

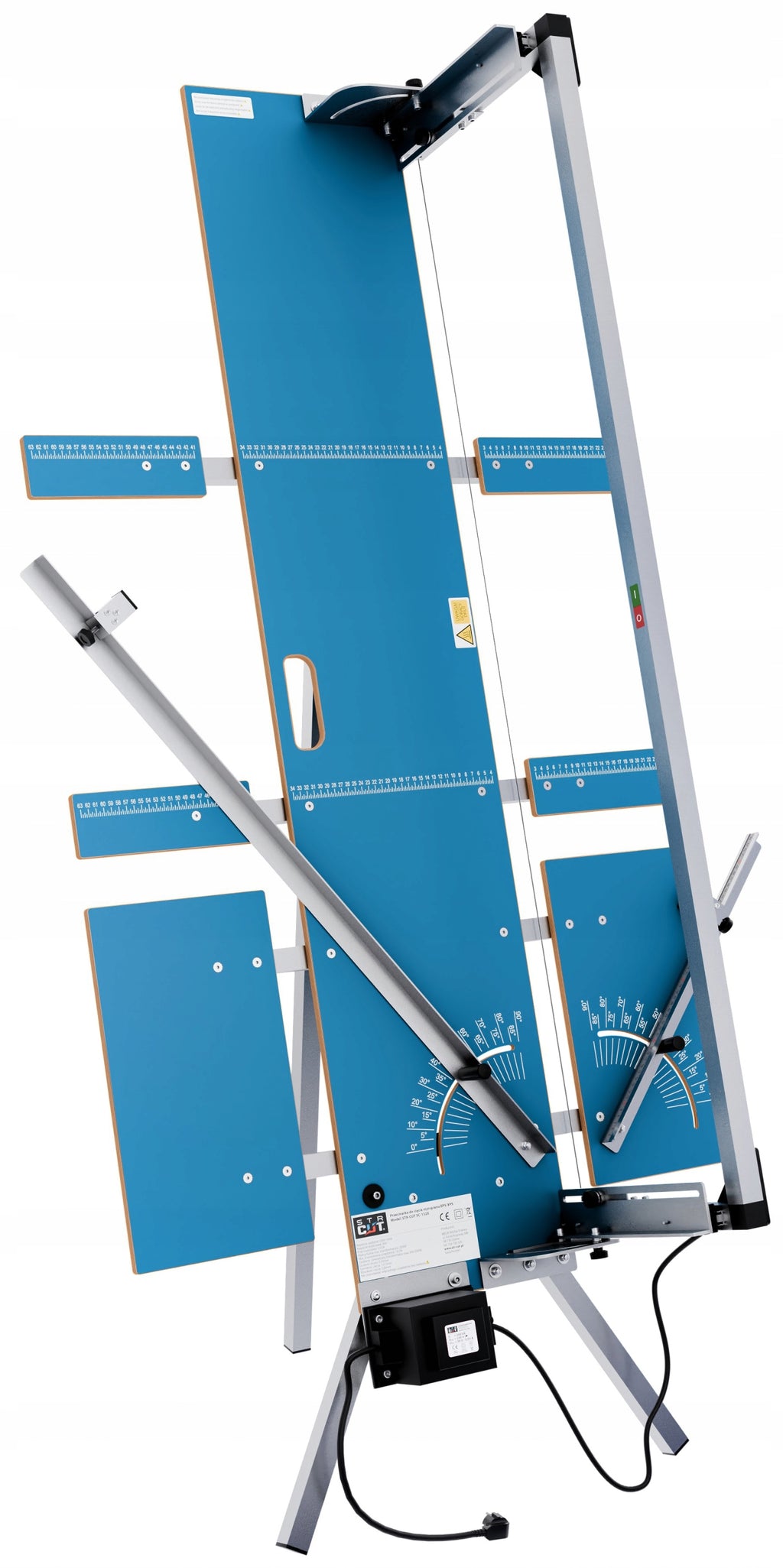

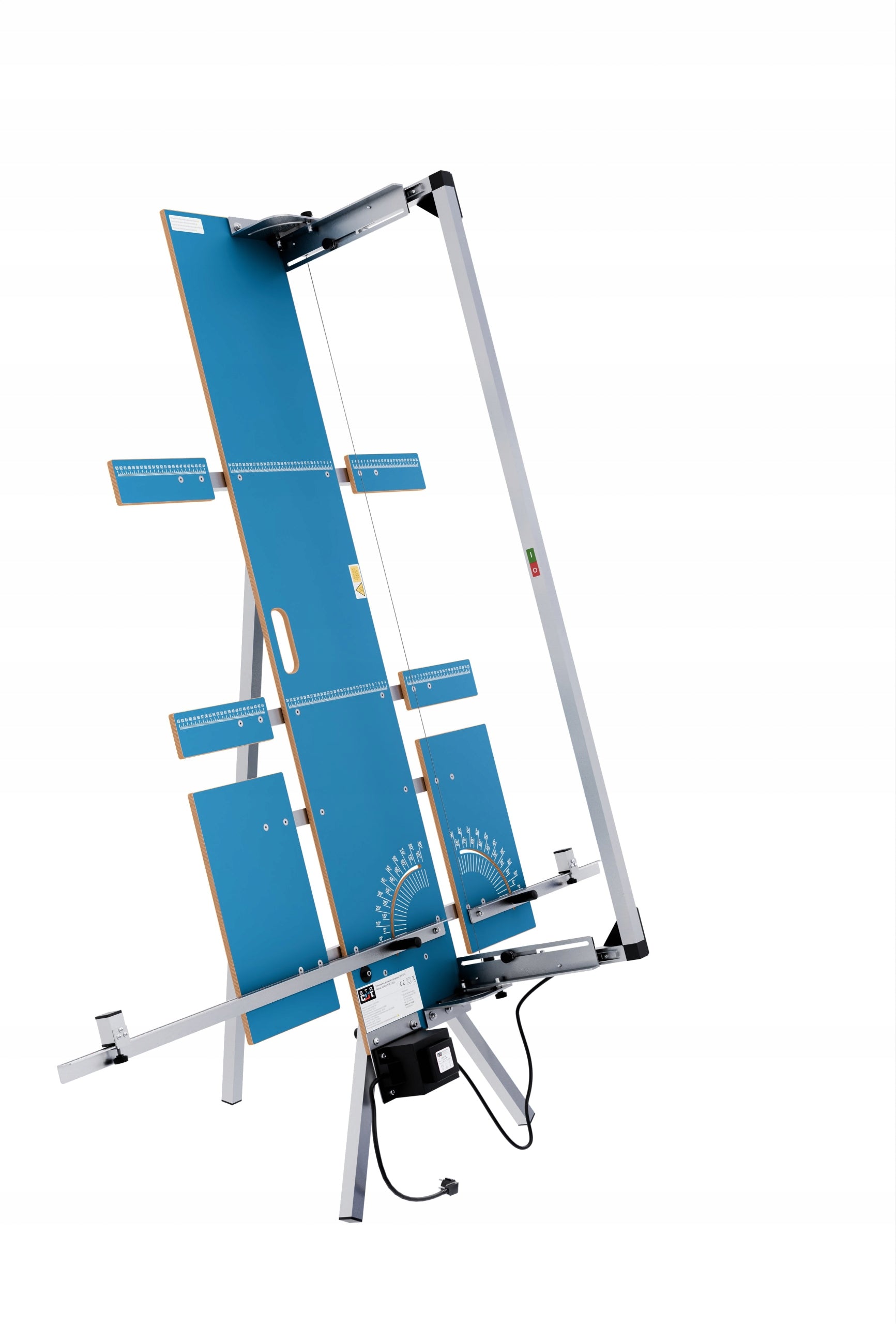

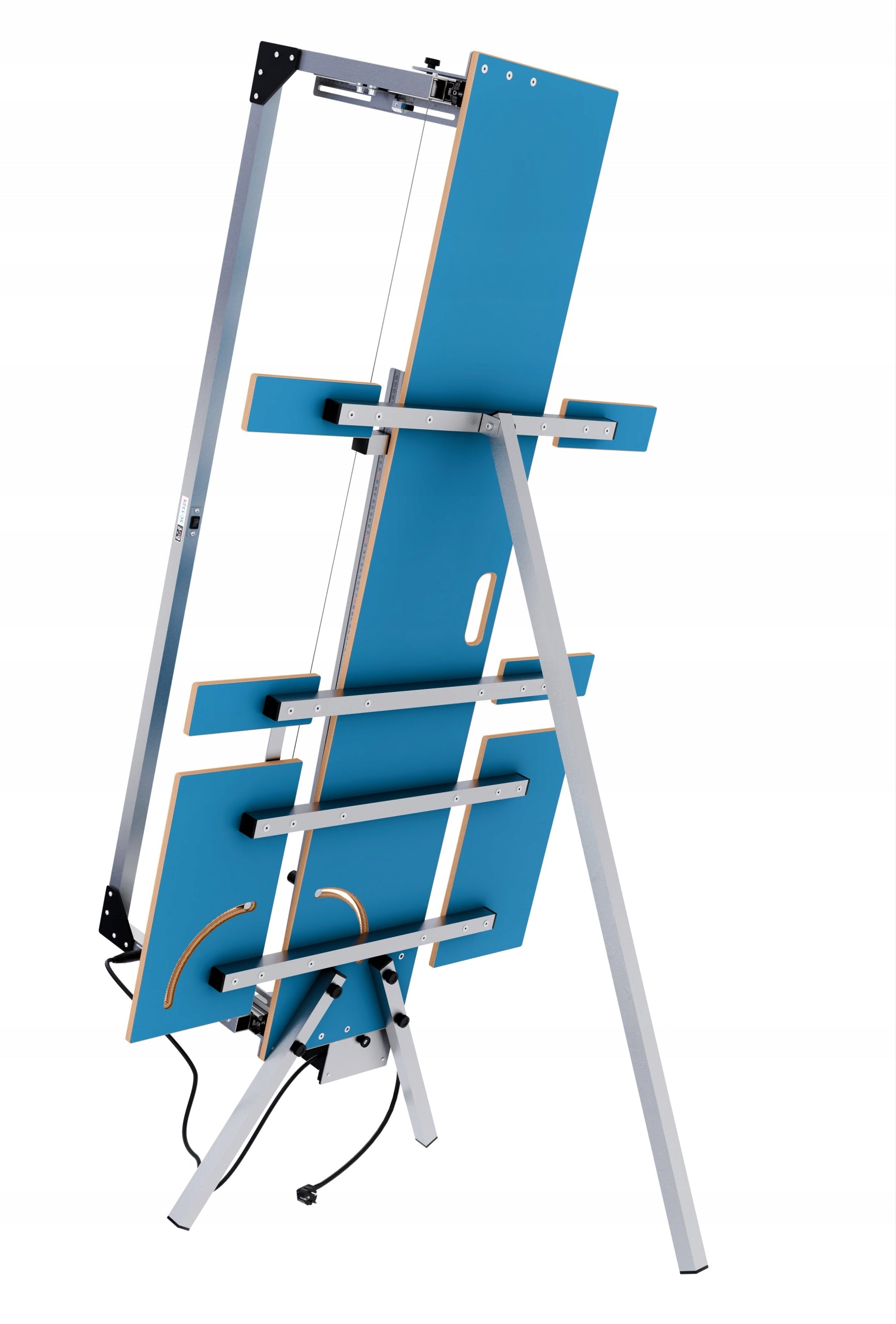

Styrofoam thermal cutting machine SC-132X

The machine is designed for fast cutting of polystyrene in any planes. Cutting is carried out using heated resistance wire, thanks to which it proceeds quickly and above all without waste generated during traditional cutting, such as polystyrene balls or Styrofoam particles.

PREMIUM series cutter:

• Increased cutting speed

• Increased cutting height up to 53,5cm - double guide system

• Construction with increased rigidity and strength

• Instant replacement of resistance wire without the use of additional tools

• Solid, stable stand

• Side supports with additional measuring cups, angle adjustment and stops

• Cutting at an angle without using primersk

• System facilitating cutting material to a given length

• Additional wire lowering height adjustment system

• Table top equipped with a long metric measuring cup with adjustable angle

Waste-free cutting device for polystyrene and styrodur

Technical data:

• Cutting: thickness, length and angle

• Maximum cutting length: 132 cm

• Maximum cutting height (maximum distance from the tabletop level to the wire): 53,5 cm

• Maximum thickness of material that the machine is able to cut at right angles: 33cm

• Power supply: transformer 200W 230/36V 5.6A - higher cutting speed than 260W transformers in Chinese cutters! The transformer is attached to the tabletop and NOT on the cutting frame, which provides much greater cutting comfort and precision. The transformer in our cutters is also less susceptible to overheating and failure compared to Chinese cutters.

• Weight: 17,5 kg

Safety: thermal protection

CE Certificate

User manual

Additional 2 cutting wires FREE!

Device produced in Poland

Basic features of the machine in the SC-132X PREMIUM version:

• Solid, stable stand

• Side supports with applied measuring cups

• Additional side supports, including support with additional measuring cup with stop and angle adjustment.

• Increased cutting speed thanks to a very efficient transformer with a power of 200W and resistance wire specially selected for the transformer parameters - approx. twice the cutting speed compared to PRO cutters and significantly faster cutting compared to similar Chinese 260W cutters. Cutting is fast!

• Very durable, durable and stable construction made of high quality materials, made of thicker profiles and angles relative to PRO cutters

• Author's resistance wire replacement system - simple wire replacement without the use of additional tools and high force.

• Author's system of high-strength double bearing guides, allowing for precise cuts in material with thickness up to 53,5cm

• The ability to cut at large angles without the need for washers under the material being cut.

• Additional adjustment of resistance wire lowering height

• Cutting length limiter

• Equipped with wire with increased durability relative to PRO series cutters

Other features of the machine:

• Table top made of very durable, rigid and at the same time light waterproof plywood not susceptible to damage.

• Angle cutting - convenient and precise angle adjustment with adjustment knobs.

• Comfortable and stable height lock

• Possibility of shading polystyrene boards, i.e. from a plate with a thickness of 12 cm we can make two 6 cm plates.

• Ability to make outlets

• High range of possible cutting planes compared to competing cutters

• Constant availability of replacement accessories

• Simple, quick replacement and installation of accessories and spare parts

Convenience and comfort thanks to a sturdy stand

The rigid design of the stand ensures high stability of the cutter when making cuts.

If necessary, the stand can be easily disassembled.

Convenient and quick replacement of resistance wire - wire replacement is done by unscrewing / tightening the adjustment knob, without the use of additional tools and high force.

This is our proprietary solution submitted as PATENT PENDING

High-strength double bearing guide system, allowing precise cuts to be made in material with thickness up to 53,5cm

This is our proprietary solution submitted as PATENT PENDING

Additional height adjustment of resistance wire lowering

Additional adjustment allows you to lower the level of lowering the wire if necessary, thanks to which it is possible to cut at large angles without the need for washers under the cut material.

Cutting length limiter

Limiter adjustable with a knob. The solution facilitates cutting the material to a fixed length.

The table top is equipped with additional metric measures used for accurate cutting of the material.

Thanks to the use of a highly efficient transformer 200W 230/36V 5.6A and resistance wire with appropriate parameters, the machine is characterized by very high cutting speed.

The long transformer wire increases the practicality of the machine.

The possibility of locking the wire at any height, which allows shading the plate (cutting parallel to the surface of the countertop), i.e. e.g. from a 16 cm thick board we make two 8 cm each.

Adjustment is carried out with the help of convenient knobs.

The table top is made of high quality hard waterproof plywood, which against the background of usually used furniture boards is distinguished by higher durability, hardness, stiffness and lower weight – the whole machine weighs 17,5 kg.

Additional side supports improve work and facilitate cutting the material to a given length.

Milled handle makes it easy to move the machine.

The applied construction solutions, the use of high-quality materials and high stability of the structure ensure high cutting precision and comfort of work.

The power cable of the device has been fixed so that it does not disturb the user during operation.

The power supply is mounted to a rigid base attached to the countertop.

The guides have bearings to increase the smoothness of their operation.

The cutting angle can be easily set with the help of knobs.

The maximum cutting height (distance from the tabletop to the wire) is 53,5cm while the maximum thickness of the material that can be cut is 33cm.

Three main benefits of thermal cutting:

- no waste material in the form of polystyrene balls or other small particles of polystyrene or styrodur

- less use of polystyrene or styrodur

- Increased convenience and precision cutting

Each machine is carefully packed in a specially fitted rigid carton, which protects it during transport.
