Prekė: Polių pamatų inkaras StreetPole MAX, 18x18 cm, 40 cm aukščio, B-50. Kategorija: Sodo šviestuvų stulpai.
- Gamintojas: EnergoMania
- Modelis: PoleHolder 18x18x40
- Spalva: silver

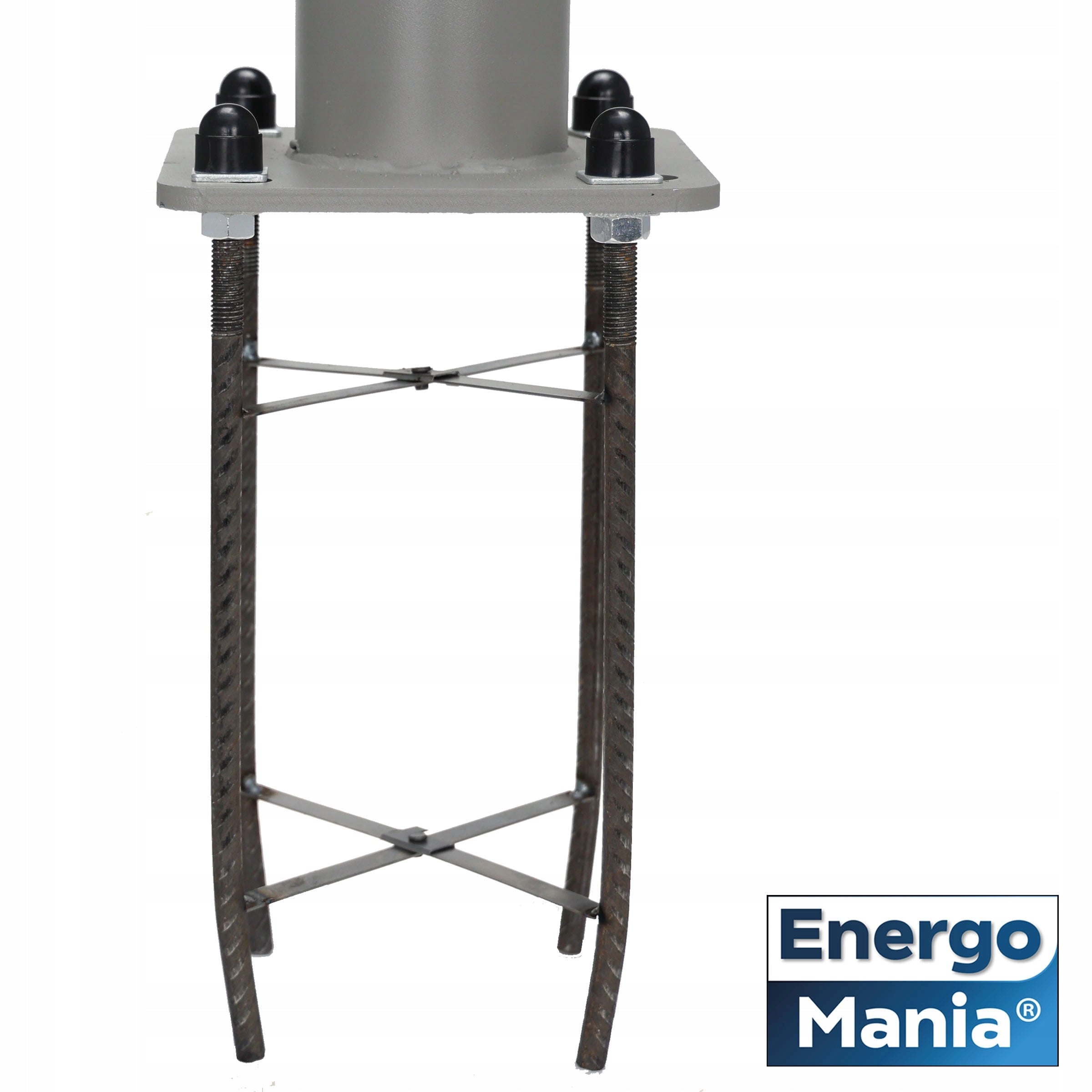

The series of ready-made PoleHolder mounting baskets by EnergoMania® significantly facilitates and accelerates the installation of StreetPole MAX segmented lighting poles. Anchors thanks to the folding, scissor design take up little space during transport, when unfolded to the mounting position they are blocked by the bend of the wings of the central plates.
Solid foundation anchor

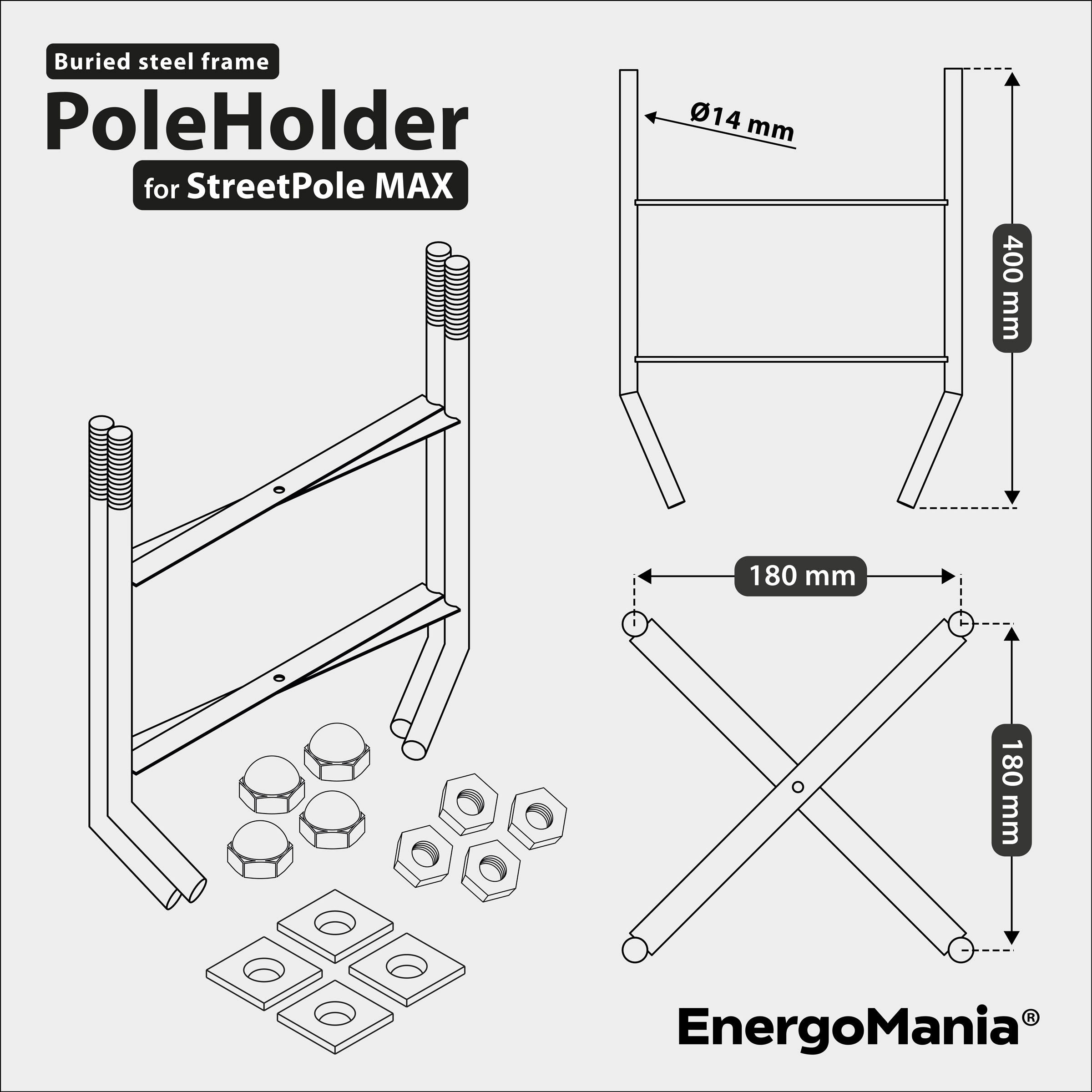

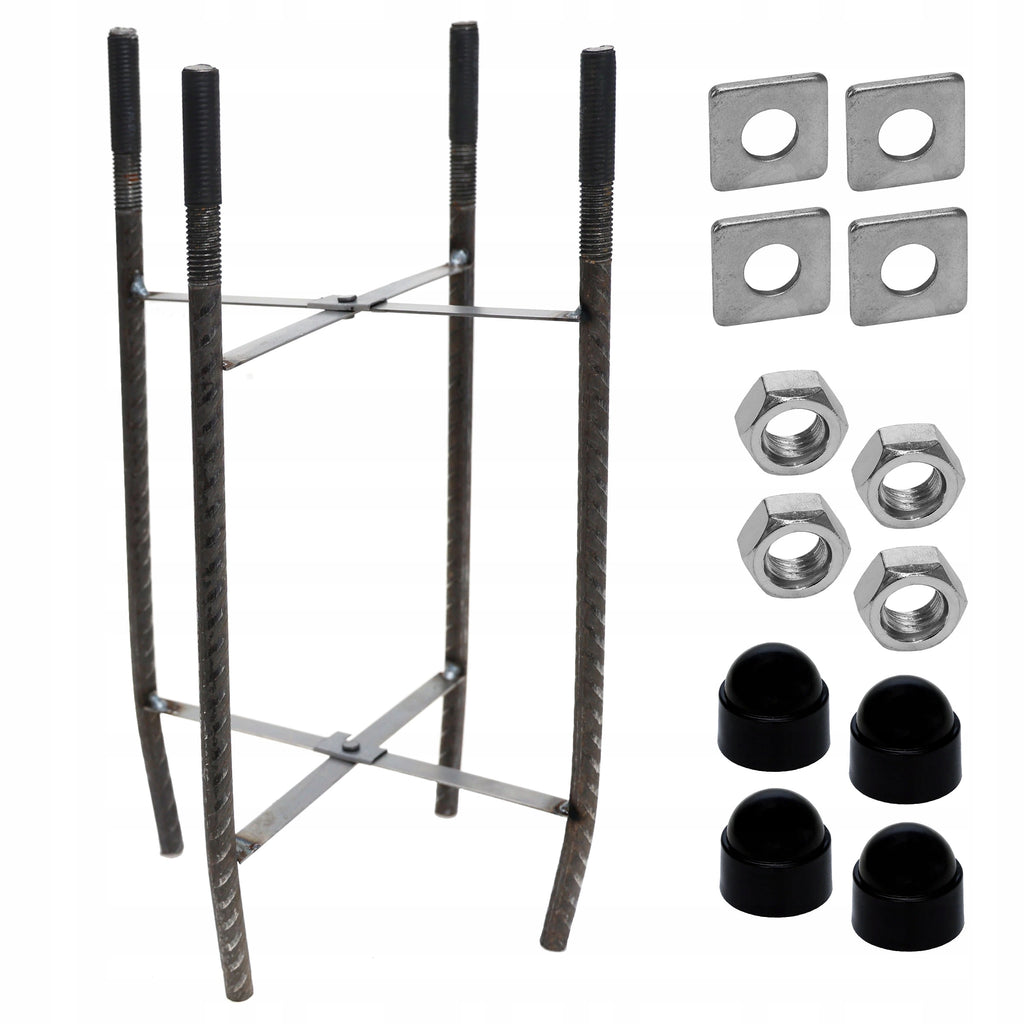

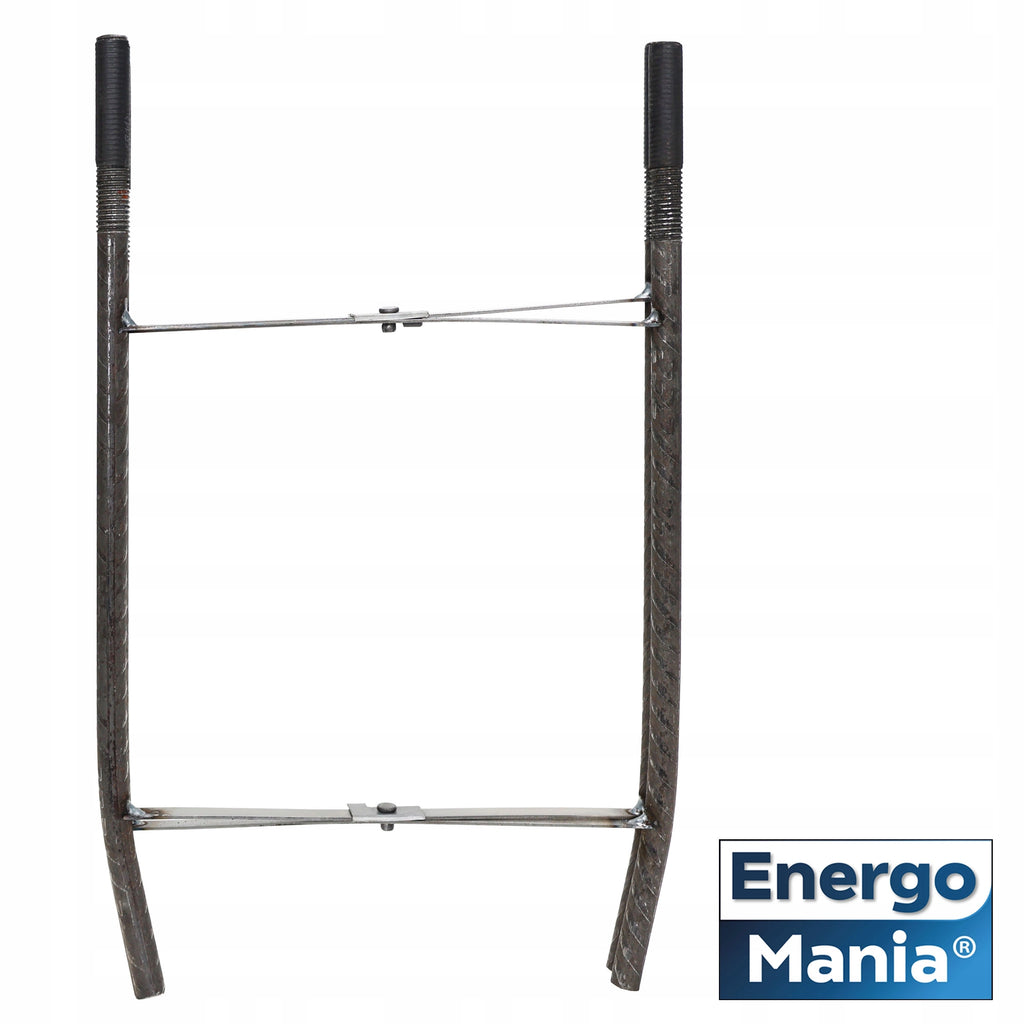

The finished PoleHolder 18x18 mount is made of four solid rebars diameter Ø14 mm / length 400 mm, connected by transverse sheets. The spacing of the screws after unfolding the anchor is 180 x 180 mm. The bottom ends of the basket for better holding in concrete are bent inwards. Complete with the anchor is:
✅ 4x nut M14.
✅ 4x rectangular washer M14.
✅ 4x cap masking nuts.

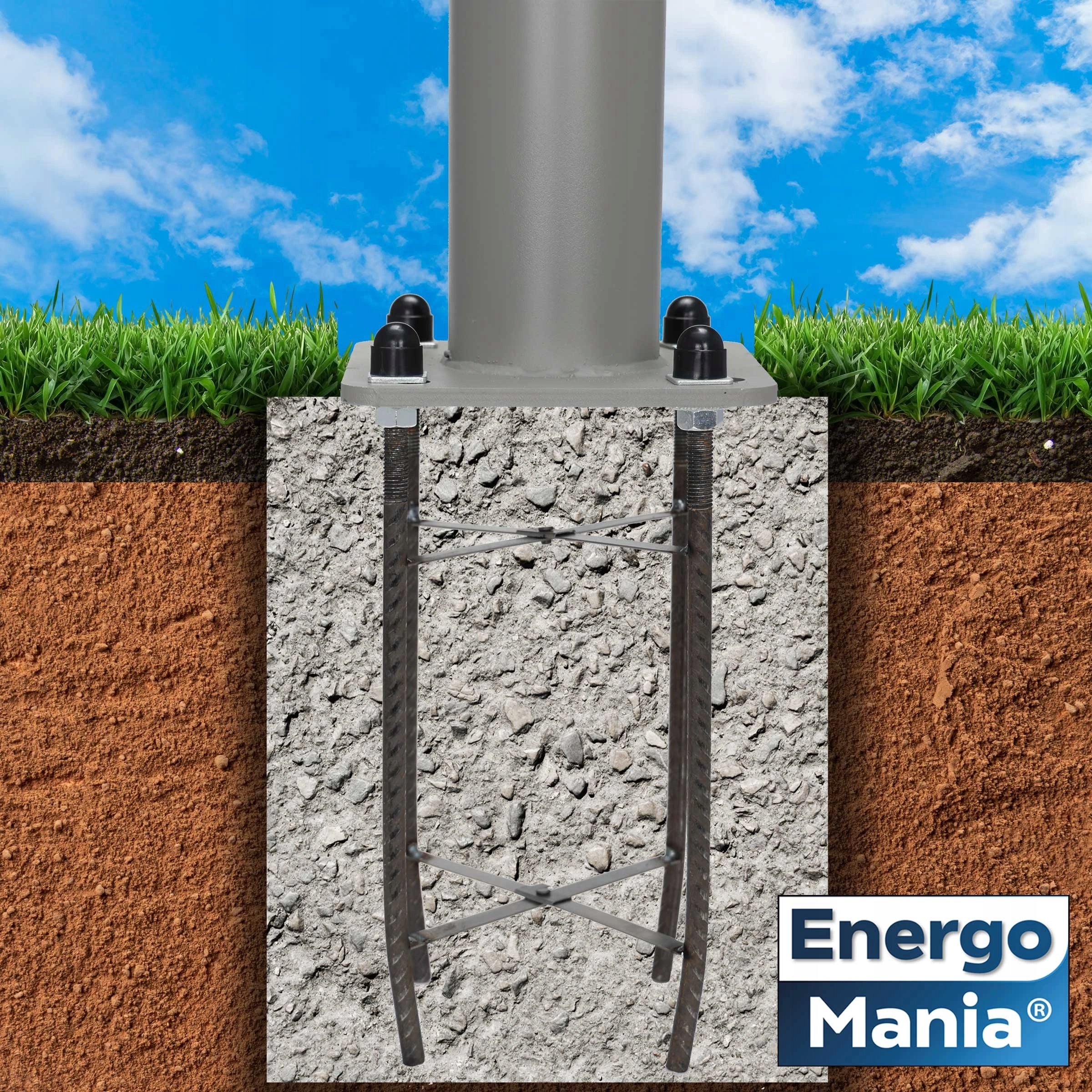

Dig, settle and pour concrete...
Preparing the foundation for the installation of the StreetPole pole will take you less than an hour. Simple and quick installation in four steps:
1 Dig a hole in the ground for formwork.
2 Embed and level the rebar basket.
3 Pour concrete on the prepared structure.
4 Mount the lighting pole.
- Model Name: PoleHolder 18x18x40
- Total height: 40 cm
- Mounting hole spacing: 180 x 180 x 400 mm / M14
- Material: steel A-III
- Dimensions of unit packaging: 40 x 28 x 3 cm
- Dimensions of the multipack: 40 x 33 x 28 cm
- Volume of multipack: 0,037 m³
- Quantity in multipack: 10 pcs.
- Weight: 2,5 kg
- Quantity on pallet: 200 pcs.
- SKU CODE: 48152
- EAN code: 5906647991518
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | EnergoMania |
| Parametry | Number of light points | 1 |
| Parametry | Protection class | I |
| Parametry | IP protection class | other |
| Parametry | Thread type | other |
| Parametry | Diameter/width | 18 cm |
| Parametry | Product height | 40 cm |
| Parametry | Color | silver |
| Parametry | Fixture shape | Square |
| Parametry | Mounting | screwed |
| Parametry | Dominant material | stainless steel |
| Parametry | Product weight with unit packaging | 2 kg |
| Parametry | Manufacturer code | PoleHolder 18x18x40 |
| Parametry | EAN (GTIN) | 5906647991518 |
| Parametry | Packaging status | original |
| Parametry | Collection | StreetPole |
| Parametry | Certificates of conformity | CE |
| Parametry | Light source | without light source |
| Parametry | Power supply | mains,solar |
