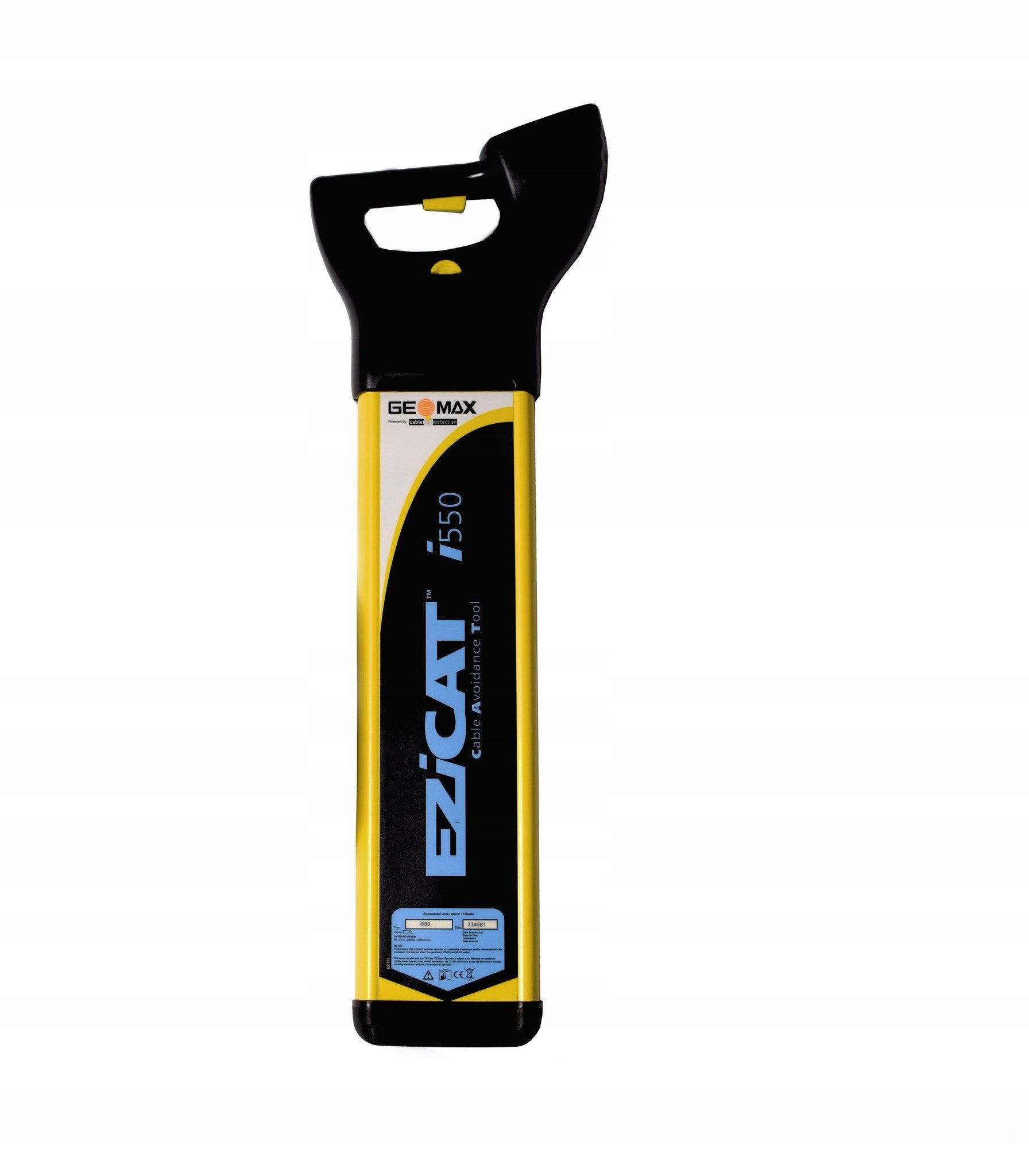

Požeminis kabelių detektorius Geomax EziCat i550

Trumpai apie prekę

Prekė: Požeminis kabelių detektorius Geomax EziCat i550. Kategorija: Detektoriai.

• Gamintojas: GEOMAX
• Modelis: 818080

EZiSYSTEM - Enhance your security with the GEOMAX EZiCAT i550

Robust locator designed for ease of use and maximum efficiency.

Earthworks require certainty that there are no surprises beneath the surface. EZiCAT i550 is a professional underground installation detector that automatically sets the optimal parameters – just press the trigger and start the location.

No need to worry about adjusting the sensitivity - the device will do it for you, minimizing the risk of missing cables or pipes.

Most important features:

✅ Automatic calibration – ensuring accurate measurement without unnecessary settings

✅ Operating Modes:

• Power (50 Hz) — detection of live cables
• Radio (15 to 60 kHz) — detection of radio signals
• Auto - combined mode Power + Radio
• 8 kHz and 33 kHz — active mode operation with EZiTEX t100

  ✅ Depth indication (i550) — in generator mode you will know the depth of installation

  ✅ Gambling Zone — alarm warning about shallow wires

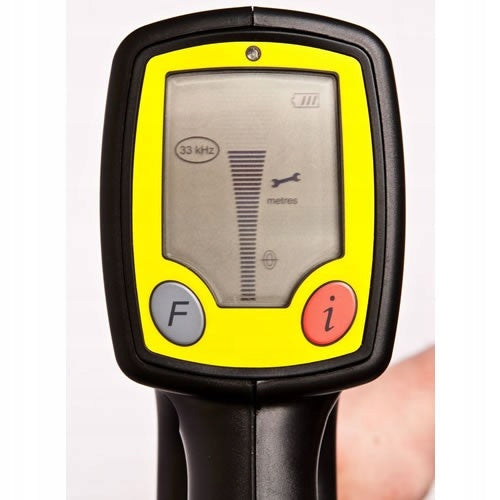

  ✅ Signal strength indication — easier, precise location

  ✅ Built-in auto-control — always ready to work

Working with EZiTEX t100 generator

Connect EZiCAT i550 to EZiTEX t100 signal generator to:

More accurately track pipes and tubes (even plastic — using a probe)

Determine the depth of underground installations

Locate elements in difficult conditions where passive modes are insufficient

Examples of application:

✔ Construction of power connections

✔ Detection of water supply and sewer pipes (with probe and generator)

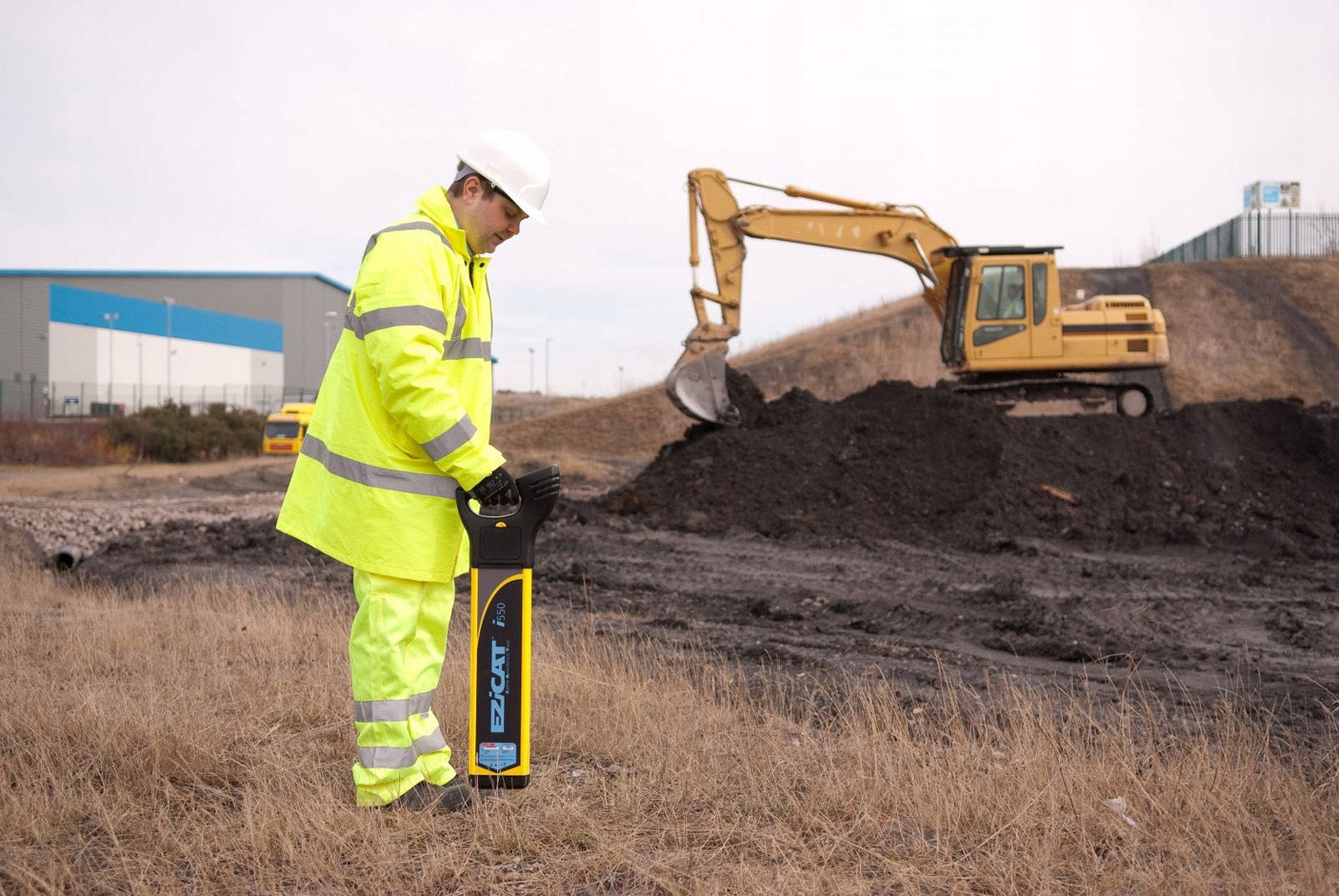

✔ Renovation and road works — site inspection before excavations

✔ Telecommunications and fibre optic works

Watch the instructional video:

Copy the link and see EZiCAT i550 in action!

https://www.youtube.com/watch?si=YzpfVcEQT_6G55M0&v=4JBznTXBHcM&feature=youtu.be

Bet on EZiSYSTEM – work safely and without surprises!

The set includes:

• EZiCAT i550 detector
• Set of alkaline batteries
• Operating instructions
• Certificate of calibration

(EziTEX t100 generator and location probe available separately – check out our other offers! )

Technical data of i550:

• Operating mode Power 50 Hz
• Operating mode Radio 15 kHz to 60 kHz;
• Generator 8 kHz and 33 kHz;
• Auto mode = Power + Radio
• Depth Power up to 3m; Radio up to 2m;
• Transmission depending on generator type or probe type
• Working range 0.3 to 3m
• Degree of protection IP54
• Power supply 6 x AA alkaline (IEC LR6) included
• Operating time 40h continuous operation (at temp. 20°C)
• Weight and dimensions: 2.7kg - 760mm (H) x 85mm (D) x 250mm (W) servo

In Geomax EZiCAT 550 has 4 modes, it is different ways of “tracking” wires and installations underground – each works on a different principle and is useful in different conditions on the construction site.

⚡ POWER (50 Hz)

It's a live power cable detection mode.

The device catches the natural electromagnetic field produced by the 50 Hz mains current.

When to use:

• location of power cables
• quick check before digging
• when you don't have a signal transmitter

Important: it only works on the wires through which the current flows.

📡 33 kHz

This is an active location mode — used together with a signal generator (transmitter).

33 kHz is a high frequency that easily “enters” into installations.

When to use:

• Searching for unknown installation routes
• shorter sections
• difficult ground conditions
• non-metallic pipes with probe

Plus: induces easily

Con: signal fades faster and can "escape" to other elements

📡 8 kHz

Also active mode with generator, but with lower frequency. Best for isolating one wire.

When to use:

• long sections of metal cables and pipes
• Precise tracking of a specific installation - for accurate routing
• places with a lot of infrastructure underground
• with approaches to the building

Plus:

• stable, long range
• less “spill” on neighboring media

Con: harder to excite the signal than at 33 kHz

📻 RADIO

Passive mode – detects radio signals present in the environment that “transfer” to metal installations underground.

When to use:

• general land scanning
• Searching for installation without connecting the transmitter
• Preliminary recognition before exact location

Important: less precise than active modes.

How to use it in practice (on construction site)

The simplest work logic:

1 RADIO → fast terrain recognition

2 POWER → checking power cables

3 33 kHz → finding the installation

4 8 kHz → accurate route tracking
