Aprašymas
Trumpai apie prekę

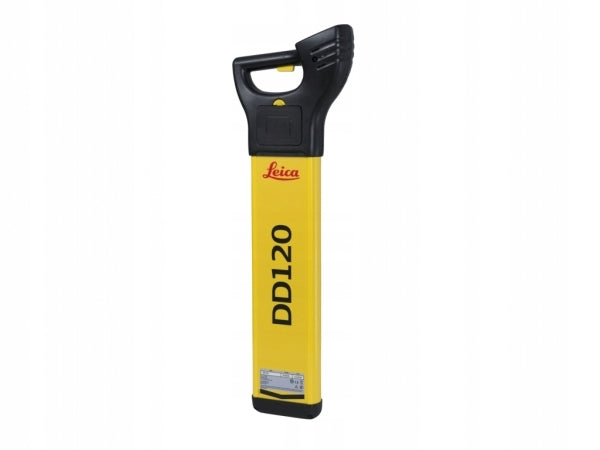

Prekė: Požeminių komunikacijų ieškiklis Leica DD120. Kategorija: Detektoriai.
- Gamintojas: Leica
- Modelis: DD120
The Leica DD120 underground installation detector is a state-of-the-art measuring device that uses digital signal processing (DSP) technology to ensure fast and accurate localization of cables and pipes. Thanks to intelligent software and operating modes adapted to different terrain conditions, the DD120 detector increases the safety of earthworks and reduces the time of tasks.
Advantages
- Automatic detection of underground infrastructure
- High precision location thanks to advanced DSP
- Intuitive operation – device ready to work without configuration
- Compatible with DA220 generator
- Meets IP54 standard – dust and water resistance
- Possibility to estimate depth with tolerance ±10%
- 1 year manufacturer's warranty with the possibility of extension after registration
Application
- Location of live cables
- Detection of metal pipes
- Detection of PVC pipes included with the probe
- Earthworks in the construction, energy and water supply industries
Resistance to weather conditions
Leica DD120 complies with IP54 resistance class, which means effective protection against dust and water splashes, enabling operation in difficult terrain conditions.
The most important features
- Good-to-Go™ technology – device health check
- Operating Modes: Power, Radio, Generator, Automatic
- Detection up to 3 m depth (depending on mode)
- Intuitive user interface
- Lightweight and ergonomic design – only 2,7 kg with batteries
Technical data
- Operating frequencies:
– Power mode: 50 Hz or 60 Hz
– Radio mode: 15 kHz – 60 kHz
– Generator mode: 8 kHz and 33 kHz
– Automatic mode = Power + Radio
- Depth of detection:
– Power: up to 3 m
– Radio: up to 2 m
– Generator: up to 3 m
- Depth estimation tolerance: ±10%
- Protection Class: IP54
- Power supply: 6 AA batteries (LR6 IEC – included)
- Working time: up to 40 hours at 20°C
- Weight: 2,7 kg with batteries
Scope of delivery
- Leica DD120 detector
- AA batteries
- User Manual (PL)
- Manufacturer’s warranty – 1 year
- Technical support
- Optional: DA220 generator
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Leica |
| Parametry | Power supply | batteries |
| Parametry | Manufacturer code | DD120 |
| Parametry | EAN (GTIN) | 7640110698594 |
| Parametry | Product weight with unit packaging | 7 kg |
| Parametry | Batteries included | yes |
| Parametry | Certificates of conformity | CE |
| Parametry | Customs tariff code | 85437090 |
| Parametry | Kind | voltage detector,underground installation detector,wire detector |
