Aprašymas
Trumpai apie prekę
Prekė: Protingas žaliuzių valdiklis RTX, ZigBee, suderinamas su TUYA. Kategorija: Automatizavimo moduliai.
- Gamintojas: RTX
- Modelis: ZCM1MR
Module designed for intelligent control of roller shutters.
- Can be built into a traditional switch or attached to a DIN rail in a power switchboard
- Enables automatic control of roller shutters
- Has a socket for connecting a 433MHz radio module and remote control with an optional button
- Work according to the weekly schedule
- Script action depending on the operation of other elements of the system or conditions, e.g. lighting sensor, time of day, etc.
- remote control of smartphone or local control of traditional double switch (mono- or bi-stable)
- Very small housing- can be installed inside the can under the switch
- Works with the control panel - ZigBee gateway as part of the Tuya Smart Life application.
- Suitable for use with any roller shutter motor with power supply 230V
To operate ZigBee devices, it is necessary to have a ZigBee gateway that is a "node" between the system elements and the Tuya Smart cloud server.
We offer the gate in a separate offer no.:
- 9054486387 (WiFi version)
- 9291747069 (LAN version)
The module has a socket for connecting the RF433MHz radio communication module
Thanks to this solution, it is possible to use the RF button installed anywhere and lowering wireless control up to 20 meters.
This gives additional capabilities such as e.g. control of the electro-hook to open the gate from a place where we do not have a wired installation.
The RF433 button with receiver module is offered separately in the offer no.:12365292727
- Open/Close/Stop with the app from any location in the world
- Percentage control closing/opening
- Open/Close/Stop manually switch
- Terminator - planned weekly automation cycle open/close
- Scenario - setting the control dependence on the time of day
- Voice support when connected to Google Assistant or Alexa
The RTX roller shutter controller has a built-in Bluetooth Low Energy (BLE) communication module - the device is automatically identified in the TUYA environment
- Click "+"to add a device - thanks to Bluetooth communication directly with your phone, the application will instantly find a new device
- Click "Add" -after confirmation, the device will be paired.
You can expand the function of a traditional roller shutter switch into an element that is part of a smart home, the operation of which can be controlled remotely or automatically as part of a pre-programmed scenario.
Module cooperates with
- with instantaneous buttons (monostable)
- with fixed switches (bi-stable) - in the case of this type of switches, the neutral position should be restored after manual use
The set includes a handle to expand the installation possibilities
- installation to the can under the manual switch
- fixing to the wall
- installation on DIN rail
After linking the Tuya Smart Life app to your Google Home account, you can control your device using voice commands
Supported voice functions:
- Open roller shutter
- Close roller shutter
- Stop roller shutter
Due to its advantages ZigBee gains new users at a very fast pace
There are more and more compatible elements of the system, whose common feature is reliability and small dimensions, which is possible thanks to negligible power consumption, and thus - no need for large battery sets.
ZigBee devices should be used where certainty of operation of automated processes is essential.
Since automation management is carried out by the control panel (gateway), the programmed rules will be implemented regardless of access to the WiFi network orin the absence of Internet connectivity.
Speed of operation, stable and safe communication and low power consumption are the main advantages of ZigBee
ZigBee is an open standard of radio communication supported by leading manufacturers of consumer electronics associated within the Zigbee Alliance.
The current version – ZigBee 3.0 – was developed for Internet of Things systems and smart home systems.
Process automation between system elements is carried out in the control panel, not in the cloud, thanks to which individual actions are performed much faster.
The lattice topology (mesh) provides stable communication between the gate and individual elements of the system, because each receiver is a transmitter. Damage to a single device does not stop the entire network.
Low power consumption needed for the system components to operate, so ZigBee devices (nodes) can usually run for many years on a single battery.
Tuya Smart Life joined ZigBee Alliance thanks to which huge possibilities of expanding the system with new elements were opened.
- integration of more than 11000 different devices
- 30 categories (control, air conditioning, monitoring, etc.)
- 10000 manufacturers of smart devices
- develops new features and supported devices every day
- available for free for Android and iOS

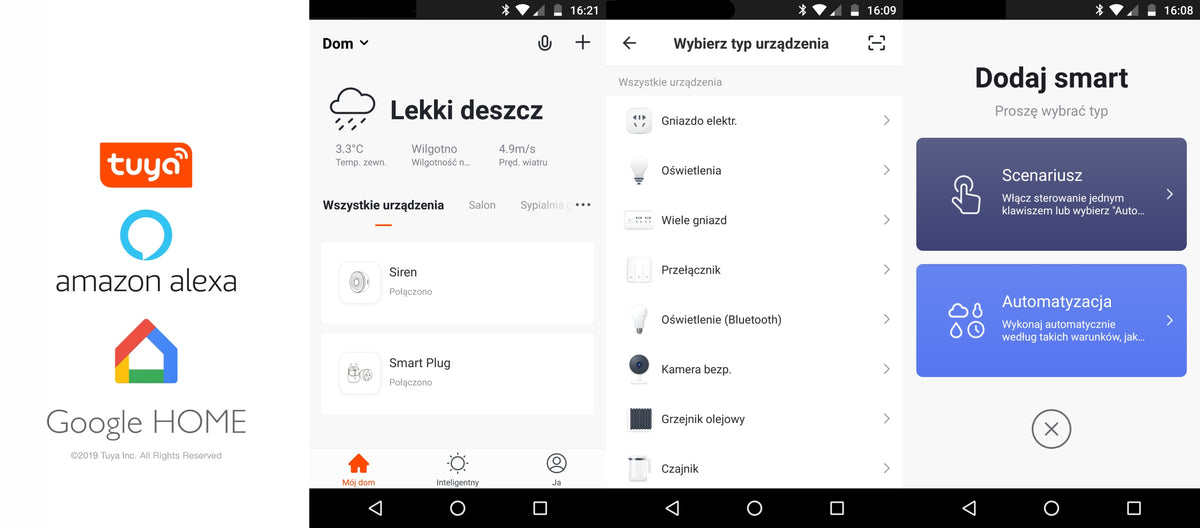

Dedicated Tuya Smart Life app - easy installation and hassle-free operation.
Wherever you are, you can control the safety of your property!
Technical specification:
- Control range: unlimited (works with mobile internet)
- Communication protocol: Zigbee 3.0
- Range: up to 30m (depending on ambient conditions)
- Working temperature: 0-50st.C
- Network voltage: 85-265V AC 50-60Hz
- Maximum power: 720Watt (3A)
- Dimensions: 46x46x18mm
- Weight: 72g
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Kind | control panel |
| Parametry | Series | ZigBee |
| Parametry | Power supply | mains |
| Parametry | Brand | RTX |
| Parametry | Manufacturer code | ZCM1MR |
| Parametry | EAN (GTIN) | 5903794124356 |
| Parametry | Batteries included | no |
