Pulso oksimetras suaugusiems ir vaikams, ligoninėms

Trumpai apie prekę

Prekė: Pulso oksimetras suaugusiems ir vaikams, ligoninėms. Kategorija: Pulso ir deguonies matuokliai.

• Gamintojas: Creative
• Modelis: PC-60NW Bluetooth
• Spalva: red

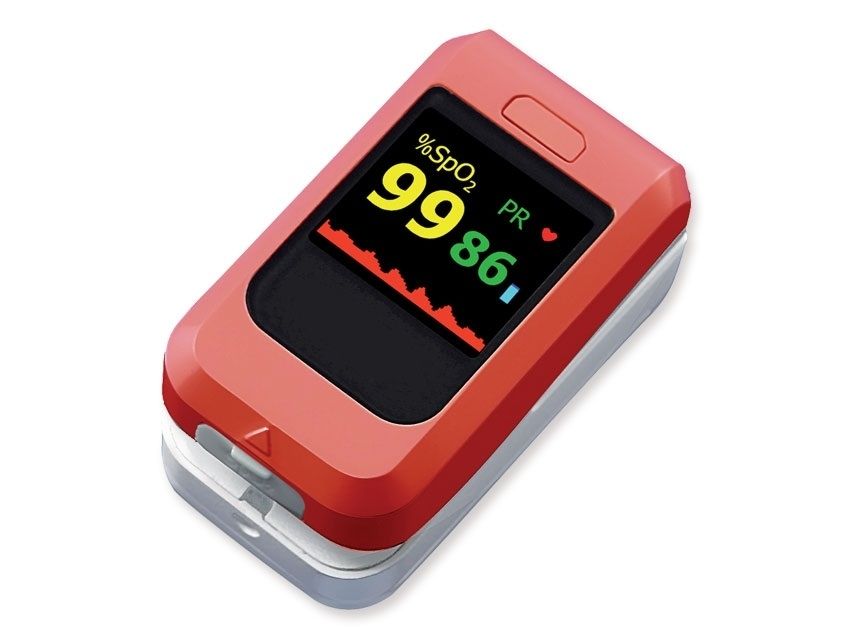

Creative PC-60NW Bluetooth pulse oximeter

Creative PC-60NW pulse oximeter with Bluetooth and the possibility of connecting sensorów.Do use in the hospital, clinic, as well as at home.

• For monitoring pulse, heart saturation, and perfusion.
• Motion stabilization for improved accuracy,

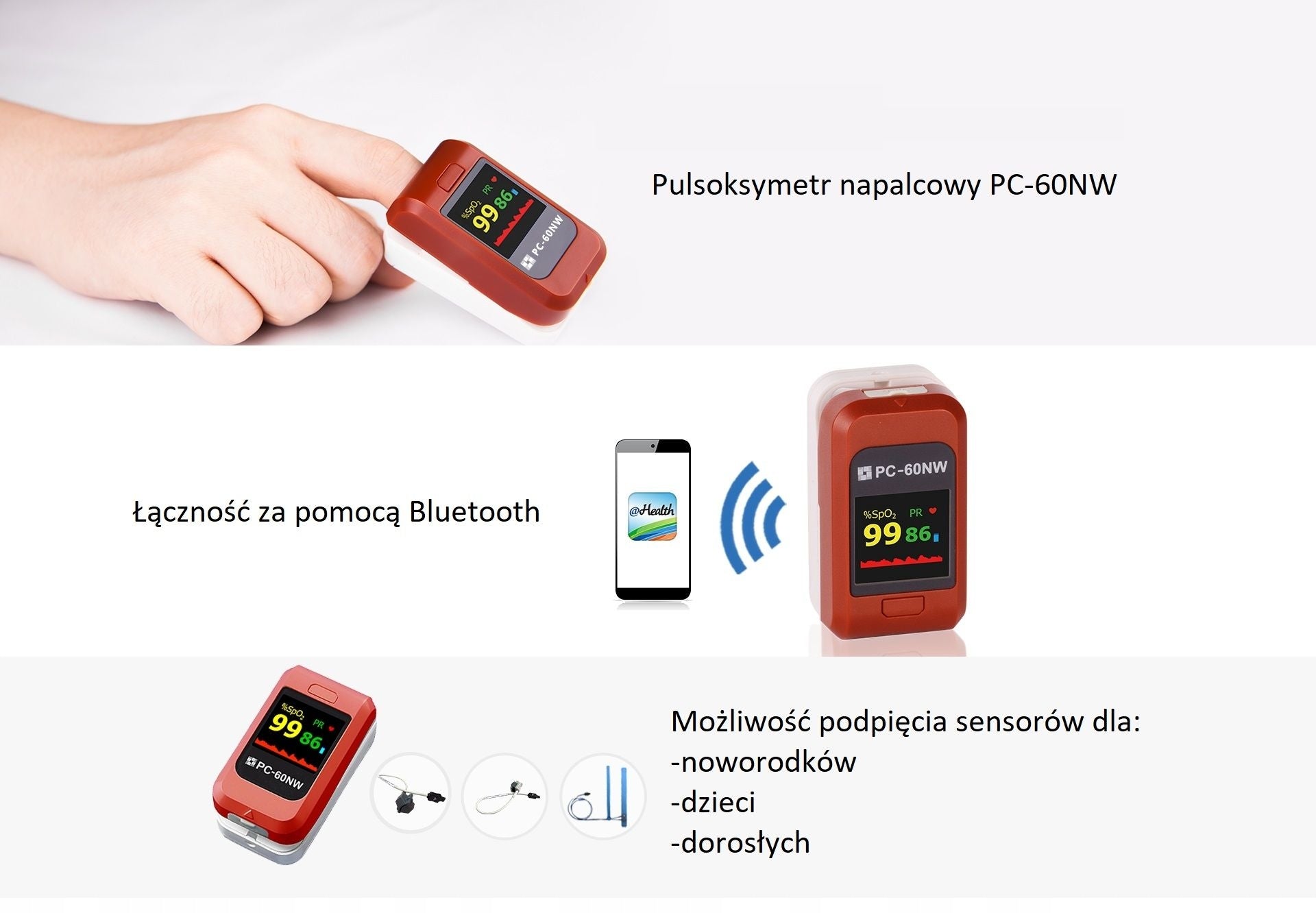

• Equipped with Bluetooth receiver
• Can connect sensors for newborns, children, or adults
• Wireless technology, efficient data transfer to PC and Android.
• Measures oxygen saturation and pulse rate in adults and children aged 5 years and older.
• Large 4-color display, showing in 4 directions
• Plethysmographic waveform
• Automatic on/off
• 2 AAA alkaline batteries
• Low battery indicator.
• SpO2 monitoring (oxygen saturation) range: 70-100%,
• Pulse rate measurement range: 30-240 bpm,
• Perfusion measurement range: 0.2-20%,
• High accuracy results,
• Audible and visual alarm,
• Automatically turns on when placed on a finger.

Extremely lightweight: only 35 grams!!!

Creative PC-60NW automatically turns off after 8 seconds when the measurement is complete, consuming very little power and allowing continuous operation for up to 30 hours.

TECHNICAL SPECIFICATIONS

4-way, 4-color OLED screen

Power supply: 2 × 1.5V AAA batteries

Power consumption: ≤40mA

Dimensions: 60 × 33 × 30 mm

Weight: approximately 35g with batteries

SpO2 Measurement

SpO2 measurement range: 75-100%

Accuracy: within the SpO2 range of 75-100%, possible error is ±2%; below 75% is not specified. Resolution: 1%

PR Pulse Rate Measurement

Measurement range: 30 bpm - 240 bpm

Accuracy: ±2 bpm or 2%, whichever is greater. Displayed value resolution: SpO2: 1%, Pulse Rate: 1bpm. Perfusion Index (PI) display range: 0%-20%.

PI Perfusion Index Measurement

Optical Sensor

Red light (wavelength – 660 nm ±3nm)

Infrared light (wavelength – 905 nm ±5nm, 1.2 mW)

Protection Rating

Type of protection against electric shock: II (internally powered device) Degree of protection against electric shock: Type BF device

Operating mode: continuous operation

Protection against moisture and water ingress: IP22

Electromagnetic compatibility: Group I, Class B

Strictly Certified Reliability

Creative P-60NW, as a Class IIa medical device, holds a CE Certificate (Certificate of Conformity with Directive 93/42/EEC) issued by an authorized EU notified body: TUV SUD PRODUCT SERVICE GMBH RIDLERSTR 65, D-80339 MUNICH, GERMANY.

The certificate of conformity confirms that the device meets the requirements of a range of strict standards related to measurement reliability, device quality, safety (including electrical), labeling, risk, etc.:

ISO 13485: 2016 / EN/ISO 14971: 2012 / EN 60601-1: 2006+A1: 2013 / EN 60601-1-2: 2015 / IEC60601-1-6:2010+A1:2013 / IEC 60601-1-11: 2015 /ISO 80601-2-61: 2011 / ISO 15233-1: 2016 / ISO 10993-5: 2009 / ISO 10993-10:2010 / EN ISO 14155:2011/AC:2011 / EN1041:2008+A1:2013

Reputable Manufacturer

Creative is a reputable manufacturer of specialized medical equipment for monitoring vital signs such as pulse oximeters, patient monitors, ECG machines, capnographs, and many others.

Founded in January 2000, Creative pursues its vision of "caring for human health and helping to improve quality of life." The core value of Creative is the adoption of a strict quality control system to ensure reliable products at competitive prices.

Over the past 17 years, Creative has developed its product line from patient monitoring and pulse oximetry to rehabilitation. Now, it is entering the era of mobile healthcare with the latest technologies.

To date, Creative has collaborated with its business partners, assisting thousands of hospitals and home users in over 80 countries and regions.

Storage and transport conditions:

Temperature: -10°C to +40°C Relative humidity: 10-80% Atmospheric pressure: 50 hPa - 106 kPa

Operating conditions:

Temperature: 5-40°C Relative humidity: 30-80% Atmospheric pressure: 70kPa - 106kPa Operation under low perfusion conditions: SpO2 and pulse rate measurement accuracy will remain consistent with the precision standards described above, provided the modulation amplitude is at least 0.6%. Interference from ambient light: The difference between the SpO2 value measured under natural indoor lighting conditions and in darkness is less than ±1%.

Included in the set:

• Pulse Oximeter

• Lanyard

• 2 AAA batteries

• User manual

• Tax rate: VAT 8%

Medical device information:

This is a medical device. Use it according to instructions or label

User manual in Polish - YES

Label and in Polish - YES

Application to the Office for Registration of Medical Products: YES

CE certified product: YES

Advertisers: Novamed.pl S.A.
