Pusiau automatinis suvirinimo aparatas EXPERT MULTI 230 PULSE 4in1, TIG funkcija

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas EXPERT MULTI 230 PULSE 4in1, TIG funkcija. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: EXPERT

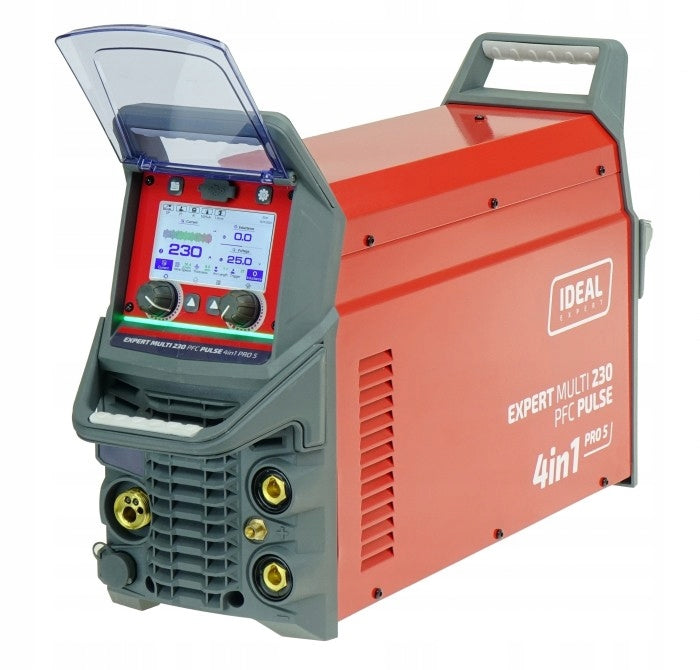

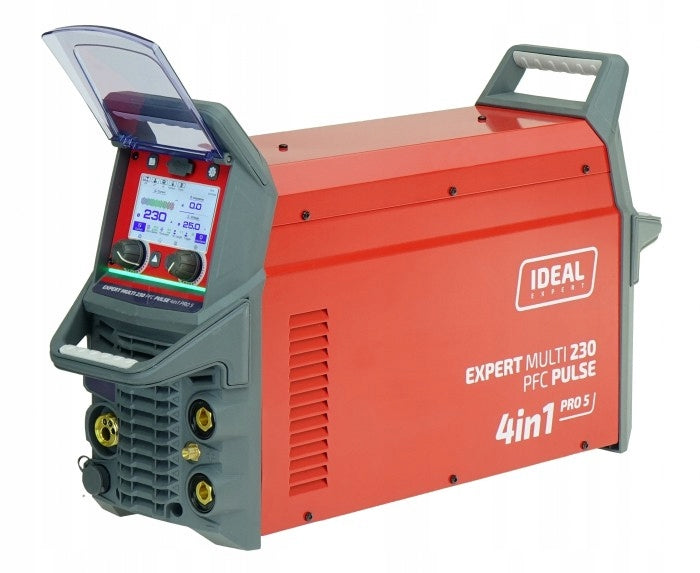

Multifunctional welding machine EXPERT MULTI 230 PFC PULSE 4in1 Pro5 is a modern power source designed in IGBT inverter technology. It enables welding using MIG/MAG (also FLUX and with pulse), TIG AC/DC (also TIG PULS) and MMA (DC/AC, also with pulse).

Designed for both workshops and advanced service, construction or repair applications.

With this welding machine, you can:

• steel, stainless steel, aluminium and soldered welds (CuSi),
• welding of thin materials thanks to TIG PULS parameters adjustment,
• welding with direct current (DC) or alternating current (AC),
• precise MIG pulse welding with single and double pulse.

The device allows you to quickly adjust the operating parameters thanks to the 5-inch touch LCD screen and physical buttons and knobs.

Synergic modes facilitate the selection of settings – just specify the thickness of the material and choose the gas.

For advanced users, manual modes are also available.

MIG/MAG modes:

• 2T, 4T, S2T, S4T, SPOT
• regulation: inductance, gas outflow time, arc length, wire burning
• PULS and DUAL PULS with independent settings for arc length, base current, frequency and time

TIG AC/DC operating modes:

• TIG DC, TIG DC PULSE, TIG AC, TIG AC PULSE, SMART TIG
• choice: 2T, 4T, SPOT, PRT (two-level current)
• extended regulation: AC balance, AC frequency, rise/fall times, gas outflow

Welding MMA (electrode):

• mode selection: DC or AC
• PULSE MMA – for difficult connectors
• HOT START, ARC FORCE, VRD – adjustable

Advanced special features:

• MULTIWAVE, Q-START, DYNAMIC ARC, EXTRA FUSION
• JOB write and read (ready-made configurations)
• PFC (Power Factor Correction) – work with the unit, stable power supply

TECHNICAL DATA:

• Pulse Cycle: 5÷95%
• Current taken from the mains: 31A
• Power supply network protection: C25A
• Rated supply voltage: 230V; 50-60Hz (1ph)
• AC balance: (-)5÷(+)5
• Rising time: 0÷10s
• Current drop time: 0÷10s
• AC frequency: 50÷250Hz
• Pulse frequency: 0.5÷999.0Hz
• Gas after: 0÷10s
• Gas before: 0.1÷2.0s
• Idle Voltage: 72V
• Current at 100% operation: 115A (MIG/MAG/TIG) / 100A (MMA)
• Current at 60% operation: 148A (MIG/MAG/TIG) / 130A (MMA)
• Aluminium wire diameter: 0.8÷1.2mm
• Wire diameter for soldering: 0.8÷1.0mm
• Self-shielding wire diameter: 0.8÷1.2mm
• Steel wire diameter: 0.6÷1.0mm
• Stainless steel wire diameter: 0.8÷1.0mm
• Welding electrode diameter: 1.6÷5.0mm
• Welding Current Adjustment Range: 25÷230A (MIG/MAG) / 10÷230A (TIG) / 10÷200A (MMA)
• Wire spool size: D200 (2 kg and 5 kg)
• Degree of protection: IP21S
• Weight of the device / set: 20/25 kg

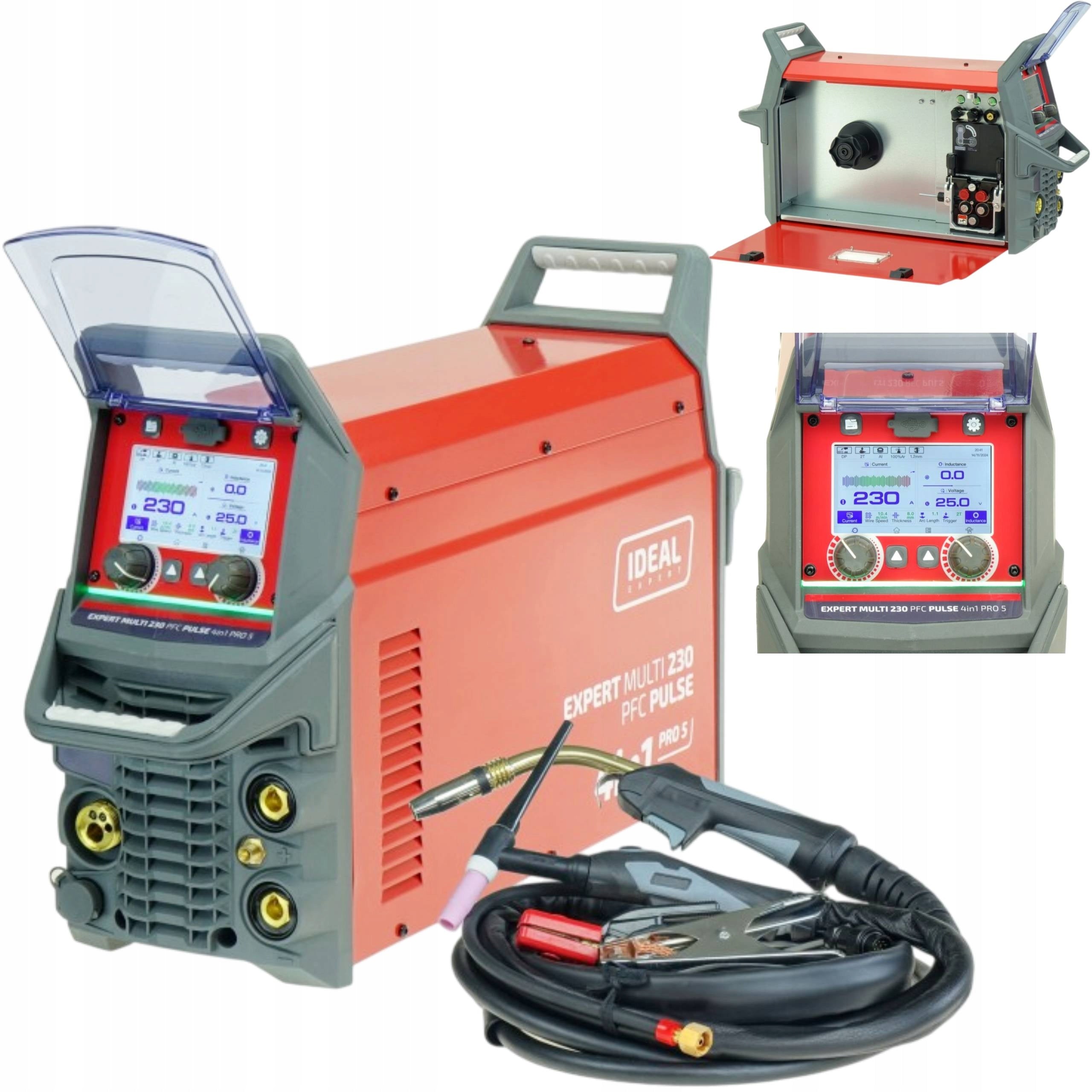

INCLUDED IN THE SET:

• MIG holder 24 – 3 m
• TIG 26 handle with potentiometer – 4 m
• Mass cable – 3 m
• Electrode cable – 3 m
• Gas hose with quick coupler
• Set of consumable parts TIG 26
