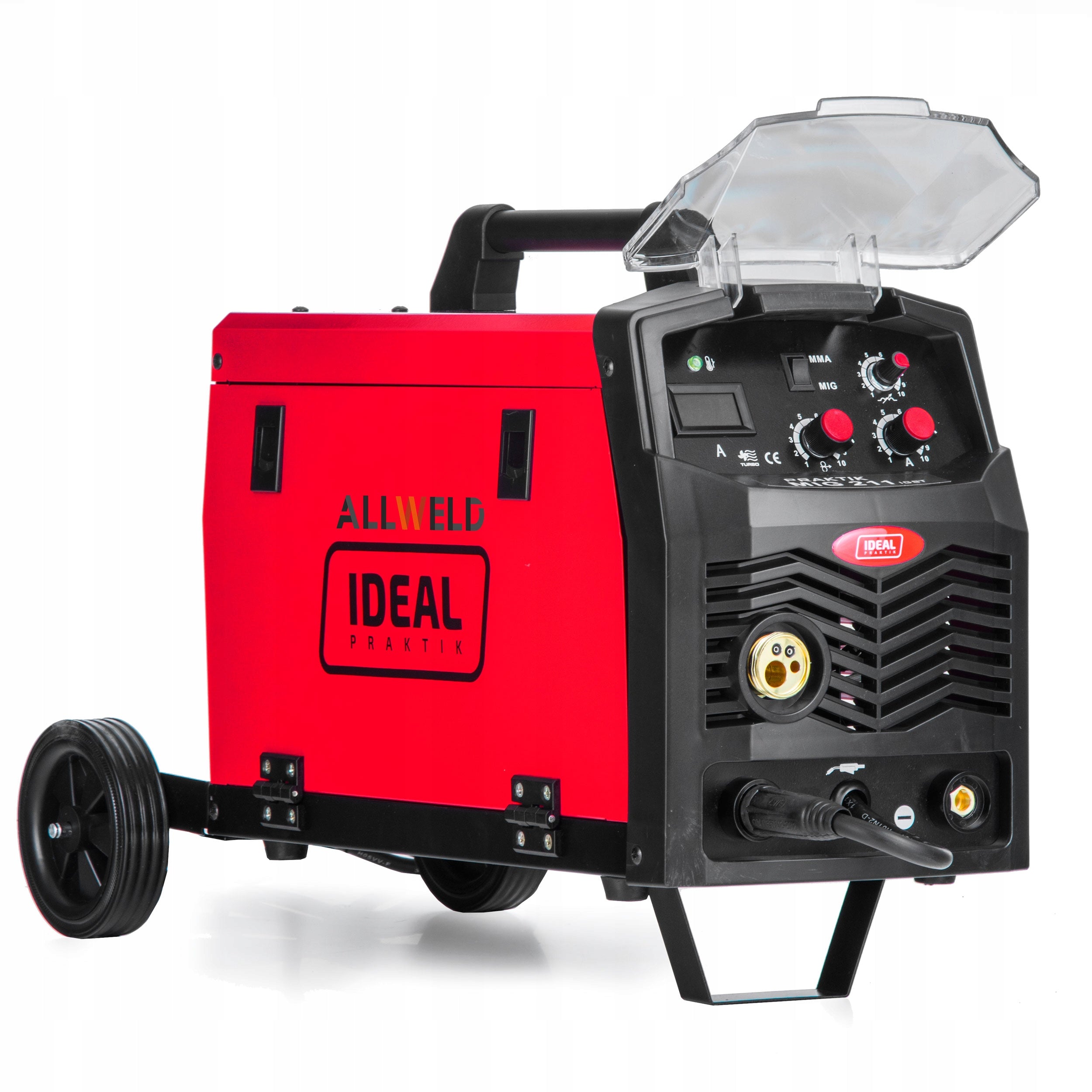

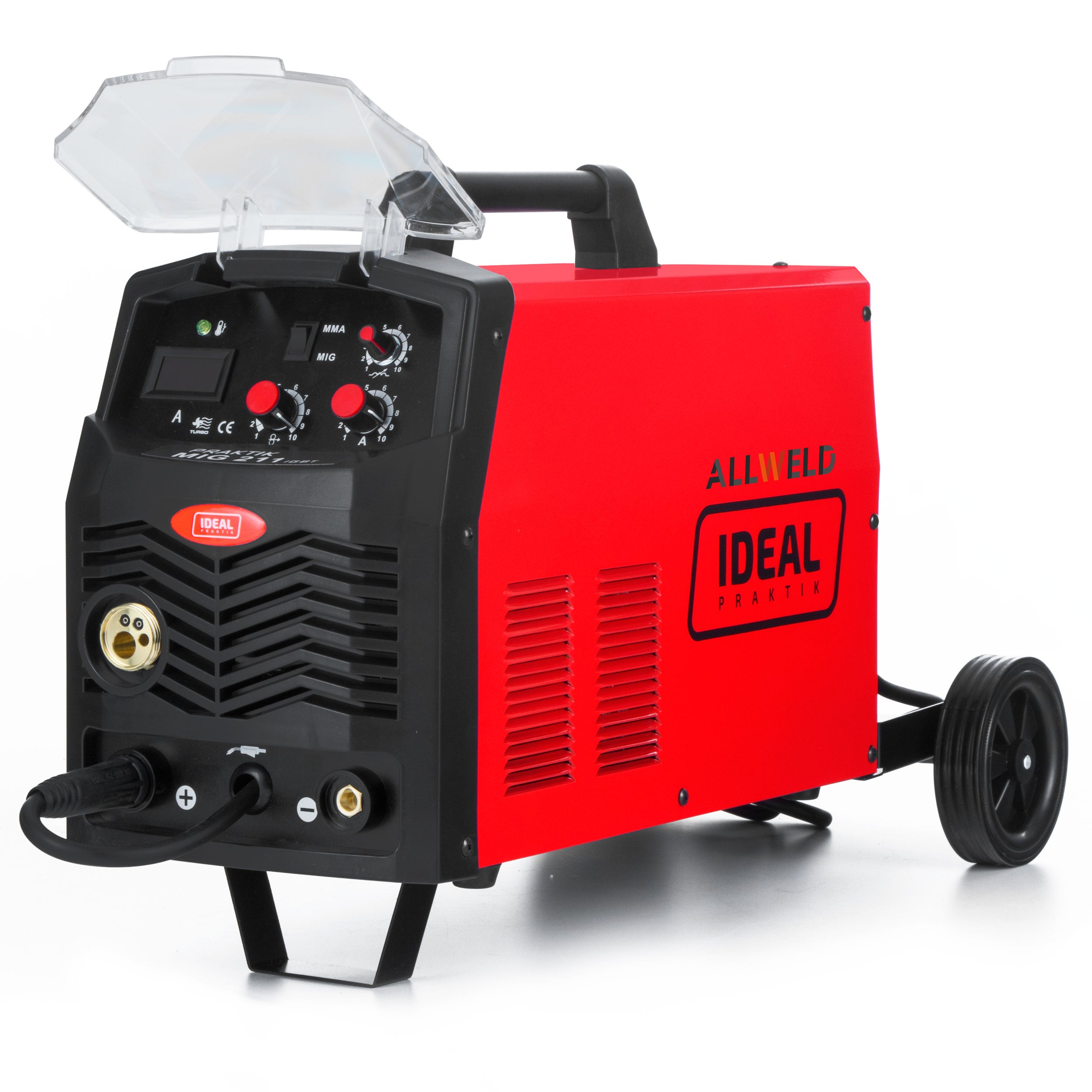

Pusiau automatinis suvirinimo aparatas IDEAL PRAKTIK MIG 211 IGBT MMA FLUX, 230V, 200A, 3-in-1

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas IDEAL PRAKTIK MIG 211 IGBT MMA FLUX, 230V, 200A, 3-in-1. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Ideal Praktik
• Modelis: IDEAL PRAKTIK PMIG211MMA MAPL-15
• Ilgis: 490 mm
• Plotis: 290 mm
• Aukštis: 400 mm

MIGOMAT IDEAL PRAKTIK MIG 211 INVERTER WELDING MACHINE - VERSION WITH ADJUSTABLE INDUCTANCE!

Manufacturer: IDEAL ║ Welding methods: MIG/MAG, MMA, FLUX ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%

DISCOVER THE ADVANTAGES OF THE LATEST VERSION OF THE IDEAL PRAKTIK MIG 211 IGBT WELDING MACHINE

• 3in1 welder: MIG/MAG, MMA, FLUX !
• Recommended for use in flashing plants and workshops
• Regulation of INDUCTANCE
• LUTOWELDING function
• Latest version with handle for EUROCONNECTION
• Single-phase power supply 230V.
• It has a variable polarity.
• Maximum spool with wire: 5 kg.
• Smooth regulation of welding wire feed speed.
• Smooth regulation of welding current and voltage.
• Removable chassis
• Fan cooling increases the efficiency of the device.
• Professional wire feeder: 2-roll, ensures stable feeding of the binder.
• Overload protection with signalling on the front panel.

LEARN ABOUT THE OTHER FUNCTIONS! CHECK FOR YOURSELF

➡ REGULATION OF INDUCTANCE

Allowing less heat to be introduced into the welding site. The sheet does not deform and the protective layer of zinc is not damaged, useful in lutowelding.

➡ SOLDERING

This method is quite similar to MIG/MAG welding, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material we work with. The second part of the name, MIG/MAG, comes from the use of the method of melting wire in an electric arc surrounded by protective gas, as well as from the preparation of the edge of the material in the same way as for traditional welding. However, the soldering method is used not only for bonding galvanized sheets, but also thin sheets made of stainless steel and various connections, i.a. acid-resistant steel of ordinary quality steel or copper with steel.

➡ IGBT

The welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, allowing to increase the efficiency and reliability of the power source.

➡ FLUX

Arc welding with powder wire, not requiring the use of gas cylinders. The wire itself is filled with flux or a chemical that produces protective gases during welding.

➡ OVERLOAD SWITCH

Built-in protection against overheating of the device, prolonging its service life.

➡ REMOVABLE CHASSIS

The welder has the ability to mount the chassis, but also can be used as a mobile welding device. Safe use is ensured by rubber feet on the bottom of the device. The chassis is part of the kit and is a self-assembly kit.

➡ TECHNICAL SPECIFICATION

POWER SUPPLY PARAMETERS

• Power supply: 230V
• Number of phases: 1ph
• Frequency: 50Hz
• Power protection: 20C

TECHNICAL PARAMETERS

• MIG/MAG welding current: 30 ÷ 200A
• MIG/MAG welding voltage: 16,5 ÷ 23 V
• MMA welding current: 30÷180A
• Idle voltage: 43 V
• Efficiency: 60%
• Feeder: 2R
• Spool diameters with wire: to 200mm
• Max. Spool size: 5kg
• Wire diameter: 0.6/0.8/1.2 mm

ADDITIONAL FUNCTIONS

• MMA function: YES
• SOLDERING function: YES
• FLUX welding: YES

PHYSICAL PARAMETERS

• Housing protection: IP21S
• Cooling: fan
• Dimensions: 490x240x400mm
• Weight: 14 kg

Buying in a set - YOU SAVE MONEY

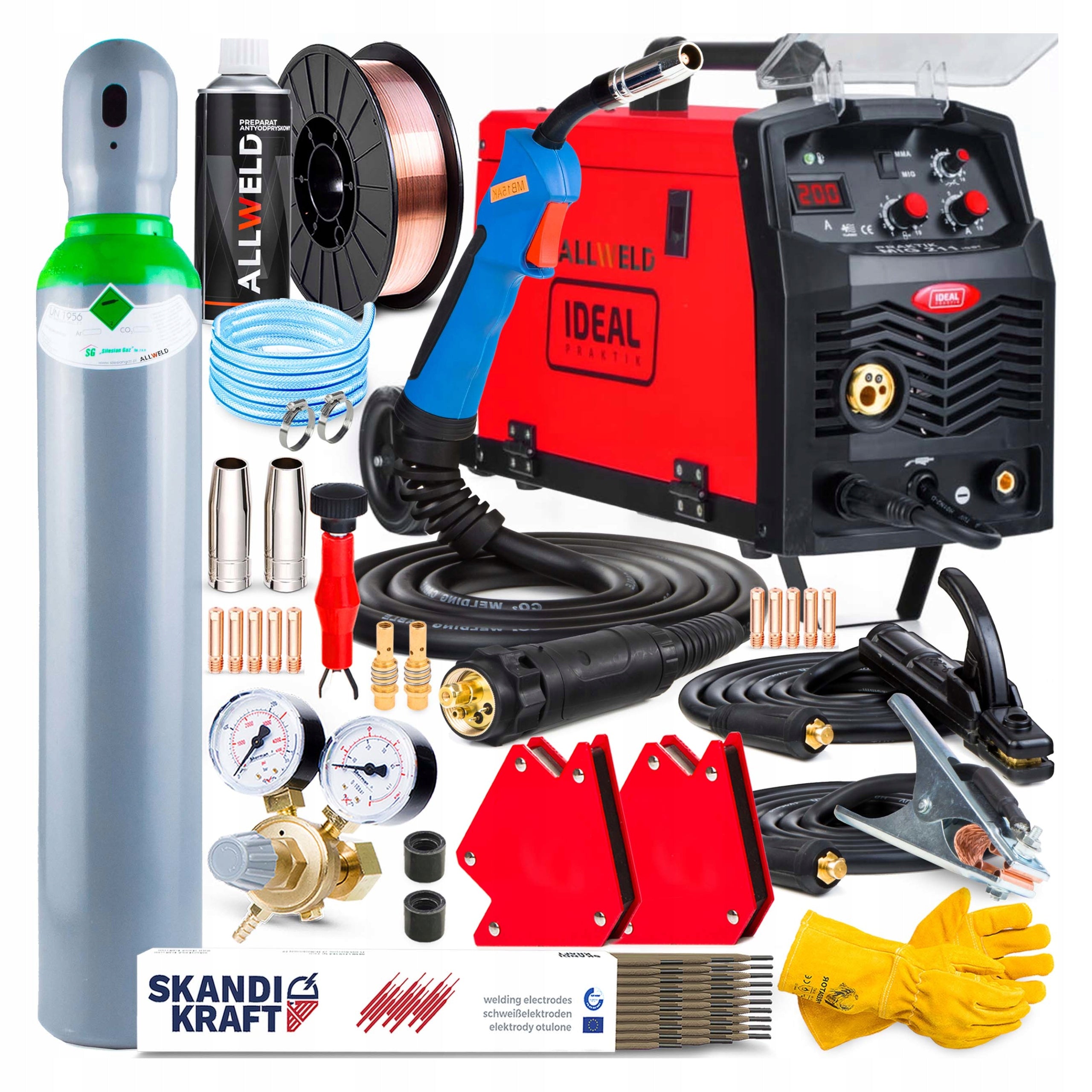

THE SET INCLUDES:

• Welding machine IDEAL PRAKTIK MIG 211 IGBT
• Welding torch MIG/MAG type MB 15 - 3m
• Electrode holder - 2m
• Bulk holder - 2m
• Cartridge for steel wire - 1pcs
• Wire roller 0,6/0,8mm - 1pcs
• Clippers - 2pcs

INCLUDED PLUS:

• Factory new reusable cylinder with Ar (82%) / CO2 (18%) mixture with a capacity of 8l. The cylinders have 10-year-old legalizations and can be filled at any point with technical gases.
• Gas hose - for connecting the reducer to the welding machine.
• Reducer with two pressure gauges - precise reducer with adjustment. Our model has a pressure gauge to control the pressure in the cylinder and a second to the amount of gas flowing out.
• Anti-chipping preparation - protects the nozzle and metal against welding chipping.
• Welding wire SG2 5kg - precision winding
• Clamp ties - 2 pcs.
• Gloves welding - 1 pair
• Scraper for gas nozzles
• Set of MIG/MAG handle consumable parts (nozzles, connectors, tips, insulators)
• Angles magnetic 11kg - 2 pcs.
• Electrodes SKANDI KRAFT 1kg - 1 pack

NECESSARY SET NEEDED TO START WELDING WORK WITH MIGOMAT.

Welding visor, you can choose yourself, looking at our other auctions or rely on our help!
