Pusiau automatinis suvirinimo aparatas MAGNUM MIG 170W MMA ALU SYN 230V IGBT

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas MAGNUM MIG 170W MMA ALU SYN 230V IGBT. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: U MI 170W MMA

Manufacturer: MAGNUM ║ Welding methods: MIG/MAG, MMA, FLUX ║ Power supply: 230V ║ Welding current: 160A ║ Efficiency: 60%

DISCOVER THE BENEFITS OF THE MAGNUM SEMI-AUTOMATIC

• Welding in MIG/MAG, MMA, FLUX
• Power supply on 230V
• Welding current up to 160A in cycle 60%
• Feeder wire supports spools up to 5kg
• Regulation of inductance - even better weld
• Simple control - only 3 knobs
• Efficient fan provides cooling of equipment
• Ideal equipment for car plants
• Mobile welding machine - chassis
• Possibility of disassembly of chassis - adaptation to stationary work
• Displays show current voltage and intensity of welding current
• Mounted handle for carrying equipment
• Chassis with space for cylinders
• Welding torch permanently mounted!
• Great welding machine for amateur work
• Perfect for household and agricultural

UNIVERSAL WELDING MACHINE

MAGNUM MIG 170W MMA is a semi-automatic welding machine designed for welding with MIG/MAG and MMA methods with a maximum current of 160A at 60% efficiency. Thanks to this, we are guaranteed to obtain a melt with a maximum thickness of 3mm (the maximum thickness of the welded material is 6-8 mm).

SMOOTH REGULATION AND SOLDERING OF CUSI3

The welder allows for smooth adjustment of parameters and stable operation in long cycles without worrying about the welder turning off. It allows welding without chipping of both thin sheets and thick profiles and the process of lutowelding of sheets covered with a layer of zinc, used mainly in the automotive industry. We can use it as a MMA welding machine for welding with wrapped electrodes.

WELDING WITHOUT GAS

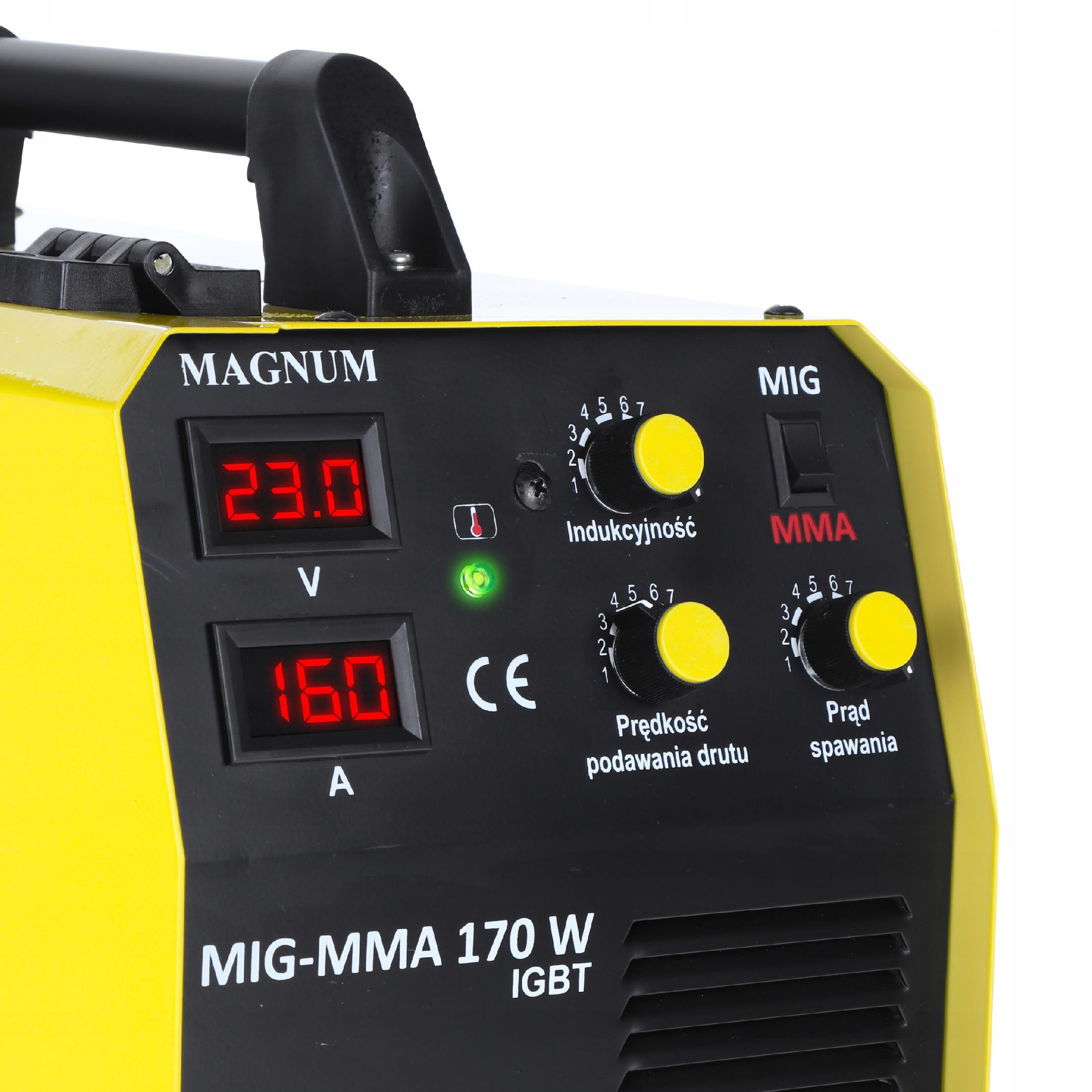

The variable polarity used allows welding without gas using the FLUX method with self-shielding wire. MAGNUM MIG 170W MMA has an easy-to-use integrated function panel with knobs, enabling smooth adjustment of welding current, wire feed speed and inductance. This solution guarantees simplicity and ease of use.

CHASSIS - the device is equipped with chassis, which guarantee high mobility and the ability to move the welding machine in an easy way. The chassis also allows you to mount a gas cylinder without having to invest in a welding cart.

FLUX - arc welding with powder wire, not requiring the use of gas cylinders. We use self-shielding wire, which is filled with flux or chemical substance producing protective gases during welding.

LUTOSPELING - this is a process by which you can freely connect galvanized sheets, which are often used in car bodies. The main advantage of solder welding is the maintenance of a protective zinc coating at the solder-zinc interface.

POWER SUPPLY PARAMETERS:

• Power supply voltage: 230V
• Number of phases: 1ph
• Power Current Frequency: 50Hz
• Security required: 16A

TECHNICAL PARAMETERS:

• Efficiency: 60%
• Idle voltage: 56V
• Feeder: 2R
• Max. Spool size: 5kg
• Inductance adjustment: Yes
• Welding without gas: Yes

MIG/MAG WELDING PARAMETERS

• MIG/MAG welding current range: 30-160A
• Efficiency 60%
• Feeder: 2 roller
• Wire spool: ≤ 5kg / ∅200mm
• Wire diameter: 0.6 / 0.8
• Welding current: 160A
• Output voltage: 16,5-23V

WELDING PARAMETERS MMA

• Welding current range MMA: 30-160A
• Efficiency: 60%
• Welding current: 160A
• Maximum electrode diameter: 4mm

PHYSICAL PARAMETERS:

• Degree of protection: IP21S
• Cooling: fan
• Dimensions without chassis: 430x205x330 mm
• Indicative dimensions (with chassis): 620x205x330mm
• Weight: 12kg

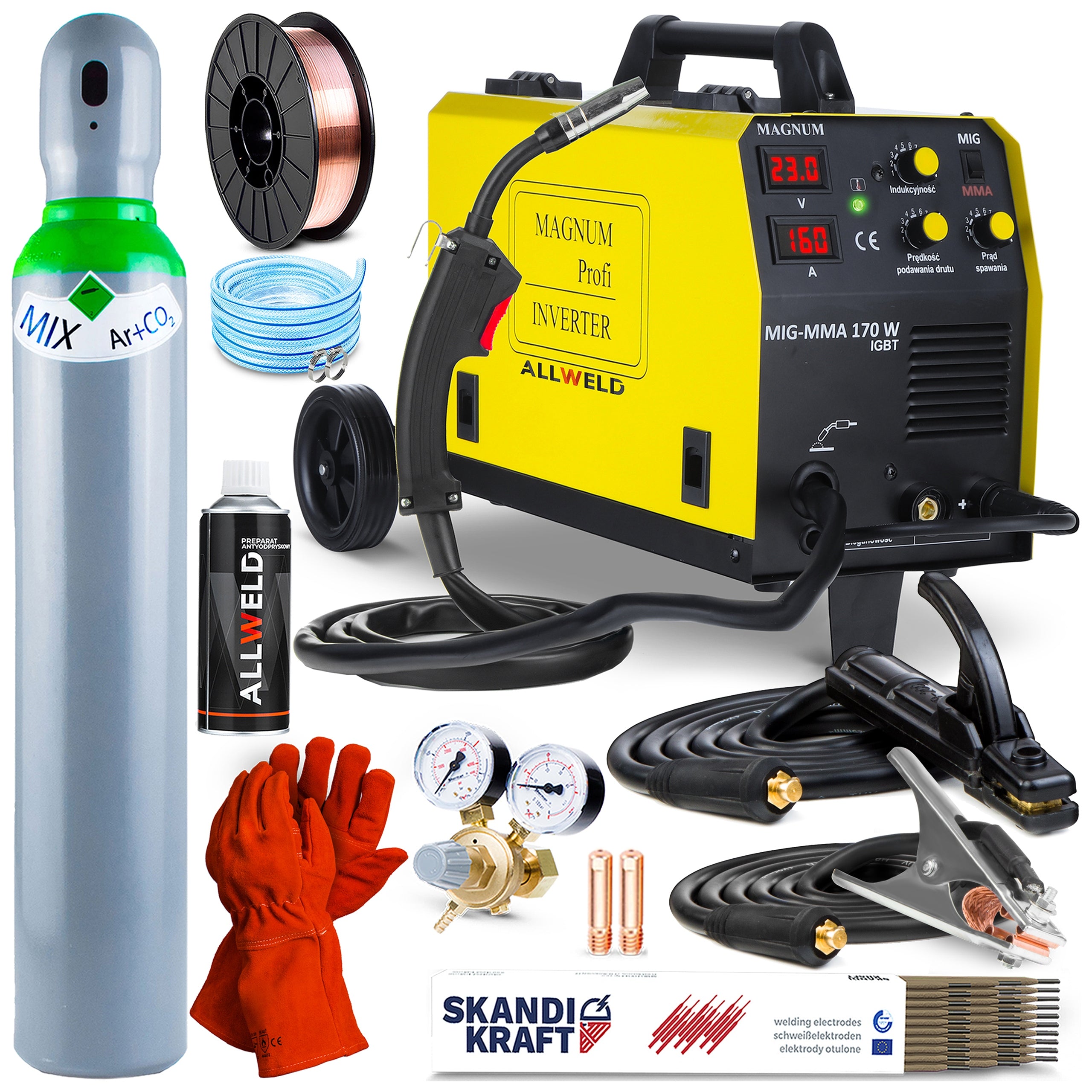

THE SET INCLUDES:

• Welding machine MAGNUM MIG 170W MMA
• Welding torch MIG/MAG MB 14 fixed - 2m
• Electrode holder - 2m
• Bulk holder - 2m
• Operating manual and warranty card

WELDING ACCESSORIES:

• Cylinder with gas mixture Argon/CO2
• Cylinder reducer Ar/CO2 MINI with two pressure gauges
• Welding wire SG2 - 5kg
• Anti-chipping preparation ALLWELD
• Gas connection hose - 1 pcs
• Clippers - 2pcs
• SKANDI KRAFT electrodes 1kg - 1pc
• Welding gloves - 1 pair
