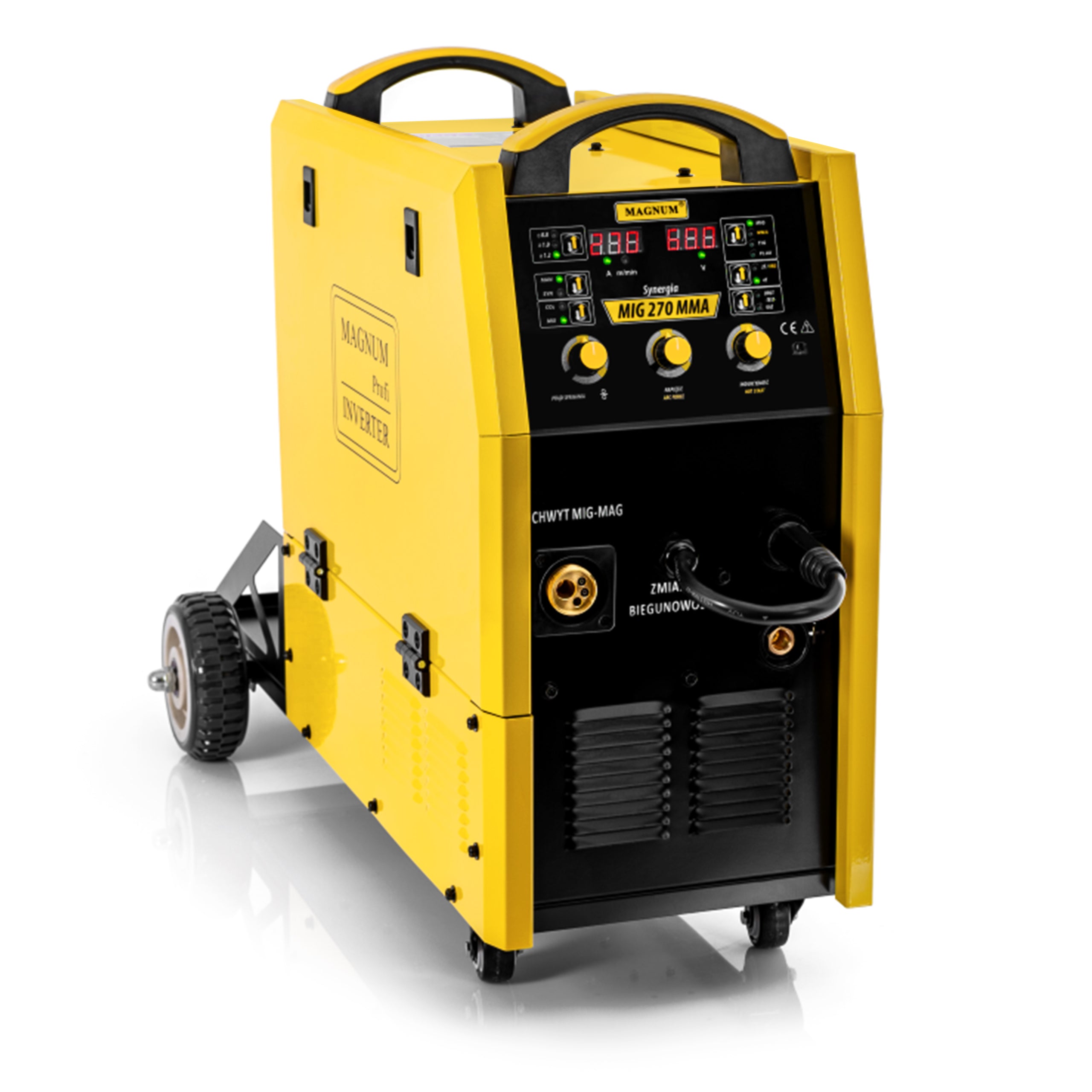

Pusiau automatinis suvirinimo aparatas MAGNUM MIG 270 MMA SYNERGY, 270A, 400V, IGBT, 4x4, aliuminiui

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas MAGNUM MIG 270 MMA SYNERGY, 270A, 400V, IGBT, 4x4, aliuminiui. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: U MI 270 SYN

Manufacturer: MAGNUM ║ Welding methods: MIG/MAG, MMA, SOLDERING ║ Power supply: 400V ║ Welding current: 270A ║ Efficiency: 60%

Choose a three-phase semi-automatic welding machine with the possibility of soldering, which will work in all conditions!

CHECK ALL THE ADVANTAGES OF THE SYNERGISTIC SEMI-AUTOMATIC MAGNUM

• Excellent welding of steel and aluminium
• Synergic programmes
• Option to manually set the welding machine
• Welding with three methods MIG/MAG, MMA, TIG DC
• Gas test
• Wire test function
• Robust chassis with space for cylinders
• 2T/4T mode
• Support 5kg and 15kg spools
• 4-roll feeder
• Made in IGBT inverter technology
• Adjustable inductance
• Possibility of soldering CuSi3

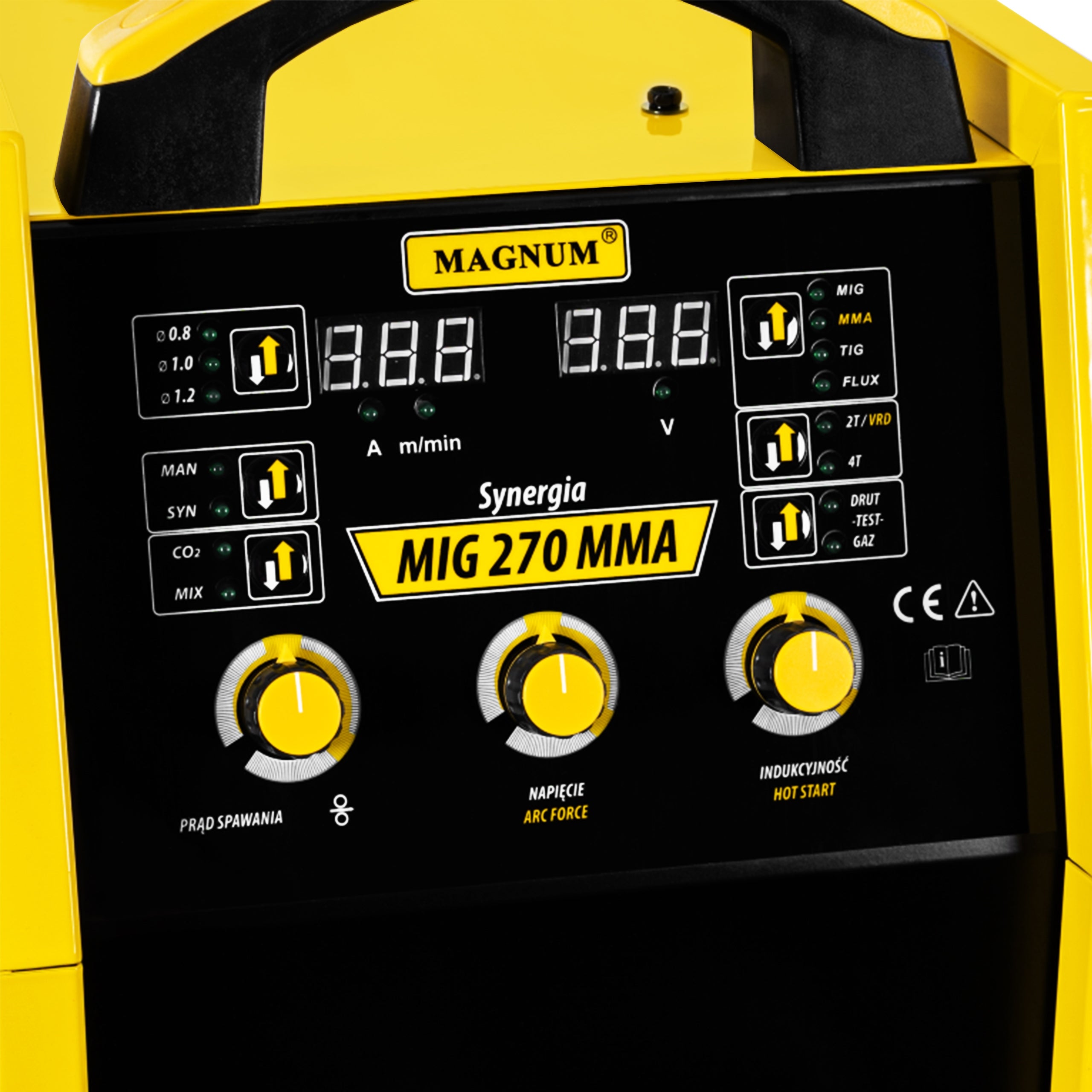

• Clear soft control panel
• Operation with current 270A in cycle 60%

• If you are an experienced welder, you can use the manual settings.
• Adjustable inductance gives us the ability to adjust the width and depth of the weld melt.
• Smooth adjustment of parameters allows for precise "tuning" of the device.
• The possibility of welding galvanized sheets makes the device ideal for bodywork.

RELIABLE DEVICE

Inverter welder MAGNUM MIG 270 SYNERGIA is a migomat that allows for qualitative welding using the methods MIG/MAG and MMA maximum current 270A with an efficiency of 60%. The applied power allows for fully professional use both in heavy production conditions and in smaller repair workshops. The welder does not overheat and allows you to work in long cycles without worrying about turning off or overheating.

SYNERGY AND MANUAL MODE

MAGNUM MIG 270 SYNERGY gives us the ability to work in synergistic mode or in an option with manual setting of the welding machine. If the synergy mode is selected, it is a modern electronic control microprocessor automatically selecting operating parameters depending on the wire diameter, type and thickness of the material. For advanced welders, manual mode is also available.

SOLID CHASSIS AND 4x4 FEEDER

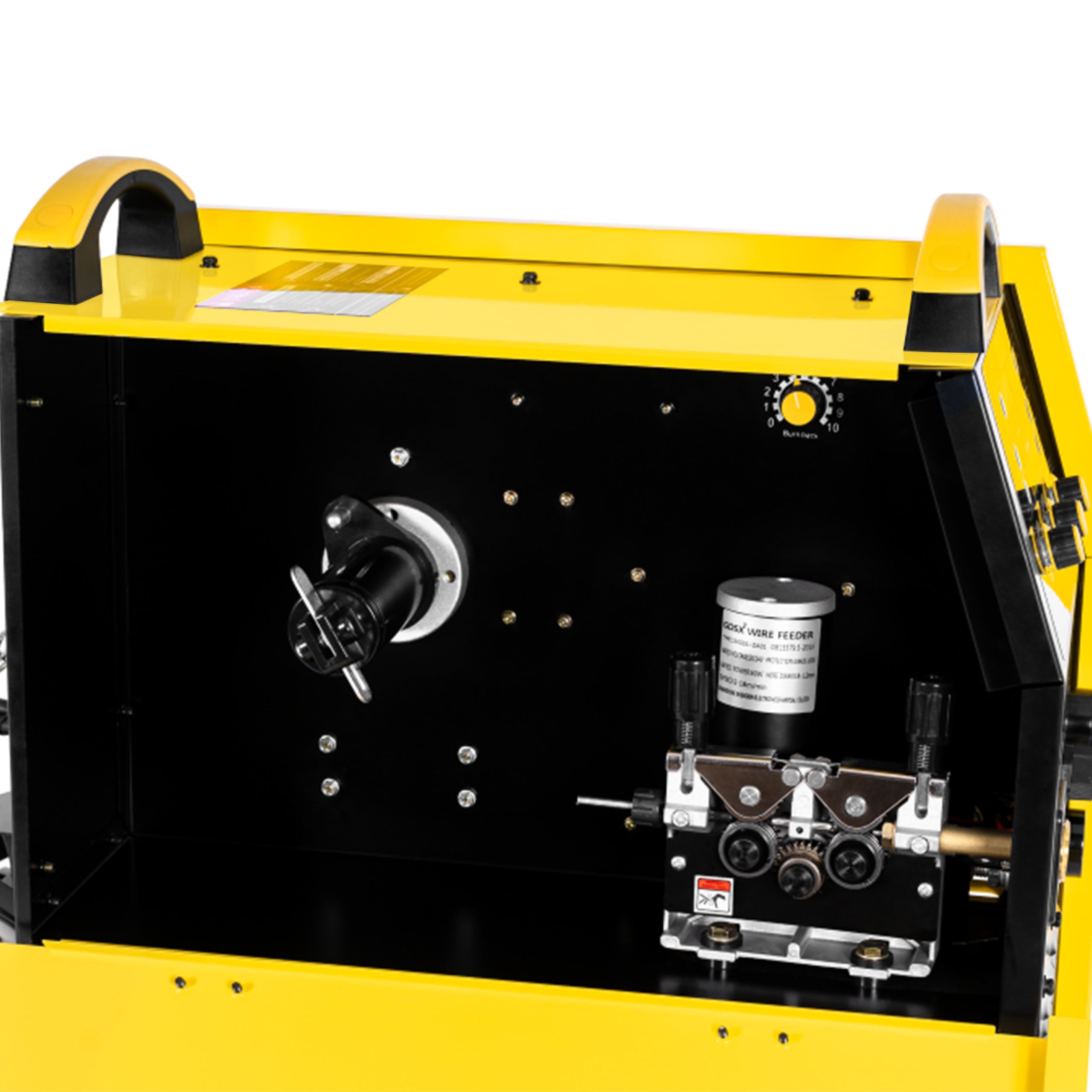

The great advantage of the welding machine is the four-roll wire feeder used in the device. Such a feeder guarantees stable operation without wire jams, and also allows you to use long welding handles even 5m! The semi-automatic machine is also equipped with a solid chassis, equipped with strong and durable wheels that guarantee high mobility and give the possibility of moving the welding machine on uneven ground. In addition, we gain a dedicated space for gas cylinders.

OVERLOAD SWITCH - built-in protection against overheating of the device, prolonging its service life.

REG. INDUCTION - allowing less heat to be introduced into the welding site. The sheet does not deform and the protective layer of zinc is not damaged, useful in lutowelding.

LUTOSPELING - this method is quite similar to MIG/MAG welding, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. However, the soldering method is used not only for bonding galvanized sheets, but also thin sheets made of stainless steel and various connections, m.in. acid-resistant steel of ordinary quality steel or copper with steel.

IGBT - modern IGBT transistors are used in the welding machine, the solution ensures lower electricity consumption, greater resistance to interference, voltage drops, but also trouble-free operation.

POWER SUPPLY PARAMETERS

• Power Supply: AC 400V
• Frequency: 50Hz
• Number of phases: 3ph
• Security required: 20 C [A]

TECHNICAL PARAMETERS

• MIG/MAG welding current: 40 - 270A
• MMA welding current: 60 - 270A
• Efficiency: 60%
• Idle voltage: 69V
• Type of feeder: 4R
• Max. Spool size: 15kg
• Spool diameters with wire: 200mm, 300mm
• Wire diameter: 0.8/1.0/1.2mm

PHYSICAL PARAMETERS

• Housing protection class: IP21S
• Dimensions (with chassis): 560x300x860mm
• Weight: 35 kg

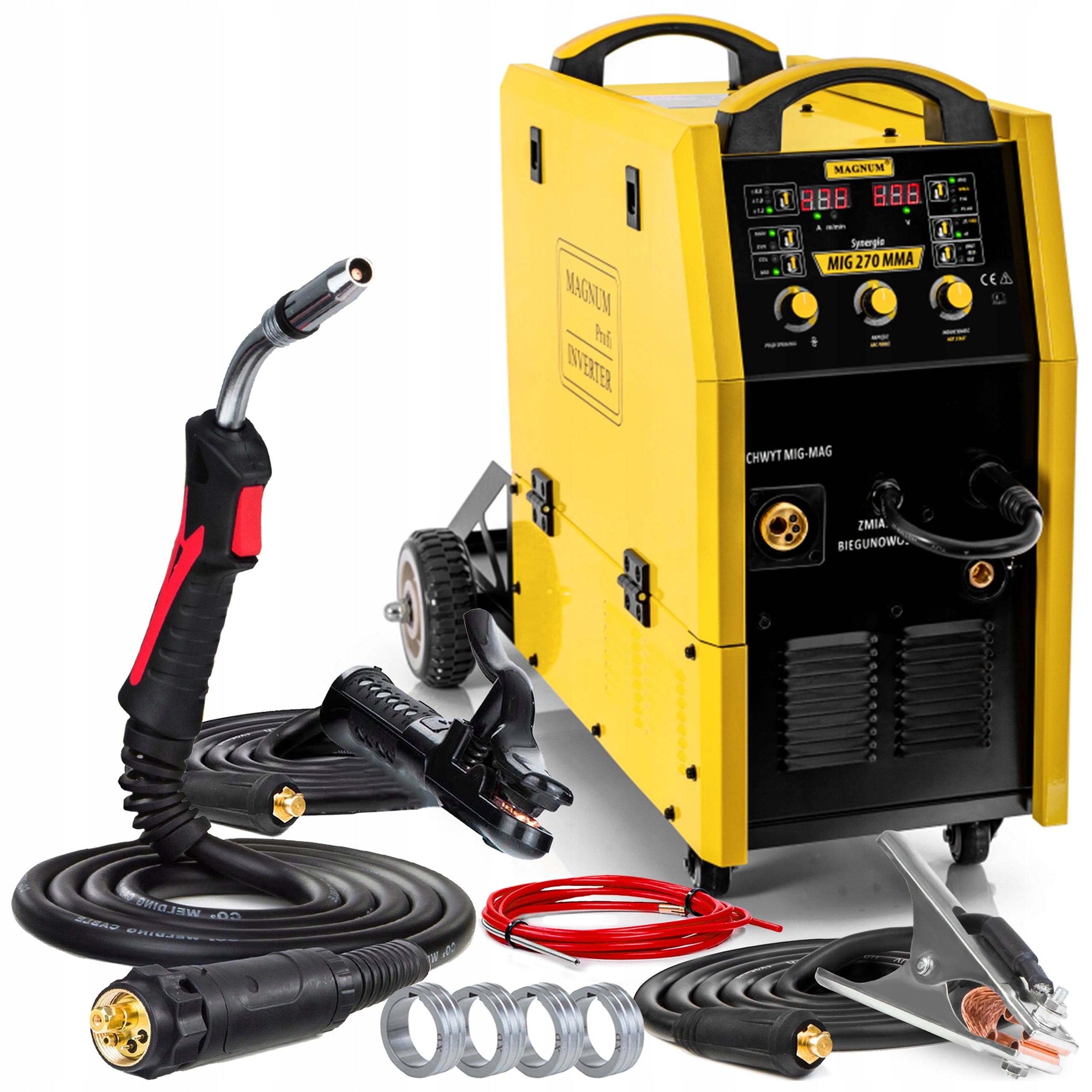

THE SET INCLUDES:

• Welding machine MAGNUM MIG 270 SYNERGY
• Welding torch MIG/MAG type MB24 - 3M
• Electrode holder - 2m
• Bulk holder - 2m
• Wire roller 0,8/1,0mm - 2 pcs.
• Wire roller 1,0/1,2mm - 2 pcs.
• User manual in Polish

If you need other accessories such as a cylinder, wire, nozzles or visor, you will find them at our other auctions!

NOTE! The welder does not have the ability to change the handle for a longer one, due to the factory adaptation of the handle for welding aluminum and other materials, you can buy a longer handle separately.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Power consumption	12.5 kVA
Parametry	Supply voltage (V)	400
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	6 mm
Parametry	Device weight	14.5 kg
Parametry	Welding range	40–270 A
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	35 kg
Parametry	Manufacturer code	U MI 270 SYN
Parametry	EAN (GTIN)	5901217100130
Parametry	Packaging status	original
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	transport wheels,infinitely adjustable welding current,EURO handle
