Aprašymas
Trumpai apie prekę

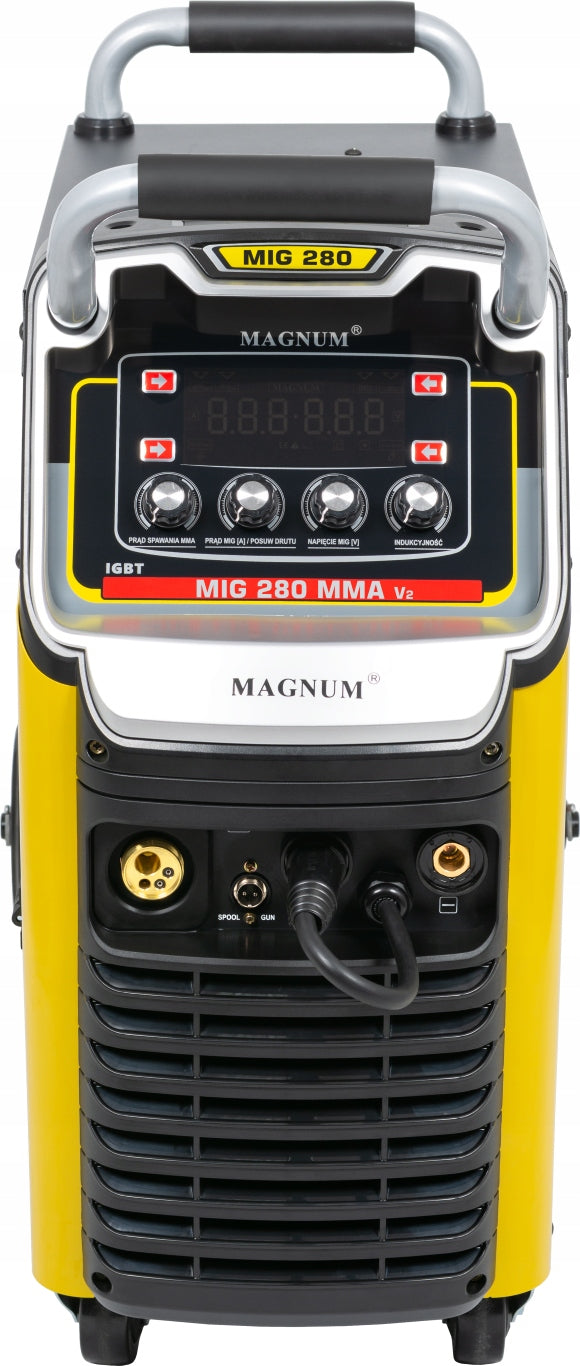

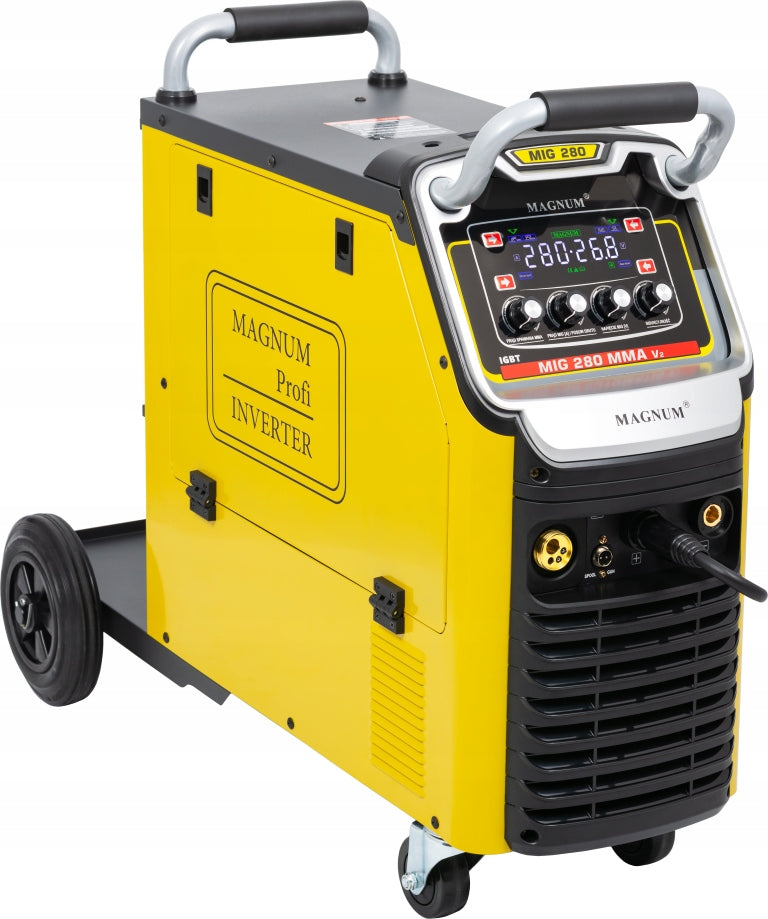

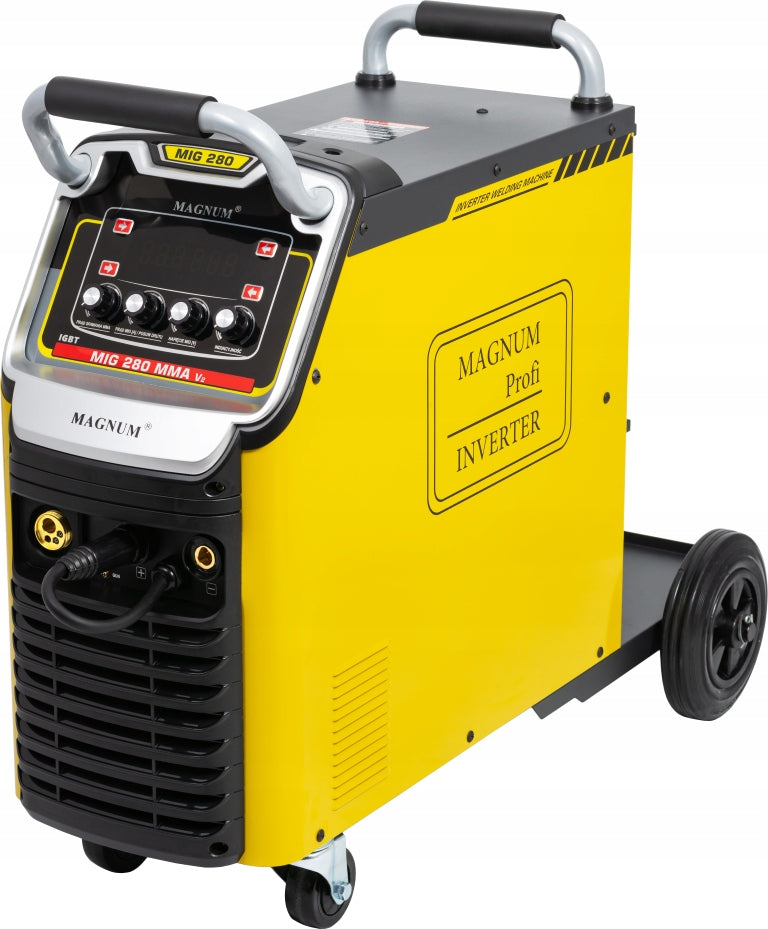

Prekė: Pusiau automatinis suvirinimo aparatas Magnum MIG 280 MMA V2, 400V. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Magnum
- Modelis: U MI 280 MMAV2
- Ilgis: 680 mm
- Plotis: 300 mm
- Aukštis: 650 mm
MIG 280A/400V Magnum MIG 280 MMA V2
The MIG 280 MMA IGBT V2 is a professional semi-automatic welding machine designed for manual, electric welding of low-carbon steel, low-alloy steel (MAG), alloy steel (MIG) and aluminum and its alloys. The device can also be welded using the MMA method, using hot melt coated electrodes.
The power source was built on IGBT transistors providing a minimum of electromagnetic interference, small power losses in basic circuits, allowing to increase the efficiency and reliability of the power source. Very high efficiency, which translates directly into lower energy consumption, and high switching frequency, ensure rapid adjustment of the current to changes in parameters during welding.
Functions and advantages:
- regulated inductance
- smooth adjustment of welding parameters
- 4X4 feeder
- LED display COLOR
- solid chassis with space for cylinder
- 2T/4T function
- MMA welding
Technical data:
- Power supply: 400 V / 50 Hz
- Efficiency: 60%
- Welding Current: 300 A
- Welding Voltage: 16,5-26.5 V
- Idle Voltage: 68 V
- Wire spool: max. 15 kg
- Wire diameter: 0.6 mm - 1.2 mm
- Power Protection: 20 A (C)
- Housing protection: IP21S
- Device Cooling: AIR
- Handle Cooling: GAS
- Weight: 38 kg
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Magnum |
| Parametry | Power consumption | 12.4 kVA |
| Parametry | Supply voltage (V) | 400 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,8-1,2 |
| Parametry | Device weight | 38 kg |
| Parametry | Welding range | 50–300 A |
| Parametry | Height | 650 mm |
| Parametry | Length | 680 mm |
| Parametry | Width | 300 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 500 cm |
| Parametry | Product weight with unit packaging | 45 kg |
| Parametry | Manufacturer code | U MI 280 MMAV2 |
| Parametry | EAN (GTIN) | 5905323108202 |
| Parametry | Model | U MI 280 MMAV2 |
| Parametry | Welding methods | MIG/MAG,MMA |
| Parametry | Additional features | transport wheels,infinitely adjustable welding current,EURO handle,LCD display |
